Product code: 21P-617-3800F-17G-65H13V
21-Port, TDD Hybrid Panel Antenna 65° HBW, (2x) 617-894/(2x) 1695-2200/(2x) 2490-2690/(1x) 3400-3800 MHz, 15.5/15.5/17/17/17/17/17 dBi, 2-12°, 2.147 m

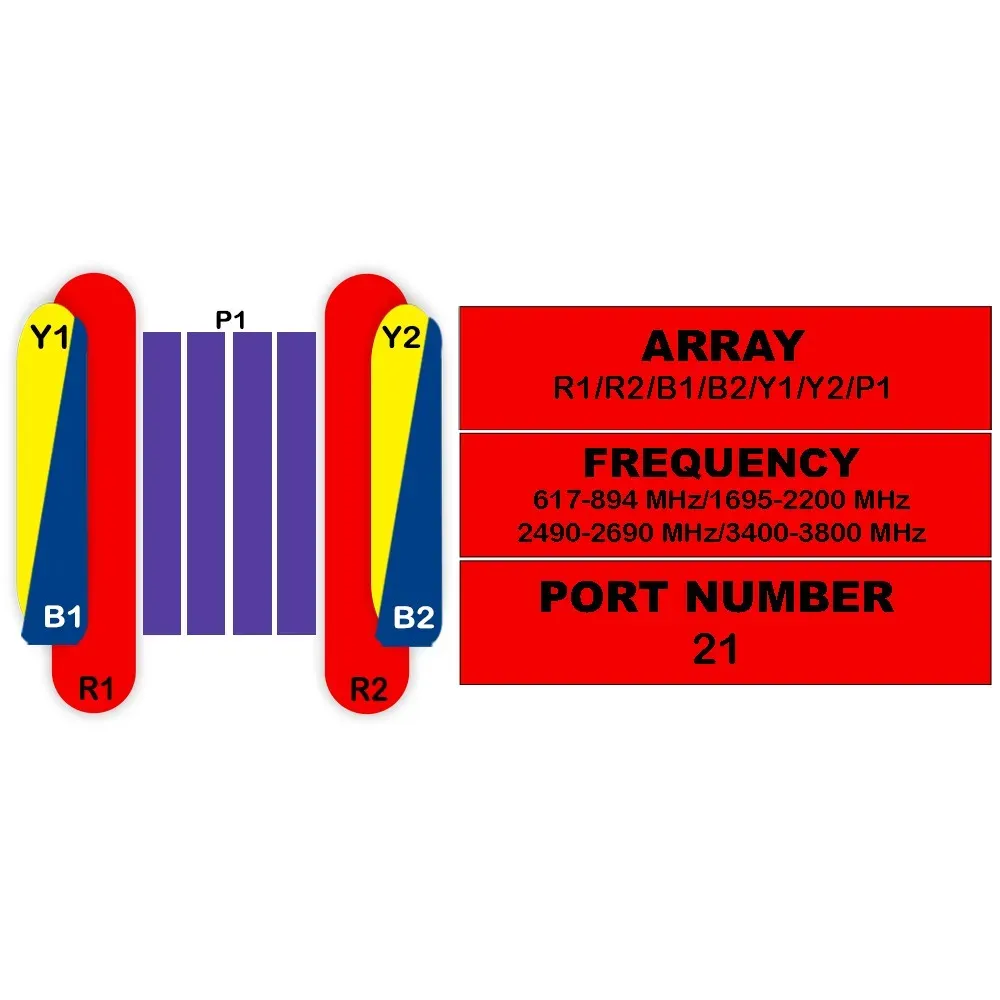

21-Port Antenna | R1 | R2 | B1 | B2 | Y1 | Y2 | P1 |
Frequency Range (MHz) | 617-894 | 617-894 | 1695-2200 | 1695-2200 | 2490-2690 | 2490-2690 | 3400-3800 |
HBW | 65° | 65° | 65° | 65° | 65° | 65° | 65° |
Gain | 15.5 dBi | 15.5 dBi | 17 dBi | 17 dBi | 17 dBi | 17 dBi | 17 dBi |
Tilt | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° |
Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(9x) 4.3/10
Female |
Product Part Number
21P-617-3800F-17G-65H13V
Electrical & Mechanical Specification
Electrical Specifications | |||||||||
---|---|---|---|---|---|---|---|---|---|
R1 / R2 | B1 / B2 | Y1 / Y2 | |||||||
Frequency Range | MHz | 617-894 | 1695-2200 | ||||||
MHz | 617-698 | 690-806 | 790-894 | 1695-1880 | 1850-1990 | 1920-2200 | 2490-2690 | ||
Polarization | — | ±45° | ±45° | ±45° | |||||
Gain | at Mid Tilt | dBi | 14.2 | 14.8 | 15.3 | 16.6 | 16.9 | 17.2 | 17.4 |
Over All Tilts | dBi | 14.0 ± 0.5 | 14.6 ± 0.5 | 15.1 ± 0.5 | 16.4 ± 0.6 | 16.7 ± 0.6 | 17.0 ± 0.6 | 17.2 ± 0.5 | |
Horizontal Beamwidth | degree | 73 ± 6.0 | 68 ± 6.0 | 66 ± 5.0 | 69 ± 6.5 | 67 ± 6.5 | 65 ± 6.5 | 63 ± 6.0 | |
Vertical Beamwidth | degree | 13.1 ± 1.1 | 11.6 ± 0.9 | 10.2 ± 0.8 | 6.2 ± 0.5 | 5.6 ± 0.5 | 4.9 ± 0.5 | 4.4 ± 0.5 | |
Electrical Downtilt, Continuously Adjustable | degree | 2-12 | 2-12 | 2-12 | |||||
Tilt Accuracy | degree | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | |
Upper Side Lobe | First Upper Lobe | dB | > 15 | > 16 | > 16 | > 16 | > 16 | > 16 | > 15 |
Suppression | Peak to 20° | dB | > 14 | > 15 | > 15 | > 14 | > 14 | > 14 | > 14 |
Front-To-Back Ratio ±30° | dB | > 21 | > 22 | > 23 | ≥ 23 | ≥ 24 | > 24 | > 27 | |
Cross Polar Discrim- | At Boresight | dB | > 16 | > 17 | > 18 | > 16 | > 16 | > 17 | > 18 |
ination | Over Sector | dB | > 7.0 | > 8.0 | > 7.5 | > 6 | > 6 | > 6 | > 3.0 |
Isolation | Cross-Polar | dB | > 25 | > 26 | > 26 | ||||
Port to Port | dB | > 25 (R1//R2); > 28 (R1//B1, B2, Y1, Y2, P1) | > 28 | > 28 | |||||
Impedance | Ohm | 50 | 50 | 50 | |||||
VSWR | — | < 1.5 | < 1.5 | < 1.5 | |||||
Return Loss | dB | > 14 | > 14 | > 14 | |||||
PIM3 (2×43 dBm Carrier) | dBc | < -150 | < -150 | < -150 | |||||
Lightning Protection | — | DC Ground | DC Ground | DC Ground | |||||
Maximum Average Input Power per Port, at 50° C Ambient Temperature | Watts | 250 | 200 | 200 | |||||
P1 | |||||||||
Frequency Range | MHz | 3400-3800 | |||||||
MHz | 3400-3600 | 3600-3800 | |||||||
Polarization | — | ±45° | |||||||
Electrical Downtilt, Continuously Adjustable | degree | 2-12 | |||||||
Single Column Beam | Gain | dBi | 15.5 ± 1 | 15.7 ± 1 | |||||
Horizontal Beamwidth | degree | 75 ± 10 | 65 ± 10 | ||||||
Vertical Beamwidth (3 dB) | degree | 5.8 ± 0.6 | 5.5 ± 0.6 | ||||||
Cross-Polar Discrimination (0°) | dB | ≥ 15 | ≥ 15 | ||||||
First Upper Side Lobe Suppression | dB | ≥ 15 | ≥ 15 | ||||||
Front-To-Back Ratio | dB | ≥ 25 | ≥ 25 | ||||||
65° | Gain | dB | 17.0 ± 0.6 | 17.2 ± 0.6 | |||||
Broadcast Beam | Horizontal Beamwidth | degree | 65 | 65 | |||||
Vertical Beamwidth (3 dB) | degree | 5.8 ± 0.6 | 5.5 ± 0.6 | ||||||
Cross-Polar Discrimination (0°) | dB | ≥ 15 | ≥ 15 | ||||||
First Upper Side Lobe Suppression | dB | ≥ 15 | ≥ 15 | ||||||
Front-To-Back Ratio | dB | ≥ 27 | ≥ 27 | ||||||
Service | 0° Direct Beam Gain | dBi | 21 ± 0.5 | 21.2 ± 0.5 | |||||
Beam | 0° Direct Beam Horizontal 3 dB Beamwidth | degree | < 25 | < 25 | |||||
±30° Direction Beam Gain | dBi | 18 | 18.2 | ||||||
±30° Direction Beam Horizontal 3 dB Beamwidth | degree | < 30 | < 30 | ||||||
0° Direct Beam Cross-Polar Ratio | dB | ≥ 18 | ≥ 18 | ||||||
0° Direct Beam Front-To-Back Ratio | dB | ≥ 30 | ≥ 30 | ||||||
Calibration and Electrical Parameter | Coupling Factor Between Calibration And | dB | -26 ± 2 | ||||||
Each Antenna Port | |||||||||
Maximum Amplitude Tolerance From Calibration Port To Input Ports | dB | ≤ 0.7 | |||||||
Maximum Phase Tolerance From Calibration Port To Input Ports | degree | ≤ 9 | |||||||
Ports VSWR | — | 1.5 | |||||||
Average Power Capacity | Watts | 25 | |||||||
Co-Polar Isolation Bewtween Ports | dB | ≥ 20 | |||||||
Cross-Polar Isolation Between Ports | dB | ≥ 25 | |||||||
Impedance | Ohm | 50 | |||||||
VSWR | — | < 1.5 | |||||||
Return Loss | dB | > 14 | |||||||
PIM3 (2×43 dBm Carrier) | dBc | < -150 | |||||||
Lightning Protection | — | DC Ground | |||||||
Integrated RET Specifications | |||||||||
Protocols | Compliant to AISG v2.0 and 3GPP | ||||||||
Supply Voltage Range | 10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0 | ||||||||
Power | Standby | < 2 W | |||||||
Consumption | In Motion | < 10 W | |||||||
Connectors | 2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female | ||||||||
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return | |||||||||
Female Connector: 8 PINs; Male Connector: 4 PINs | |||||||||
Hardware Interfaces | RS485 and Power | ||||||||
Adjustment Time | ≤ 90 sec (typical, depending on antenna type) | ||||||||
Adjustment Cycles | > 20,000 | ||||||||
Torque Maximum | ≥ 160 mN·m (@ 30RPM) | ||||||||
Lightning Protection Rating | IEC 61000-4-5 Current Pulse Profile | ||||||||
Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions | |||||||||
Remote Control | Can manage from OMC, BTS/Node B | ||||||||
Daisy Chaining Method | Ready for daisy-chaining | ||||||||
Safety Standard | Compliant to EN 60950/UL 60950/RoHS, CE | ||||||||
Housing Material / Color | Aluminum / Grey | ||||||||
Operating Temperature | -40° to +70° C (-40° to +158° F) | ||||||||
Storage Temperature | -55° to +75° C (-67° to +167° F) | ||||||||
Humidity | Up to 95% | ||||||||
IP Rating | IP65 | ||||||||
Weight | ≤ 500 g | ||||||||
Mechanical Specifications | |||||||||

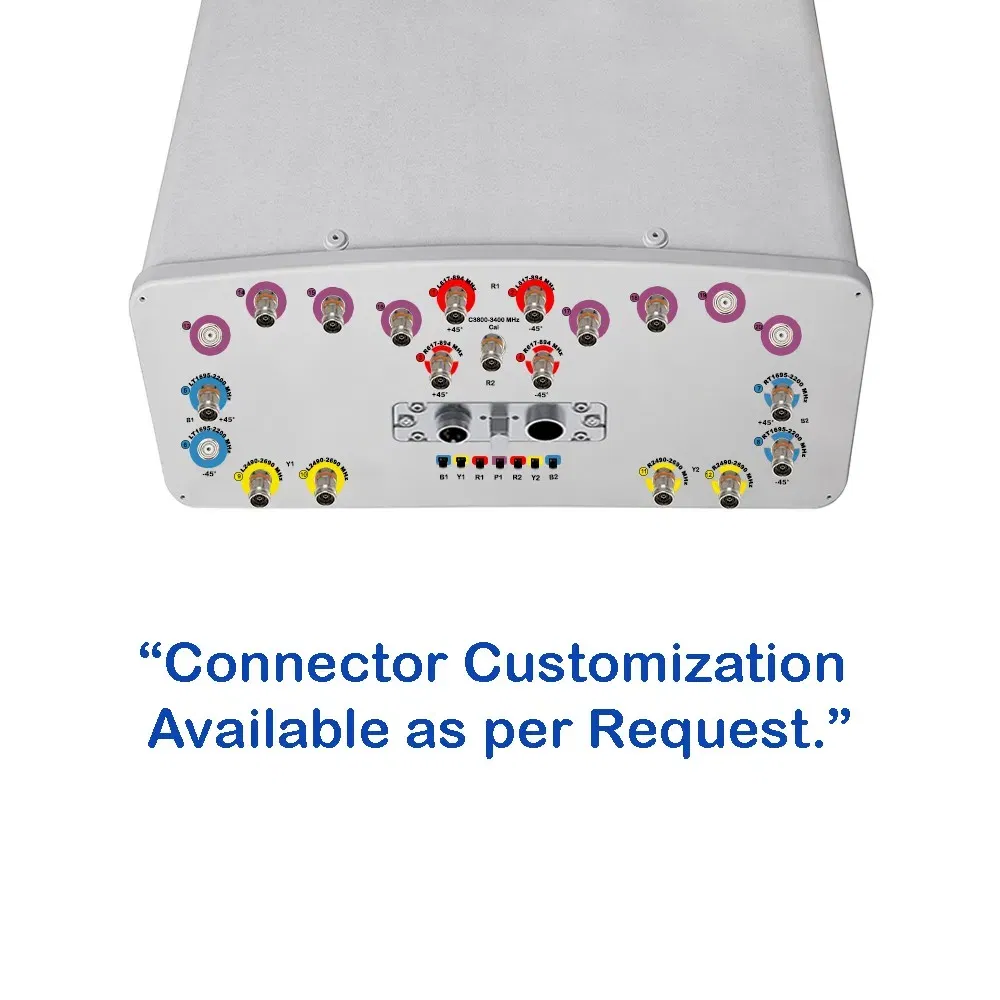

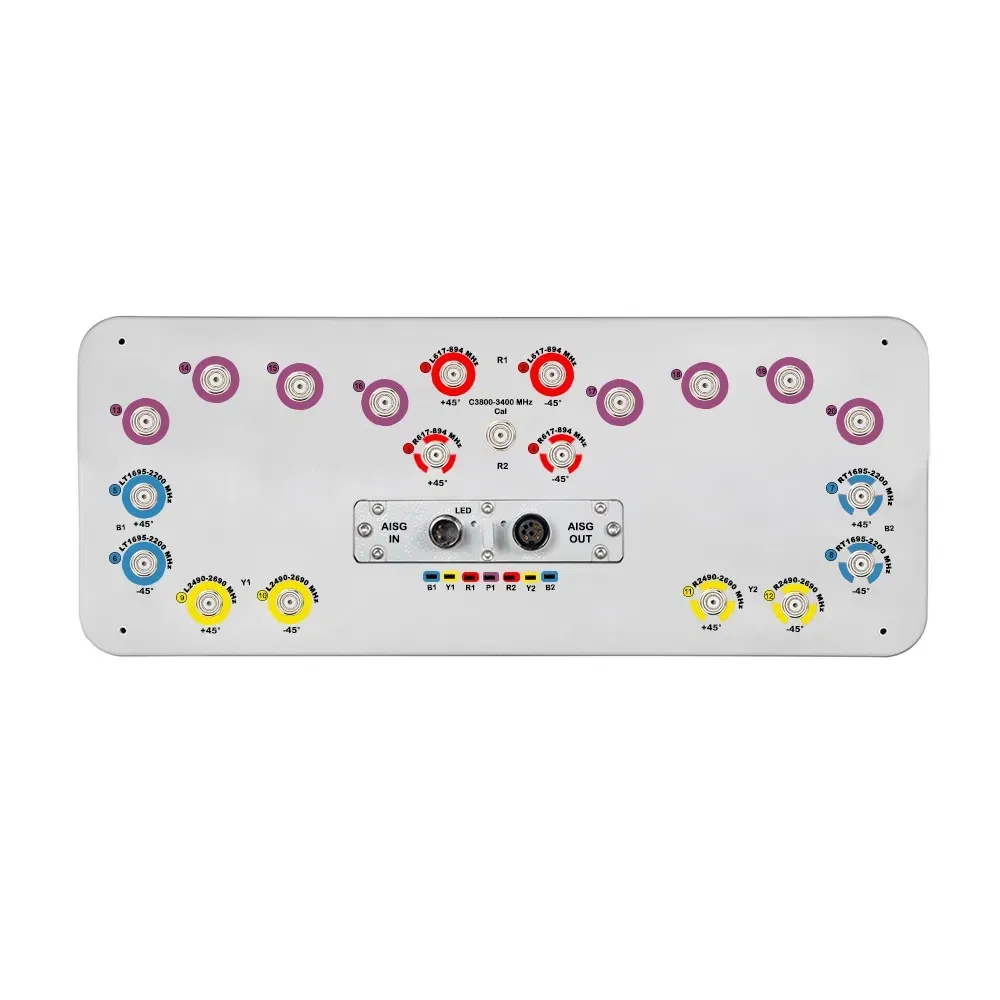

Connector type | — | (21x) 4.3/10 Female | |||||||
Connector Position | — | Bottom | |||||||
Electrical Tilt Control | — | Integrated RET | |||||||
Radome Material | — | Fiberglass | |||||||

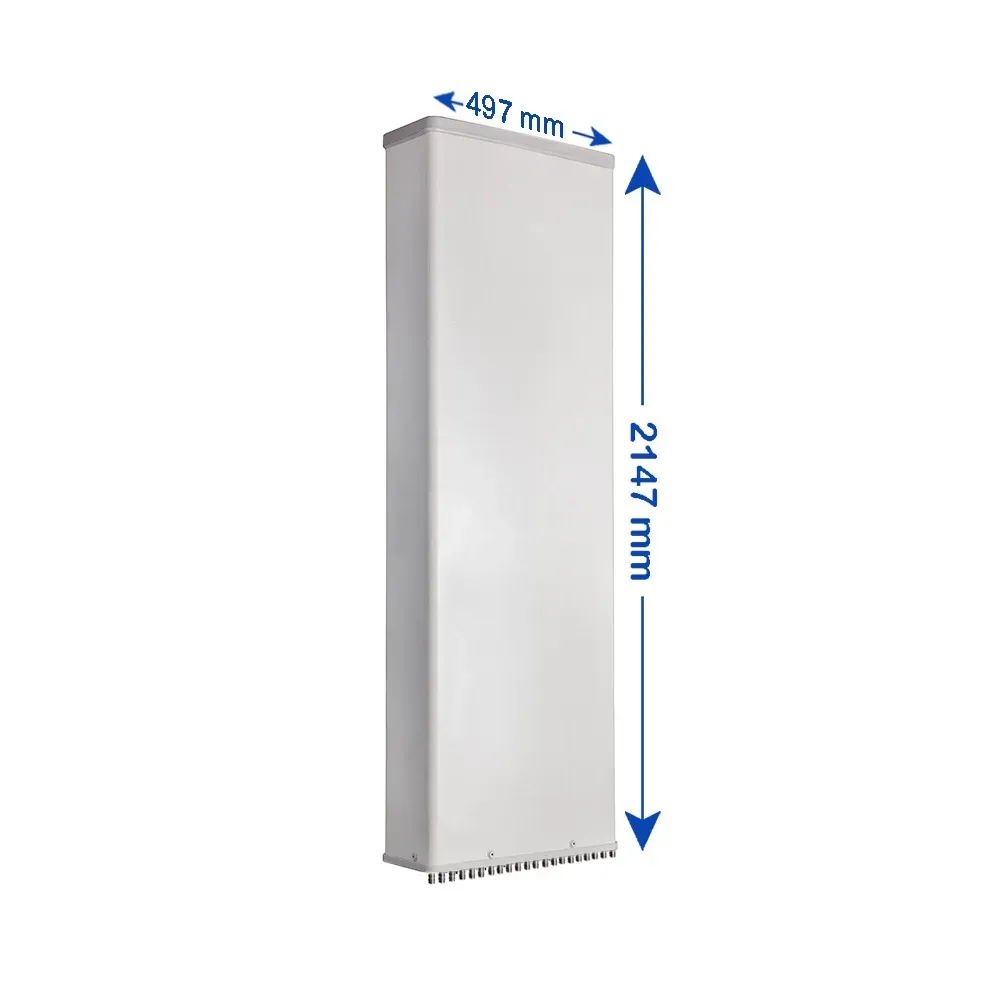

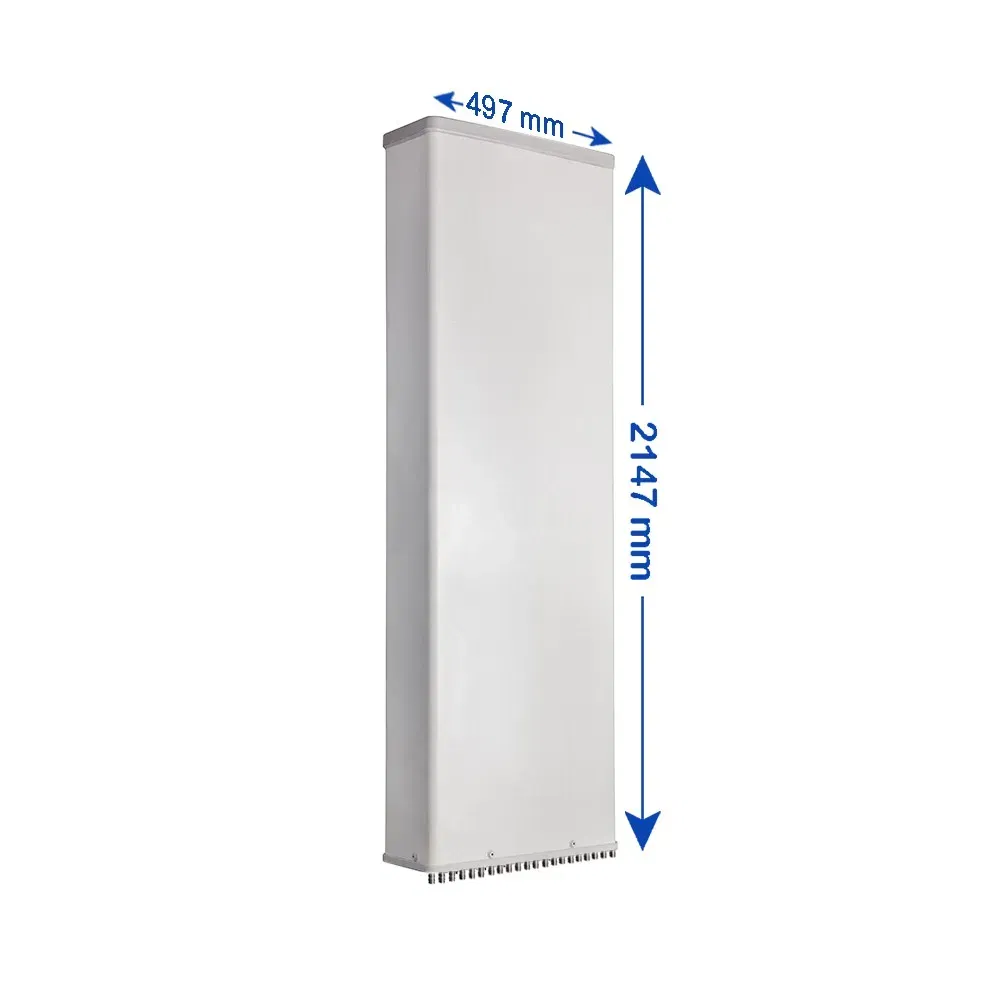

Antenna Dimensions (H x W x D) | mm (in) | 2147 x 497 x 197 (84.5 x 19.6 x 7.8) | |||||||
Antenna Weight | Antenna Only | kg (lbs) | 43 (94.8) | ||||||
with Clamps | kg (lbs) | 48.5 (106.9) | |||||||
Maximum Wind Speed | km/h (mph) | 200 (124.3) | |||||||
Wind Load | Frontal | N (lbf) | 1010 (227.1) | ||||||
at 150 km/h | Rear | N (lbf) | 1130 (254.0) | ||||||
Lateral | N (lbf) | 495 (111.3) | |||||||
Operating Temperature | °C (°F) | -40 to +60 (-40 to 140) |
