Product code: 21P-690-2690F-16G-65H8V

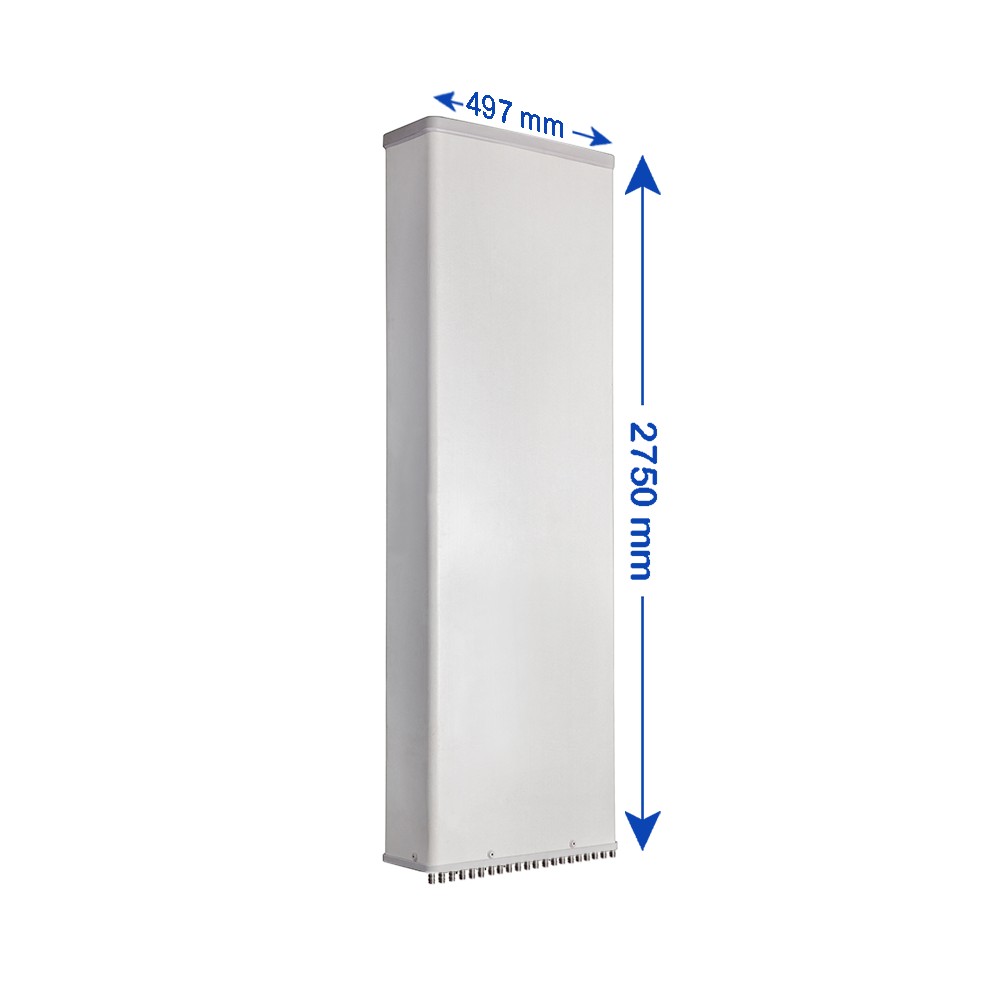

21-Port, TDD Hybrid Panel Antenna, 65° HBW, (2x) 690-960 / (4x) 1695-2690 / 2300-2690 MHz, 16.5/16.5/17.5/17.5/17.5/17.5/17 dBi, 2-12°T, 2.750 m

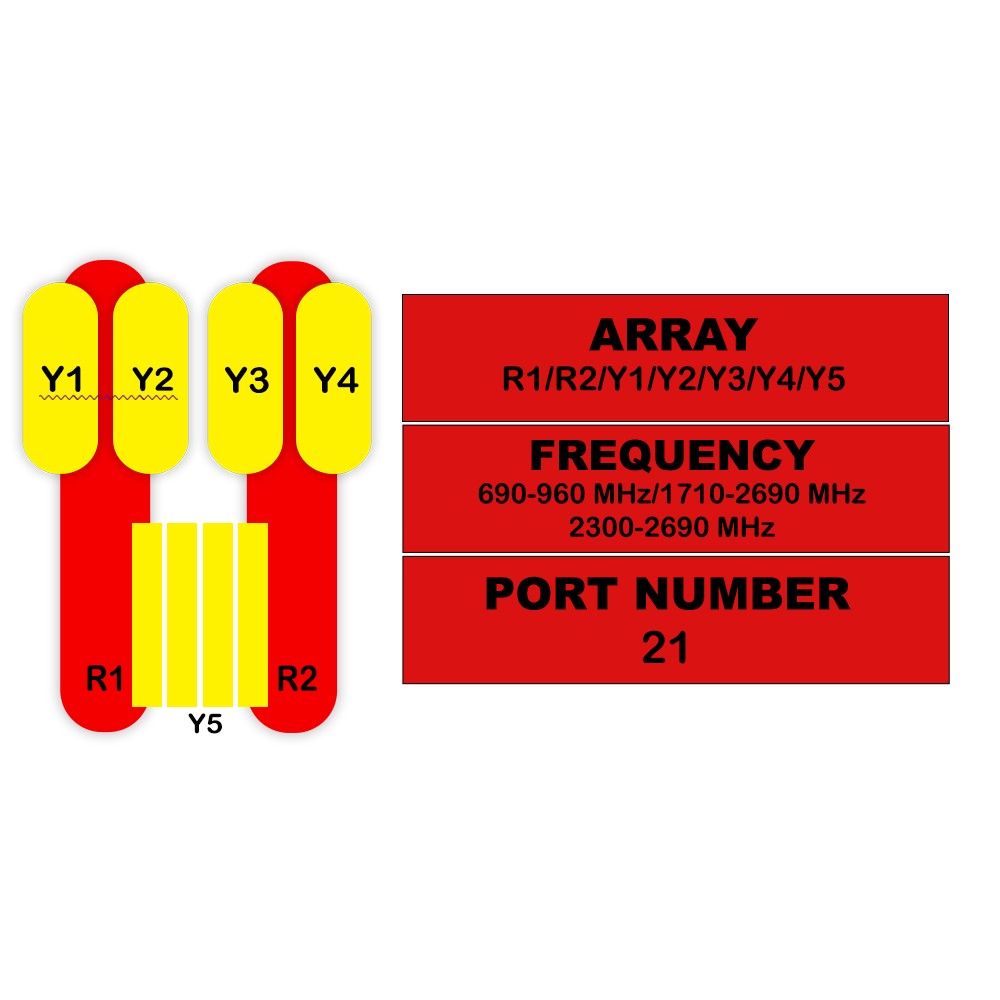

| 21-Port Antenna | R1 | R2 | Y1 | Y2 | Y3 | Y4 | Y5 |
| Frequency Range (MHz) | 690-960 | 690-960 | 1695-2690 | 1695-2690 | 1695-2690 | 1695-2690 | 2300-2690 |
| HBW | 65° | 65° | 65° | 65° | 65° | 65° | 65° |
| Gain | 16.5 dBi | 16.5 dBi | 17.5 dBi | 17.5 dBi | 17.5 dBi | 17.5 dBi | 17 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° |

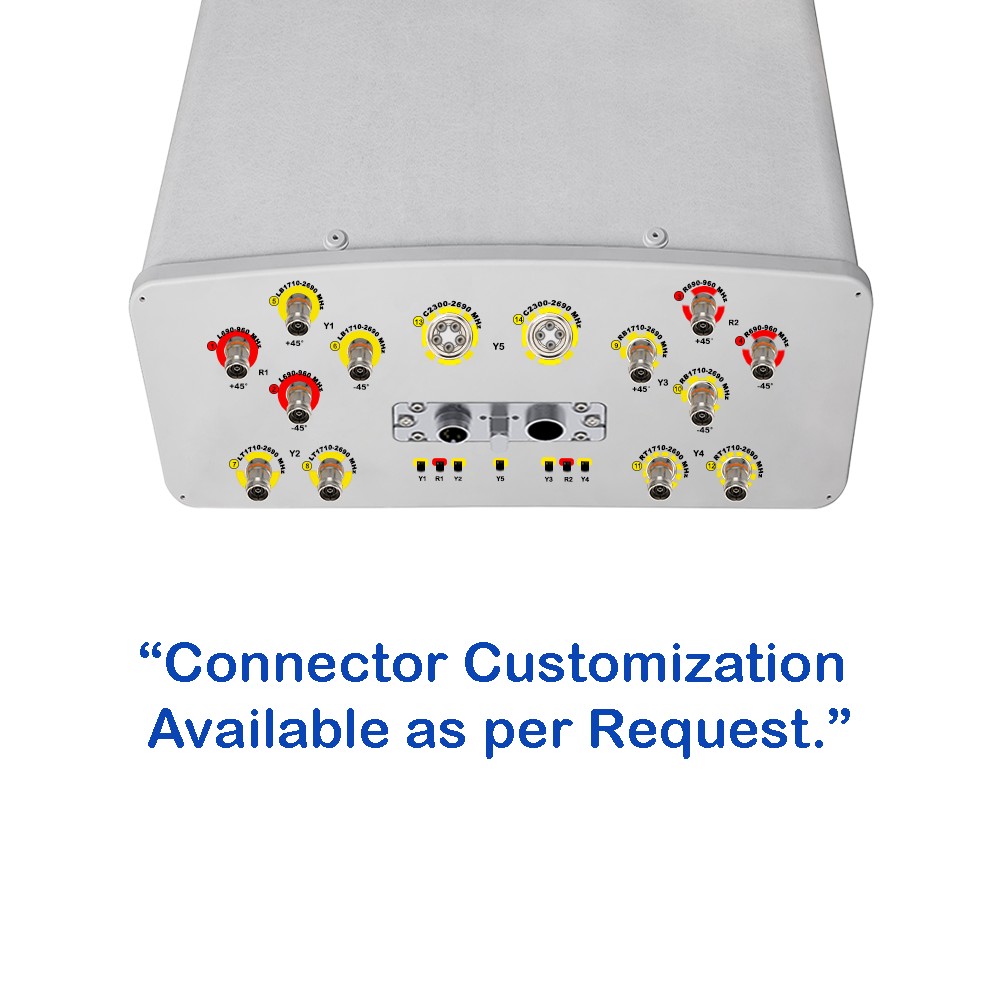

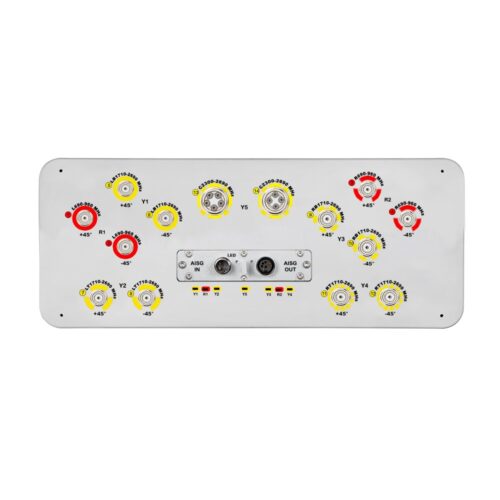

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(1x)MQ5 Male+ (1x) MQ4 Male |
