Product code: 21P-690-3800F-13G-65H24V

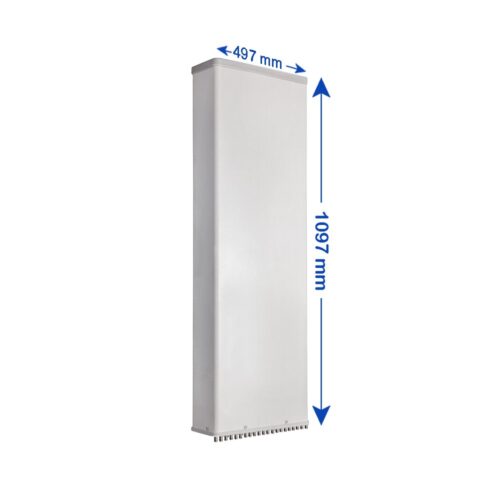

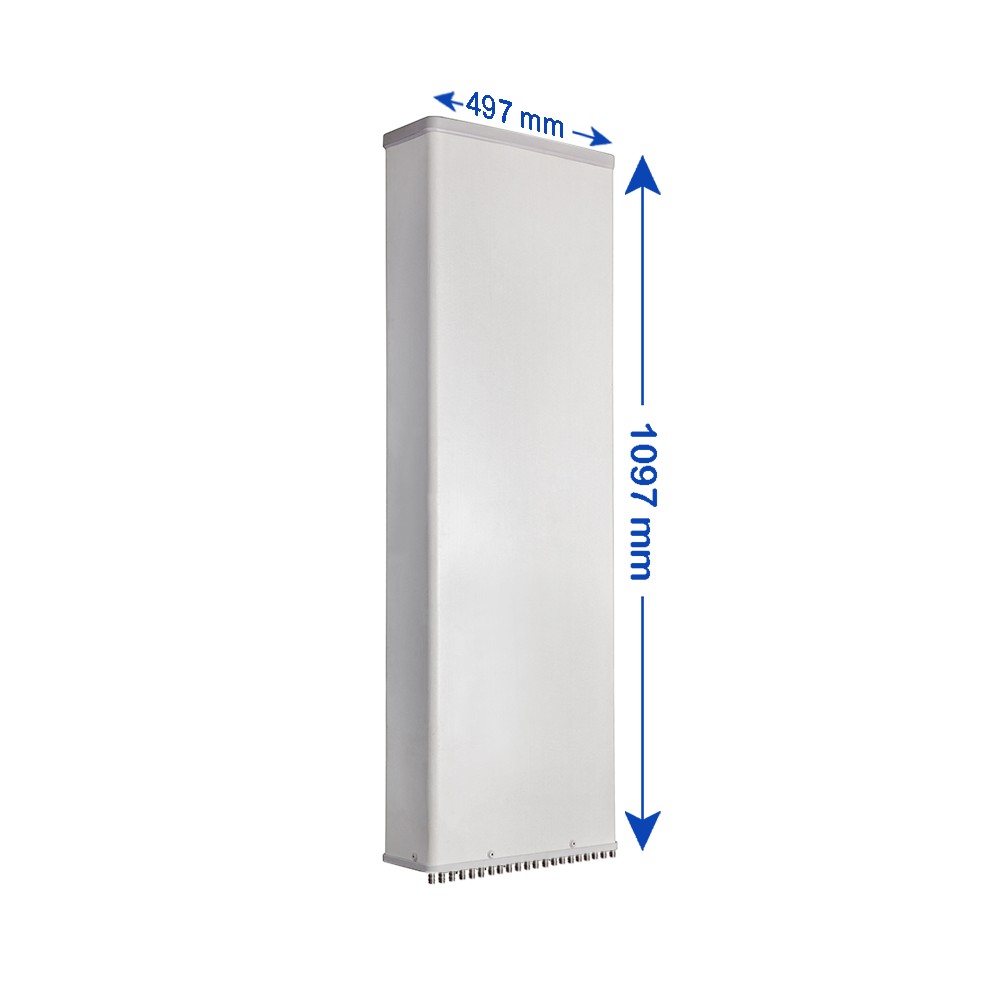

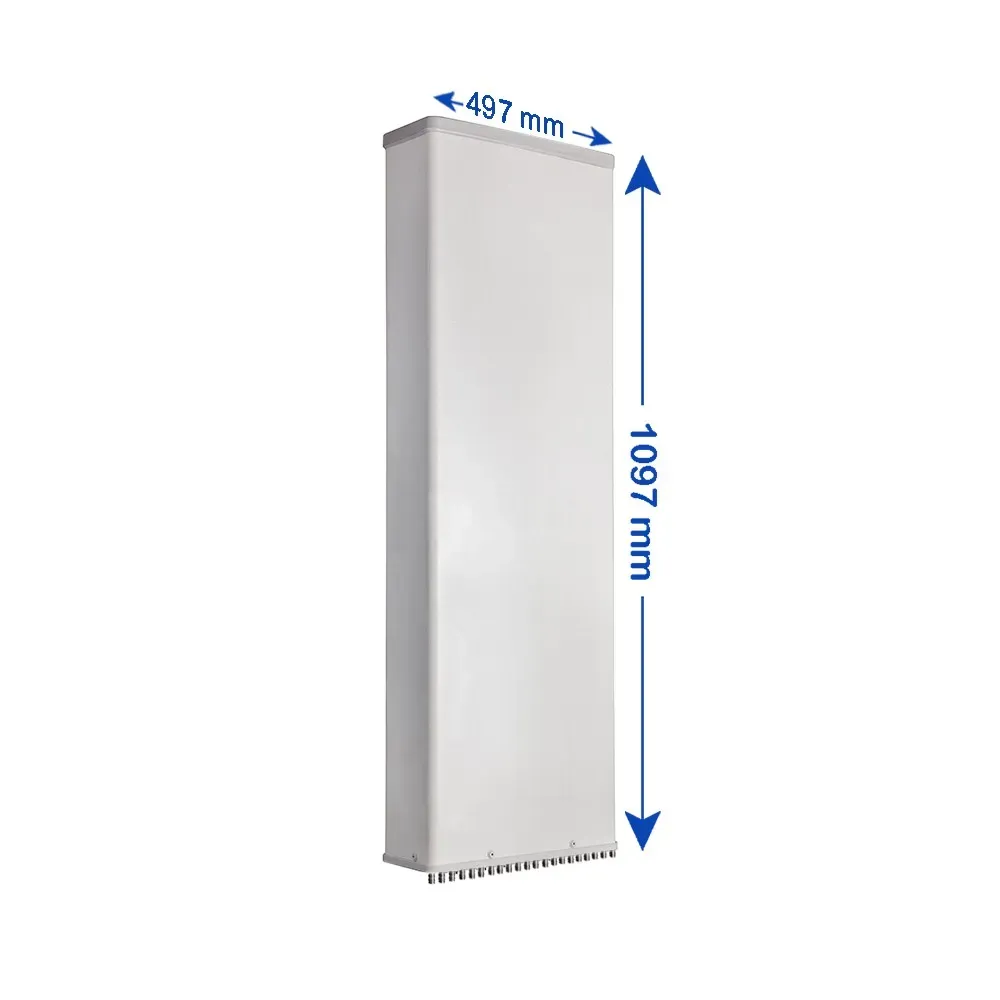

21-Port, TDD Hybrid Panel Antenna, 65° HBW, (2x) 690-960 / (4x) 1695-2690 / 3300-3800 MHz, 13/13/13/13/13/13/16 dBi, (2x) 2-16° / (5x) 2-12°T, 1.097 m

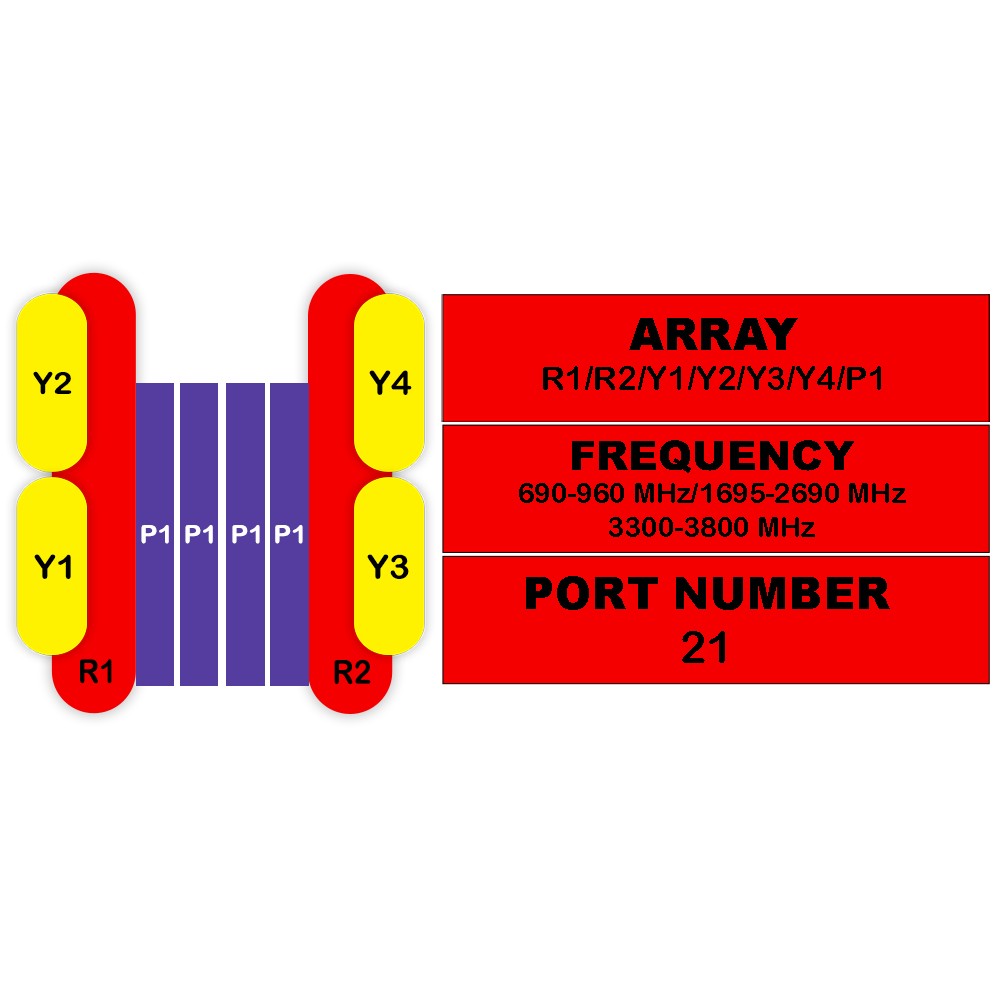

21-Port Antenna R1 R2 Y1 Y2 Y3 Y4 P1
Frequency Range (MHz) 690-960 690-960 1695-2690 1695-2690 1695-2690 1695-2690 3300-3800
HBW 65° 65° 65° 65° 65° 65° 65°
Gain 13 dBi 13 dBi 13 dBi 13 dBi 13 dBi 13 dBi 16 dBi
Tilt 2-16° 2-16° 2-12° 2-12° 2-12° 2-12° 2-12°

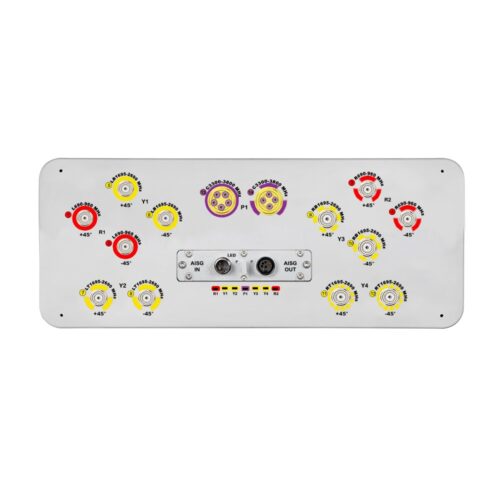

Connectors

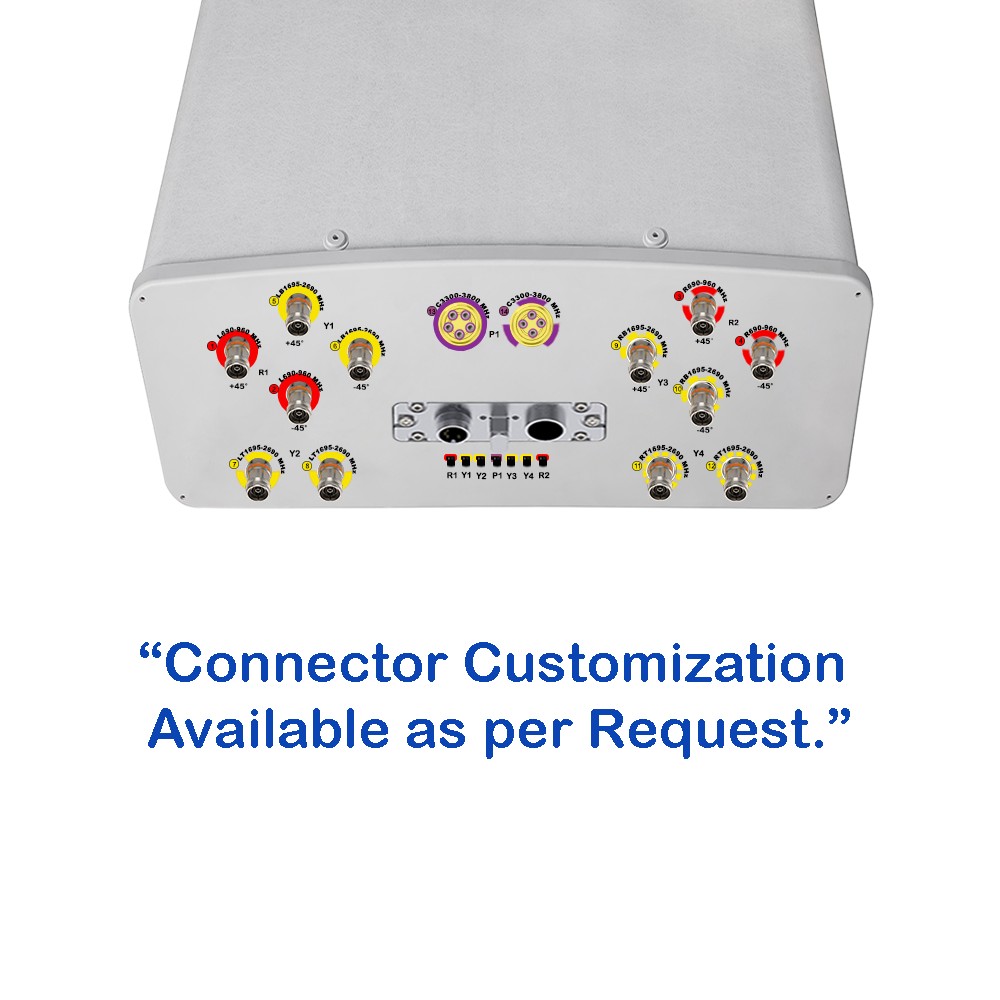

(other connectors by request)

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (1x)MQ5 Male+ (1x) MQ4 Male
