Product code: 21P-698-3800F-14G-65H18V

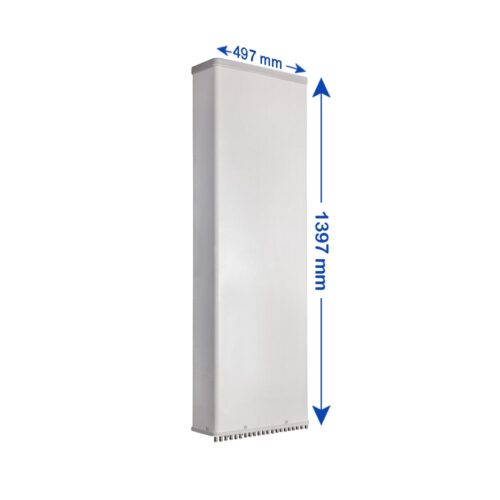

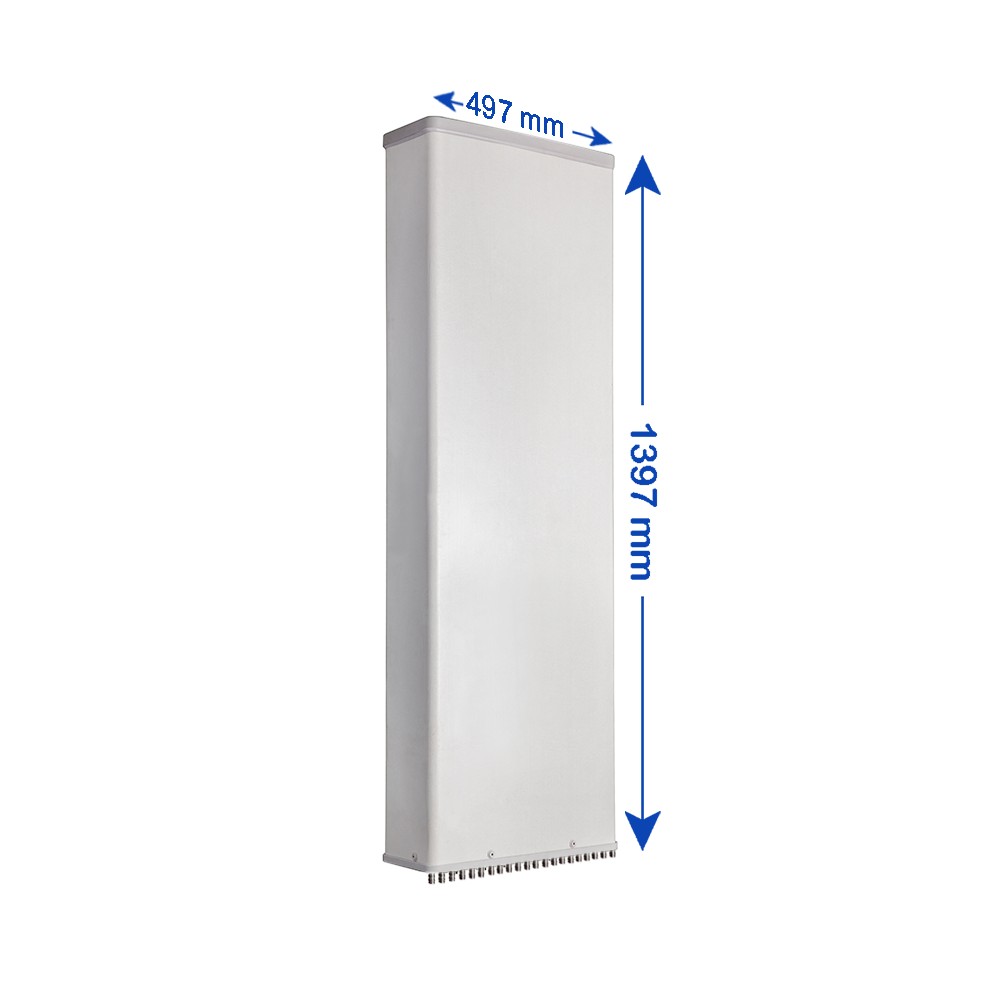

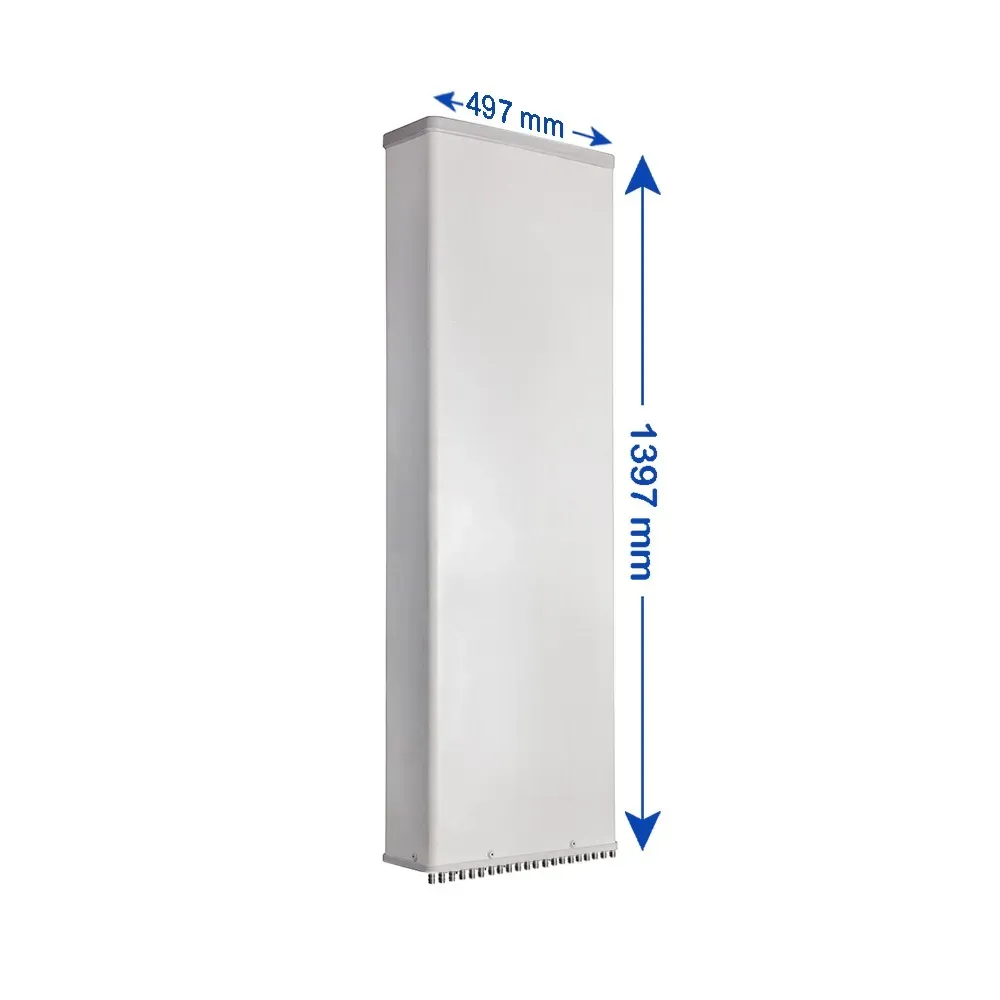

21-Port, TDD Hybrid Panel Antenna, 65° HBW, (2x) 698 -960 / (4x) 1710-2690 / 2300-3800 MHz, 14/14/14.5/14.5/14.5/14.5/16 dBi, 2-12°T, 1.397 m

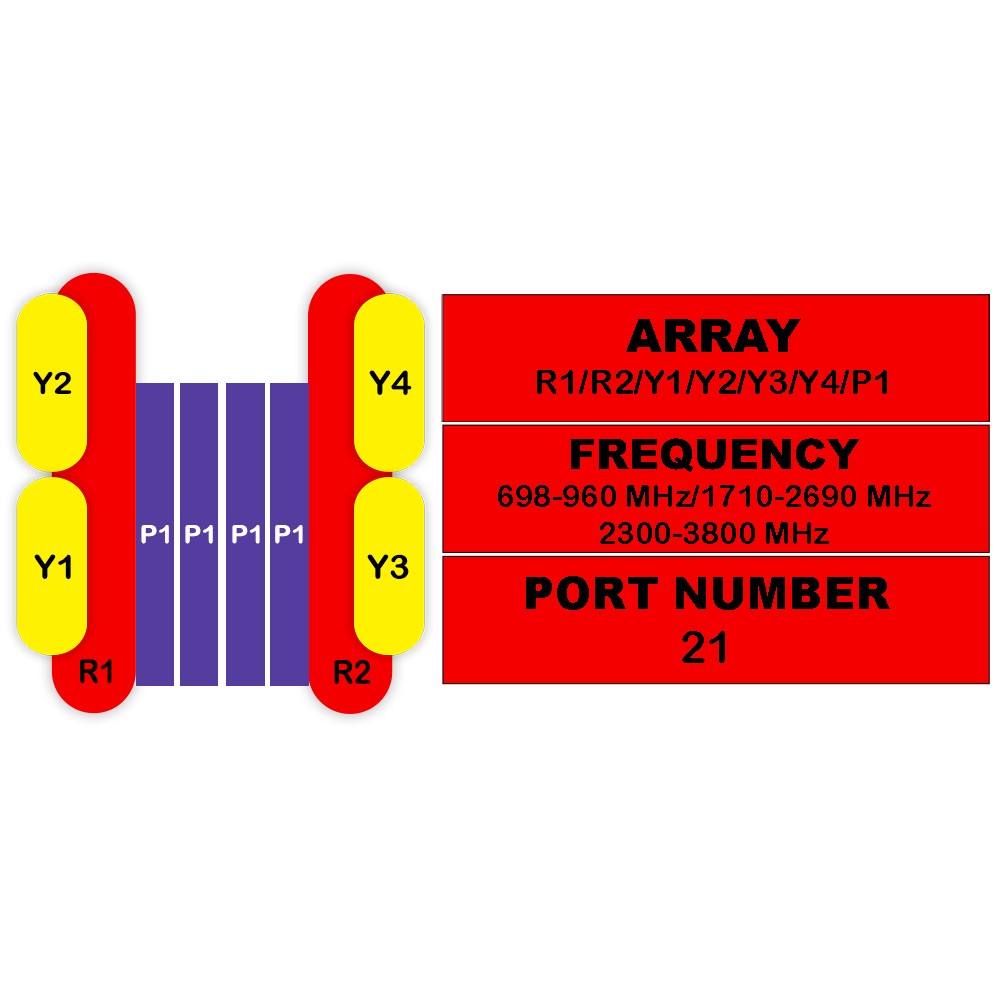

| 21-Port Antenna | R1 | R2 | Y1 | Y2 | Y3 | Y4 | P1 |
| Frequency Range (MHz) | 698-960 | 698-960 | 1710-2690 | 1710-2690 | 1710-2690 | 1710-2690 | 2300-3800 |
| HBW | 65° | 65° | 65° | 65° | 65° | 65° | 65° |
| Gain | 14 dBi | 14 dBi | 14.5 dBi | 14.5 dBi | 14.5 dBi | 14.5 dBi | 16 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° |

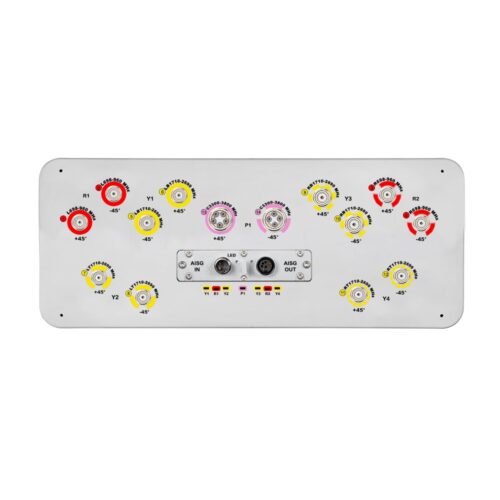

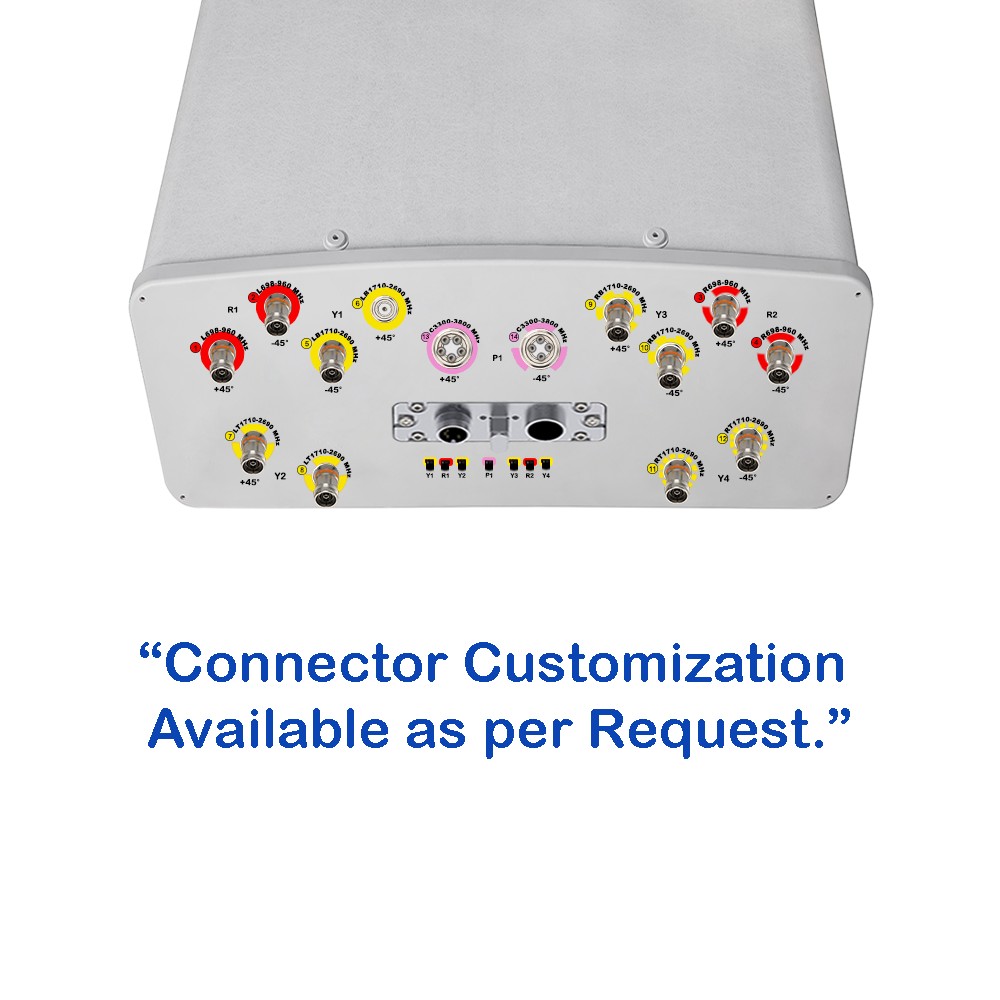

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(1x)MQ5 Male+ (1x) MQ4 Male |
