Product code: 21P-698-3800F-17G-65H8V

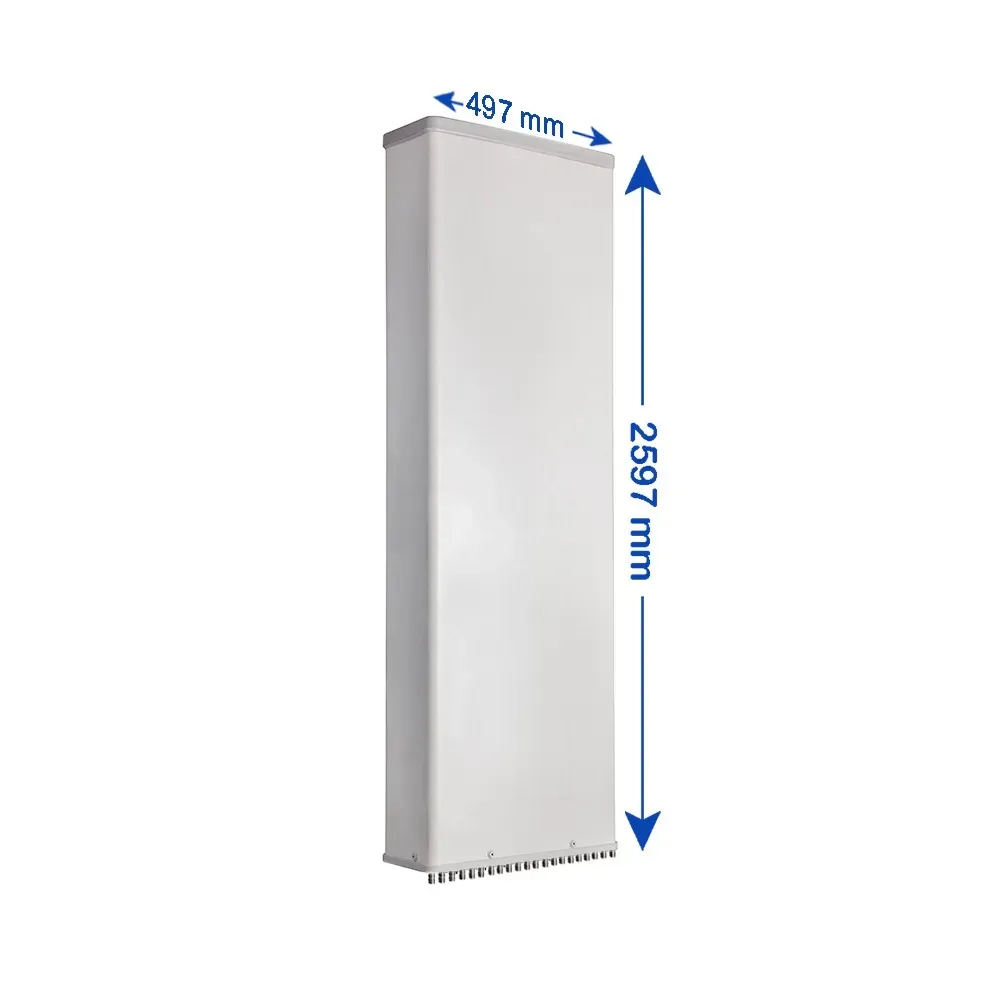

21-Port, TDD Hybrid Panel Antenna, 65° HBW, (2x) 698-960 / (4x) 1710-2690 / 2300-3800 MHz, 17/17/18/18/18/18/16 dBi, 2-12°T, 2.597 m

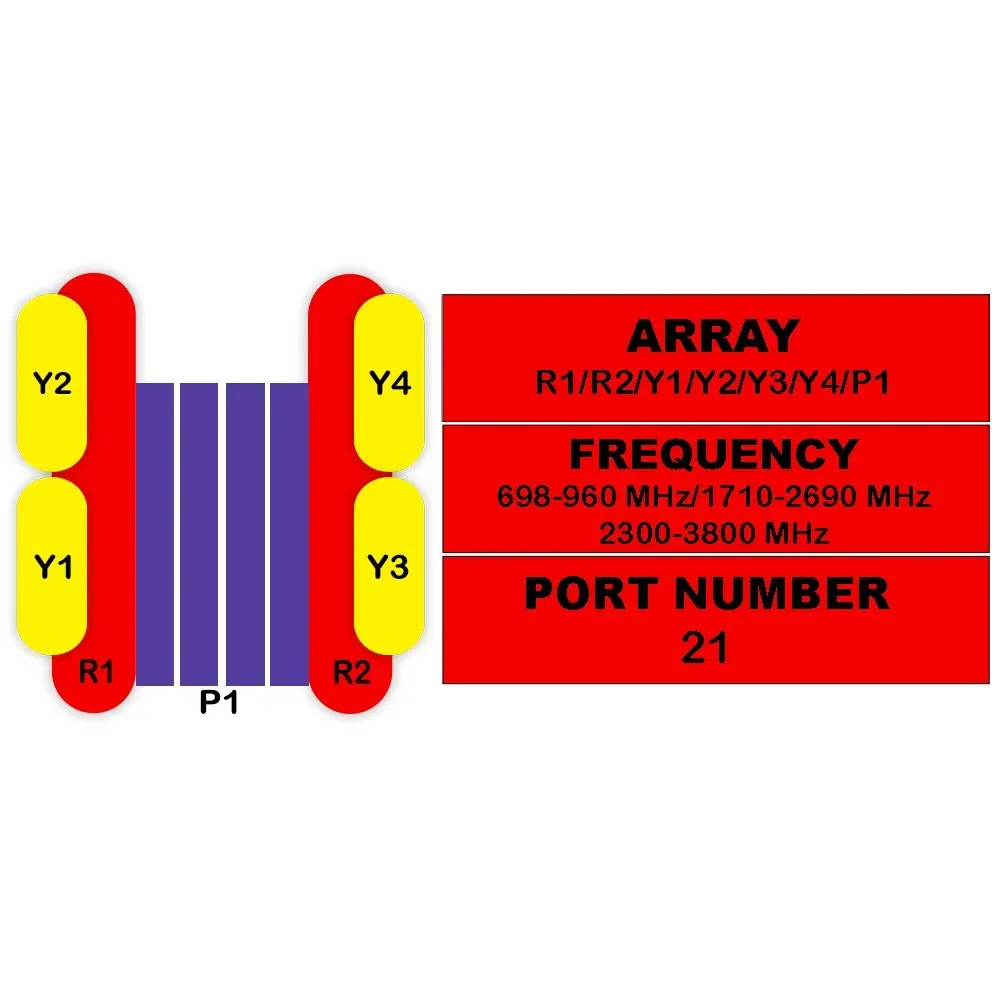

| 21-Port Antenna | R1 | R2 | Y1 | Y2 | Y3 | Y4 | P1 |
| Frequency Range (MHz) | 698-960 | 698-960 | 1710-2690 | 1710-2690 | 1710-2690 | 1710-2690 | 2300-3800 |
| HBW | 65° | 65° | 65° | 65° | 65° | 65° | 65° |
| Gain | 17 dBi | 17 dBi | 18 dBi | 18 dBi | 18 dBi | 18 dBi | 16 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° |

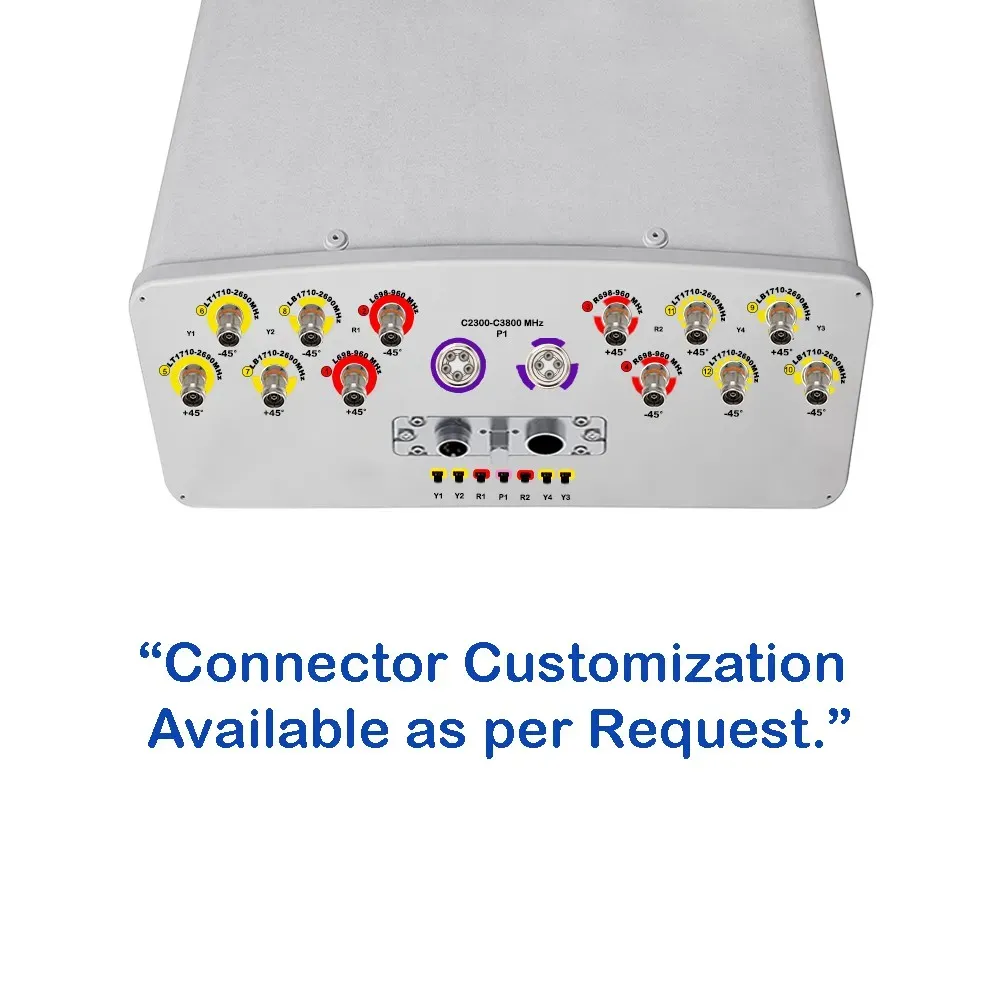

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(1x)MQ5 Male+ (1x) MQ4 Male |
