Product code: 21P-698-2690F-17G-65H8V

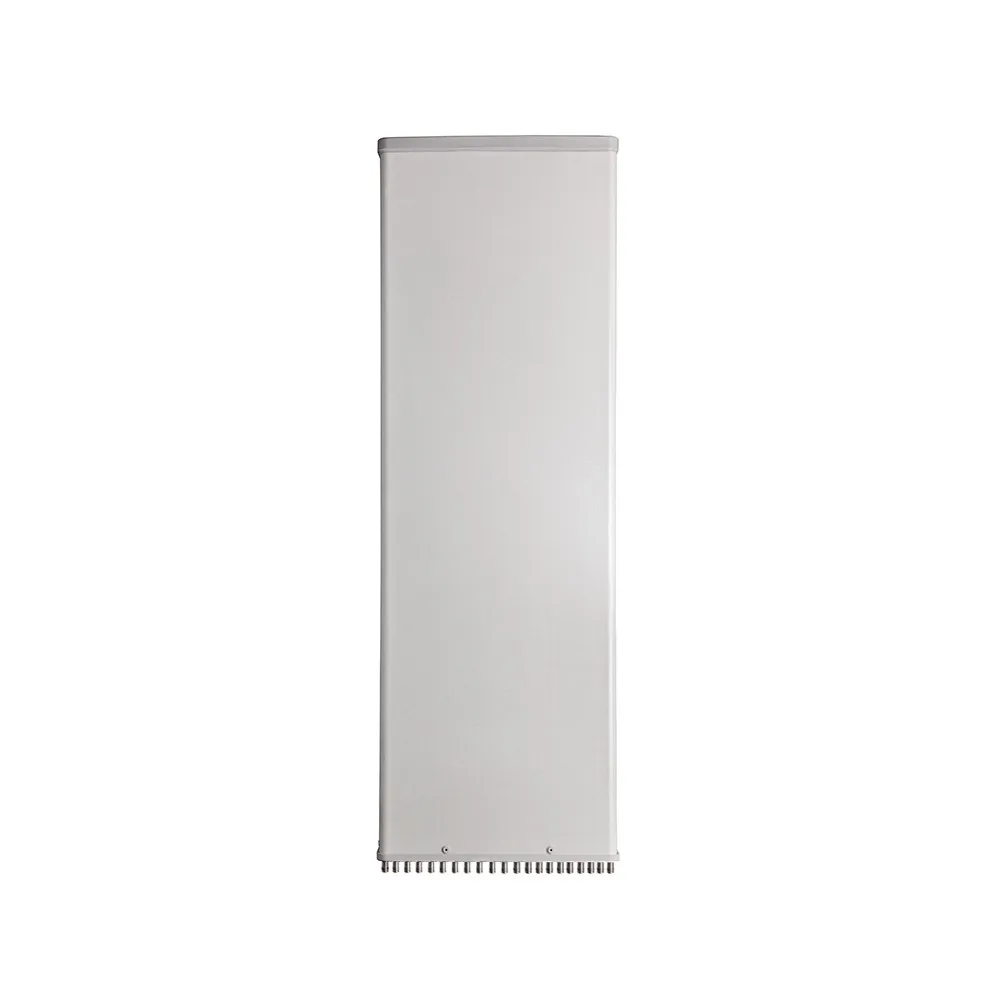

21-Port, TDD Hybrid Split Beam Panel Antenna, (2x) 65°/90°/(4x) 33° HBW, (2x) 698-960/2300-2690/(4x) 1710-2690 MHz, 17/17/16/19.5/19.5/19.5/19.5 dBi, 2-12°T, 2.697 m

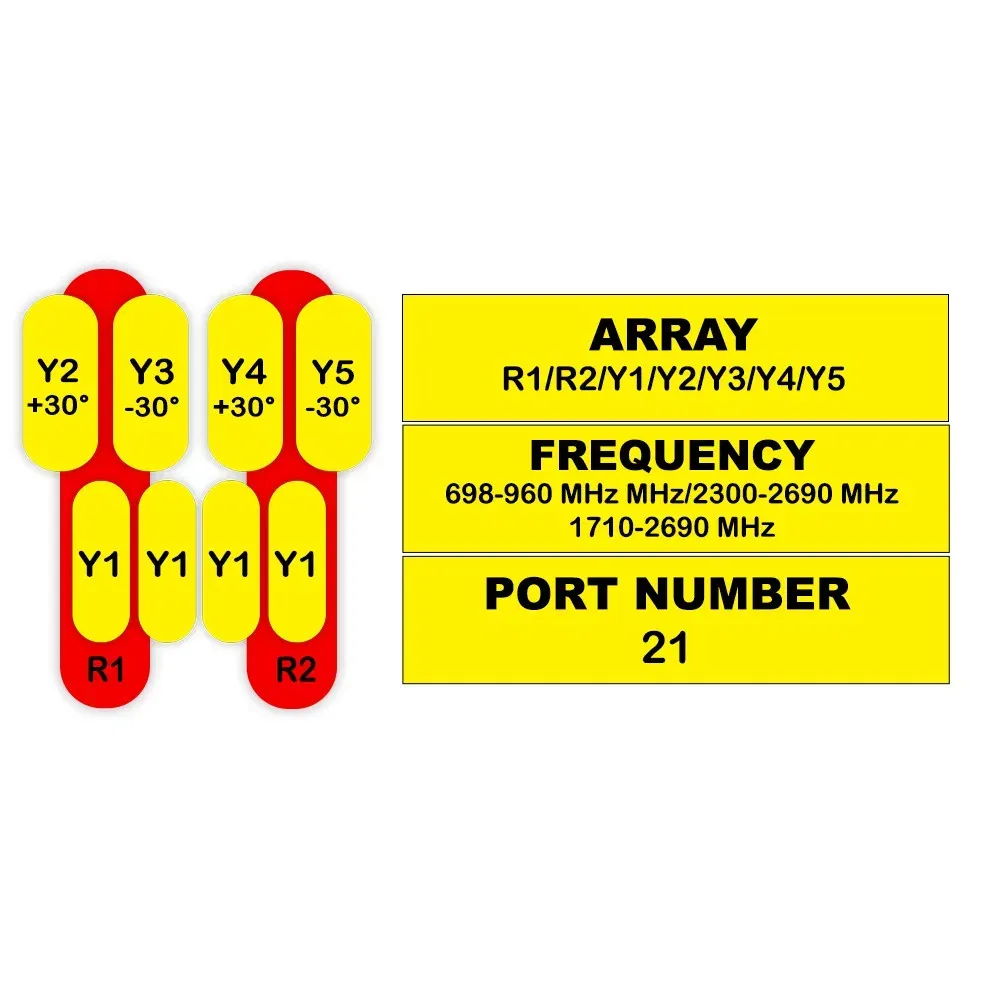

21-Port Antenna | R1 | R2 | Y1 | Y2 | Y3 | Y4 | Y5 |
Frequency Range (MHz) | 698-960 | 698-960 | 2300-2690 | 1710-2690 | 1710-2690 | 1710-2690 | 1710-2690 |
HBW | 65° | 65° | 90° | 33° | 33° | 33° | 33° |
Gain | 17 dBi | 17 dBi | 16 dBi | 19.5 dBi | 19.5 dBi | 19.5 dBi | 19.5 dBi |
Tilt | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° |
Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(1x)MQ5 Male+ (1x) MQ4 Male | (2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
Product Part Number
21P-698-2690F-17G-65H8V
Electrical & Mechanical Specification
Electrical Specifications | |||||||||
---|---|---|---|---|---|---|---|---|---|
R1 / R2 | Y2 / Y3 / Y4 / Y5 | ||||||||
Frequency Range | MHz | 698-960 | 1710-2690 | ||||||
MHz | 698-806 | 790-894 | 880-960 | 1710-1880 | 1920-2170 | 2300-2400 | 2500-2690 | ||
Polarization | — | ±45° | ±45° | ||||||
Gain | Typical | dBi | 15.7 | 16.2 | 16.5 | 17.7 | 18.8 | 19.5 | 19.4 |
Over All Tilts | dBi | 15.6 ± 0.6 | 16.1 ± 0.6 | 16.4 ± 0.6 | 17.6 ± 0.7 | 18.7 ± 0.7 | 19.4 ± 0.7 | 19.3 ± 0.7 | |
Horizontal Beamwidth | degree | 70 ± 6 | 67 ± 6 | 64 ± 6 | 38 ± 3 | 34 ± 3 | 29 ± 3 | 26 ± 3 | |
Azimuth Beam Pointing | degree | — | Y2 & Y4: +30; Y3 & Y5: -30 | ||||||
Vertical Beamwidth | degree | 8.8 ± 0.9 | 7.6 ± 0.8 | 7.1 ± 0.8 | 7.5 ± 0.7 | 6.7 ± 0.7 | 6.0 ± 0.6 | 5.6 ± 0.6 | |
Electrical Downtilt, Continuously Adjustable | degree | 2-12 | 2-12 | ||||||
First Upper Side Lobe Suppression | dB | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | |
Front-To-Back Ratio ±30° | dB | > 25 | > 25 | > 25 | > 25 | > 25 | > 25 | > 25 | |
Cross Polar | At Boresight | dB | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 |
Discrimination | |||||||||
Isolation | Intraband | dB | > 25 | ≥ 25 | |||||
Beam-to-Beam | dB | — | ≥ 15 | ||||||
Interband (typical) | dB | > 25 | ≥ 25 | ||||||
Impedance | Ohm | 50 | 50 | ||||||
VSWR | — | < 1.5 | < 1.5 | ||||||
Return Loss | dB | > 14 | > 14 | ||||||
PIM3 (2×43 dBm Carrier) | dBc | < -150 | < -150 | ||||||
Lightning Protection | — | DC Ground | DC Ground | ||||||
Maximum Average Input Power per Port, at 50° C Ambient Temperature | Watts | 250 | 200 | ||||||
Y1 | |||||||||
Frequency Range | MHz | 2300-2690 | |||||||
MHz | 2300-2400 | 2490-2690 | |||||||
Polarization | — | ±45° | |||||||
Electrical Downtilt, Continuously Adjustable | degree | 2-12 | |||||||
Single Column Beam | Gain | dBi | 16 ± 1 | 17 ± 1 | |||||
Horizontal Beamwidth | degree | 85 ± 15 | 75 ± 15 | ||||||
Vertical Beamwidth (3 dB) | degree | 6.0 ± 0.6 | 5.5 ± 0.6 | ||||||
Cross-Polar Discrimination at Boresight | dB | ≥ 16 | ≥ 16 | ||||||
First Upper Side Lobe Suppression | dB | ≥ 16 | ≥ 16 | ||||||
Front-To-Back Ratio, ± 30° | dB | ≥ 25 | ≥ 25 | ||||||
65° Broadcast Beam | Gain | dB | 17.5 | 18 | |||||
Horizontal Beamwidth (3 dB) | degree | 65 | 65 | ||||||
Vertical Beamwidth (3 dB) | degree | 6.0 ± 0.6 | 5.5 ± 0.6 | ||||||
Cross-Polar Discrimination at Boresight | dB | ≥ 16 | ≥ 16 | ||||||
First Upper Side Lobe Suppression | dB | ≥ 16 | ≥ 16 | ||||||
Front-To-Back Ratio | dB | ≥ 25 | ≥ 25 | ||||||
Service Beam | 0° Direct Beam Gain | dBi | 21 | 21.5 | |||||
0° Direct Beam Horizontal 3 dB Beamwidth | degree | 26 | 24 | ||||||
±30° Direction Beam Gain | dBi | 19.5 | 20 | ||||||
0° Direct Beam Horizontal Sidelobes | degree | 12 | 12 | ||||||
0° Direct Beam Cross-Polar Ratio at Beam- | dB | ≥ 17 | ≥ 17 | ||||||
Peak | |||||||||
0° Direct Beam Front-To-Back Ratio | dB | ≥ 30 | ≥ 30 | ||||||
±30° Direction Beam Front-To-Back Ratio | dB | ≥ 25 | ≥ 25 | ||||||
Calibration and Electrical Parameter | Coupling Factor Between Calibration And | dB | -26 ± 2 | ||||||
Each Antenna Port | |||||||||
Maximum Amplitude Tolerance From Calibration Port To Input Ports | dB | ≤ 1 | |||||||
Maximum Phase Tolerance From Calibration Port To Input Ports | degree | ≤ 9 | |||||||
Ports VSWR | — | < 1.5 | |||||||
Maximum Effective Power Per Port (50°C ambient temperature) | Watts | 50 | |||||||
Co-Polar Isolation Bewtween Ports | dB | ≥ 20 | |||||||
Cross-Polar Isolation Between Ports | dB | ≥ 23 | |||||||
Impedance | Ohm | 50 | |||||||
VSWR | — | < 1.5 | |||||||
Return Loss | dB | > 14 | |||||||
Lightning Protection | — | DC Ground | |||||||
Integrated RET Specifications | |||||||||
Protocols | Compliant to AISG v2.0 and 3GPP | ||||||||
Supply Voltage Range | 10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0 | ||||||||
Power | Standby | < 2 W | |||||||
Consumption | In Motion | < 10 W | |||||||
Connectors | 2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female | ||||||||
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return | |||||||||
Female Connector: 8 PINs; Male Connector: 4 PINs | |||||||||
Lightning Protection Rating | IEC 61000-4-5 Current Pulse Profile | ||||||||
Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions | |||||||||
Safety Standard | Compliant to EN 60950/UL 60950/RoHS, CE | ||||||||
Mechanical Specifications | |||||||||
Connector Type | — | (12x) 4.3/10 Female & (1x) MQ5 Male+ (1x) MQ4 Male | |||||||
Connector Position | — | Bottom | |||||||
Electrical Tilt Control | — | Integrated RET | |||||||
Radome Material | — | Fiberglass | |||||||

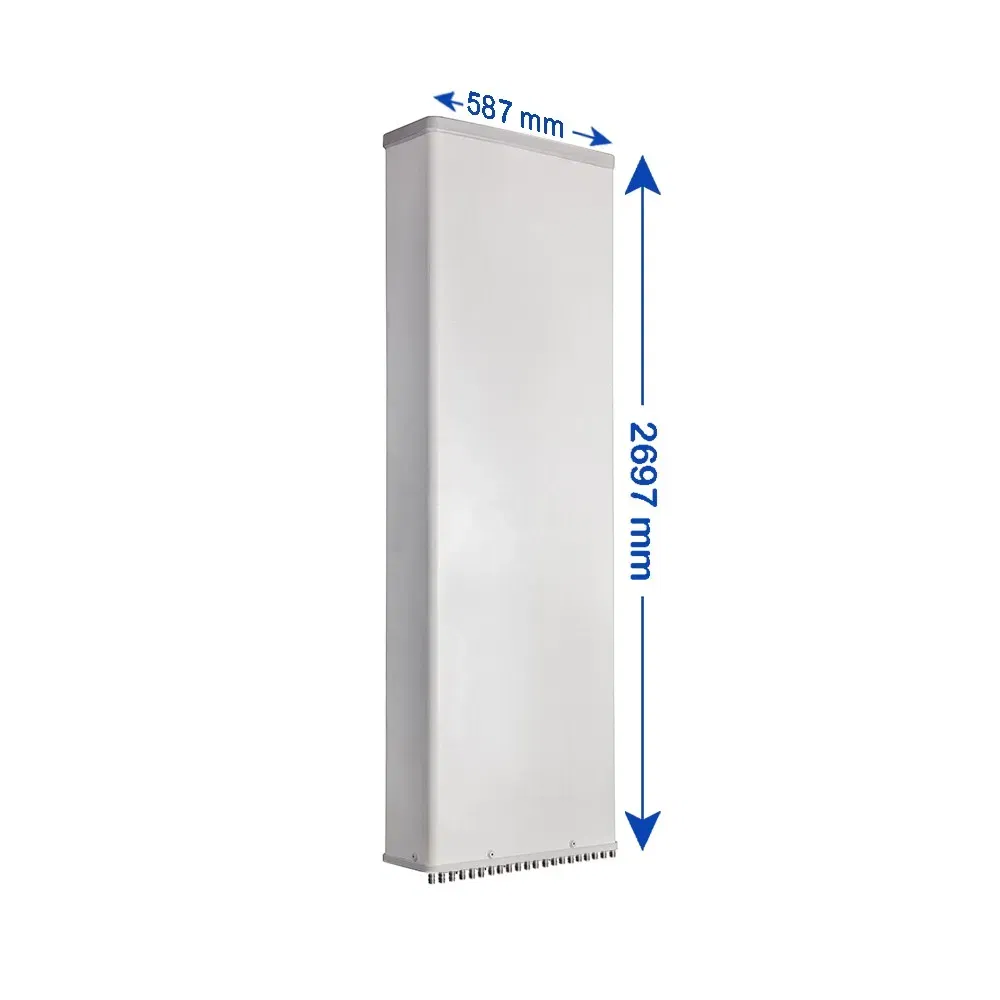

Antenna Dimensions (H x W x D) | mm (in) | 2697 x 587 x 197 (106.2 x 23.1 x 7.8) | |||||||
Antenna Weight | Antenna Only | kg (lbs) | 50.5 (111.3) | ||||||
with Clamps | kg (lbs) | 59.5 (131.2) | |||||||
Maximum Wind Speed | km/h (mph) | 200 (124.3) | |||||||
Wind Load | Frontal | N (lbf) | 1465 (329.3) | ||||||
at 150 km/h | Rear | N (lbf) | 1635 (367.6) | ||||||
Lateral | N (lbf) | 605 (136.0) | |||||||
Operating Temperature | °C (°F) | -40 to +60 (-40 to +140) |
