Product code: 22P-617-2690F-16G-65H10V

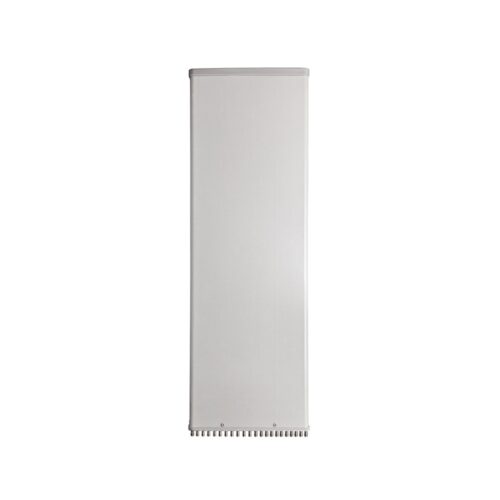

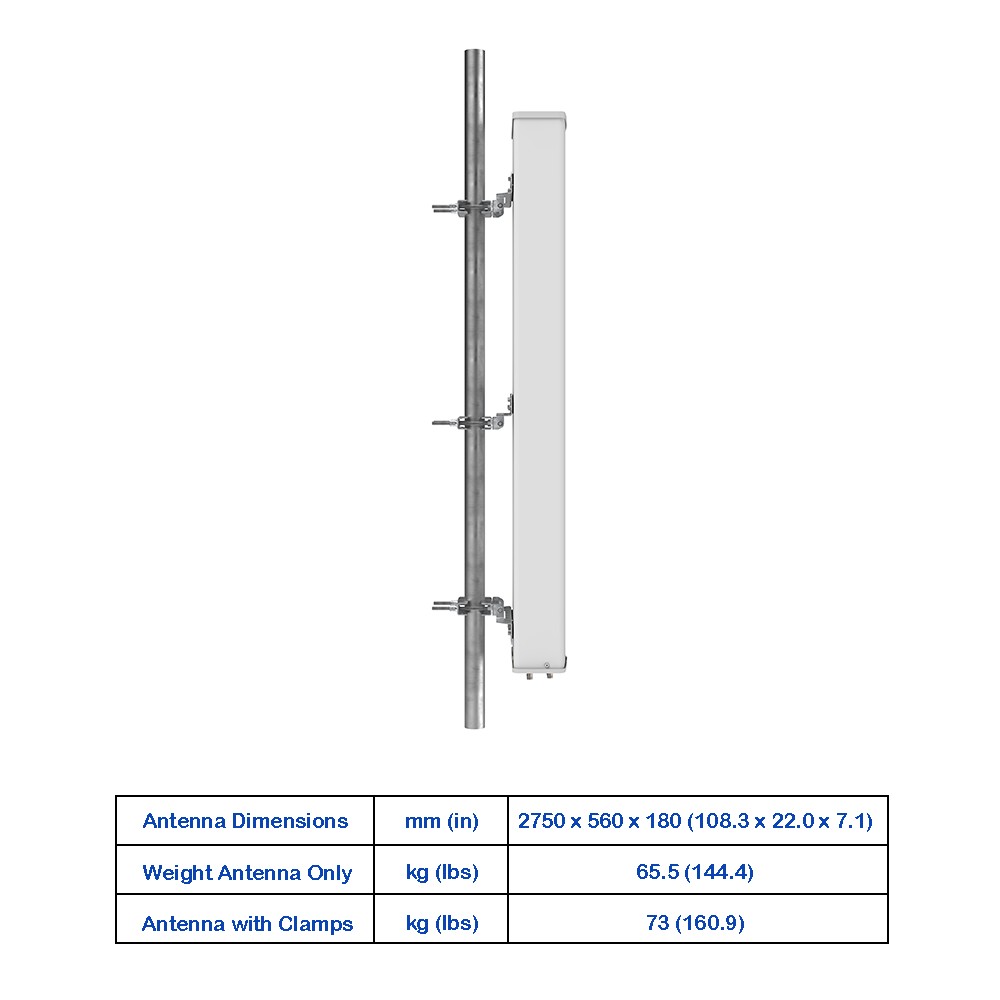

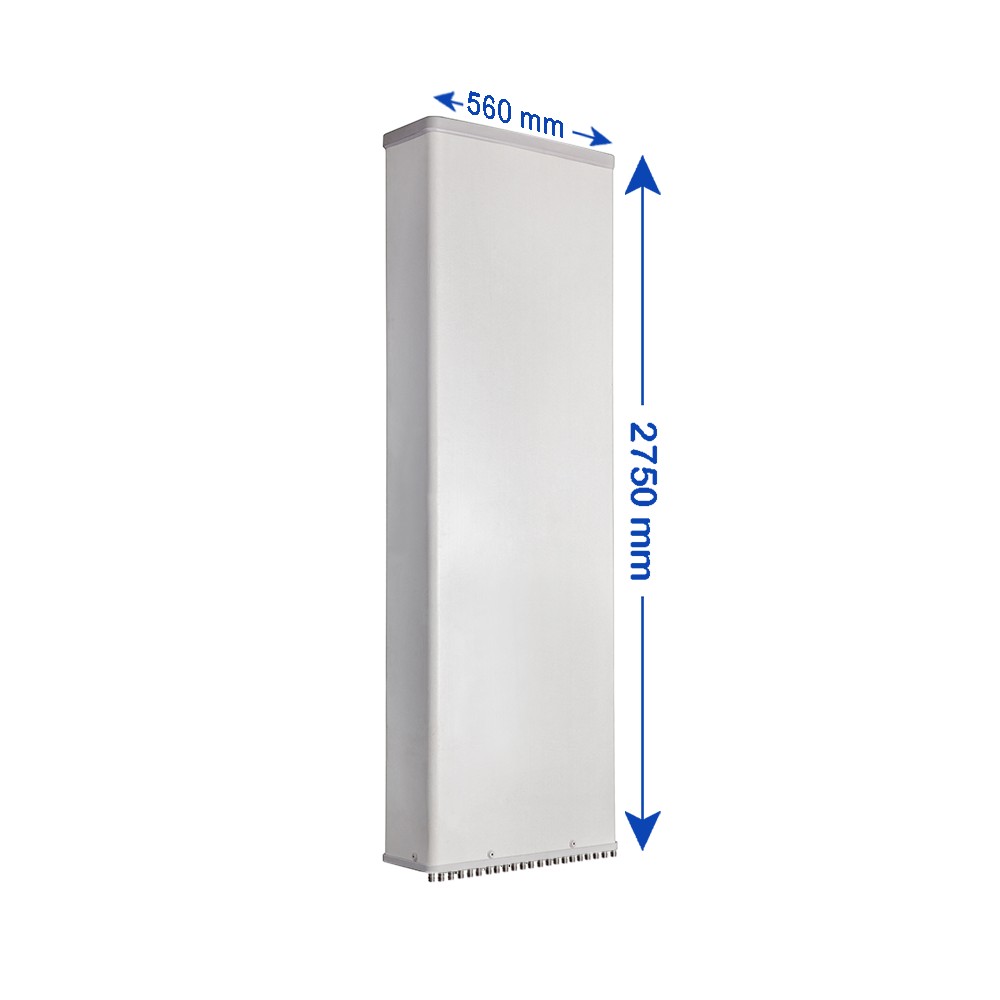

22-Port, Panel Sector Antenna, 65° HBW, 617-806/894-960/617-894/(4x) 1695-2200/(2x) 1427-1518/ (2x) 2300-2690 MHz, 16/16.5/16.5/17.5/17.5/17/17/15.5/15.5/17.5/17.5 dBi, 2-12°T, 2.750 m

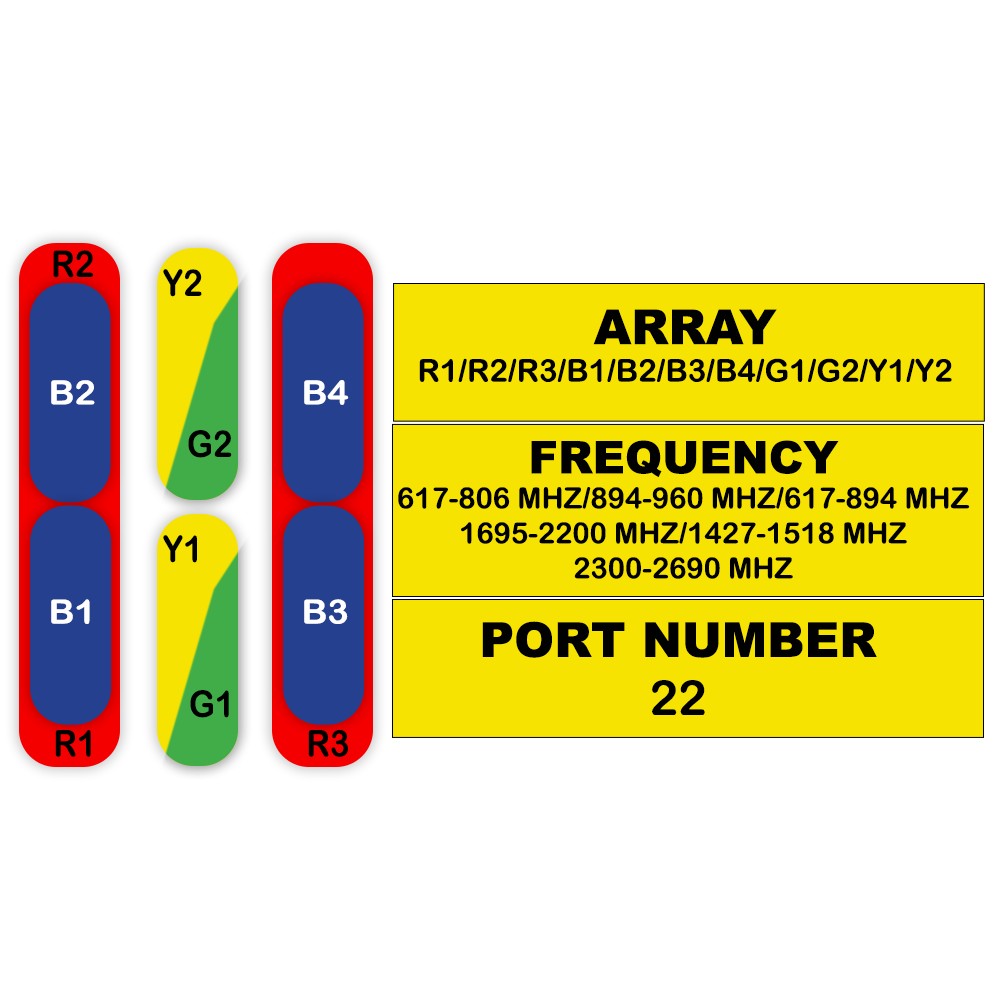

22-Port Antenna R1 R2 R3 B1 B2 B3 B4 G1 G2 Y1 Y2
Frequency Range (MHz) 617-806 894-960 617-894 1695-2200 1695-2200 1695-2200 1695-2200 1427-1518 1427-1518 2300-2690 2300-2690
HBW 65° 65° 65° 65° 65° 65° 65° 65° 65° 65° 65°
Gain 16 dBi 16.5 dBi 16.5 dBi 17.5 dBi 17 dBi 17.5 dBi 17 dBi 15.5 dBi 15.5 dBi 17.5 dBi 17.5 dBi
Tilt 2-12° 2-12° 2-12° 2-12° 2-12° 2-12° 2-12° 2-12° 2-12° 2-12° 2-12°

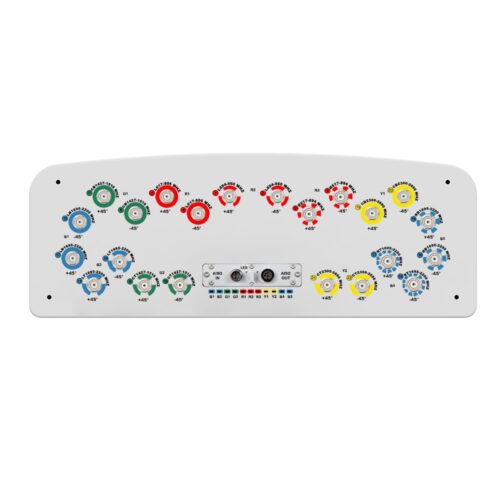

Connectors

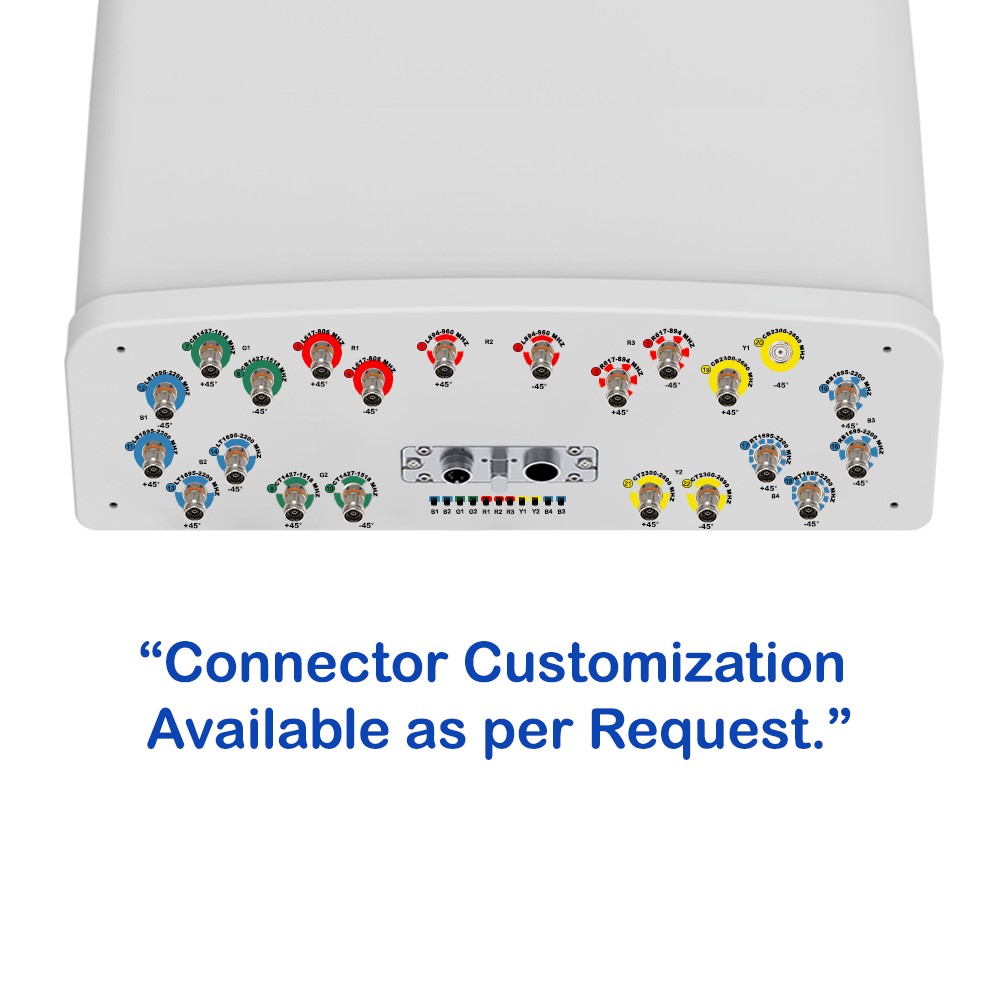

(other connectors by request)

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female
