Product code: 23P-698-3700F-17G-65H8V

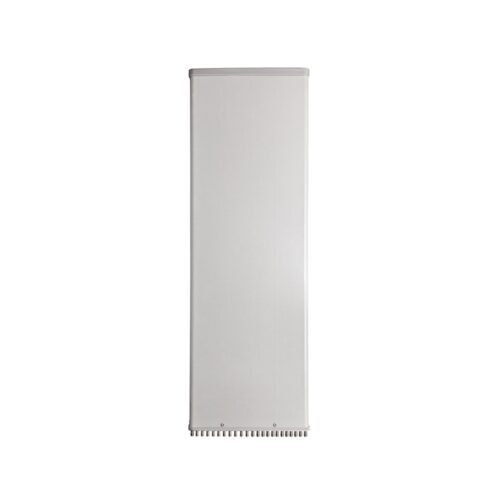

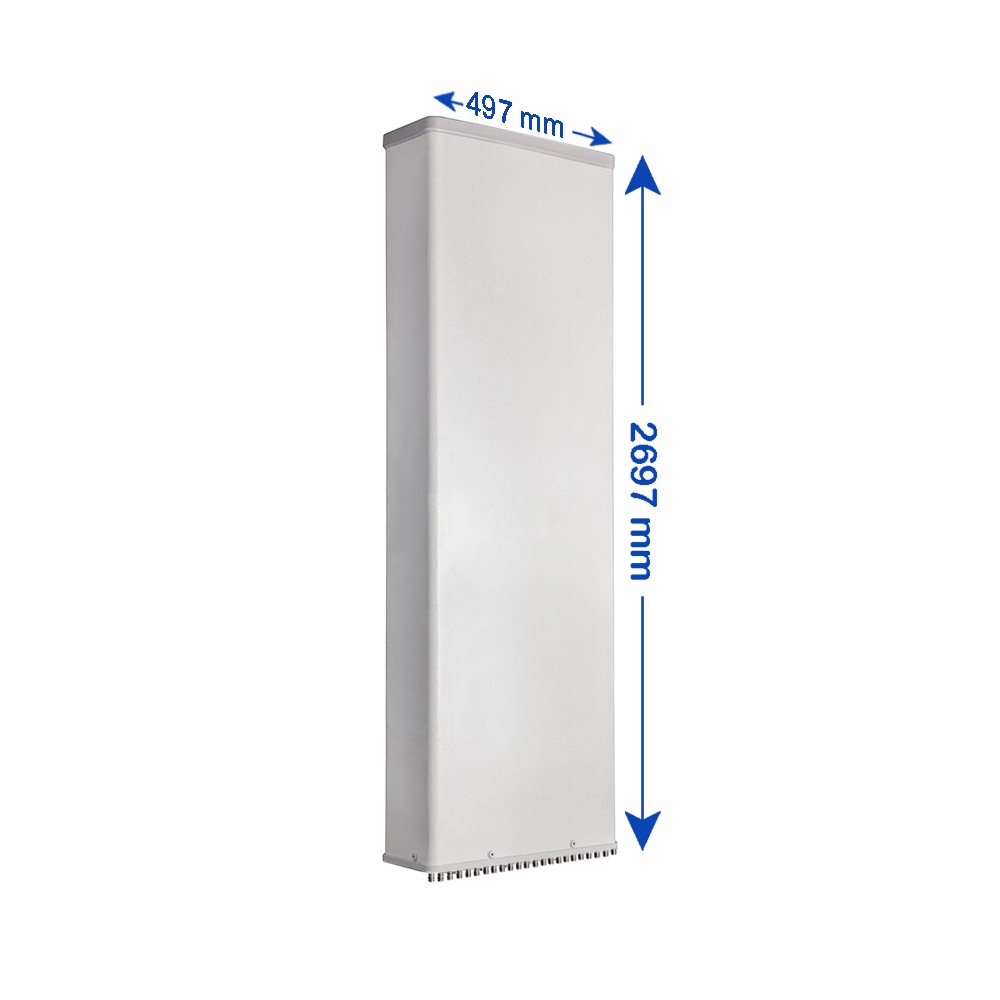

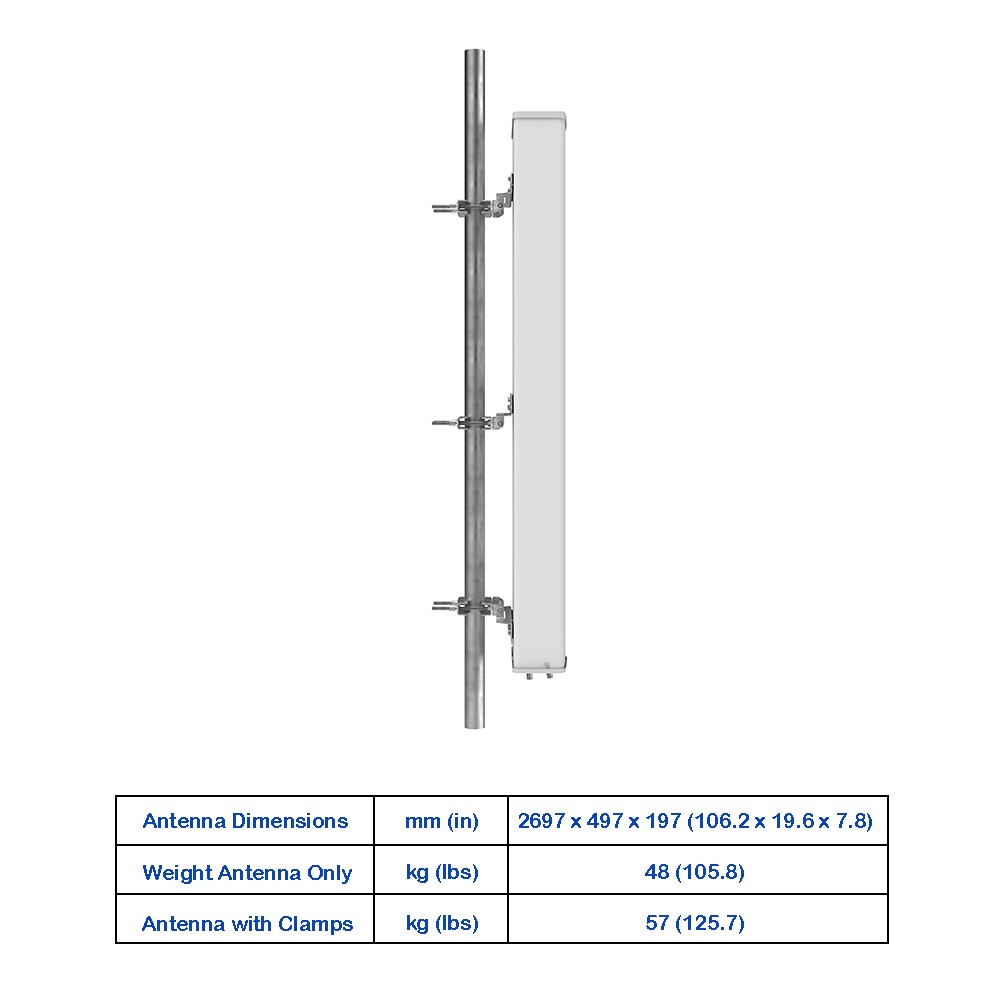

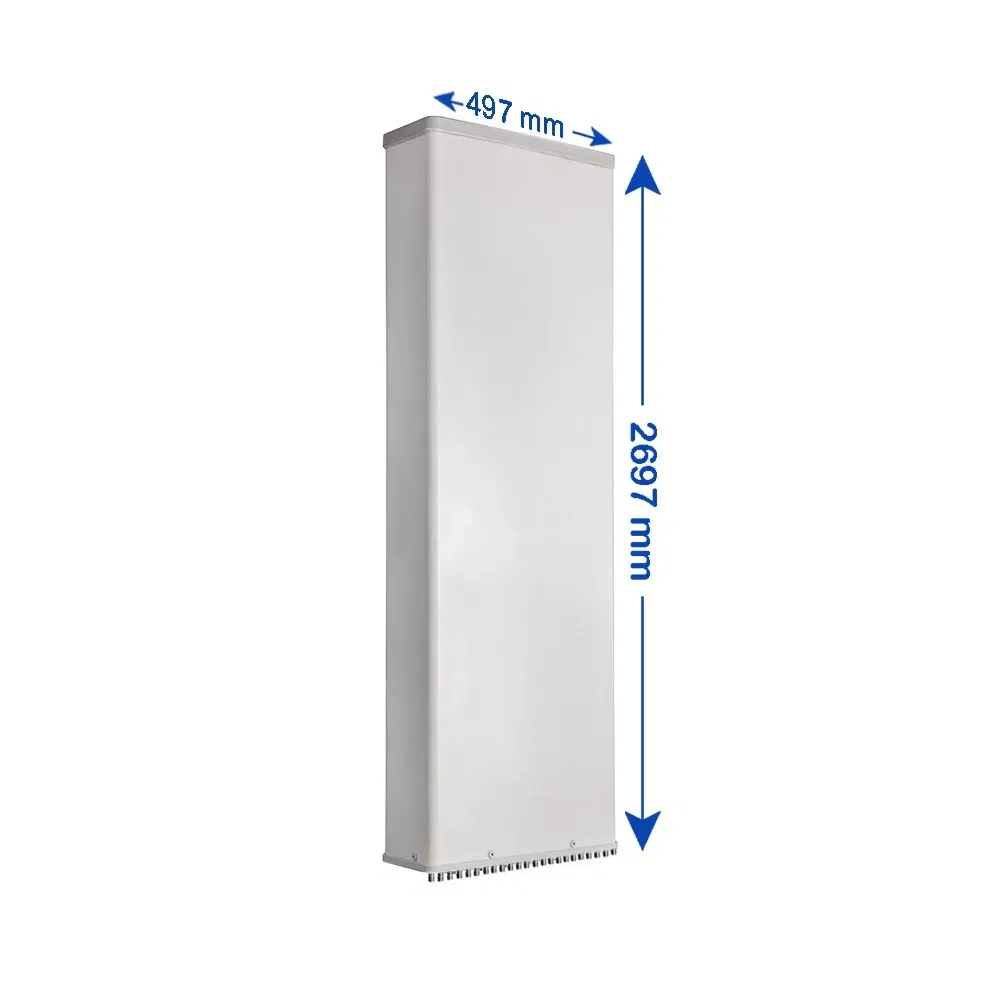

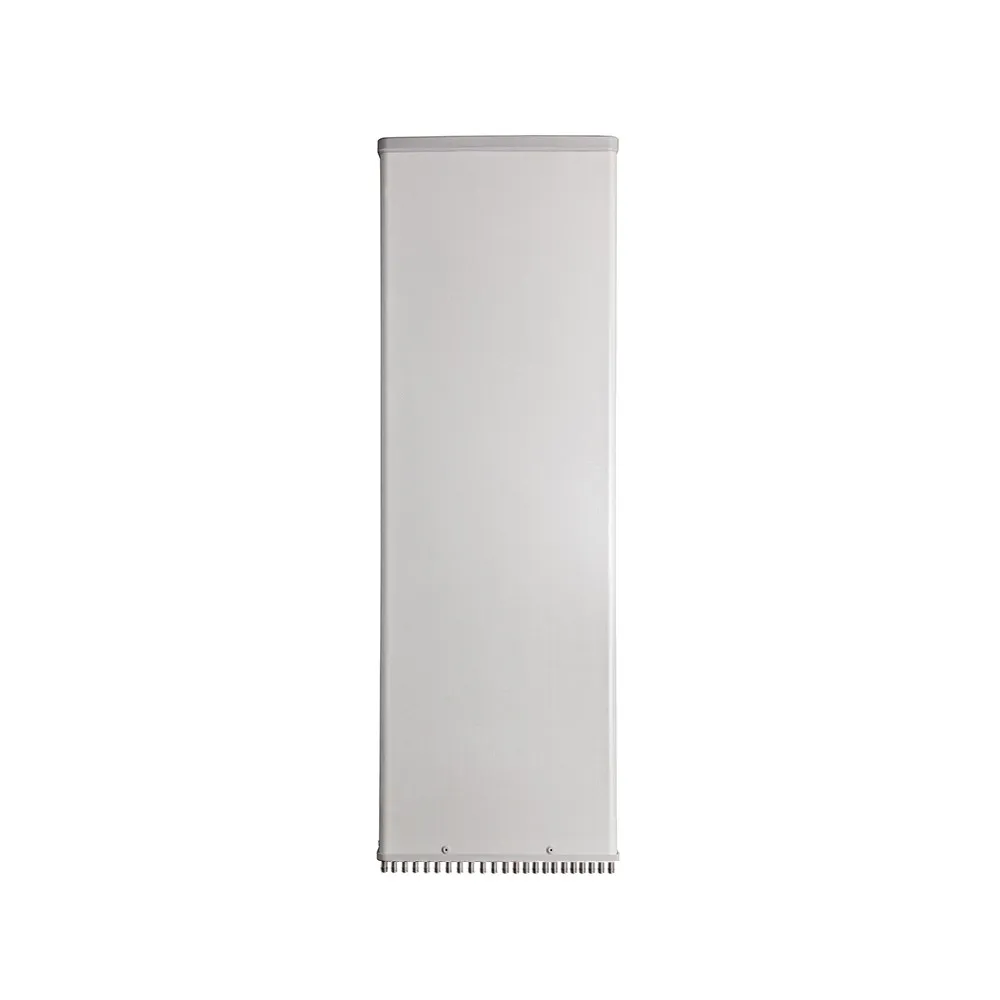

23-Port, TDD Hybrid Panel Antenna (3x) 65°/ (4x) 33°/ (1x) 75° HBW, 698-960/(6x) 1710-2690/3300-3700 MHz, 17/18/18/18/18/18/18/17 dBi, (7x) 0-10°/ (1x) 2-12°, 2.697 m

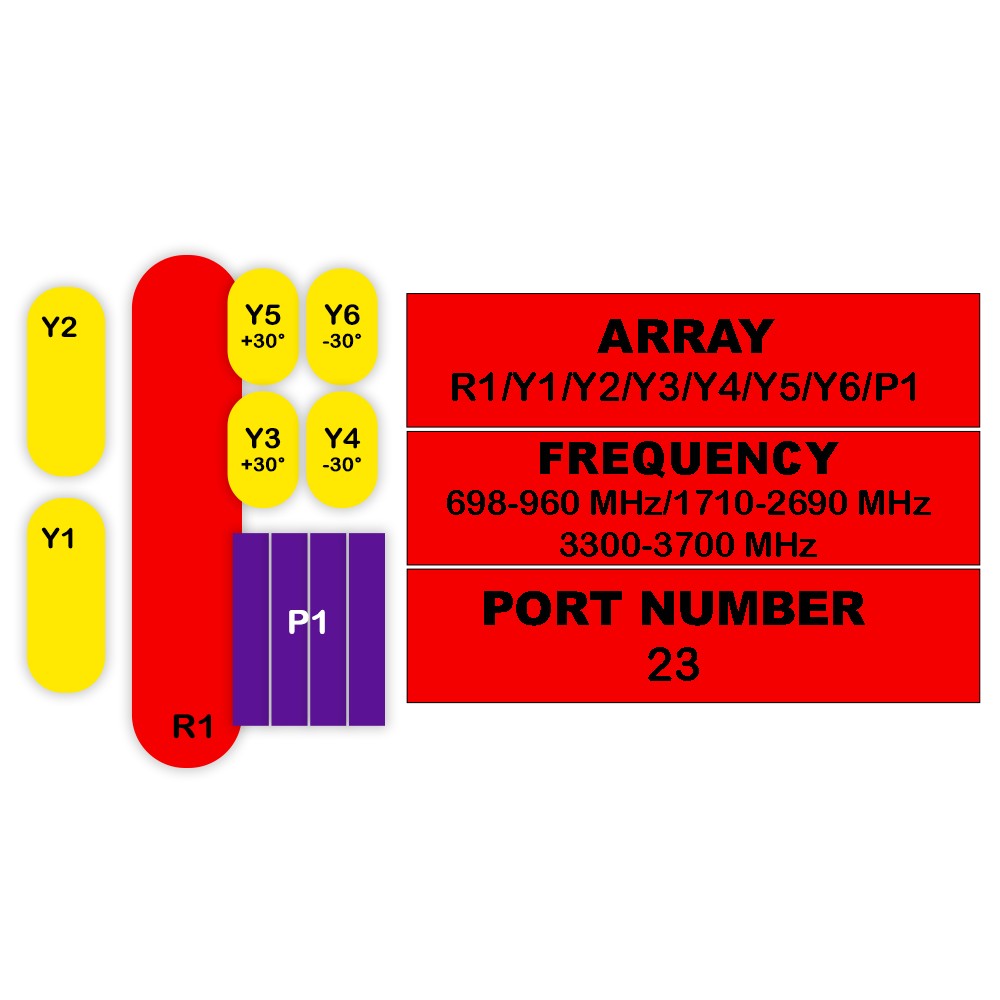

| 23-Port Antenna | R1 | Y1 | Y2 | Y3 | Y4 | Y5 | Y6 | P1 |
| Frequency Range (MHz) | 698-960 | 1710-2690 | 1710-2690 | 1710-2690 | 1710-2690 | 1710-2690 | 1710-2690 | 3300-3700 |
| HBW | 65° | 65° | 65° | 33° | 33° | 33° | 33° | 75° |
| Gain | 17 dBi | 18 dBi | 18 dBi | 18 dBi | 18 dBi | 18 dBi | 18 dBi | 17 dBi |
| Tilt | 0-10° | 0-10° | 0-10° | 0-10° | 0-10° | 0-10° | 0-10° | 2-12° |

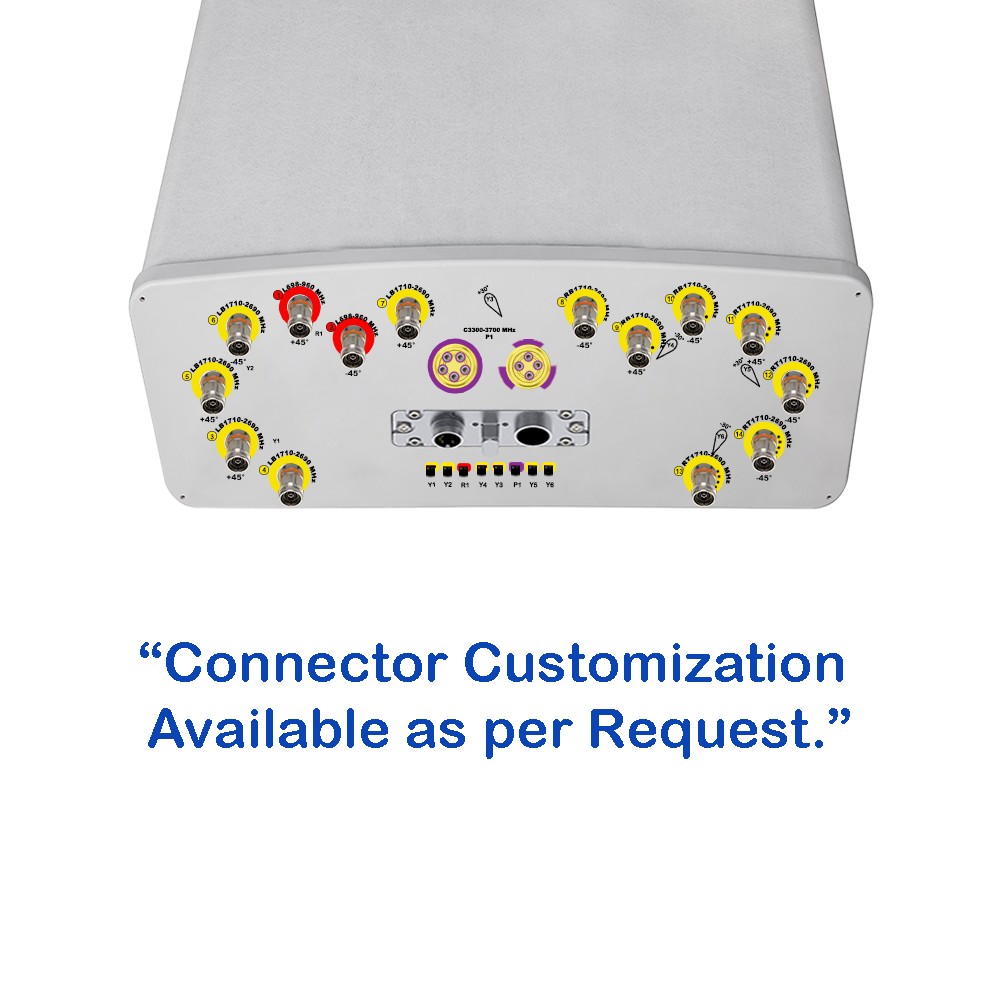

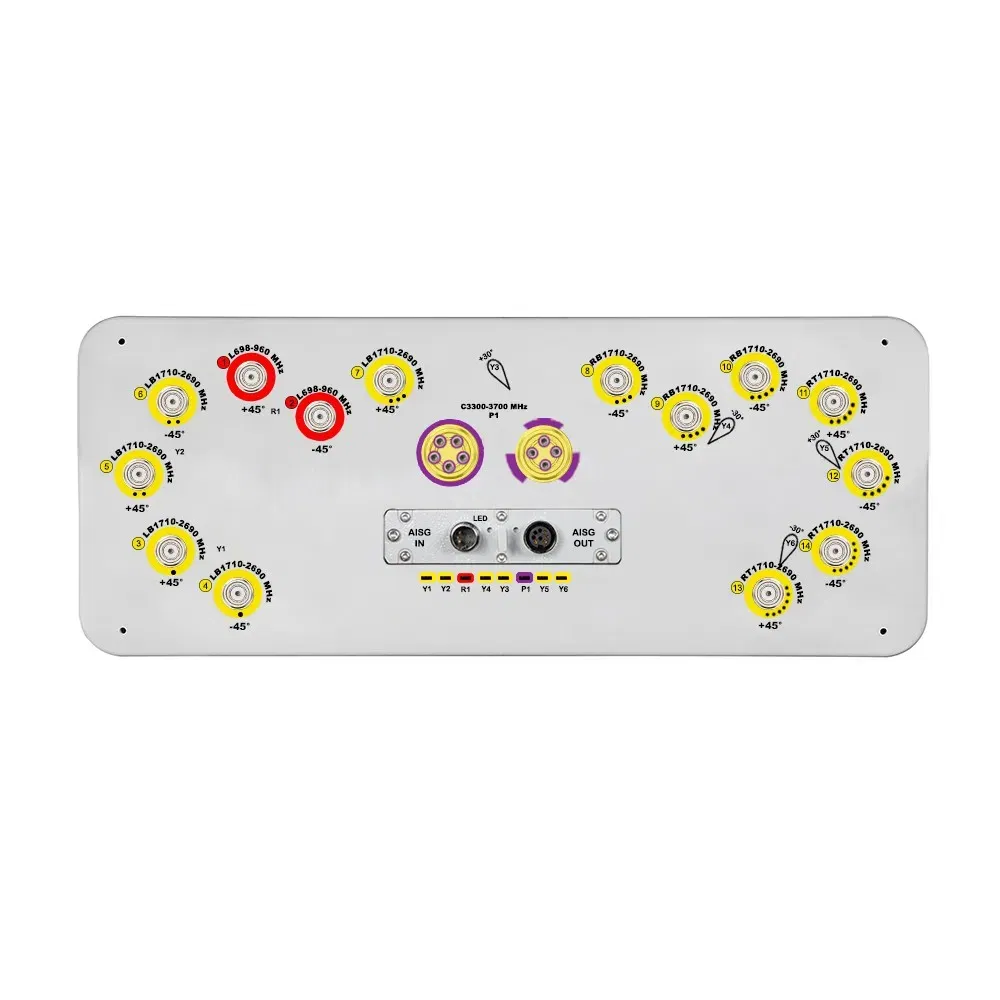

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(1x)MQ5
Male+ (1x) MQ4 Male |
