Product code: MT-DTA136

2300-2400MHz Cavity Band Pass Filter

  • P/N：MT-DTA136
  • Pass Band Frequency:2300～2400MHz
  • inhibition：≥60dB
  • Insertion loss：≤1.0dB
WhatsApp Chat
Skype
Product Part Number
MT-DTA136
Electrical & Mechanical Specification
SerialParameters
1Center Frequency (F0)2350MHz
2Pass Band Frequency2300～2400MHz
3Pass Band Insertion Loss≤1.7dB
4Pass Band Ripple≤1.0dB
5Pass Band VSWR≤1.3:1
6Stop Band Rejection≥65dB @ Fc±50MHz (DC～2250MHz、2450～5000MHz)
7Impedance50 ohms
8Power Handling≤20W
9ConnectorsN-Female
10Surface FinishBlack Paint
11Net WeightTBD

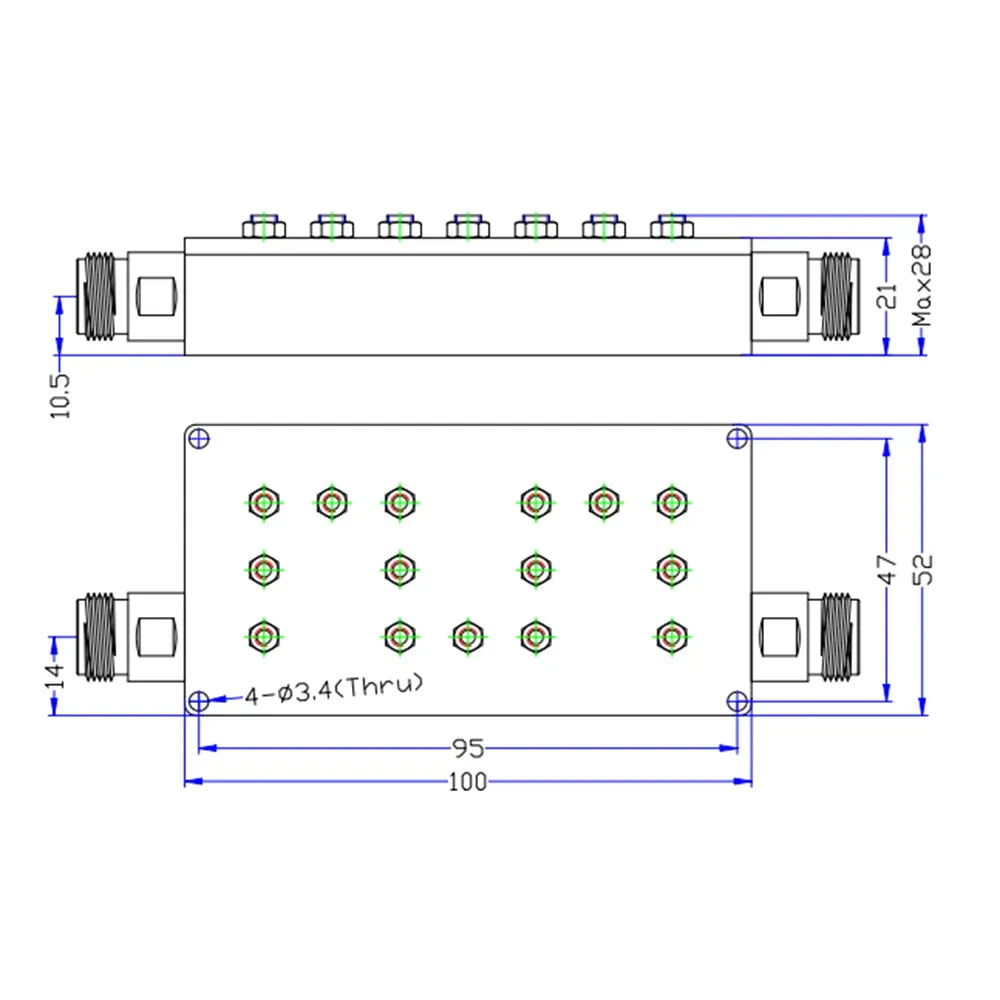

12ConfigurationAs Below (Size Unit: mm)
