Product code: MT-DTA760

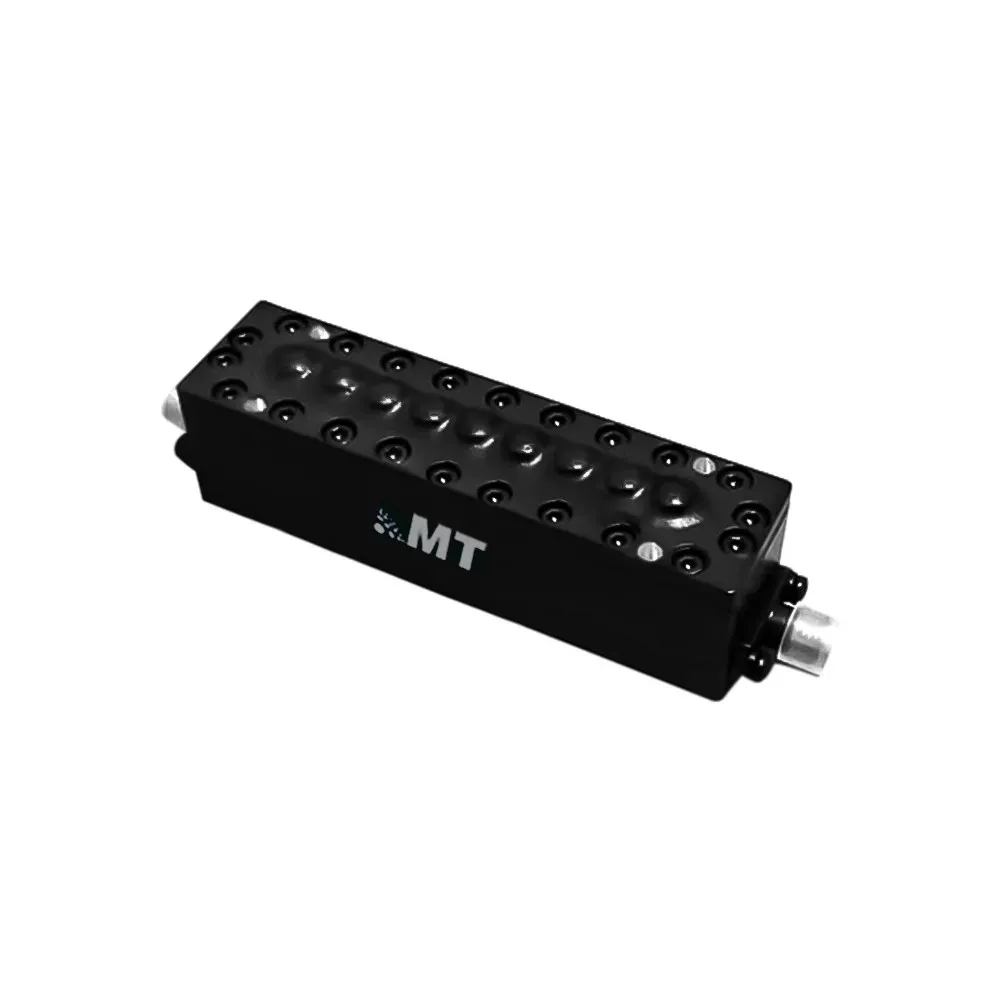

2395-2405MHz Cavity Band Pass Filter
- P/N：MT-DTA760
- Pass Band Frequency：2395-2405MHz
- Stop Band Rejection：≥80dB
- Connectors：SMA-Female
Product Part Number
MT-DTA760
Electrical & Mechanical Specification
| S/N | Item | Parameters |
|---|---|---|
| 1 | Center Frequency(F0) | 2400MHz |
| 2 | Pass Band Frequency | 2395 ~ 2405MHz |
| 3 | Pass Band Insertion Loss | ≤1.5dB |
| 4 | Pass Band Ripple | ≤0.15dB |
| 5 | Pass Band Return Loss | ≥23dB |
| 6 | Stop Band Rejection | ≥80dB @ DC ~ 2250MHz 2550 ~ 9500MHz |
| 7 | Impedance | 50 Ohms |
| 8 | Power | 5.0W Max. |
| 9 | Connectors | SMA-Female |
