Product code: 24P-698-3800F-18G-65H16V

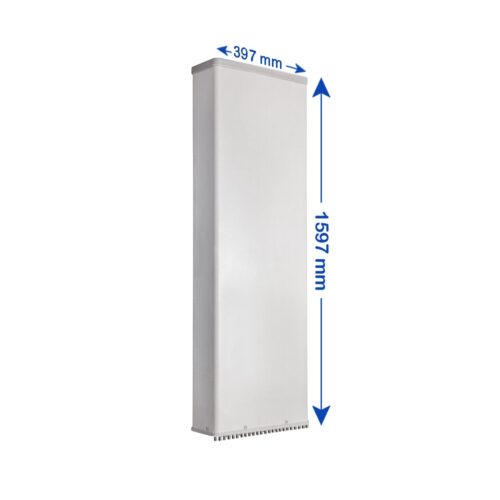

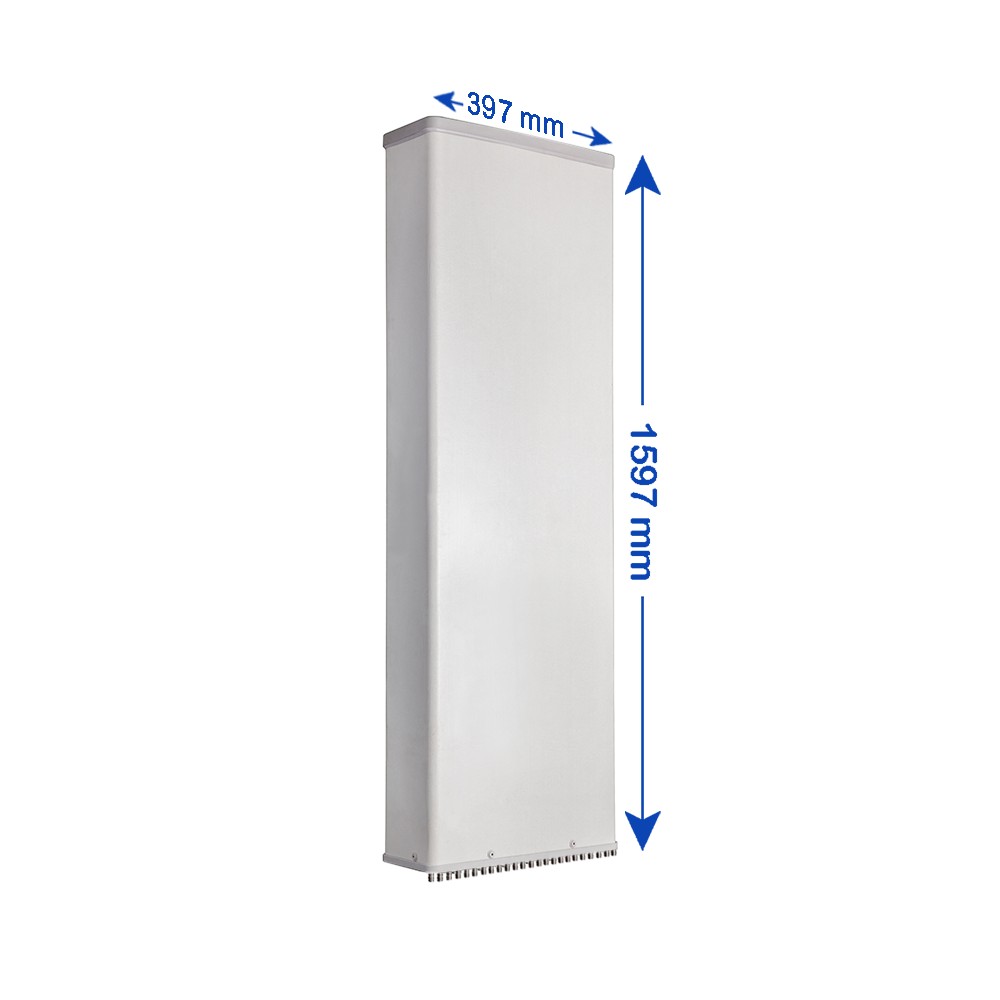

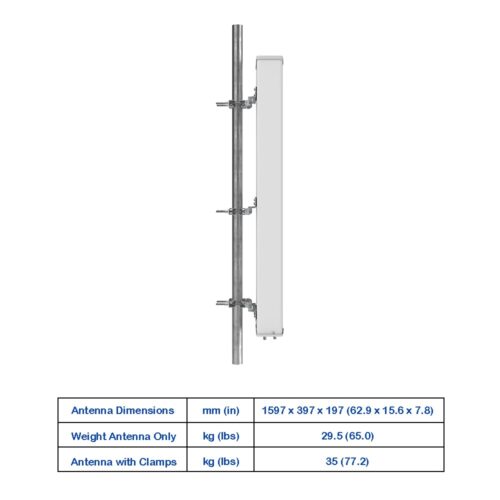

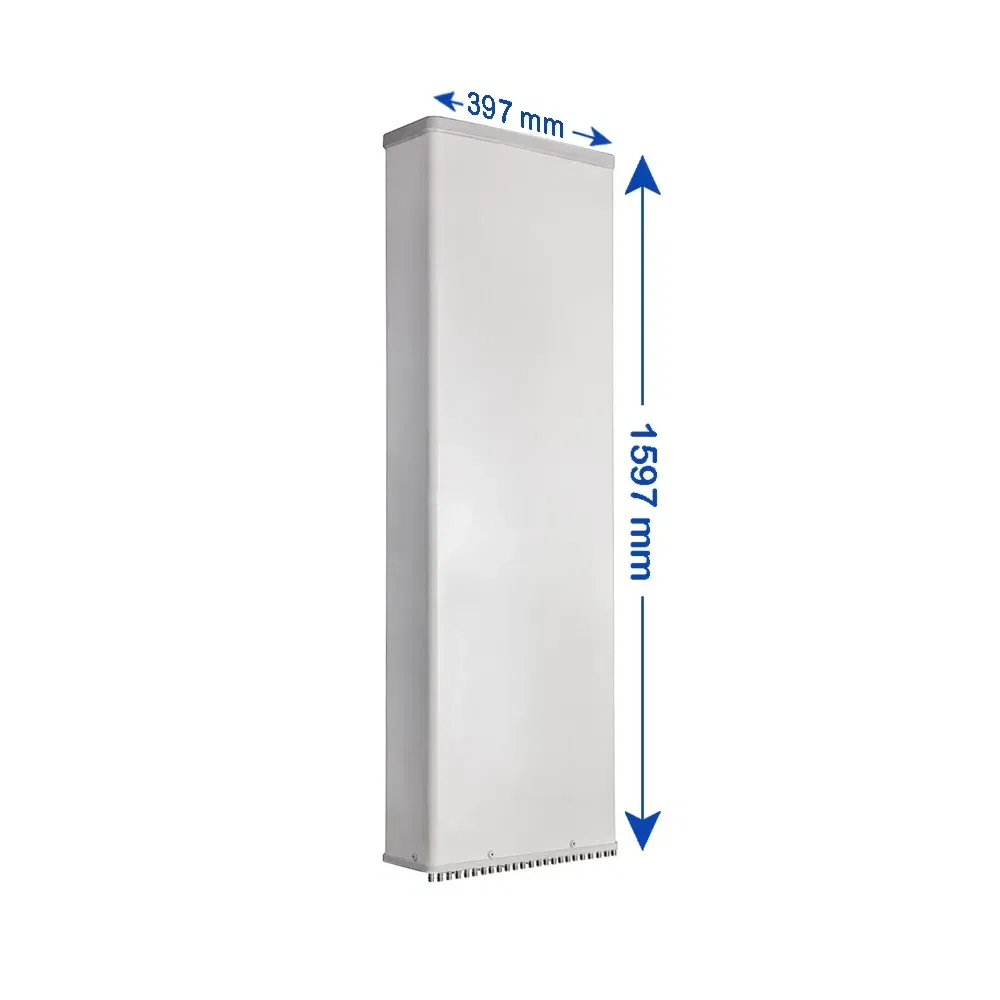

24-Port, Panel Sector Antenna, 65° HBW, 698-960 / (2x) 1710-2690 / (2x) 3300-3800 MHz, 15/18/18/14.5/14 dBi, (1x) 2-16°/(4x) 2-12°T, 1.597 m

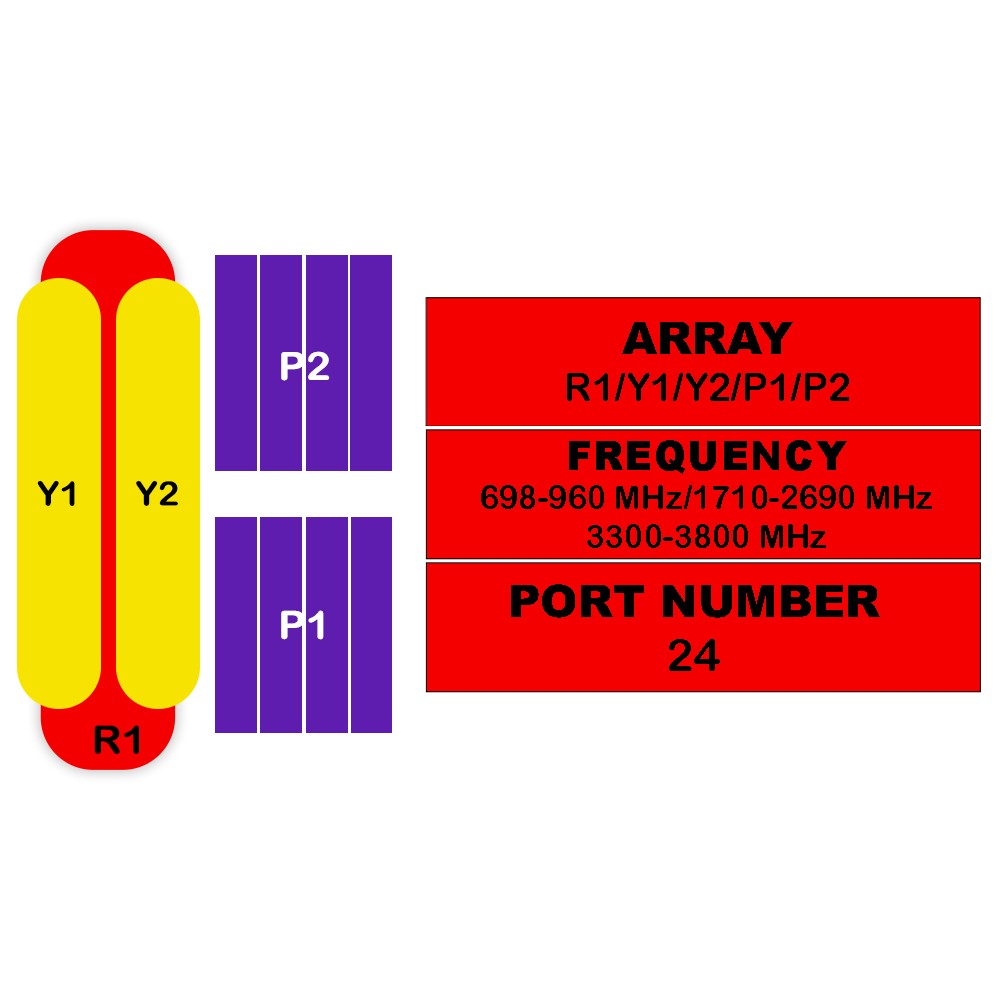

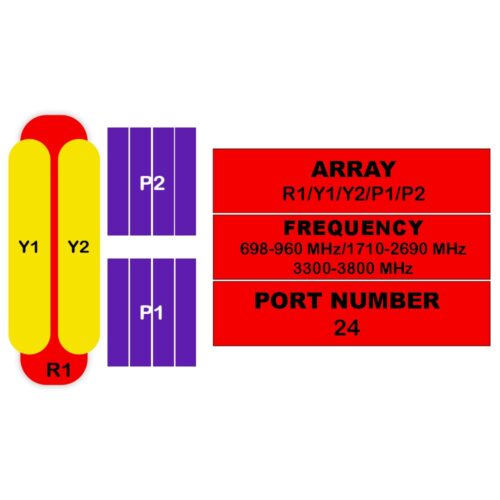

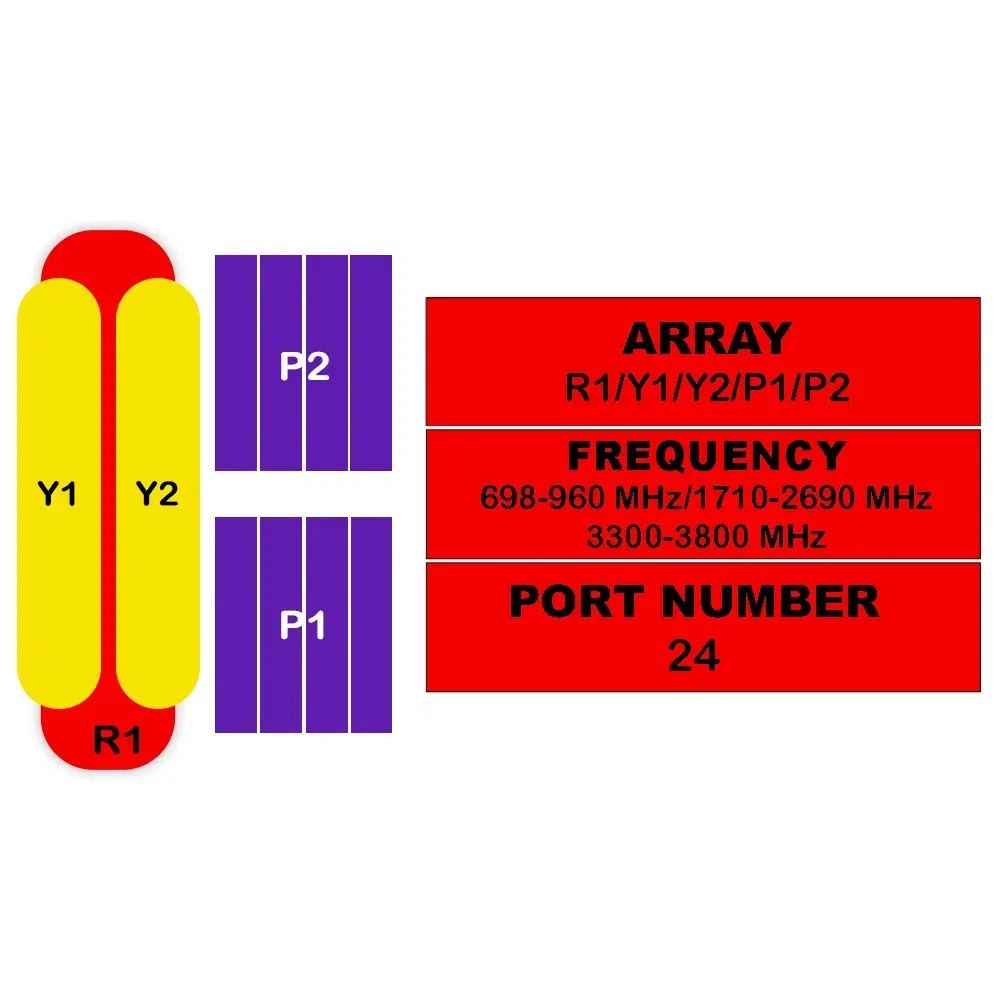

| 24-Port Antenna |
R1 |
Y1 | Y2 | P1 |
P2 |
| Frequency Range (MHz) |
698-960 |
1710-2690 | 1710-2690 | 3300-3800 |
3300-3800 |
| HBW |
65° |
65° | 65° | 65° |
65° |
| Gain |
15 dBi |
18 dBi | 18 dBi | 14.5 dBi |
14 dBi |
| Tilt |
2-16° |
2-12° | 2-12° | 2-12° |
2-12° |

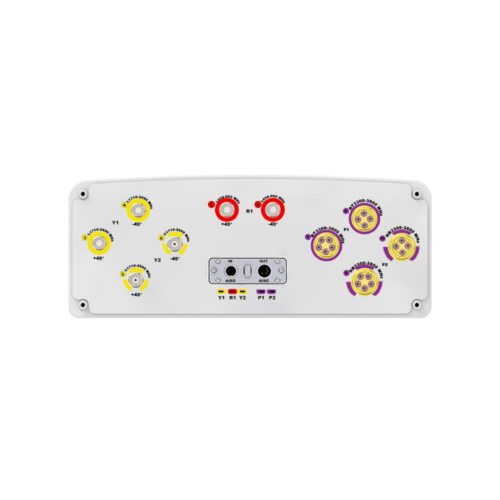

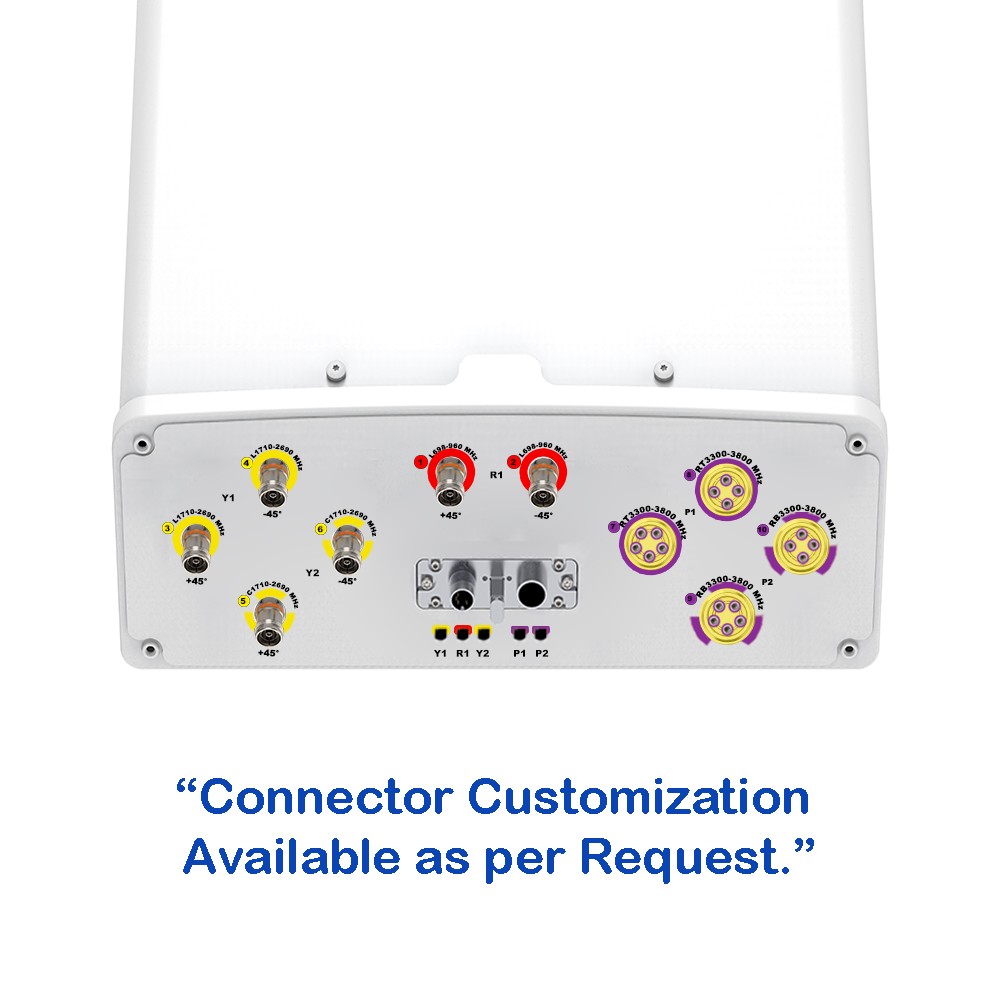

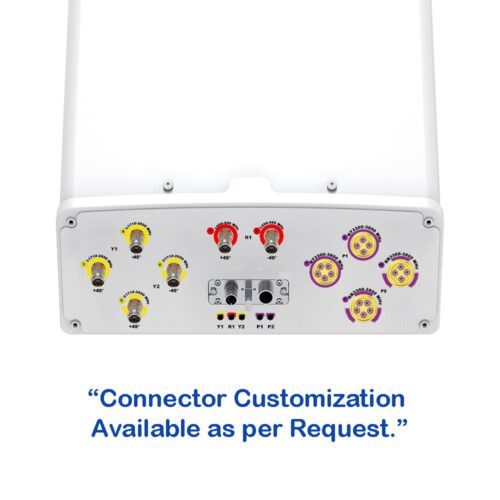

| Connectors
(other connectors by request) |
(2x) 4.3/10 Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(1x)MQ5 Male+ (1x) MQ4 Male | (1x)MQ5 Male+ (1x) MQ4 Male |
