Product code: 25P-694-3800F-16G-65H11V

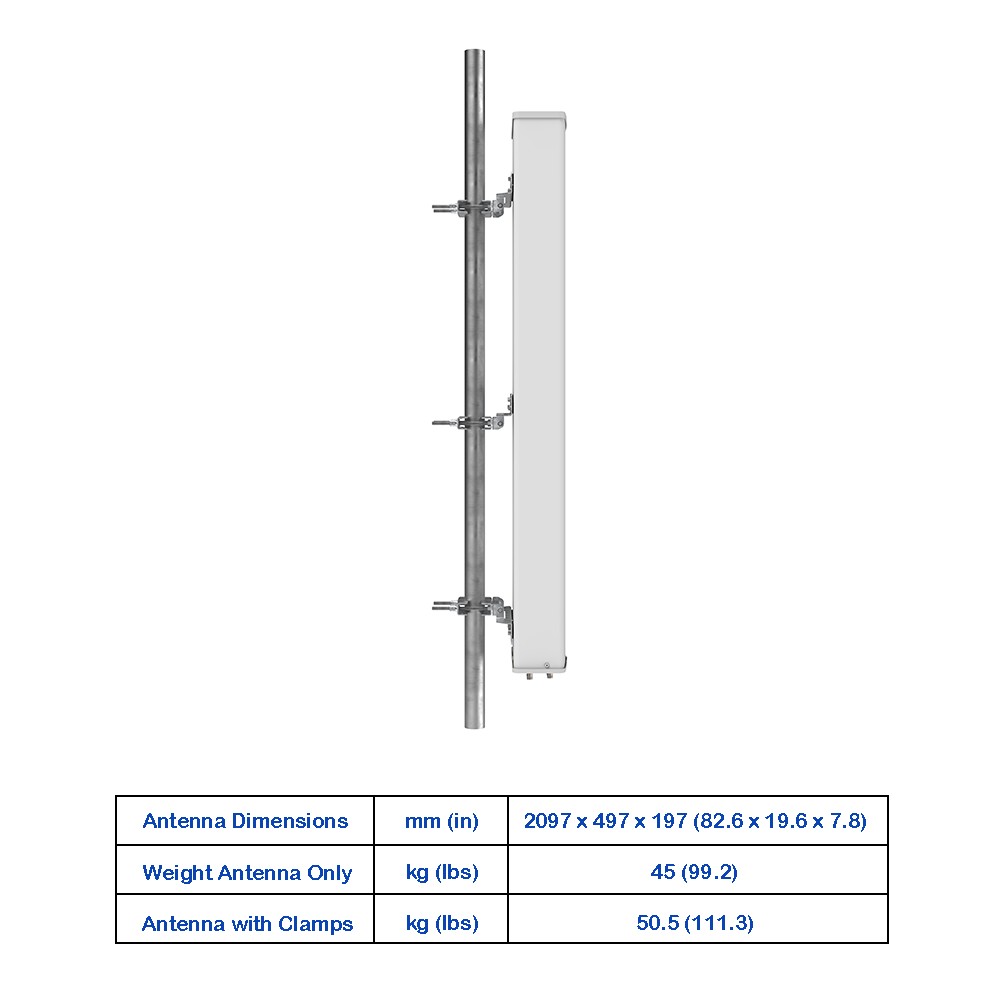

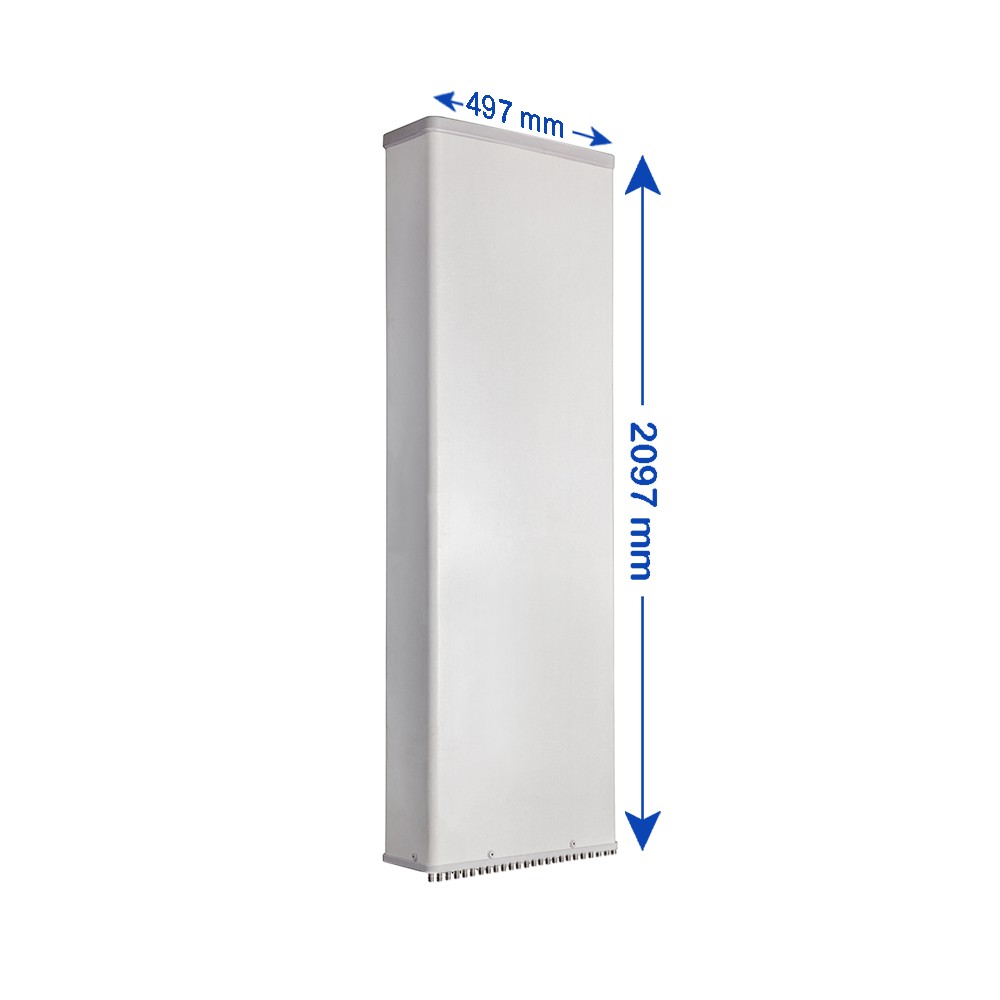

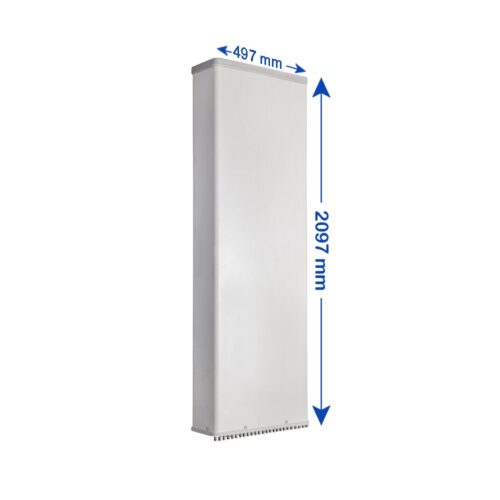

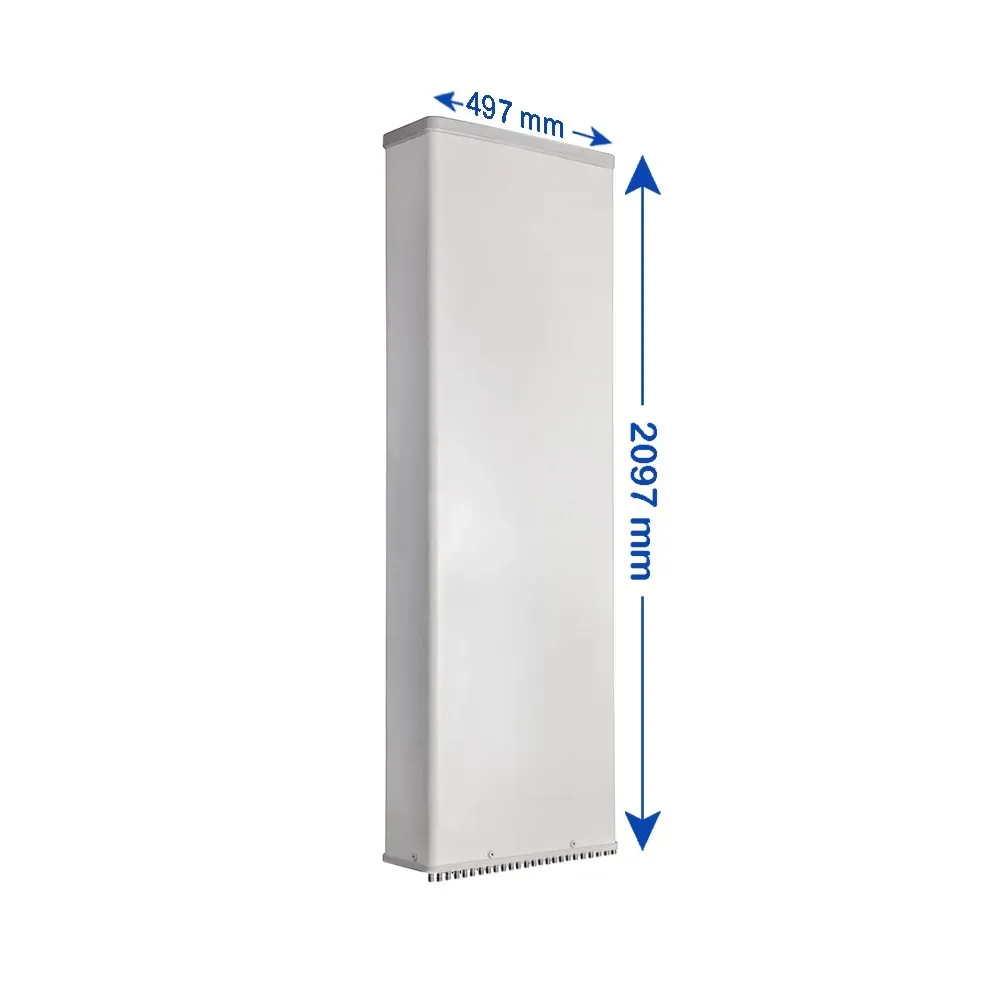

25-Port, TDD Hybrid Panel Antenna, 65° HBW, (2x) 694-960 / (2x) 1695-2180 / (2x) 1427-2690 / (2x) 2490-2690 / 3300-3800 MHz, 16/16/17/17/17/17/17/17/17 dBi, 2-12°T, 2.097 m

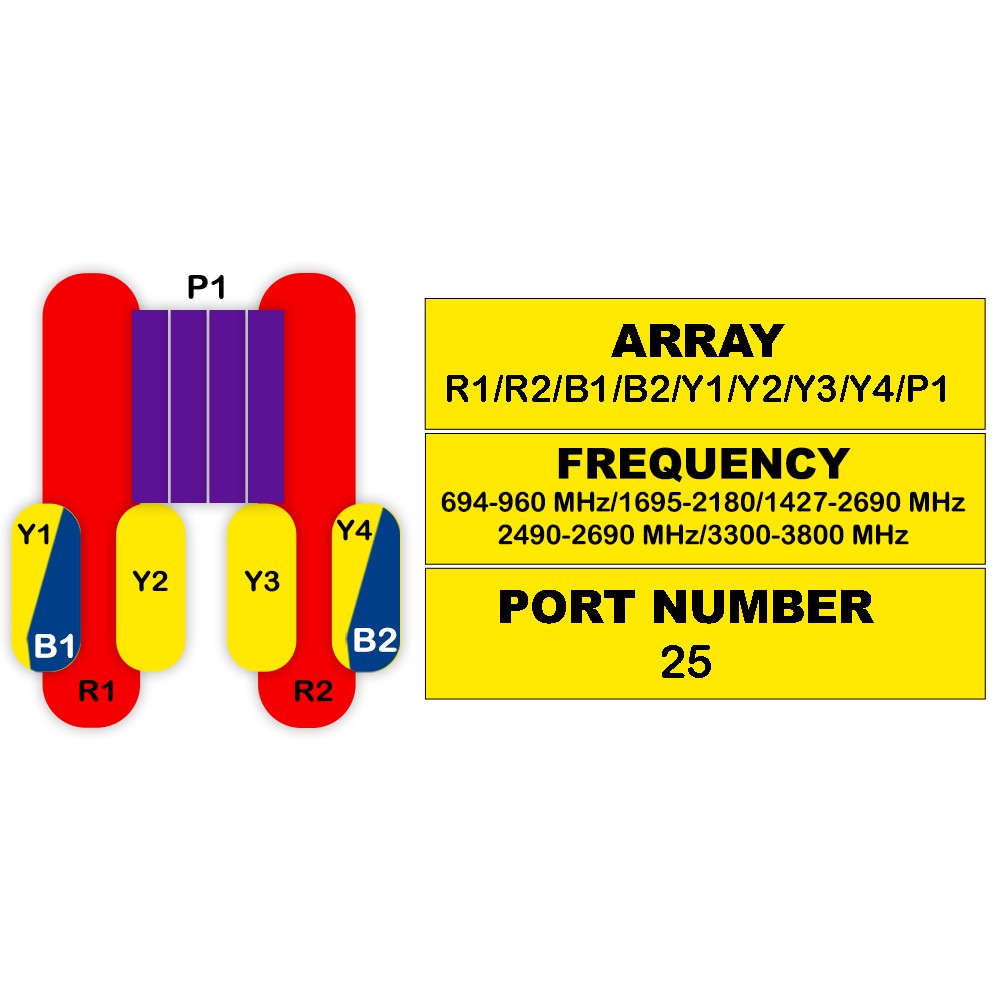

| 25-Port Antenna |
R1 |
R2 | B1 | B2 | Y1 | Y2 | Y3 | Y4 |
P1 |
| Frequency Range (MHz) |
694-960 |
694-960 | 1695-2180 | 1695-2180 | 2490-2690 | 1427-2690 | 1427-2690 | 2490-2690 |
3300-3800 |
| HBW |
65° |
65° | 65° | 65° | 65° | 65° | 65° | 65° |
65° |
| Gain |
16 dBi |
16 dBi | 17 dBi | 17 dBi | 17 dBi | 17 dBi | 17 dBi | 17 dBi |
17 dBi |
| Tilt |
2-12° |
2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° |
2-12° |

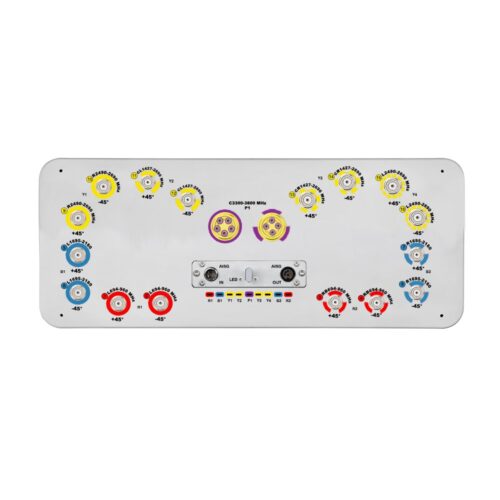

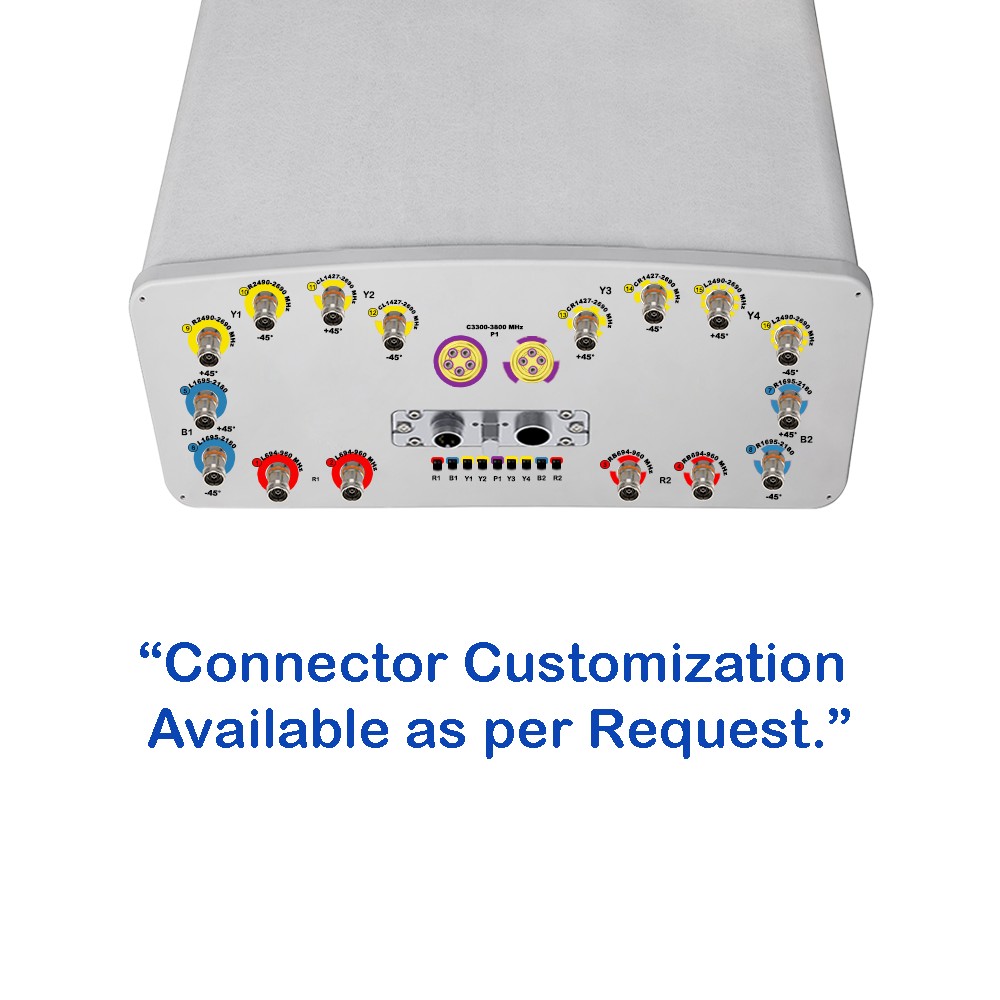

| Connectors
(other connectors by request) |
(2x) 4.3/10 Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(1x)MQ5 Male+ (1x) MQ4 Male |
