Product code: MT-2-6GHz

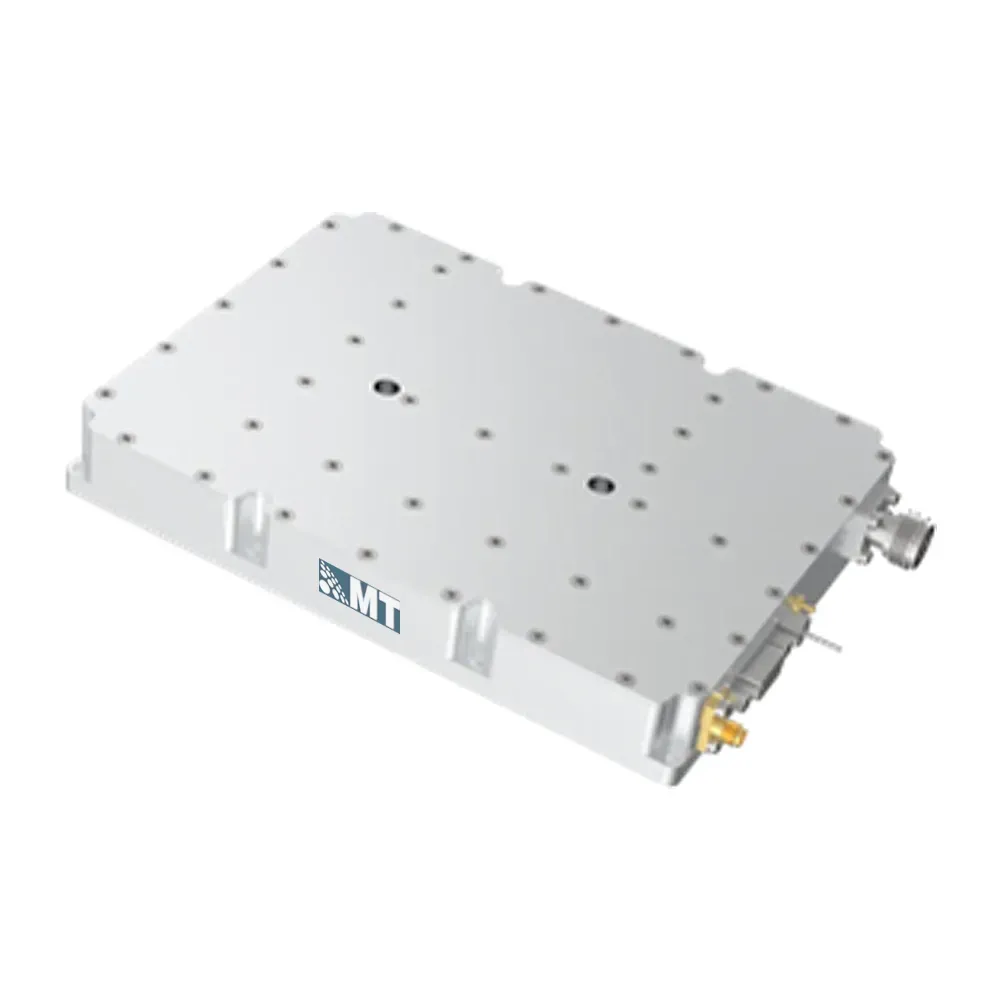

2~6GHz 50W Band Power Amplifier

Model-MT-2-6GHz
Power Monitoring Function
Temperature Alarm % Protection Function
Power Supply Modulation Function
Operating Temperature:-40℃~+60℃
Storage Temperature: -50℃~+85℃
WhatsApp Chat
Skype
Product Part Number
MT-2-6GHz
Electrical & Mechanical Specification
Performance Specifications
ParameterSpecifications
Frequency2~6GHz
output power≥46dBm
Scattered≤-60dBc
Second Harmonic≤-12dBc
Third Harmonic≤-10dBc
Input VSWR≤1.5
Output VSWR≤2
Power supply+28V
Total power consumption≤250W
Size188mm*138mm*28mm
Interface Definition
ParameterSpecifications
RF InputSMA-K
RF OutputN-50K
Power Supply PortThrough-hole Capacitor/DB-15
CoolingRequires external auxiliary cooling
