Product code: 27P-617-3800F-16G-65H10V

27-Port, TDD Hybrid Panel Antenna, 65° HBW, 617-806 / 824-894 / 694-960 / (4x) 1710-2690 / (2x) 1695-2690 / 3300-3800 MHz, 15.5/16/16.5/18/17.5/18/17.5/17.5/17.5/17 dBi, 2-12°T, 2.750 m

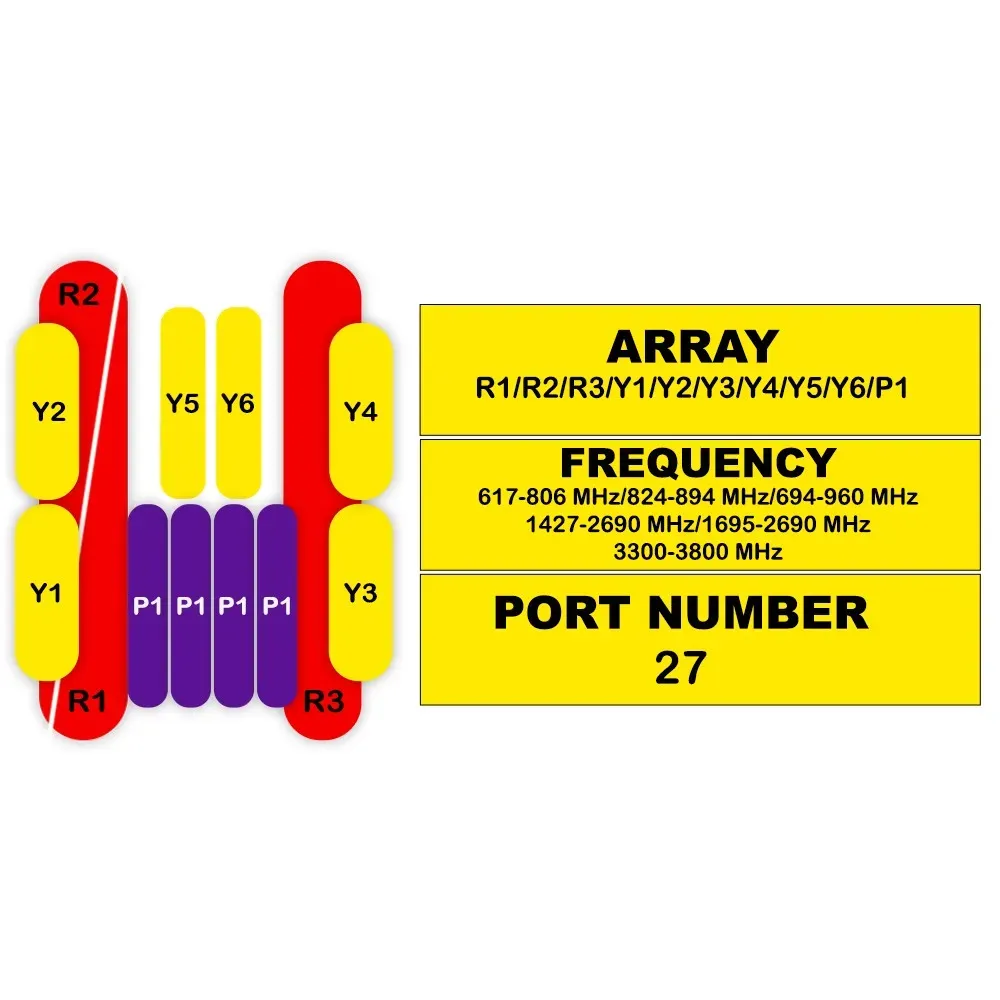

27-Port Antenna

R1

 R2 R3 Y1 Y2 Y3 Y4 Y5 Y6

P1

Frequency Range (MHz)

 617-806 824-894 694-960 1427-2690 1427-2690 1427-2690 1427-2690 1695-2690 1695-2690

3300-3800

HBW

 65° 65° 65° 65° 65° 65° 65° 65° 65°

65°

Gain

 15.5 dBi 16 dBi 16.5 dBi 18 dBi 17.5 dBi 18 dBi 17.5 dBi 17.5 dBi 17.5 dBi 17 dBi
Tilt

2-12°

 2-12° 2-12° 2-12° 2-12° 2-12° 2-12° 2-12° 2-12°

2-12°

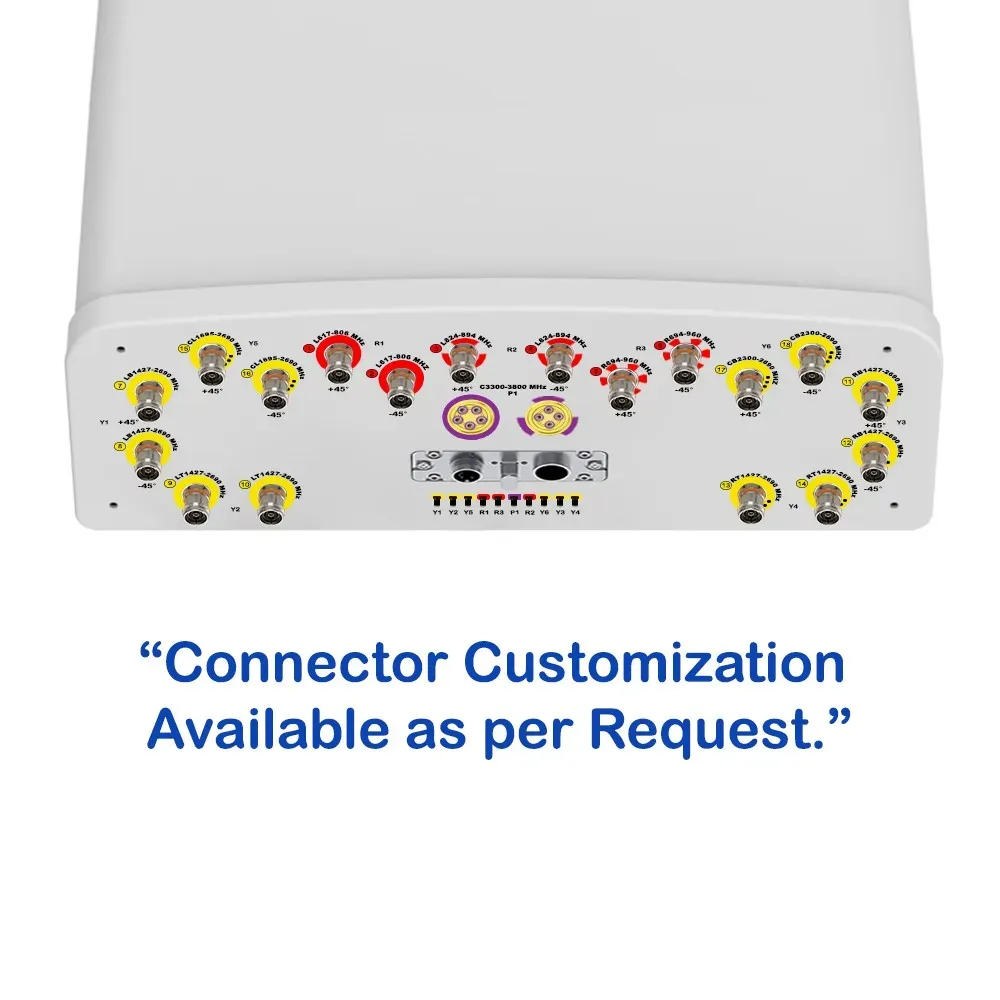

Connectors

(other connectors by request)

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

(1x) MQ5 Male

(4 RF + 1 Calibration) (1x) MQ4 Male (4 RF)
WhatsApp Chat
Skype
Product Part Number
27P-617-3800F-16G-65H10V
Electrical & Mechanical Specification
Electrical Specifications
R1R2R3Y1 / Y3Y2 / Y4
Frequency RangeMHz617-806694-9601427-26901427-2690
MHz617-698824-894694-806790-894880-9601427-15181695-19201920-21702300-24002490-26901427-15181695-19201920-21702300-24002490-2690
Polarization—±45°±45°±45°±45°±45°
Gainat Mid TiltdBi15.315.816.216.216.6171616.917.7181815.616.517.317.617.6
Over All TiltsdBi14.7±0.615.2±0.615.6±0.615.6±0.616.0±0.616.4±0.615.4±0.616.4±0.517.2±0.517.4±0.617.4±0.615.0±0.616.0±0.516.8±0.517.0±0.617.0±0.6
Horizontal Beamwidthdegree72 ± 5.468 ± 5.665 ± 5.668 ± 6.564 ± 6.561 ± 6.573 ± 6.570 ± 5.566 ± 6.065 ± 8.063 ± 9.073 ± 6.570 ± 5.566 ± 6.065 ± 8.063 ± 9.0
Vertical Beamwidthdegree10.0±0.98.8 ± 0.67.8 ± 0.78.8 ± 0.87.8 ± 0.67.2 ± 0.78.1 ± 0.66.4 ± 0.85.9 ± 0.65.2 ± 0.54.8 ± 0.68.1 ± 0.66.4 ± 0.85.9 ± 0.65.2 ± 0.54.8 ± 0.6
Electrical Downtilt, Continuously Adjustabledegree2-122-122-122-122-12
Tilt Accuracydegree< 1< 1< 1< 1< 1< 1< 1< 1< 1< 1< 1< 1< 1< 1< 1< 1
Upper Side Lobe SuppressionFirst Upper LobedB> 15> 15> 15> 15> 15> 15> 15> 15> 15> 15> 15> 15> 15> 15> 15> 15
Peak to 20°dB> 14> 14> 14> 14> 14> 14> 14> 14> 14> 14> 14> 14> 14> 14> 14> 14
Front-To-Back Ratio ±30°dB> 21> 23> 24> 23> 24> 25> 22> 24> 25> 25> 24> 22> 24> 25> 25> 24
Cross PolarAt BoresightdB> 17> 17> 18> 17> 17> 18> 16> 16> 16> 16> 16> 16> 16> 16> 16> 16
DiscriminationOver SectordB> 9> 7> 6> 9.0> 7.0> 6.0> 6> 6> 5> 3> 2> 6> 6> 5> 3> 2
IsolationCross-PolardB> 25> 25> 25> 25> 25> 25> 25
Port-To-PortdB> 25> 25> 25> 25> 25> 25> 25
ImpedanceOhm5050505050
VSWR—< 1.5< 1.5< 1.5< 1.5< 1.5
Return LossdB> 14> 14> 14> 14> 14
PIM3 (2×43 dBm Carrier)dBc< -150< -150< -150< -150< -150
Lightning Protection—DC Ground
Maximum Average Input Power per Port, at 50° C Ambient TemperatureWatts200200250200200
Y5/Y6P1
Frequency RangeMHz1695-2690Frequency RangeMHz3300-3800
MHz1695-18801850-19901920-21702300-24002490-2690MHz3300-36003600-3800
Polarization—±45°Polarization—±45°
Gainat Mid TiltdBi16.416.717.117.417.4Electrical Downtilt, Continuously Adjustabledegree2-12
Over All TiltsdBi15.8 ± 0.616.2 ± 0.516.6 ± 0.516.8 ± 0.616.8 ± 0.6Single Column BeamGaindBi15.5 ± 115.7 ± 1
Horizontal Beamwidthdegree68 ± 6.567 ± 6.564 ± 8.165 ± 6.563 ± 8.5Horizontal Beamwidthdegree80 ± 1070 ± 10
Vertical Beamwidthdegree6.8 ± 0.66.4 ± 0.56.0 ± 0.55.4 ± 0.44.8 ± 0.6Vertical Beamwidth (3 dB)degree5.8 ± 0.65.5 ± 0.6
Electrical Downtilt, Continuously Adjustabledegree2-12Cross-Polar Discrimination (0°)dB≥ 15≥ 15
Tilt Accuracydegree< 1< 1< 1< 1< 1First Upper Side Lobe SuppressiondB≥ 15≥ 15
Upper Side Lobe SuppressionFirst Upper LobedB> 15> 15> 15> 15> 15Front-To-Back RatiodB≥ 25≥ 25
Peak to 20°dB> 14> 14> 14> 14> 1465° Broadcast BeamGaindB17.0 ± 0.617.2 ± 0.6
Front-To-Back Ratio ±30°dB> 22> 22> 23> 24> 22Horizontal Beamwidthdegree6565
Cross Polarat BoresightdB> 16> 16> 16> 17> 17Vertical Beamwidth (3 dB)degree5.8 ± 0.65.5 ± 0.6
DiscriminationOver SectordB> 7.0> 6.0> 6.0> 4.0> 3.0Cross-Polar Discrimination (0°)dB≥ 15≥ 15
IsolationCross-PolardB> 26First Upper Side Lobe SuppressiondB≥ 15≥ 15
Port-to-PortdB> 25Front-To-Back RatiodB≥ 27≥ 27
ImpedanceOhm50Service Beam0° Direct Beam GaindBi21 ± 0.521.2 ± 0.5
VSWR—< 1.50° Direct Beam Horizontal 3 dB Beamwidthdegree< 25< 25
Return LossdB> 14±30° Direction Beam GaindBi1818.2
PIM3 (2×43 dBm Carrier)dBc< -150±30° Direction Beam Horizontal 3 dBdegree< 30< 30
Lightning Protection—DC GroundBeamwidth
Maximum Average Input Power per Port, at 50° C Ambient TemperatureWatts2000° Direct Beam Cross-Polar RatiodB≥ 18≥ 18
0° Direct Beam Front-To-Back RatiodB≥ 30≥ 30
Calibration and Electrical ParameterCoupling Factor Between CalibrationdB-26 ± 2
And Each Antenna Port
Maximum Amplitude TolerancedB≤ 0.7
From
Calibration Port To Input Ports
Maximum Phase Tolerance From Calibration Port To Input Portsdegree≤ 9
Ports VSWR—< 1.5
Average Power CapacityWatts25
Co-Polar Isolation Bewtween PortsdB≥ 20
Cross-Polar Isolation Between PortsdB≥ 25
ImpedanceOhm50
VSWR—< 1.5
Return LossdB> 14
PIM3 (2×43 dBm Carrier)dBc< -140
Lightning Protection—DC Ground
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware InterfacesRS485 and Power
Adjustment Time≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles> 20,000
Torque Maximum≥ 160 mN·m (@ 30RPM)
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions
Remote ControlCan manage from OMC, BTS/Node B
Daisy Chaining MethodReady for daisy-chaining
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
Housing Material / ColorAluminum / Grey
Operating Temperature-40° to +70° C (-40° to +158° F)
Storage Temperature-55° to +75° C (-67° to +167° F)
HumidityUp to 95%
IP RatingIP65
Weight≤ 500 g
Mechanical Specifications
Connector Type—(18X) 4.3/10 Female & (1x)MQ5 Male+ (1x) MQ4 Male
Connector Position—Bottom
Electrical Tilt Control—Integrated RET
Radome Material—Fiberglass

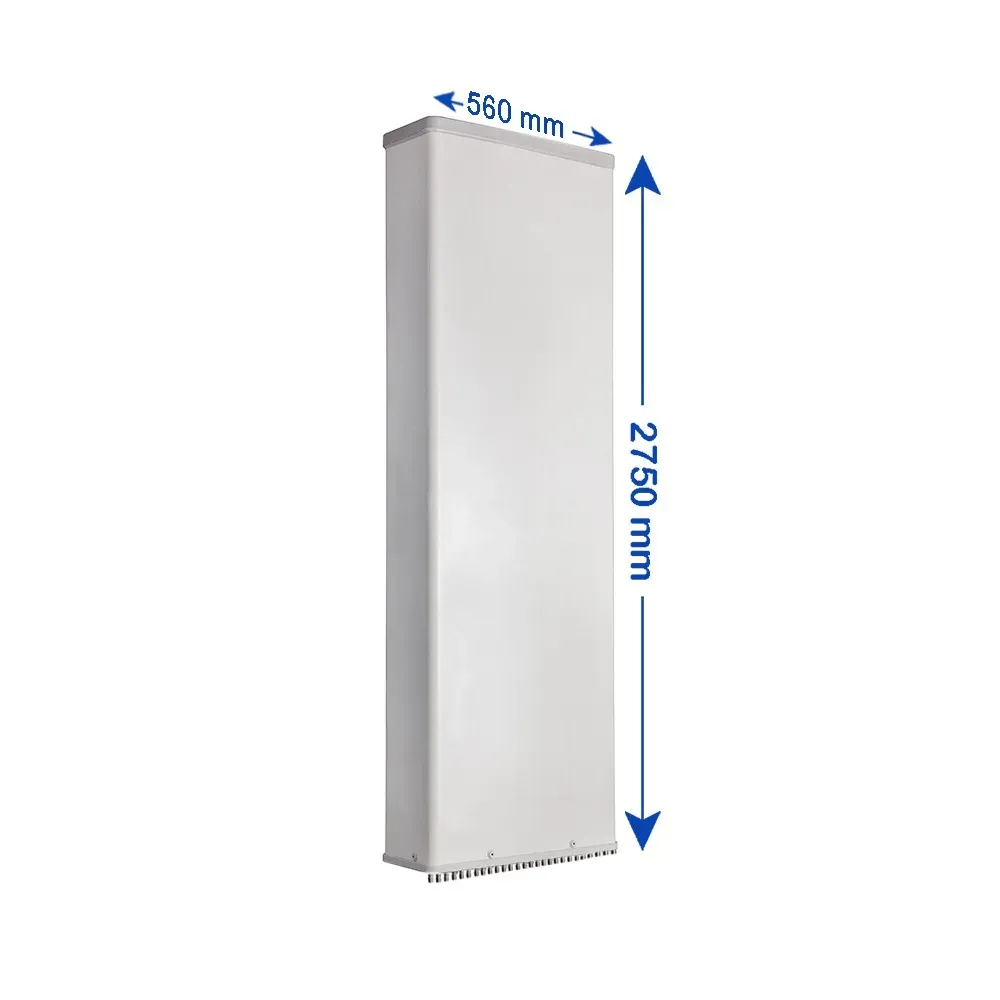

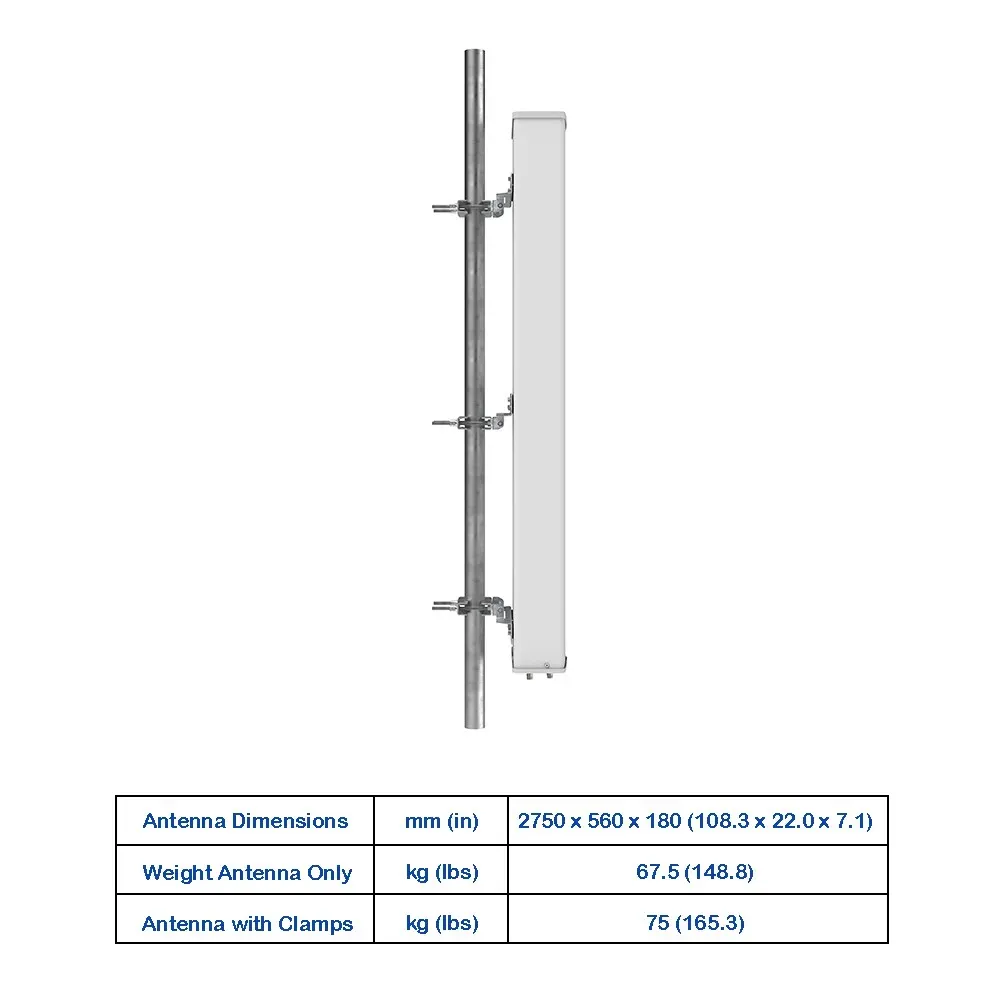

Antenna Dimensions (H x W x D)mm (in)2750 x 560 x 180 (108.3 x 22.0 x 7.1)
Antenna WeightAntenna Onlykg (lbs)67.5 (148.8)
with Clampskg (lbs)75 (165.3)
Maximum Wind Speedkm/h (mph)200 (124.3)
Wind Load at 150 km/hFrontalN (lbf)1425 (320.4)
RearN (lbf)1590 (357.4)
LateralN (lbf)565 (127.0)
Operating Temperature°C (°F)-40 to +60 (-40 to +140)
