Product code: 27P-694-3800F-17G-65H8V

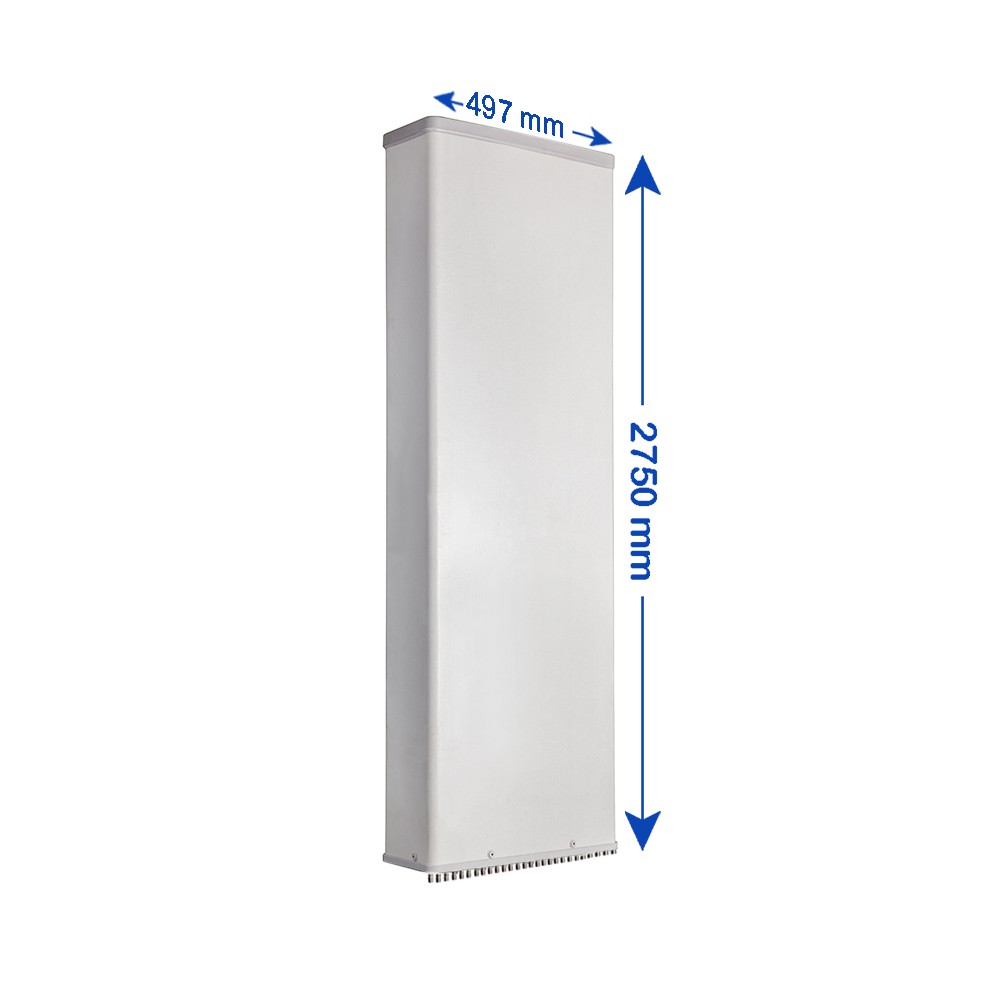

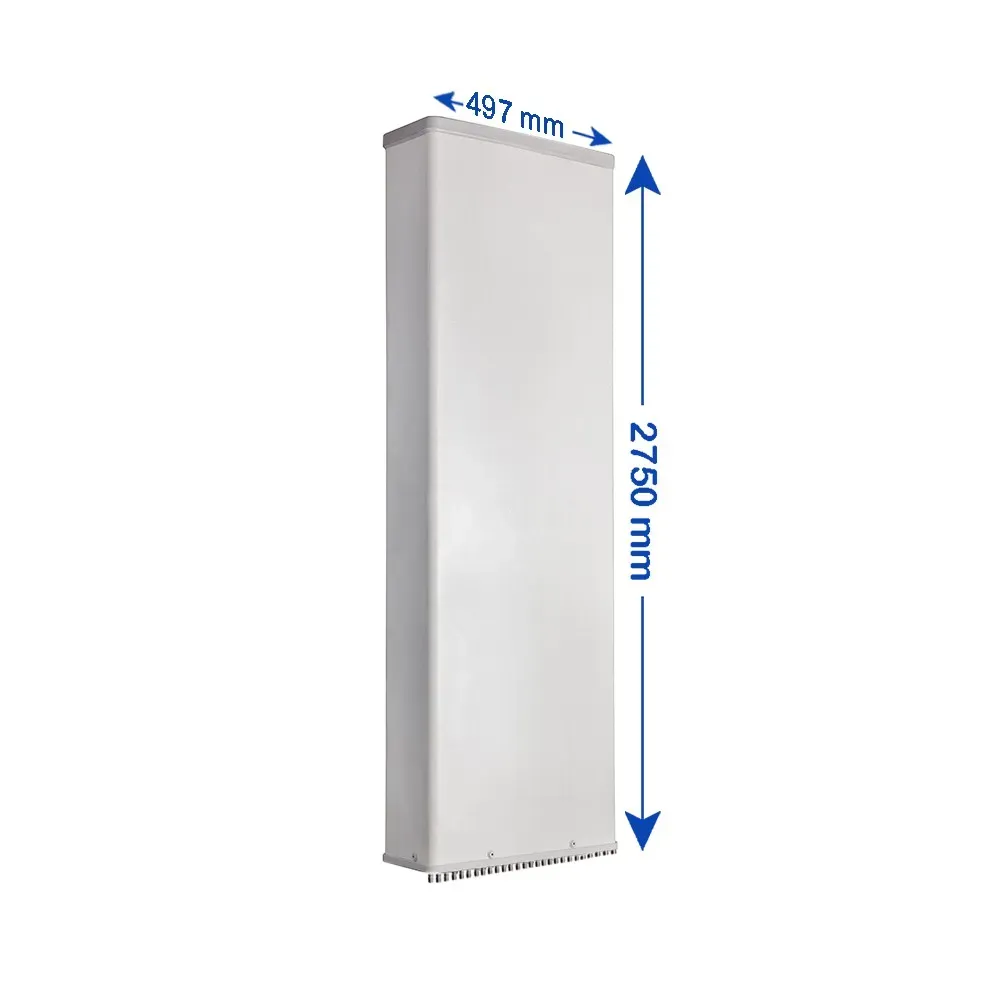

27-Port, TDD Hybrid Panel Antenna, 65° HBW, 694-862 / 880-960 / 694-960 / (4x) 1710-2690 / (2x) 1695-2690 / 3300-3800 MHz, 15.5/16/16.5/18/17.5/18/17.5/17.5/17.5/17 dBi, 2-12°T, 2.750 m
|
27-Port Antenna |

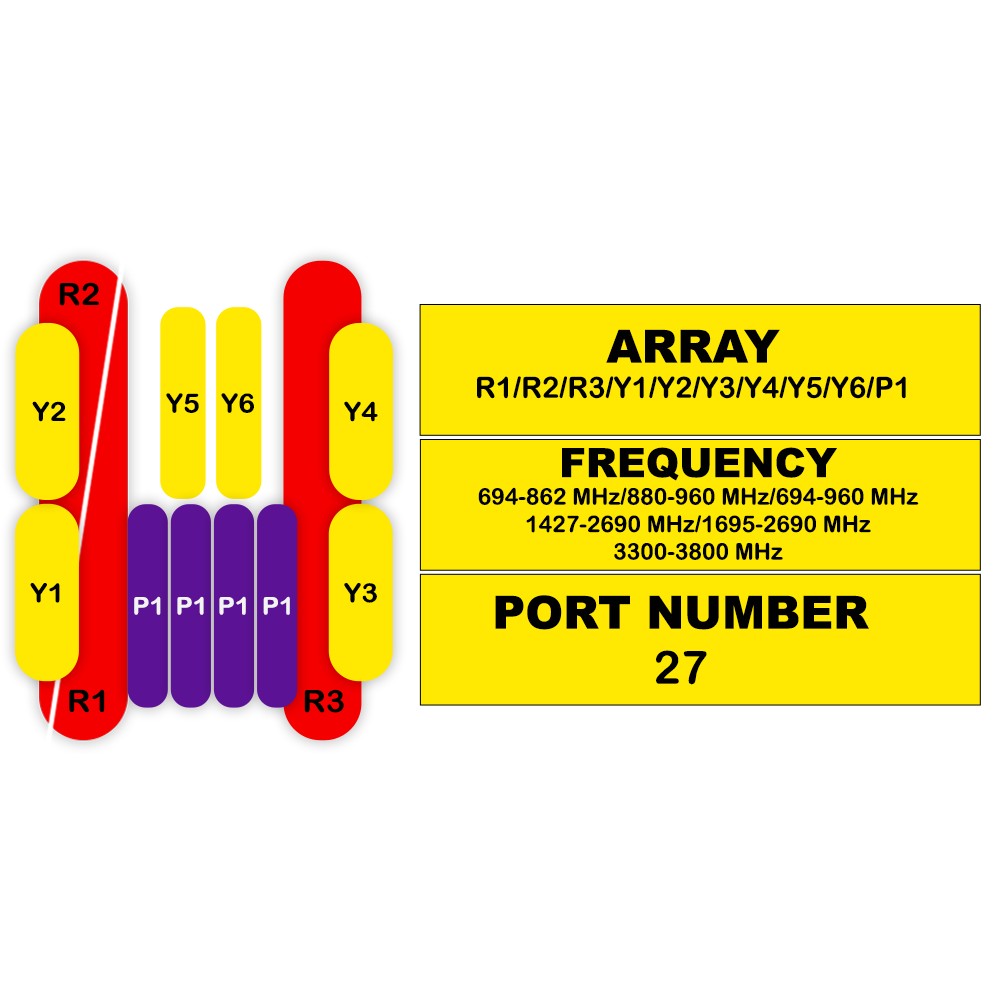

R1 | R2 | R3 | Y1 | Y2 | Y3 | Y4 | Y5 | Y6 | P1 |
|
Frequency Range (MHz) |
694-862 | 880-960 | 694-960 | 1427-2690 | 1427-2690 | 1427-2690 | 1427-2690 | 1695-2690 | 1695-2690 | 3300-3800 |
| HBW |
65° |
65° | 65° | 65° | 65° | 65° | 65° | 65° | 65° |
65° |
| Gain |
15.5 dBi |
16 dBi | 16.5 dBi | 18 dBi | 17.5 dBi | 18 dBi | 17.5 dBi | 17.5 dBi | 17.5 dBi |
17 dBi |
| Tilt |
2-12° |
2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° |
2-12° |

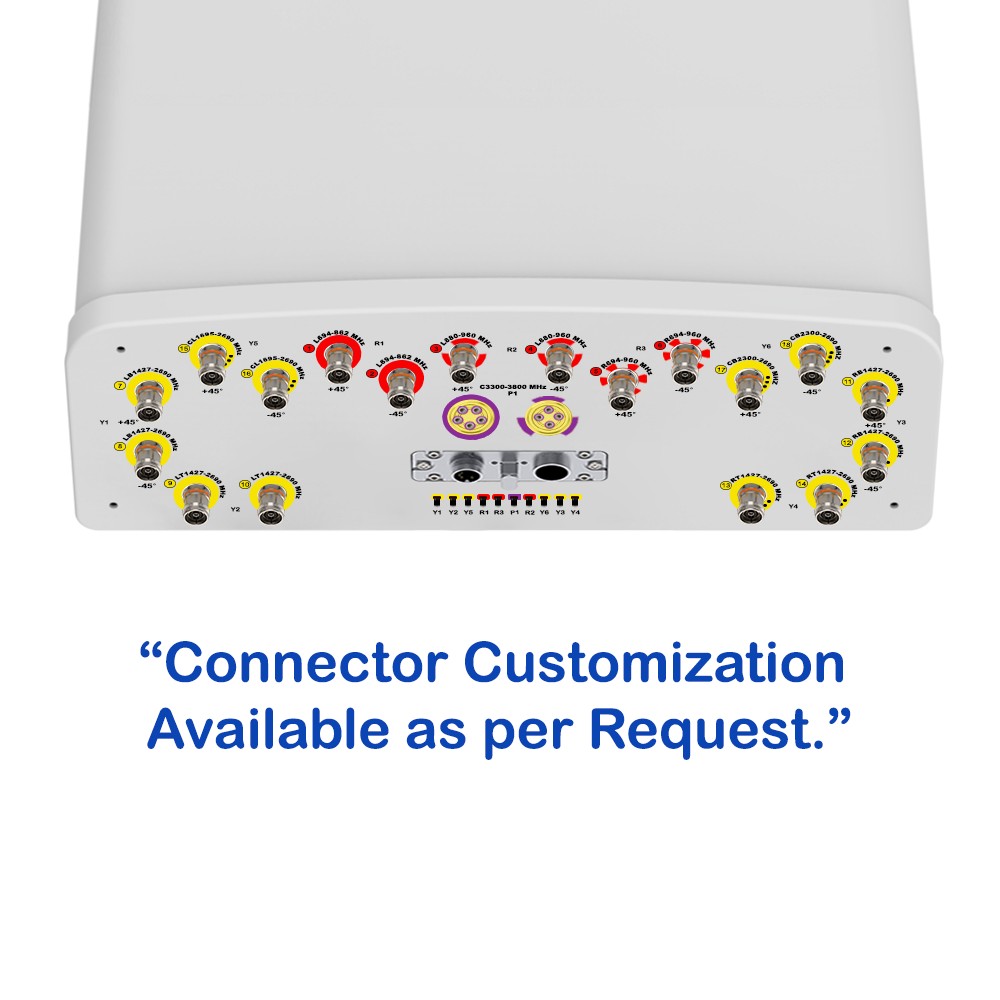

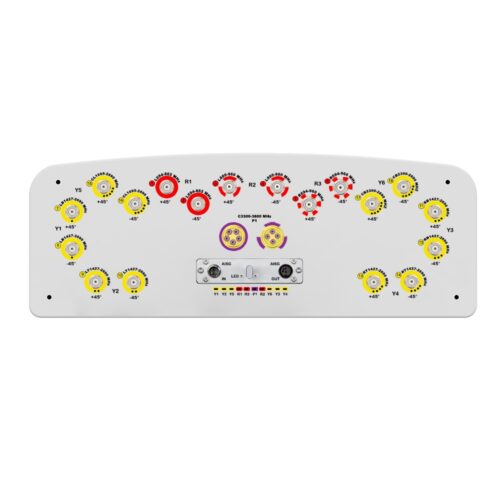

| Connectors
(other connectors by request) |
(2x) 4.3/10 Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(1x) MQ5 Male
(4 RF + 1 Calibration) (1x) MQ4 Male (4 RF) |
