Product code: MT-DTA855
2700-2900MHz Cavity Band Pass Filter
- P/N：MT-DTA855
- Pass Band Frequency：2700-2900MHz
- Stop Band Attenuation：≥60dB
- Connectors：SMA-Female
Product Part Number
MT-DTA855

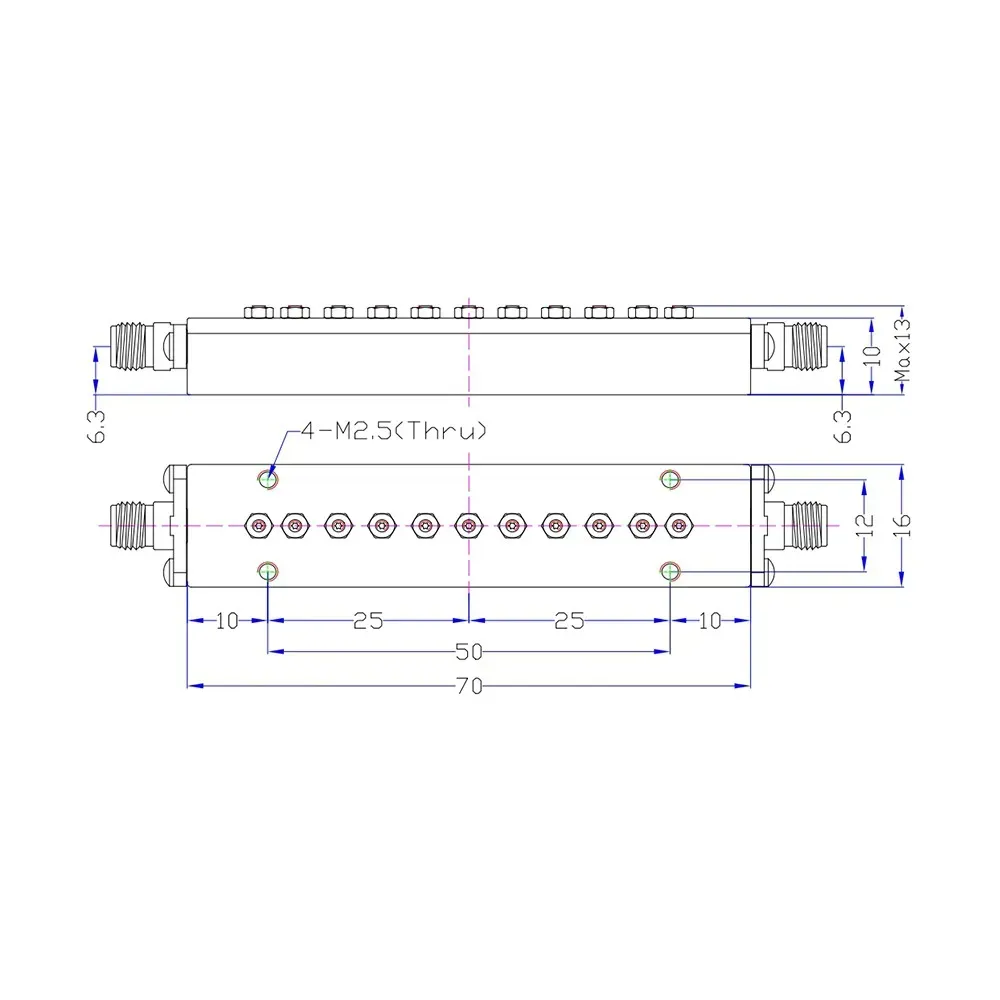

Electrical & Mechanical Specification
| S/N | Item | Parameters |
|---|---|---|
| 1 | Center Frequency(F0) | 2800MHz |
| 2 | Pass Band Frequency | 2700 ~ 2900MHz |
| 3 | Pass Band Insertion Loss | ≤1.5dB |
| 4 | Pass Band Ripple | ≤0.8dB |
| 5 | Pass Band Return Loss | ≥23dB |
| 6 | Stop Band Rejection | ≥80dB @ DC ~ 2510MHz ≥60dB @ 2510 ~ 2570MHz |
| 7 | Impedance | 50 Ohms |
| 8 | Power Handling | 20W Max. |
