Product code: MT-DTA675

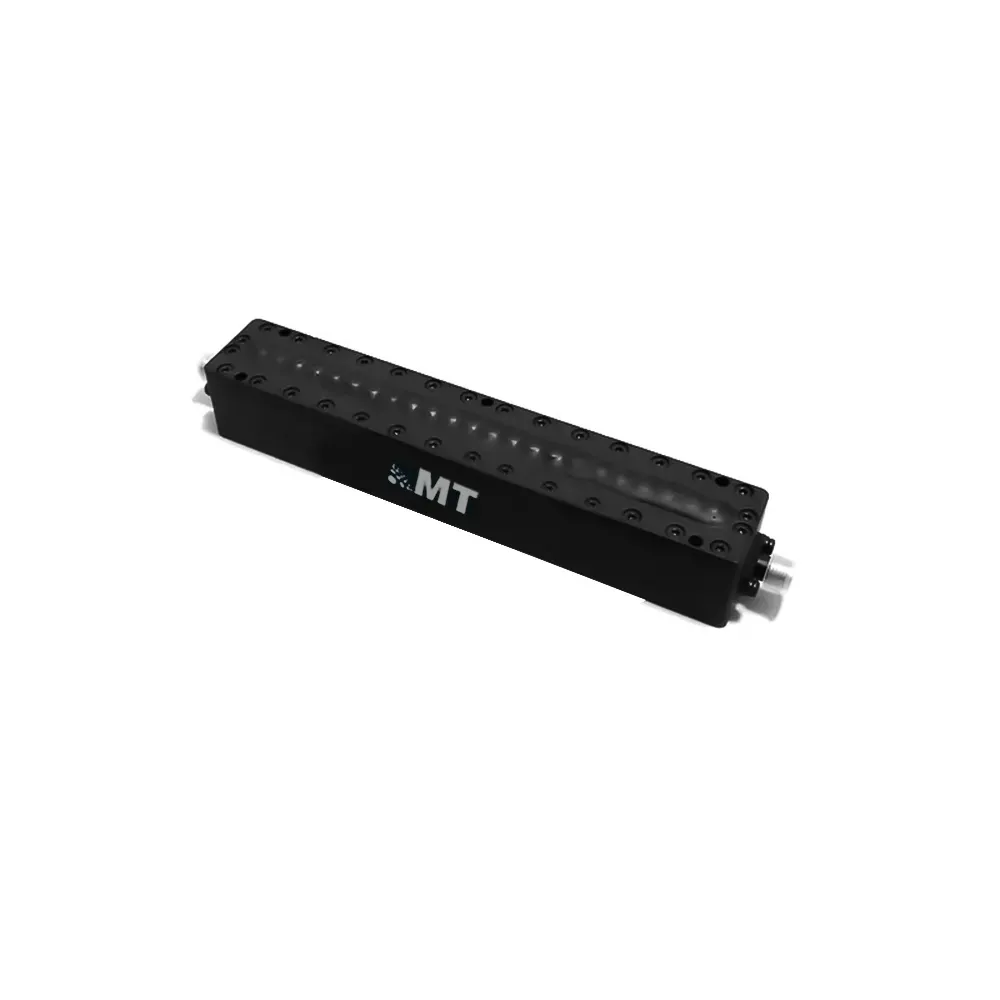

2700-3000MHz Cavity Band Pass Filter

  • P/N：MT-DTA675
  • Pass Band Frequency：2700-3000MHz
  • Stop Band Rejection：≥80dB
  • Connectors：SMA-Female
WhatsApp Chat
Skype
Product Part Number
MT-DTA675
Electrical & Mechanical Specification
S/NItemParameters
1Center Frequency(F0)2850MHz
2Pass Band Frequency2700 ~ 3000MHz
3Pass Band Insertion Loss≤1.2dB
4Pass Band Ripple≤0.5dB
5Pass Band Return Loss≥23dB
6Stop Band Rejection≥80dB @ DC ~ 2545MHz ≥40dB @ 2545 ~ 2630MHz ≥40dB @ 3070 ~ 3140MHz
≥80dB @ 3140 ~ 9500MHz
7Impedance50 Ohms
8Power Handling10W Max.
9ConnectorsSMA-Female
10Surface FinishPainted Black
