Product code: 28P-617-3800F-15G-65H10V
28-Port, TDD Hybrid Panel Antenna, 65° HBW, 617-806 / 824-894 / 694-960 / (2x) 1427-2690 / 2300-2690 / 3300-3800 MHz, 15.5/16/16.5/18/18/17.5/17 dBi, 2-12°T, 2.597 m
28-Port Antenna |
R1 |
R2 | R3 | Y1 | Y2 | Y3 |
P1 |
Frequency Range (MHz) |
617-806 |
824-894 | 694-960 | 1427-2690 | 1427-2690 | 2300-2690 |
3300-3800 |
HBW |
65° |
65° | 65° | 65° | 65° | 65° |
65° |
Gain |
15.5 dBi |
16 dBi | 16.5 dBi | 18 dBi | 18 dBi | 17.5 dBi |
17 dBi |
Tilt |
2-12° |
2-12° | 2-12° | 2-12° | 2-12° | 2-12° |
2-12° |
Connectors

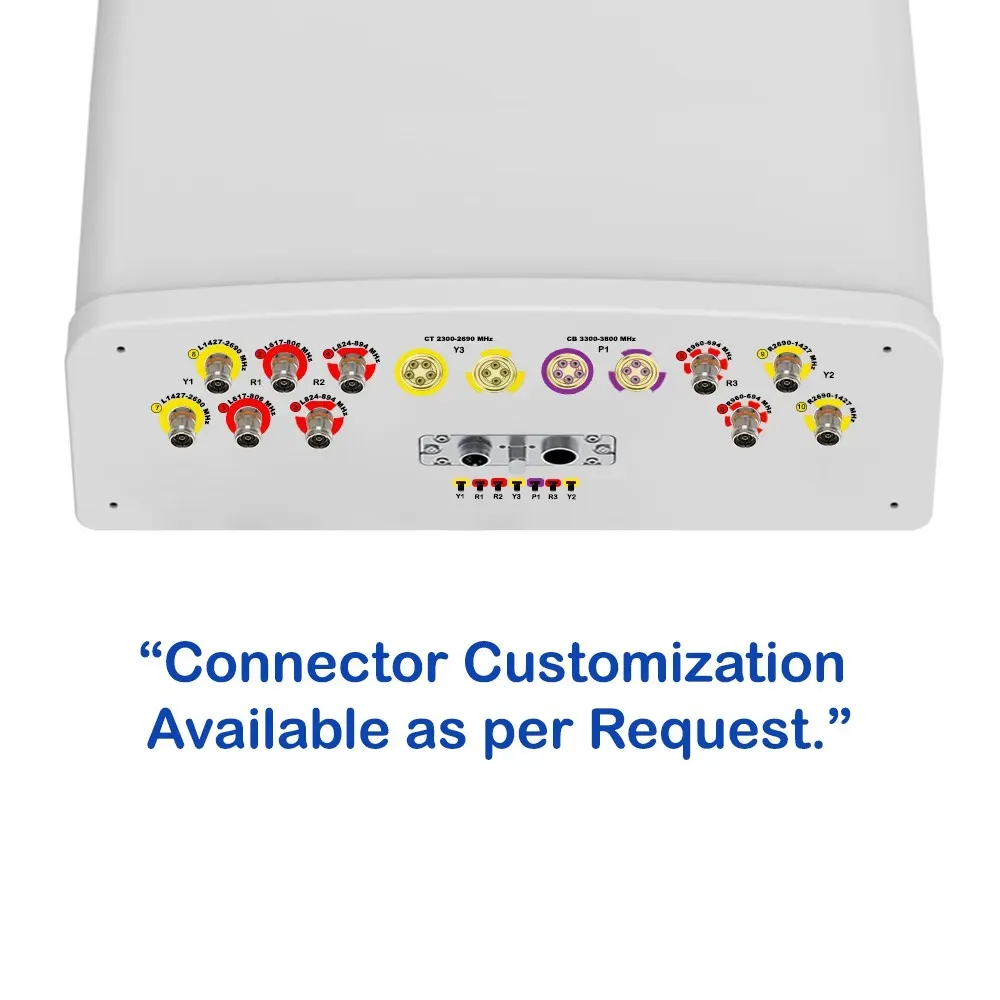

(other connectors by request) |
(2x) 4.3/10 Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(1x)MQ5 Male+ (1x) MQ4 Male |
(1x)MQ5 Male+ (1x) MQ4 Male |
Product Part Number
28P-617-3800F-15G-65H10V
Electrical & Mechanical Specification
Electrical Specifications | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
R1 | R2 | R3 | Y1 / Y2 | ||||||||||
Frequency Range | MHz | 617-806 | 824-894 | 694-960 | 1427-2690 | ||||||||
MHz | 617-698 | 698-806 | 824-894 | 694-806 | 790-894 | 880-960 | 1427-1518 | 1695-1920 | 1920-2170 | 2300-2400 | 2490-2690 | ||
Polarization | — | ±45° | ±45° | ±45° | ±45° | ||||||||
Gain | at Mid Tilt | dBi | 15.3 | 15.8 | 16.2 | 16.2 | 16.5 | 16.8 | 16 | 16.9 | 17.7 | 18 | 18 |
Over All Tilts | dBi | 14.7 ± 0.6 | 15.2 ± 0.6 | 15.6 ± 0.6 | 15.6 ± 0.6 | 15.9 ± 0.6 | 16.2 ± 0.6 | 15.4 ± 0.6 | 16.4 ± 0.5 | 17.2 ± 0.5 | 17.4 ± 0.6 | 17.4 ± 0.6 | |
Horizontal Beamwidth | degree | 72 ± 5.4 | 68 ± 5.6 | 65 ± 5.6 | 68 ± 5.4 | 65 ± 5.6 | 62 ± 5.6 | 70 ± 6.5 | 68 ± 5.5 | 60 ± 6.0 | 68 ± 8.0 | 65 ± 9.0 | |
Vertical Beamwidth | degree | 10.0 ± 0.9 | 8.8 ± 0.6 | 7.8 ± 0.7 | 8.8 ± 0.9 | 7.8 ± 0.6 | 7.2 ± 0.7 | 7.8 ± 0.6 | 6.0 ± 0.8 | 5.4 ± 0.6 | 4.9 ± 0.5 | 4.4 ± 0.6 | |
Electrical Downtilt, Continuously Adjustable | degree | 2-12 | 2-12 | 2-12 | 2-12 | ||||||||
Elevation Beamwidth | degree | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | |
Upper Side Lobe | First Upper Side Lobe (typical) | dB | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 |
Suppression | Peak to 20° | dB | > 14 | > 14 | > 14 | > 14 | > 14 | > 14 | > 14 | > 14 | > 14 | > 14 | > 14 |
Front-To-Back Ratio Co-Pol, ±30° | dB | > 21 | > 23 | > 24 | > 23 | > 24 | > 24 | > 22 | > 24 | > 25 | > 25 | > 24 | |
Cross Polar | at Boresight | dB | > 17 | > 17 | > 18 | > 16 | > 16 | > 18 | > 16 | > 16 | > 16 | > 16 | > 16 |
Discrimination | Over Sector | dB | > 9.0 | > 7.0 | > 6.0 | > 9.0 | > 7.0 | > 6.0 | > 6.0 | > 6.0 | > 5.0 | > 3.0 | > 2.0 |
Isolation | Cross-Polar | dB | > 25 | > 25 | > 25 | ||||||||
Port-to-Port (typical) | dB | > 25 | > 25 | > 25 | |||||||||
Impedance | Ohm | 50 | 50 | 50 | |||||||||
VSWR | — | < 1.5 | < 1.5 | < 1.5 | |||||||||
Return Loss | dB | > 14 | > 14 | > 14 | |||||||||
PIM3 (2×43 dBm Carrier) | dBc | < -150 | < -150 | < -150 | |||||||||
Lightning Protection | — | DC Ground | DC Ground | DC Ground | |||||||||
Maximum Average Input Power per Port, at 50° C Ambient Temperature | Watts | 200 | 250 | 200 | |||||||||
General Parameters | Y3 | P1 | |||||||||||
Frequency Range | MHz | 2300-2690 | MHz | 3300-3800 | |||||||||
MHz | 2300-2400 | 2490-2690 | MHz | 3300-3600 | 3600-3800 | ||||||||
Polarization | — | ±45° | — | ±45° | |||||||||
Electrical Downtilt, Continuously Adjustable | degree | 2-12 | degree | 2-12 | |||||||||
Beamforming Electrical Properties | Single Column Beam | Gain | dBi | 15.6 ± 1 | 16.1 ± 1 | Gain | dBi | 15.5 ± 1 | 15.7 ± 1 | ||||
Horizontal Beamwidth | degree | 85 ± 10 | 80 ± 10 | Horizontal Beamwidth | degree | 80 ± 10 | 70 ± 10 | ||||||
Vertical Beamwidth (3 dB) | degree | 5.4 ± 0.5 | 5.0 ± 0.5 | Vertical Beamwidth (3 dB) | degree | 5.8 ± 0.6 | 5.5 ± 0.6 | ||||||
Cross-Polar Discrimination (0°) | dB | ≥ 16 | ≥ 16 | Cross-Polar Discrimination (0°) | dB | ≥ 15 | ≥ 15 | ||||||
First Upper Side Lobe Suppression | dB | ≥ 15 | ≥ 15 | First Upper Side Lobe Suppression | dB | ≥ 15 | ≥ 15 | ||||||
Front-To-Back Ratio, Co-Pol, ±30° | dB | ≥ 28 | ≥ 28 | Front-To-Back Ratio | dB | ≥ 25 | ≥ 25 | ||||||
65° Broadcast Beam | Gain (typical) | dB | 16.6 ± 1 | 17.1 ± 1 | Gain | dB | 17.0 ± 0.6 | 17.2 ± 0.6 | |||||
Horizontal Beamwidth | degree | 65 | 65 | Horizontal Beamwidth | degree | 65 | 65 | ||||||
Vertical Beamwidth | degree | 5.4 ± 0.5 | 5.0 ± 0.5 | Vertical Beamwidth (3 dB) | degree | 5.8 ± 0.6 | 5.5 ± 0.6 | ||||||
Cross-Polar Discrimination (0°) | dB | ≥ 16 | ≥ 16 | Cross-Polar Discrimination (0°) | dB | ≥ 15 | ≥ 15 | ||||||
First Upper Side Lobe Suppression | dB | ≥ 15 | ≥ 15 | First Upper Side Lobe Suppression | dB | ≥ 15 | ≥ 15 | ||||||
Front-To-Back Ratio | dB | ≥ 28 | ≥ 28 | Front-To-Back Ratio | dB | ≥ 27 | ≥ 27 | ||||||
Service Beam | 0° Direct Beam Gain | dBi | 21.1 ± 1 | 21.1 ± 1 | 0° Direct Beam Gain | dBi | 21 ± 0.5 | 21.2 ± 0.5 | |||||
0° Direct Beam Horizontal 3 dB Beamwidth | degree | 23 ± 3 | 22 ± 3 | 0° Direct Beam Horizontal 3 dB Beamwidth | degree | < 25 | < 25 | ||||||
±30° Direction Beam Gain | dBi | 19.5 ± 1 | 19.5 ± 1 | ±30° Direction Beam Gain | dBi | 18 | 18.2 | ||||||
0° Direct Beam Cross-Polar Ratio | dB | ≥ 20 | ≥ 20 | ±30° Direction Beam Horizontal 3 dB Beamwidth | degree | < 30 | < 30 | ||||||
0° Direct Horizontal Side Lobe Suppression | dB | ≥ 12 | ≥ 12 | ||||||||||
0° Direct Beam Front-To-Back Ratio | dB | ≥ 30 | ≥ 30 | 0° Direct Beam Cross-Polar Ratio | dB | ≥ 18 | ≥ 18 | ||||||
Soft Split Electrical Properties | Multi-Beam | Gain | dBi | 19.6 ± 1 | 20.1 ± 1 | 0° Direct Beam Front-To-Back Ratio | dB | ≥ 30 | ≥ 30 | ||||
Horizontal Beamwidth | degree | 31 ± 3 | 29 ± 3 | Coupling Factor Between Calibration And Each Antenna Port | dB | -26 ± 2 | |||||||
Vertical 3 dB Beamwidth | degree | 5.4 ± 0.5 | 5.0 ± 0.5 | ||||||||||
First Upper Side Lobe Suppression | dB | ≥ 17 | ≥ 17 | Maximum Amplitude Tolerance From Calibration Port To Input Ports | dB | ≤ 0.7 | |||||||
Front-To-Back Ratio | dB | ≥ 28 | ≥ 28 | Maximum Phase Tolerance From Calibration Port To Input Ports | degree | ≤ 9 | |||||||
Calibration and Electrical Parameter | Coupling Factor Between Calibration And | dB | -26 ± 2 | Ports VSWR | — | 1.5 | |||||||
Each Antenna Port | Average Power Capacity | Watts | 25 | ||||||||||
Maximum Amplitude Tolerance From Calibration Port To Input Ports | dB | ≤ 0.9 | Co-Polar Isolation Bewtween Ports | dB | ≥ 20 | ||||||||
Maximum Phase Tolerance From Calibration Port To Input Ports | degree | ≤ 7 | Cross-Polar Isolation Between Ports | dB | ≥ 25 | ||||||||
Ports VSWR | — | < 1.5 | Impedance | Ohm | 50 | ||||||||
Return Loss | dB | > 14 | VSWR | — | < 1.5 | ||||||||
Max. Average Input Power per RF Port | Watts | 150 | Return Loss | dB | > 14 | ||||||||
Co-Polar Isolation Bewtween Ports | dB | ≥ 23 | PIM3 (2×43 dBm Carrier) | dBc | < -140 | ||||||||
Cross-Polar Isolation Between Ports | dB | ≥ 25 | Lightning Protection | — | DC Ground | ||||||||
Impedance | Ohm | 50 | |||||||||||
PIM3 (2×43 dBm Carrier) | dBc | < -150 | |||||||||||
Lightning Protection | — | DC Ground | |||||||||||
Integrated RET Specifications | |||||||||||||
Protocols | Compliant to AISG v2.0 and 3GPP | ||||||||||||
Supply Voltage Range | 10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0 | ||||||||||||
Power | Standby | < 2 W | |||||||||||
Consumption | In Motion | < 10 W | |||||||||||
Connectors | 2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return Female Connector: 8 PINs; Male Connector: 4 PINs | ||||||||||||
Hardware Interfaces | RS485 and Power | ||||||||||||
Adjustment Time | ≤ 90 sec (typical, depending on antenna type) | ||||||||||||
Adjustment Cycles | > 20,000 | ||||||||||||
Torque Maximum | ≥ 160 mN·m (@ 30RPM) | ||||||||||||
Lightning Protection Rating | IEC 61000-4-5 Current Pulse Profile Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions | ||||||||||||
Remote Control | Can manage from OMC, BTS/Node B | ||||||||||||
Daisy Chaining Method | Ready for daisy-chaining | ||||||||||||
Safety Standard | Compliant to EN 60950/UL 60950/RoHS, CE | ||||||||||||
Housing Material / Color | Aluminum / Grey | ||||||||||||
Operating Temperature | -40° to +70° C (-40° to +158° F) | ||||||||||||
Storage Temperature | -55° to +75° C (-67° to +167° F) | ||||||||||||
Humidity | Up to 95% | ||||||||||||
IP Rating | IP65 | ||||||||||||
Weight | ≤ 500 g | ||||||||||||
Mechanical Specifications | |||||||||||||
Connector Type | — | (10x) 4.3/10 Female & (2x)MQ5 Male+ (2x) MQ4 Male | |||||||||||
Connector Position | — | Bottom | |||||||||||
Electrical Tilt Control | — | Integrated RET | |||||||||||
Radome Material | — | Fiberglass | |||||||||||

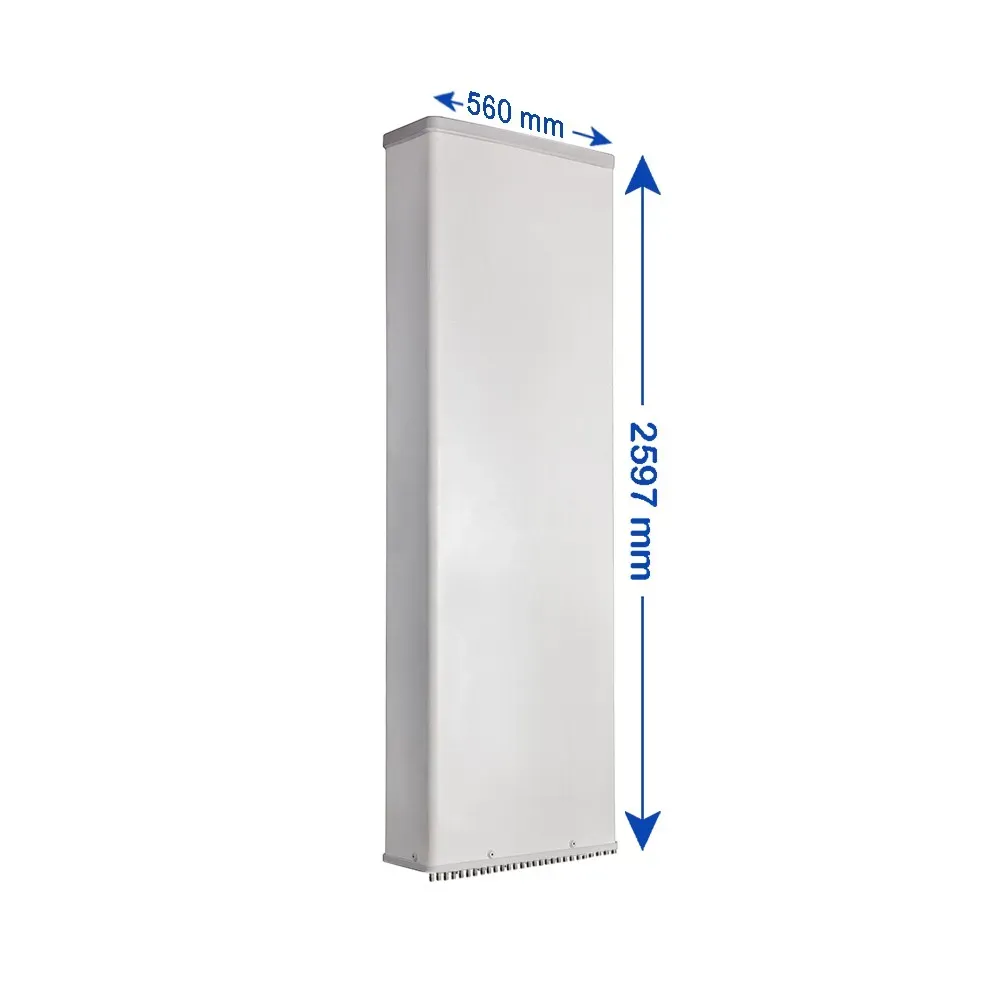

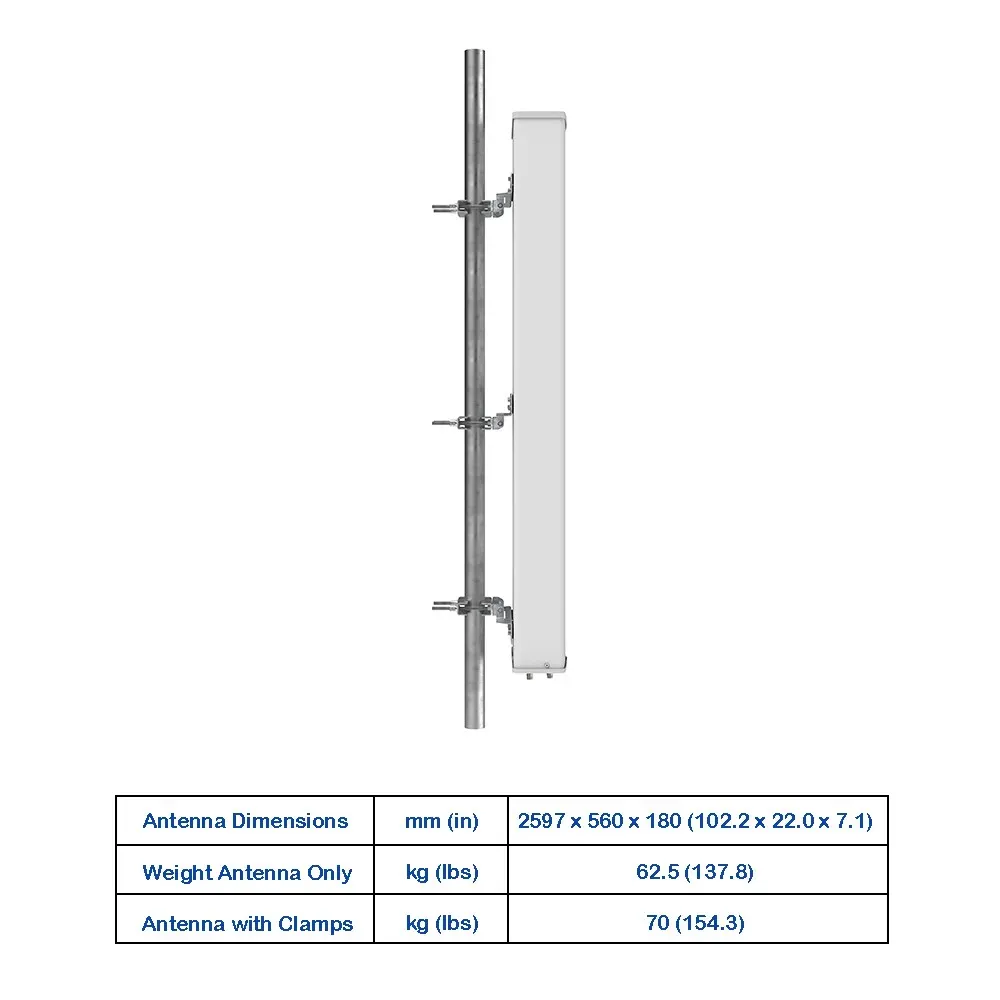

Antenna Dimensions (H x W x D) | mm (in) | 2597 x 560 x 180 (102.2 x 22.0 x 7.1) | |||||||||||
Antenna Weight | Antenna Only | kg (lbs) | 62.5 (137.8) | ||||||||||
with Clamps | kg (lbs) | 70 (154.3) | |||||||||||
Maximum Wind Speed | km/h (mph) | 200 (124.3) | |||||||||||
Wind Load | Frontal | N (lbf) | 1345 (302.4) | ||||||||||
at 150 km/h | Rear | N (lbf) | 1500 (337.2) | ||||||||||
Lateral | N (lbf) | 535 (120.3) | |||||||||||
Operating Temperature | °C (°F) | -40 to +60 (-40 to +140) |
