Product code: 28P-698-3800F-15G-65H15V

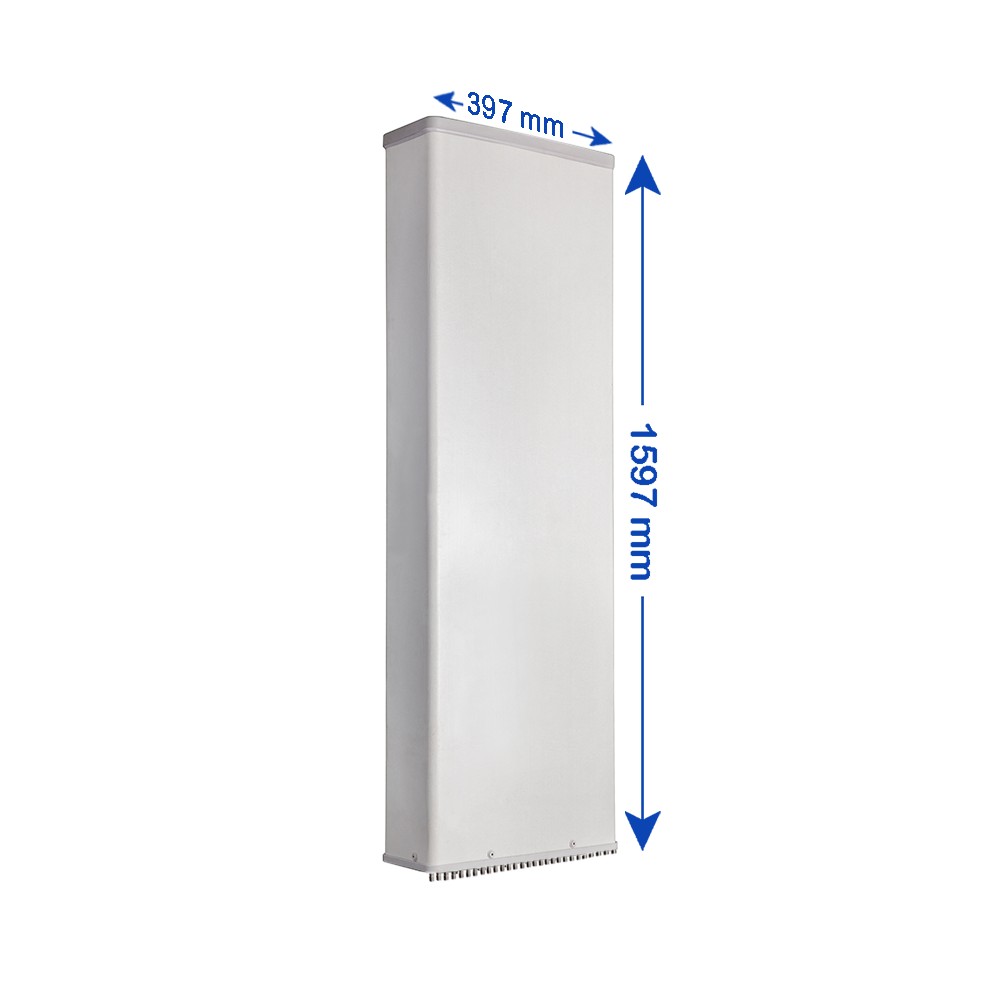

28-Port, TDD Hybrid Panel Antenna, 65° HBW, 698-960 / (4x) 1710-2690 / (2x) 3300-3800 MHz, 15/15/14.5/15/14.5/14.5/14 dBi, (1x) 2-16°/(6x) 2-12°T, 1.597 m
|
28-Port Antenna |

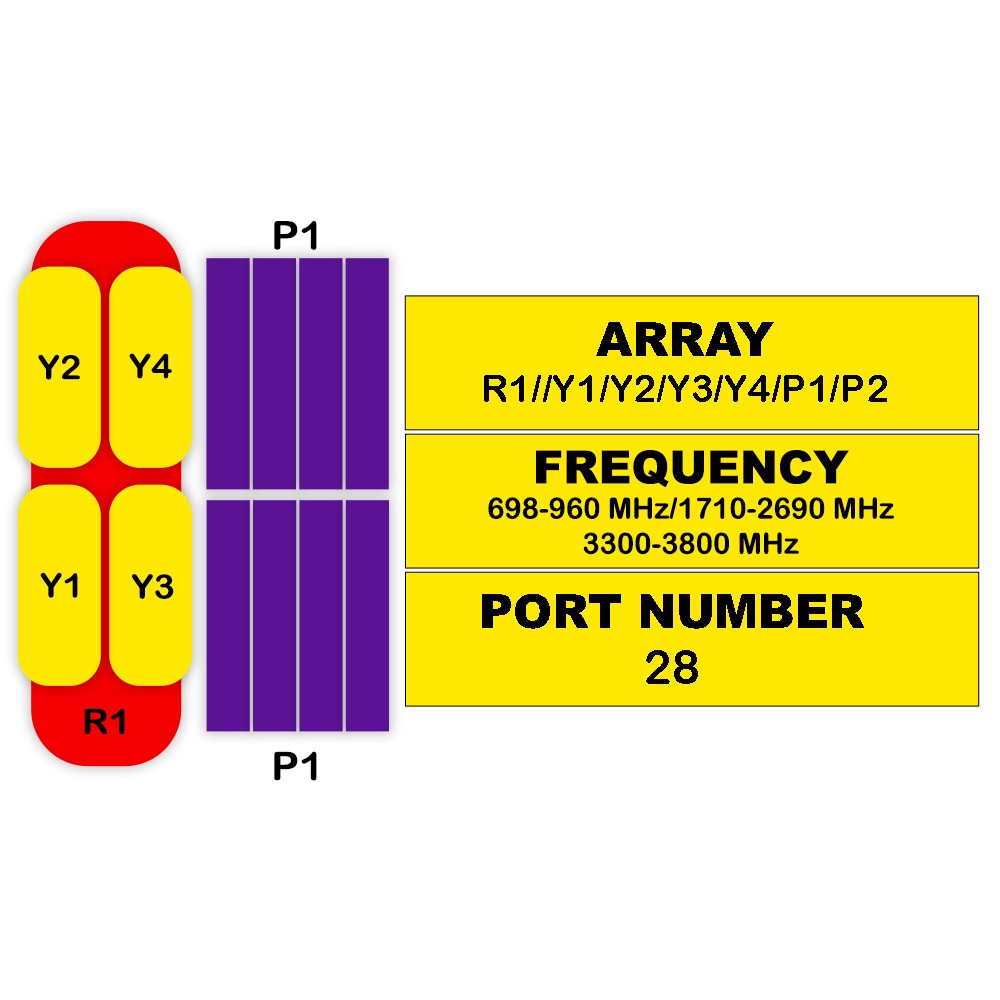

R1 | Y1 | Y2 | Y3 | Y4 | P1 |
P2 |
| Frequency Range (MHz) | 698-960 | 1710-2690 | 1710-2690 | 1710-2690 | 1710-2690 | 3300-3800 | 3300-3800 |
| HBW |
65° |
65° | 65° | 65° | 65° | 65° |
65° |
| Gain |
15 dBi |
15 dBi | 14.5 dBi | 15 dBi | 14.5 dBi | 14.5 dBi |
14 dBi |
| Tilt |
2-16° |
2-12° | 2-12° | 2-12° | 2-12° | 2-12° |
2-12° |

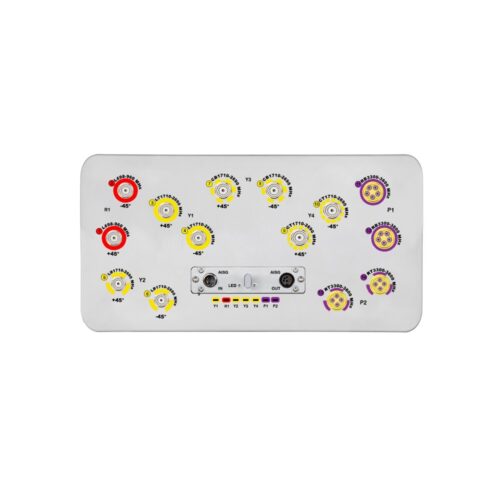

| Connectors

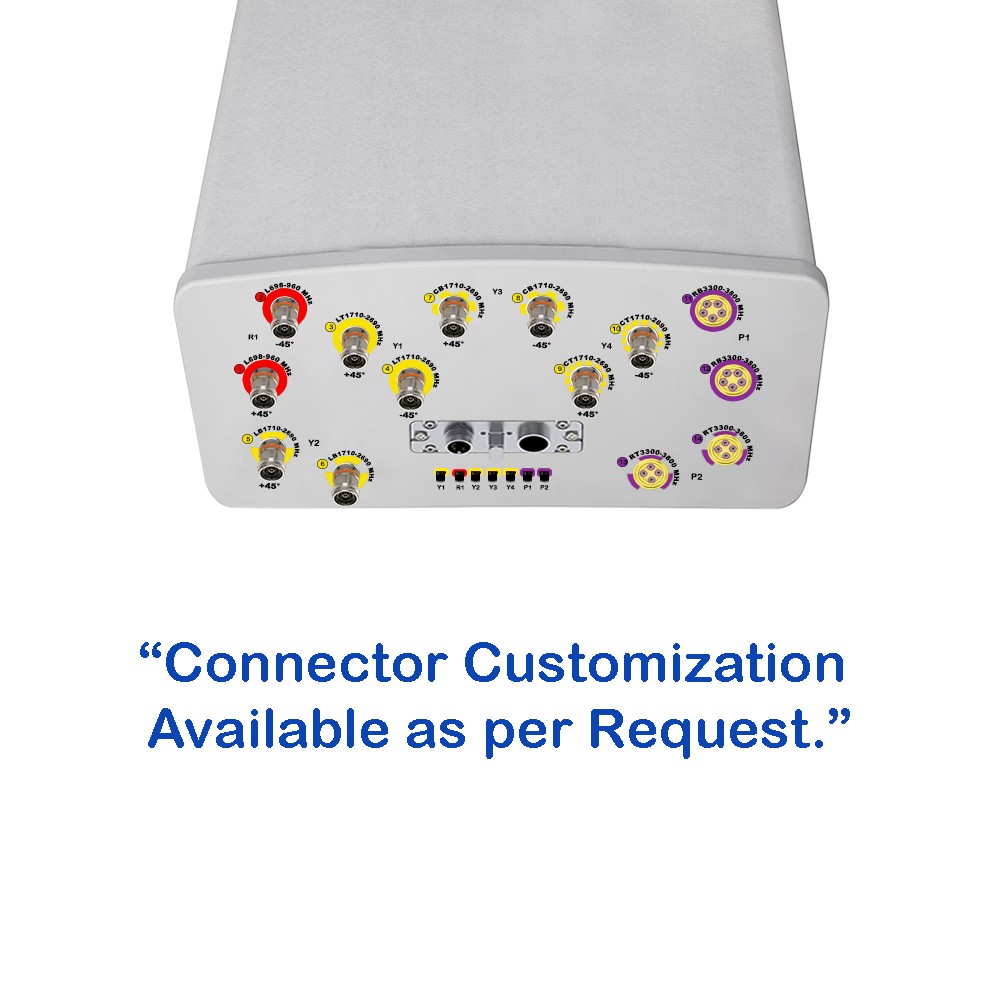

(other connectors by request) |
(2x) 4.3/10 Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(1x)MQ5 Male+ (1x) MQ4 Male |
(1x)MQ5 Male+ (1x) MQ4 Male |
