Product code: MT-2-8GHz

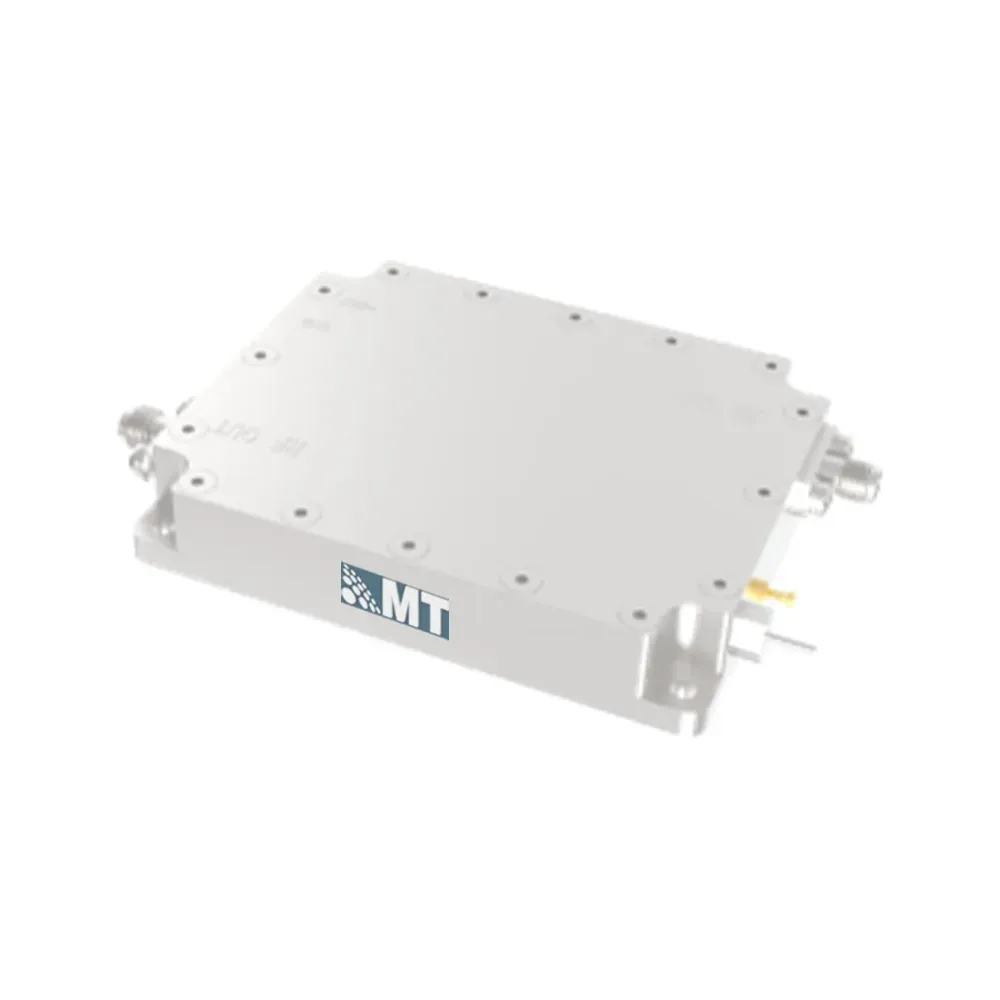

2~8GHz 50W Band Power Amplifier
| Model-MT-2-8GHz |
| Broadband Continuous Wave Power Amplifier |
| Temperature Protection Function |
| High Reliability Circuit Design |
| Operating Temperature:-40℃~+65℃ |
| Storage Temperature:-50℃~+85℃ |
Product Part Number
MT-2-8GHz
Electrical & Mechanical Specification
| Performance Specifications | |
|---|---|
| Parameter | Specifications |
| Frequency | 2~8GHz |
| Input Power | 0~5dBm |
| Saturated Output Power | 50W |
| Power Gain | ≥45dB |
| Input VSWR | ≤1.5：1 |
| Output VSWR | ≤2：1 |
| Second Harmonic | ≤-60dBc |
| Power Consumption | ≤250W |
| Power Supply Requirements | +28V/9A |
| Interface Definition | |
| Parameter | Specifications |
| Size | 80mm*65mm*14mm |
| RF Input | SMA-K |
| RF Output | SMA-K |
| Power Supply Port | Through-hole Capacitor |
