Product code: MT-DTA183

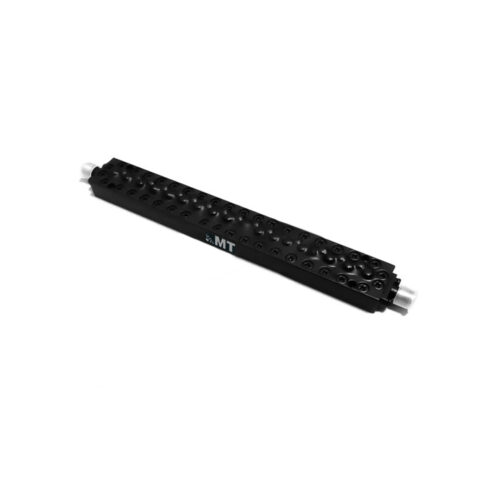

3.0-3.7GHz Comb Band Pass Filter

  • P/N：MT-DTA183
  • Frequency:3.0-3.7GHz
  • Stop Band Rejection：≥30dB
  • Connectors：SMA-Female
WhatsApp Chat
Skype
Product Part Number
MT-DTA183
Electrical & Mechanical Specification
S/NItemParameters
1Center Frequency(F0)3.35GHz
2Pass Band Frequency3.0 ~ 3.7GHz
3Pass Band Insertion Loss≤2.0dB
4Pass Band VSWR≤1.3:1
5Stop Band Rejection≥30dB @ DC ~ 2.9GHz @ 3.8 ~ 5.0GHz
6Impedance50 Ohms
7Power5W Max.
8ConnectorsSMA-Female
9Surface FinishPainted Black
10Temperature Range–20℃ ~ +60℃
11MaterialHousing: H62 Copper alloy
Cover: H62 Copper alloy
Tuning screw: H62 Copper alloy
Resonant column: H59 Copper alloy
Connectors: H59 Copper, Plated ternary alloy
Other screw: Stainless Steel
12Dimensions160*21*17.5mm
13Net weightTBD
