Product code: MT-DTA308S

3.3-3.6GHz Cavity Band Pass Filter

  • P/N：MT-DTA308S
  • Pass Band Frequency:3.3-3.6GHz
  • Stop Band Attenuation：≥50dB
  • Connectors：SMA-Female
WhatsApp Chat
Skype
Product Part Number
MT-DTA308S

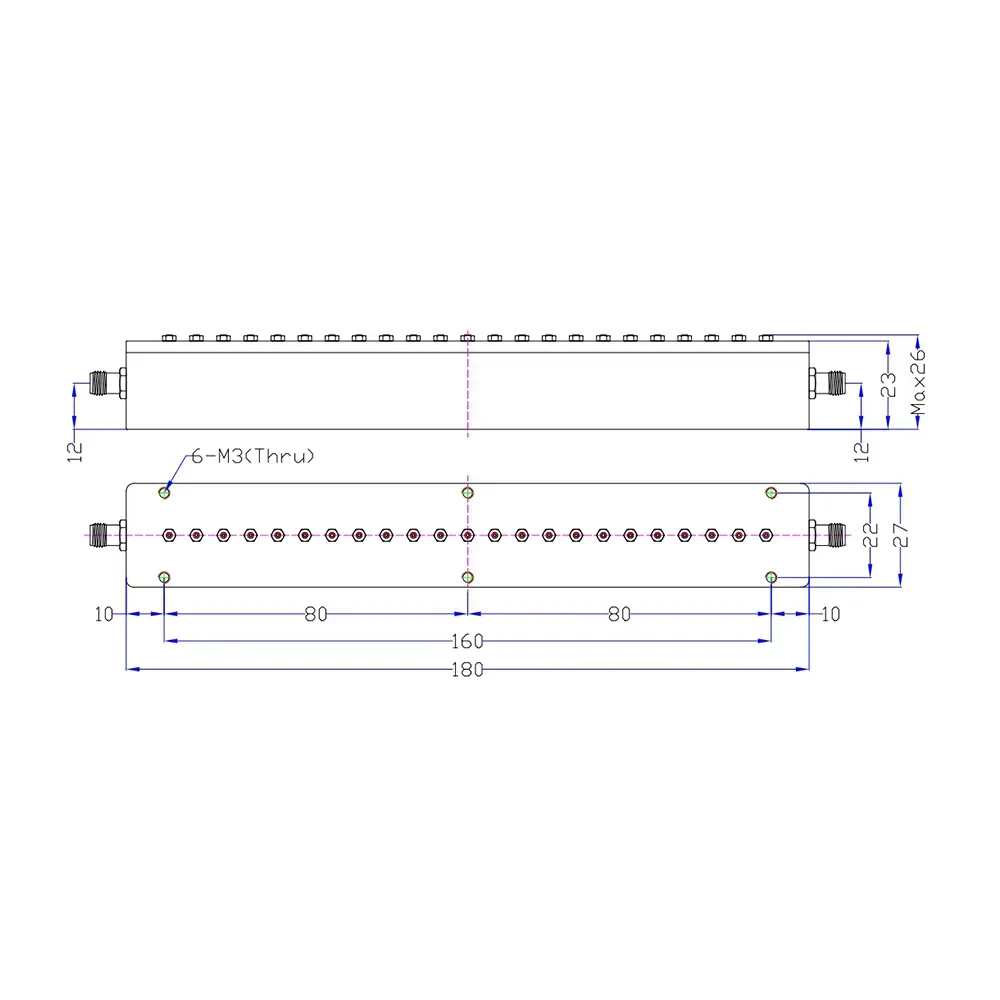

Electrical & Mechanical Specification
S/NItemParameters
1Center Frequency(F0)3450MHz
2Pass Band Frequency3300 ~ 3600MHz
3Pass Band Insertion Loss≤1.5dB
4Pass Band Ripple≤0.7dB
5Pass Band VSWR≤1.22:1
6Stop Band Rejection≥50dB @ DC ~ 3220MHz ≥55dB @ 3680 ~ 8000MHz
7Impedance50 Ohms
8Power Handling20W Max.
9ConnectorsSMA-Female
10Surface FinishPainted Black
11Temperature Range–30℃ ~ +70℃
