Product code: 30P-690-3800F-16G-65H8V

30-Port, TDD Hybrid Panel Antenna, 65° HBW, (2x) 690-960 / (4x) 1695-2690 / 2300-2690 / 3300-3800 MHz, 16.5/16.5/17.5/17.5/17.5/17.5/18/17 dBi, 2-12°T, 2.750 m

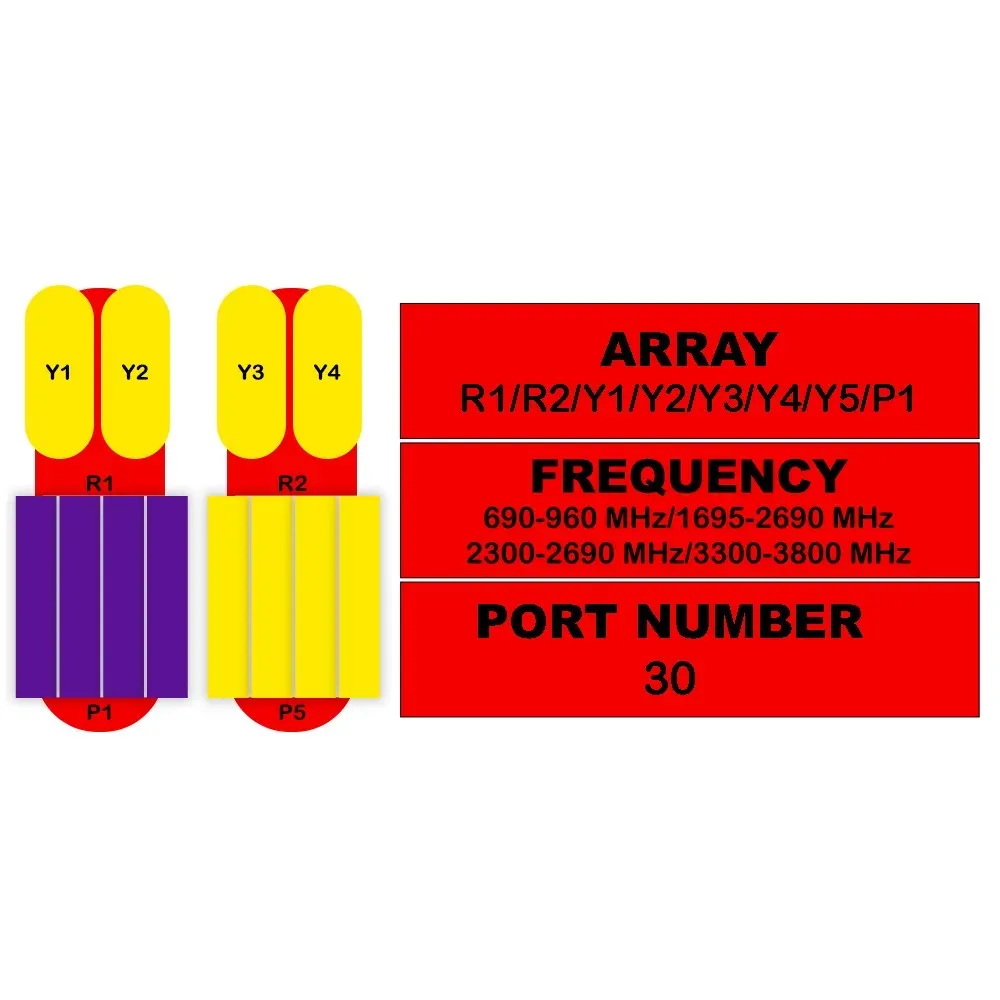

30-Port Antenna

R1

 R2 Y1 Y2 Y3 Y4 Y5

P1
Frequency Range (MHz)

690-960

 690-960 1695-2690 1695-2690 1695-2690 1695-2690 2300-2690

3300-3800
HBW

65°

 65° 65° 65° 65° 65° 65°

65°
Gain

16.5 dBi

 16.5 dBi 17.5 dBi 17.5 dBi 17.5 dBi 17.5 dBi 18 dBi

17 dBi
Tilt

2-12°

 2-12° 2-12° 2-12° 2-12° 2-12° 2-12°

2-12°

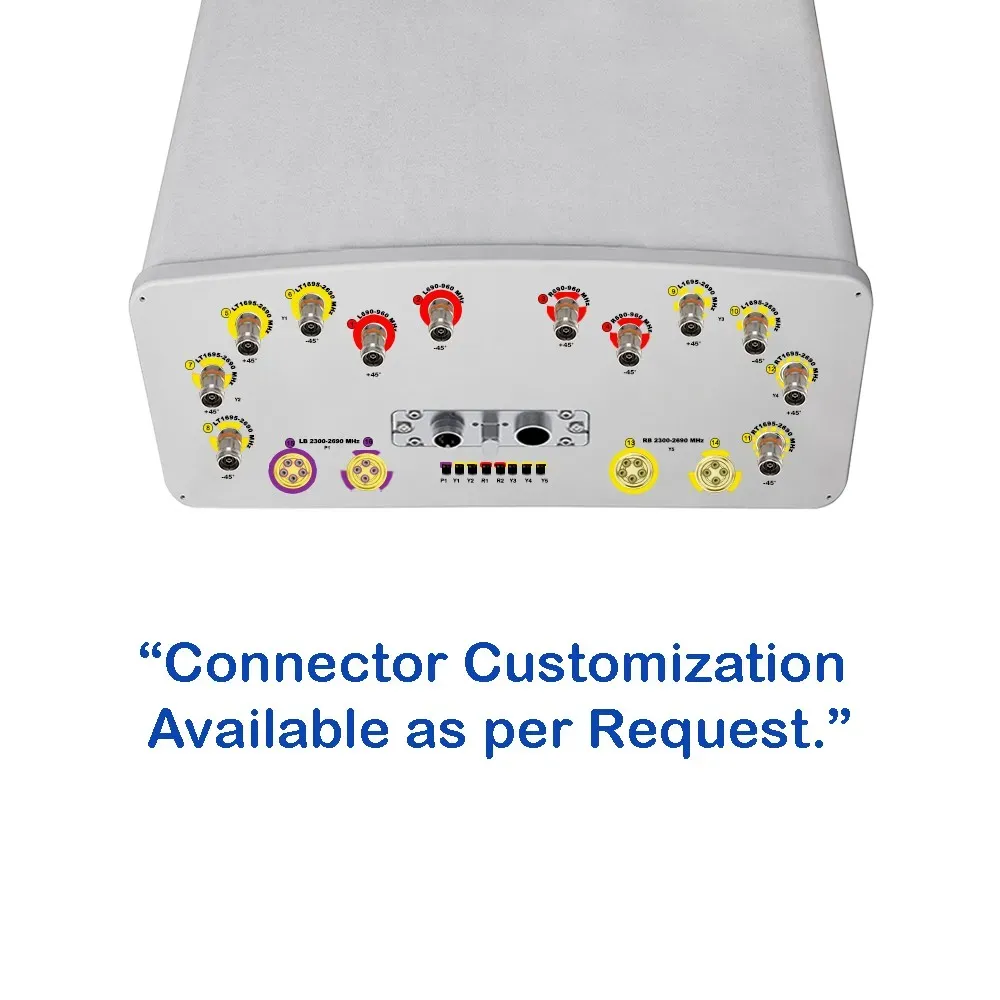

Connectors

(other connectors by request)

(2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (1x)MQ5

Male+ (1x) MQ4 Male

 (1x)MQ5

Male+ (1x) MQ4 Male
WhatsApp Chat
Skype
Product Part Number
30P-690-3800F-16G-65H8V
Electrical & Mechanical Specification
Electrical Specifications
R1 / R2Y1 / Y4Y2 / Y3
Frequency RangeMHz690-9601695-26901695-2690
MHz690-806790-894880-9601695-18801850-19901920-21702300-24002490-26901695-18801850-19901920-21702300-24002490-2690
Polarization— ±45° ±45°±45°
GainTypicaldBi15.816.216.616.216.61717.417.416.316.617.117.317.2
Over All TiltsdBi15.6 ± 0.616.0 ± 0.616.4 ± 0.616.0 ± 0.516.4 ± 0.516.8 ± 0.517.0 ± 0.517.0 ± 0.516.1 ± 0.516.4 ± 0.516.9 ± 0.517.1 ± 0.517.0 ± 0.5
Horizontal Beamwidthdegree69 ± 6.562 ± 4.558 ± 6.566 ± 6.568 ± 7.566 ± 7.562 ± 6.563 ± 7.066 ± 6.564 ± 7.561 ± 7.561 ± 6.563 ± 7.0
Vertical Beamwidthdegree8.8 ± 0.97.8 ± 0.77.2 ± 0.66.8 ± 0.86.4 ± 0.56.0 ± 0.45.2 ± 0.54.8 ± 0.56.8 ± 0.86.4 ± 0.56.0 ± 0.45.2 ± 0.54.8 ± 0.5
Electrical Downtilt, Continuously Adjustabledegree2-122-122-12
Tilt Accuracydegree< 1< 1< 1< 1< 1< 1< 1< 1< 1< 1< 1< 1< 1
Upper Side Lobe Suppres- sionFirst Upper LobedB> 16> 16> 16> 16> 16> 16> 16> 16> 16> 16> 16> 16> 16
20° Sector Above Main BeamdB> 15> 15> 15> 15> 15> 15> 15> 15> 15> 15> 15> 15> 15
Front-To-Back Ratio ±30°dB> 22> 24> 25≥ 23≥ 24≥ 24> 25≥ 25≥ 24≥ 25≥ 25> 25≥ 25
Cross PolarAt BoresightdB≥ 17≥ 18≥ 17≥ 16> 16> 16> 16> 17> 16> 16> 16> 16> 17
DiscriminationOver SectordB> 7> 8> 8> 7> 6> 6> 4> 3> 7> 6> 6> 4> 3
IsolationCross-PolardB> 26> 26> 26
Interband (typical)dB> 25 (R1//R2) , > 28 (R1//Y1, Y2, Y3, Y4, Y5, P1)> 28> 26 (Y2//Y3), > 28 (Y2//R1, R2, Y1, Y4, Y5, P1)
ImpedanceOhm505050
VSWR—< 1.5< 1.5< 1.5
Return LossdB> 14> 14> 14
PIM3 (2×43 dBm Carrier)dBc< -150< -150< -150
Lightning Protection—DC GroundDC GroundDC Ground
Maximum Average Input Power per Port, at 50° C Ambient TemperatureWatts250200200
250200200
Y5P1
Frequency RangeMHz2300-2690MHz3300-3800
MHz2300-24002490-2690MHz3300-36003600-3800
Polarization—±45°—±45°
Electrical Downtilt, Continuously Adjustabledegree2-12degree2-12
Single Column BeamGaindBi16.5 ± 117 ± 1GaindBi15.5 ± 115.7 ± 1
Horizontal Beamwidthdegree80 ± 1075 ± 10Horizontal Beamwidthdegree75 ± 1065 ± 10
Vertical Beamwidth (3 Db)degree5.4 ± 0.55.0 ± 0.5Vertical Beamwidth (3 dB)degree5.8 ± 0.65.5 ± 0.6
Cross-Polar Discrimination (0°)dB≥ 16≥ 16Cross-Polar Discrimination (0°)dB≥ 15≥ 15
First Upper Side Lobe SuppressiondB≥ 15≥ 15First Upper Side Lobe SuppressiondB≥ 15≥ 15
Front-To-Back RatiodB≥ 28≥ 28Front-To-Back RatiodB≥ 25≥ 25
65° Broadcast BeamGain Of Broadcasting Pattern (Typical)dBi17.5 ± 118 ± 1GaindB17.0 ± 0.617.2 ± 0.6
Horizontal Beamwidthdegree6565Horizontal Beamwidthdegree6565
Vertical Beamwidthdegree5.4 ± 0.55.0 ± 0.5Vertical Beamwidth (3 dB)degree5.8 ± 0.65.5 ± 0.6
Cross Polar Discrimination At BoresightdB≥ 16≥ 16Cross-Polar Discrimination (0°)dB≥ 15≥ 15
Front-To-Back RatiodB≥ 28≥ 28First Upper Side Lobe SuppressiondB≥ 15≥ 15
First Upper Sidelobe SuppressiondB≥ 15≥ 15Front-To-Back RatiodB≥ 27≥ 27
Service Beam (0° Direction)Direct Beam GaindBi22 ± 122 ± 1Service Beam0° Direct Beam GaindBi21 ± 0.521.2 ± 0.5
Horizontal 3 dB Beamwidthdegree22 ± 321 ± 30° Direct Beam Horizontal 3 dB Beamwidthdegree< 25< 25
±30° Direction Beam GaindBi20 ± 120 ± 1±30° Direction Beam GaindBi1818.2
Beam Cross Polar RatiodB≥ 20≥ 20±30° Direction Beam Horizontal 3 dBdegree< 30< 30
Horizontal Sidelobe SuppressiondB≥ 12≥ 12Beamwidth
Beam Front To Back Ratiodegree≥ 30≥ 300° Direct Beam Cross-Polar RatiodB≥ 18≥ 18
Soft Split Electrical Properties (Multi-Beam)GaindBi20.5 ± 121 ± 10° Direct Beam Front-To-Back RatiodB≥ 30≥ 30
Horizontal Beamwidthdegree30 ± 328 ± 3Calibration and Electrical ParameterCoupling Factor Between CalibrationdB-26 ± 2
Vertical Beamwidth (3 dB)degree5.4 ± 0.55.0 ± 0.5And Each Antenna Port
First Upper Side Lobe SuppressiondB≥ 17≥ 17Maximum Amplitude Tolerance From Calibration Port To Input PortsdB≤ 0.7
Front-To-Back RatiodB≥ 28≥ 28Maximum Phase Tolerance From Calibration Port To Input Portsdegree≤ 9
Calibration & Electrical ParametersCoupling Factor Between CalibrationdB-26 ± 2Ports VSWR—< 1.5
Port And Each Antenna PortAverage Power CapacityWatts40
Max. Amplitude Tolerance From Calibration Port To Input PortsdB≤ 0.9Co-Polar Isolation Bewtween PortsdB≥ 20
Max. Phase Tolerance From Calibration Port To Input Portsdegree≤ 7Cross-Polar Isolation Between PortsdB≥ 25
Ports VSWR—< 1.5ImpedanceOhm50
Return LossdB> 14VSWR—< 1.5
Max. Average Input Power Per RF PortW150Return LossdB> 14
Co-Polarization Isolation Between PortsdB≥ 25PIM3 (2×43 dBm Carrier)dBc< -143
Cross-Polarization Isolation BetweendB≥ 25Lightning Protection—DC Ground
Ports
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware InterfacesRS485 and Power
Adjustment Time≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles> 20,000
Torque Maximum≥ 160 mN·m (@ 30RPM)
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions
Remote ControlCan manage from OMC, BTS/Node B
Daisy Chaining MethodReady for daisy-chaining
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
Housing Material / ColorAluminum / Grey
Operating Temperature-40° to +70° C (-40° to +158° F)
Storage Temperature-55° to +75° C (-67° to +167° F)
HumidityUp to 95%
IP RatingIP65
Weight≤ 500 g
Mechanical Specifications
Connector Type—(12x) 4.3/10 Female & (2x) MQ5 Male+ (2x) MQ4 Male
Connector Position—Bottom
Electrical Tilt Control—Integrated RET
Radome Material—Fiberglass

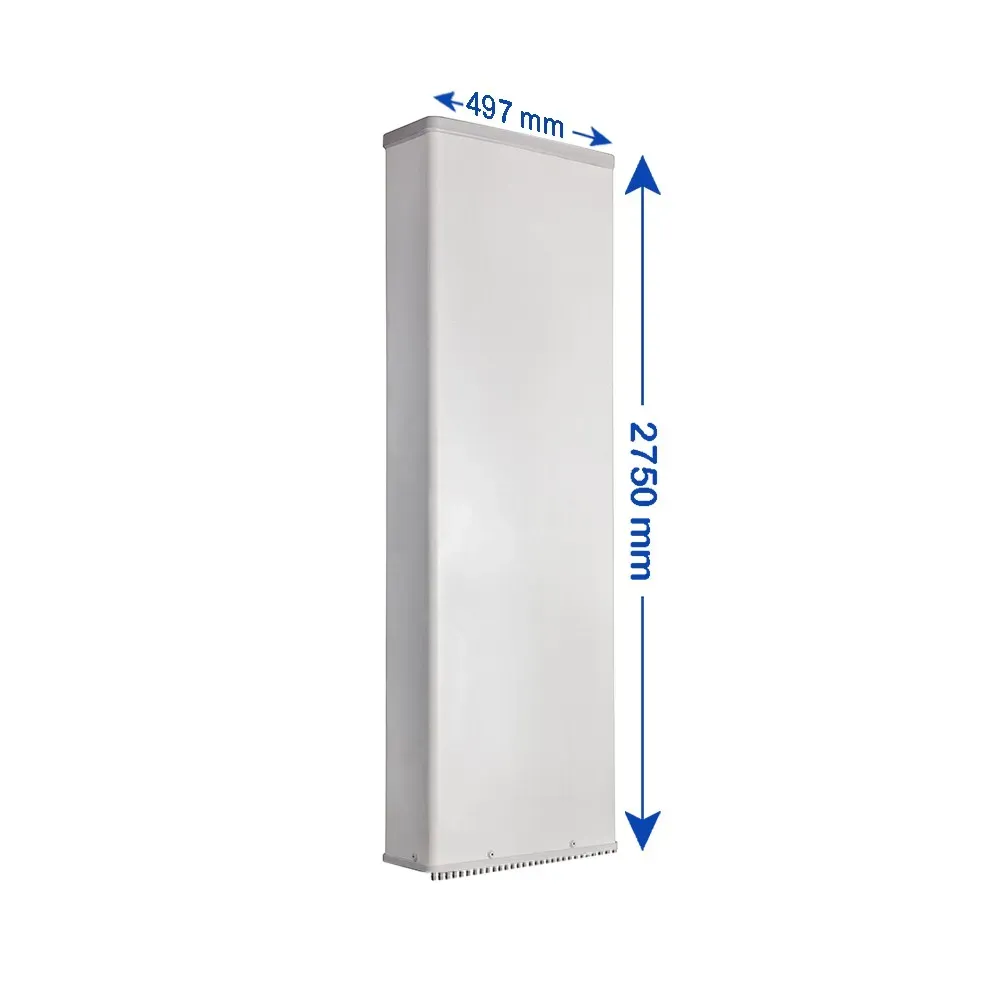

Antenna Dimensions (H x W x D)mm (in)2750 x 497 x 197 (108.3 x 19.6 x 7.8)
Antenna WeightAntenna Onlykg (lbs)53 (116.8)
with Clampskg (lbs)60.5 (133.4)
Maximum Wind Speedkm/h (mph)200 (124.3)
Wind LoadFrontalN (lbf)1265 (284.4)
at 150 km/hRearN (lbf)1410 (317.0)
LateralN (lbf)620 (139.4)
Operating Temperature°C (°F)-40 to +60 (-40 to +140)
