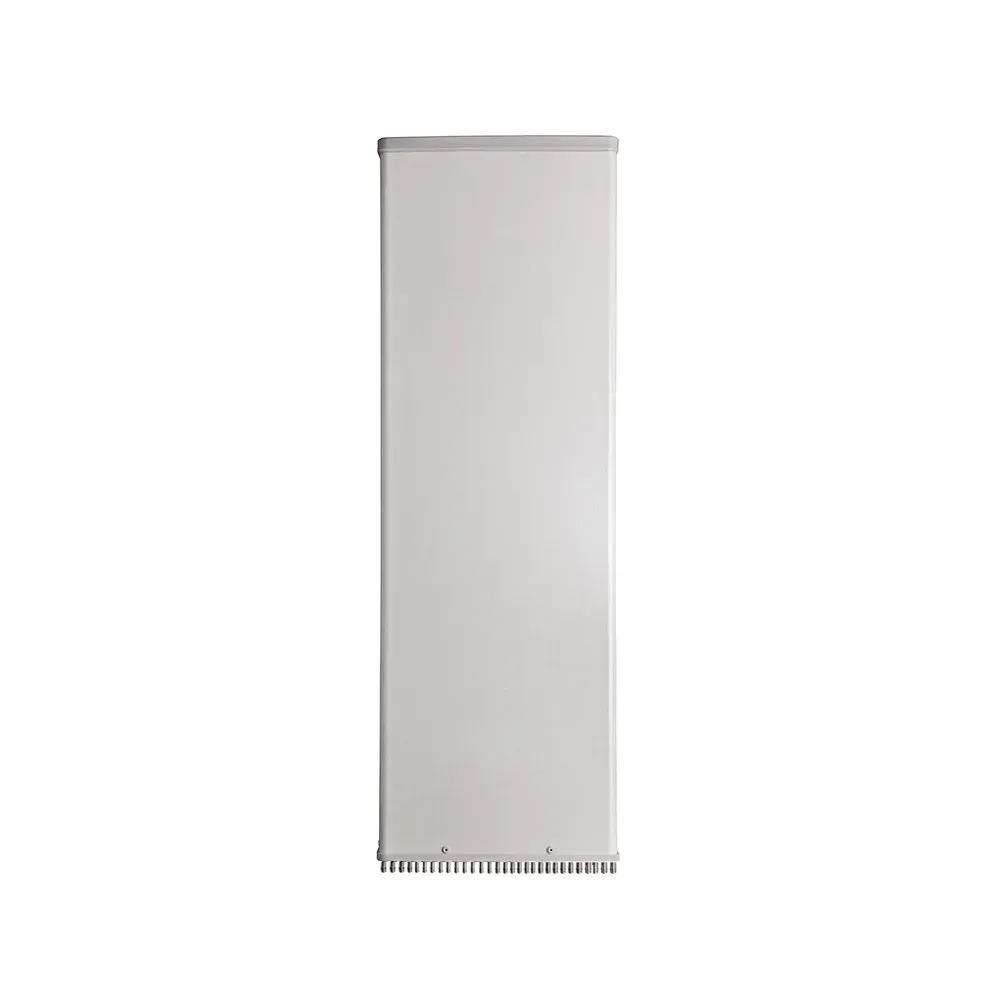

Product code: 30P-698-3800F-16G-65H10V

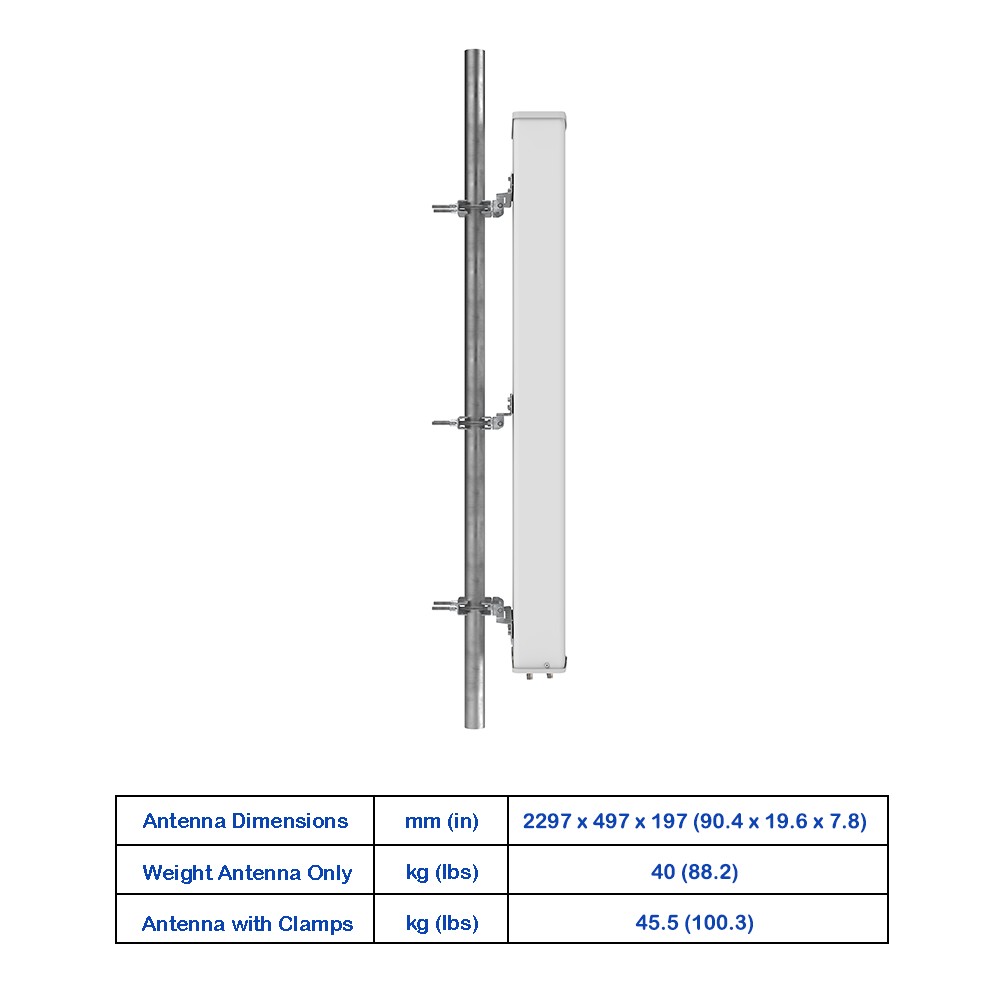

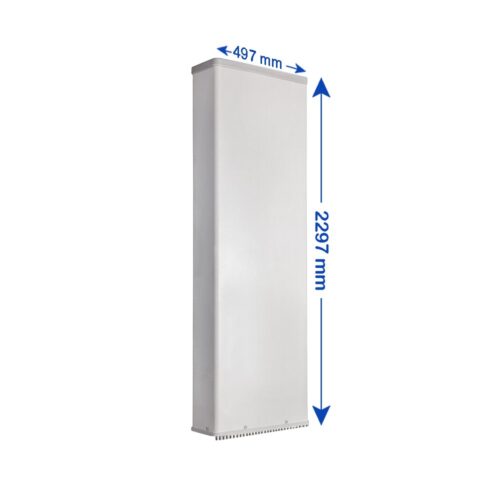

30-Port, TDD Hybrid Panel Antenna 65° HBW, (2x) 698-960/(4x) 1427-2690/ 2300-2690/ 3300-3800 MHz, 15.5/15.5/16.5/16/16.5/16/17/17 dBi, 2-12°T, 2.297 m

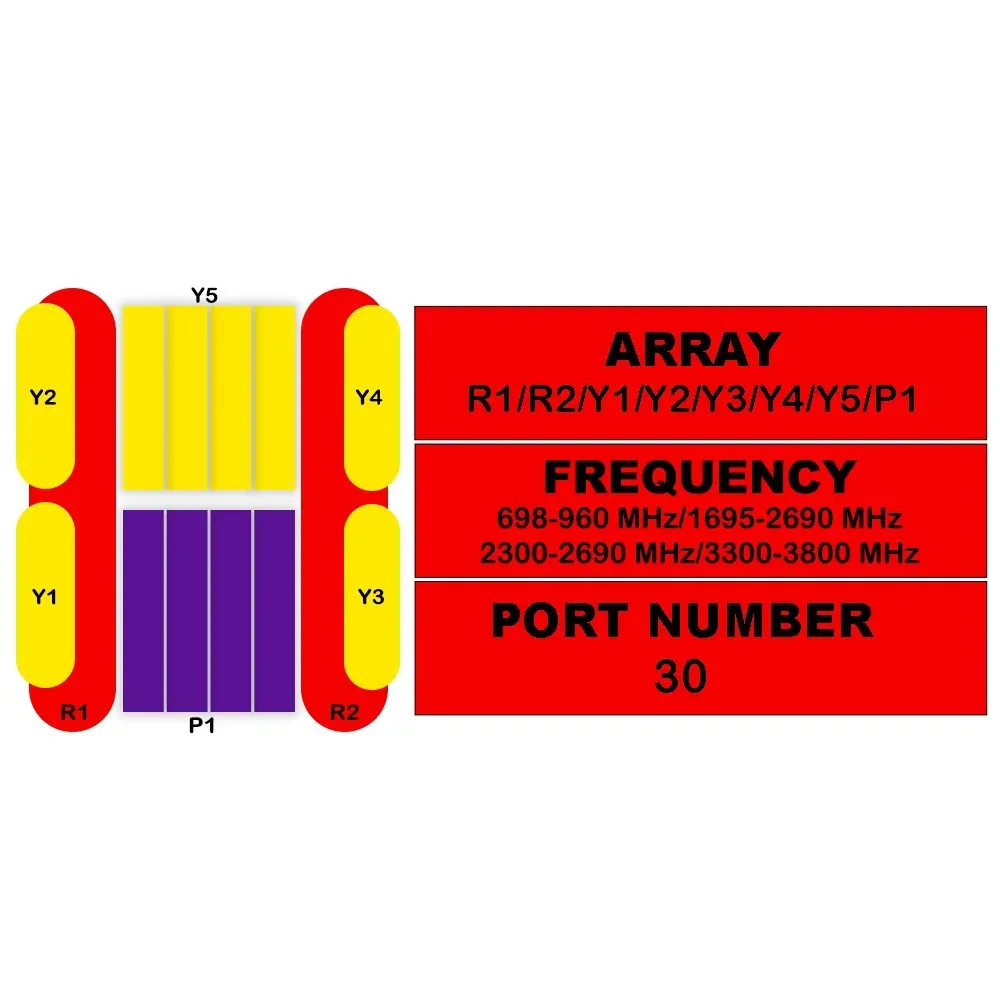

| 30-Port Antenna | R1 | R2 | Y1 | Y2 | Y3 | Y4 | Y5 | P1 |
| Frequency Range (MHz) | 698-960 | 698-960 | 1427-2690 | 1427-2690 | 1427-2690 | 1427-2690 | 2300-2690 | 3300-3800 |
| HBW | 65° | 65° | 65° | 65° | 65° | 65° | 65° | 65° |
| Gain | 15.5 dBi | 15.5 dBi | 16.5 dBi | 16 dBi | 16.5 dBi | 16 dBi | 17 dBi | 17 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° |
| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(1x) MQ4
Male + (1x) MQ5 Male |
(1x) MQ4
Male + (1x) MQ5 Male |
