Product code: 30P-698-3800F-16G-65H11V

30-Port, TDD Hybrid Panel Antenna 65° HBW, (2x) 698-960/(4x) 1695-2690/ 2300-2690/ 3300-3800 MHz, 15.5/15.5/16.5/16/16.5/16/17/17 dBi, 2-12°T, 1.997 m

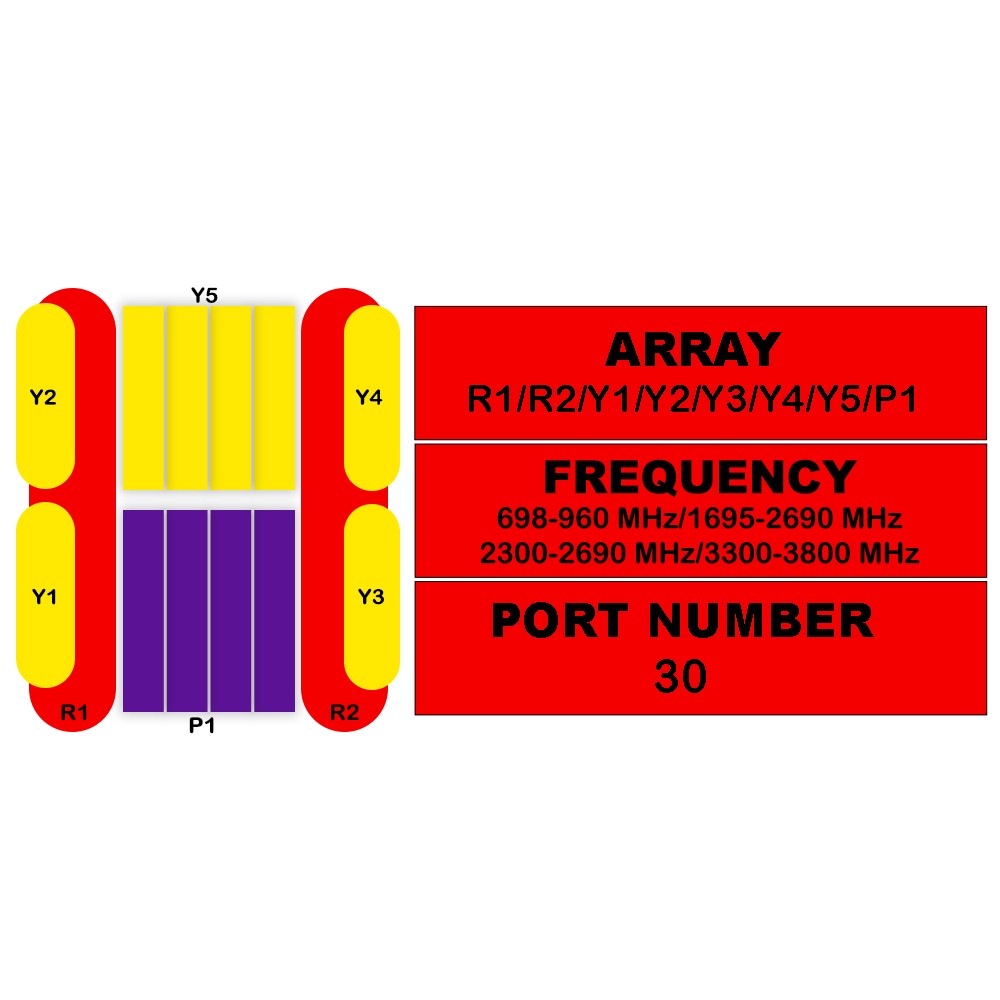

30-Port Antenna R1 R2 Y1 Y2 Y3 Y4 Y5 P1
Frequency Range (MHz) 698-960 698-960 1695-2690 1695-2690 1695-2690 1695-2690 2300-2690 3300-3800
HBW 65° 65° 65° 65° 65° 65° 65° 65°
Gain 15.5 dBi 15.5 dBi 16.5 dBi 16 dBi 16.5 dBi 16 dBi 17 dBi 17 dBi
Tilt 2-12° 2-12° 2-12° 2-12° 2-12° 2-12° 2-12° 2-12°
Connectors

(other connectors by request)

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (1x) MQ4

Male + (1x) MQ5 Male

 (1x) MQ4

Male + (1x) MQ5 Male



WhatsApp Chat
Skype
Product Part Number
30P-698-3800F-16G-65H11V
Electrical & Mechanical Specification
Electrical Specifications
R1 / R2Y1 / Y2 / Y3 / Y4
Frequency RangeMHz698-9601695-2690
MHz698-806790-894880-9601695-18801850-19901920-21702300-24002490-2690
Polarization— ±45°±45°
Gainat Mid TiltdBi15.215.515.815.415.816.216.316.3
Over All TiltsdBi15.0 ± 0.515.3 ± 0.515.6 ± 0.515.2 ± 0.615.6 ± 0.516.0 ± 0.616.1 ± 0.616.1 ± 0.6
Horizontal Beamwidthdegree6565656565656565
Vertical Beamwidthdegree11109109.79.598.5
Electrical Downtilt, Continuously Adjustabledegree2-122-12
First Upper Side LobedB> 16> 16> 16> 16> 16> 16> 16> 16
Suppression
Front-To-Back Ratio ±30°dB> 23> 24> 25≥ 25≥ 25> 25≥ 26≥ 26
Cross Polar DiscriminationdB> 17> 18> 17> 15> 16> 17> 18> 16
At Boresight
IsolationCross-PolardB> 20> 23
Port to PortdB> 20> 23
ImpedanceOhm5050
VSWR—< 1.5< 1.5
Return LossdB> 14> 14
PIM3 (2×43 dBm Carrier)dBc< -153< -153
Lightning Protection—DC GroundDC Ground
Maximum Average Input Power per Port, at 50° C Ambient TemperatureWatts250200
Y5P1/P2
Frequency RangeMHz2300-2690MHz3300-3800
MHz2300-24002490-2690MHz3300-36003600-3800
Polarization—±45°—±45°
Electrical Downtilt, Continuously Adjustabledegree2-12degree2-12
Beamforming Electrical Properties Radiation ParametersSingle Column BeamGaindBi15.5 ± 116 ± 1GaindBi15.5 ± 115.5 ± 1
Horizontal Beamwidthdegree9090Horizontal Beamwidthdegree7070
Vertical Beamwidth (3 dB)degree88Vertical Beamwidth (3 dB)degree6.56
Cross-Polar Discrimination atdB1616Cross-Polar Discrimination at BoresightdB≥ 15≥ 15
BoresightCross-Polar Discrimination Over SectordB≥ 8≥ 8
First Upper Side Lobe SuppressiondB≥ 16≥ 16First Upper Side Lobe SuppressiondB≥ 15≥ 15
Front-To-Back Ratio Co-Pol, ±30°dB≥ 25≥ 25Front-To-Back RatiodB≥ 23≥ 23
65° Broadcast BeamGaindB16.517GaindB16.517
Horizontal Beamwidth (3 dB)degree6565Horizontal Beamwidth (3 dB)degree6565
Vertical Beamwidth (3 dB)degree77Vertical Beamwidth (3 dB)degree6.56
Cross-Polar Discrimination atdB1616First Upper Side Lobe SuppressiondB≥ 15≥ 15
BoresightFront-To-Back RatiodB≥ 25≥ 25
First Upper Side Lobe SuppressiondB≥ 16≥ 16(0°) Direct Beam GaindB20.521
Front-To-Back RatiodB≥ 25≥ 25(0°) Direction Beam 3dB Horizontal Beamwidthdegree1818
Service Beam(0°) Direct Beam GaindB2020.5(0°) Direction Beam Cross-Polar Ratio at BeampeakdB≥ 16≥ 17
(0°) Direction Beam 3dB Horizontaldegree2626(0°) Direction Beam Front-To-Back RatiodB≥ 27≥ 28
Beamwidth(0°) Direction Beam Horizontal SidelobedB1212
(0°) Direction Beam Cross-Polar RatiodB1818±30° Direction Beam GaindB1919.5
(0°) Direction Beam Horizontal Side Lobe SuppressiondB1212±30° Direction Beam 3dB Horizontal Beamwidthdegree2825
(0°) Direction Beam Front-To-Back RatiodB≥ 28≥ 28±30° Direction Beam Front-to-Back RatiodB≥ 25≥ 25
±30° Direction Beam GaindB18.519Horizontal Beamwidth (3 dB)degree3129
±30° Direction Beam Horizontal 3 dBdegree2926Front-to-Back RatiodB≥ 25≥ 25
BeamwidthCalibration and Elec- trical ParameterCoupling Factor Between Calibration And EachdB-26 ± 2
±30° Direction Beam Front-to-Back RatiodB≥ 28≥ 28Antenna Port
Calibration and Electrical ParameterCoupling Factor Between CalibrationdB-26 ± 2Maximum Amplitude Tolerance From Calibration Port To Input PortsdB≤ 1
And Each Antenna PortMaximum Phase Tolerance From Calibration Port To Input Portsdegree≤ 9
Maximum Amplitude Tolerance From Calibration Port To Input PortsdB≤ 1Ports VSWR—< 1.5
Maximum Phase Tolerance From Calibration Port To Input Portsdegree≤ 9Average Power CapacityWatts80
Ports VSWR—< 1.5Co-Polar Isolation Bewtween PortsdB≥ 20
PIM3 (2×43 dBm Carrier)dBc< -143Cross-Polar Isolation Between PortsdB≥ 23
Max. Average Input Power Per RFWatts50ImpedanceOhm50
PortPIM3 (2×43 dBm Carrier)dBc< -143
Co-Polar Isolation Bewtween PortsdB≥ 20Lightning Protection—DC Ground
Cross-Polar Isolation Between PortsdB≥ 20
ImpedanceOhm50
Lightning Protection—DC Ground
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
Mechanical Specifications
Connector Type0(12x) 4.3/10 Female and (2x) MQ4 Male + (2x) MQ5 Male
Connector Position—Bottom
Electrical Tilt Control—Integrated RET
Radome Material—Fiberglass
Antenna Dimensions (H x W x D)mm (in)1997 x 497 x 197 (78.6 x 19.6 x 7.8)
Antenna WeightAntenna Onlykg (lbs)46 (101.4)
With Clampskg (lbs)51.5 (113.5)
Maximum Wind Speedkm/h (mph)200 (124.3)
Wind LoadFrontalN (lbf)920 (206.8)
At 150 km/hRearN (lbf)1025 (230.4)
LateralN (lbf)480 (107.9)
Operating Temperature°C (°F)-40 to +60 (-40 to 140)
