Product code: 30P-698-3800F-15G-65H15V

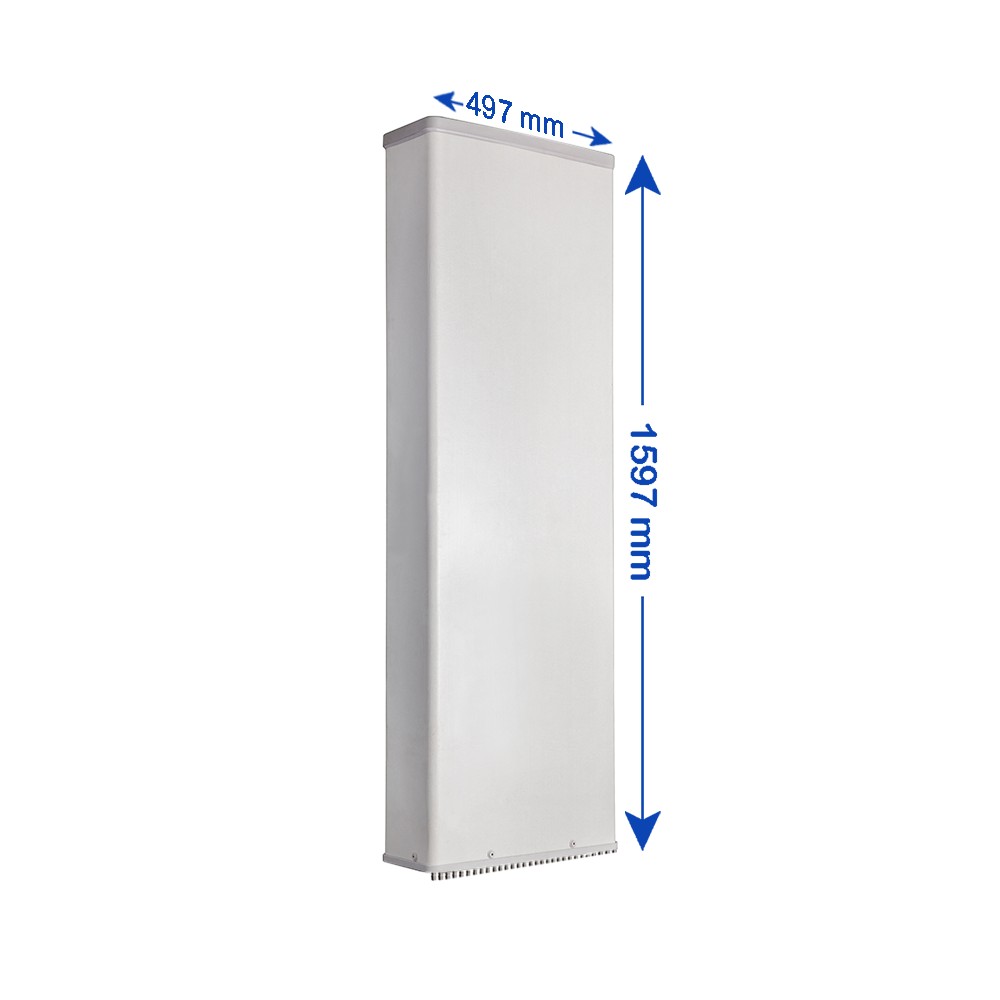

30-Port, TDD Hybrid Panel Antenna 65° HBW, (2x) 698-960/(4x) 1710-2690/ (2x) 3300-3800 MHz, 15/15/14.5/14.5/14.5/14.5/15/15 dBi, (2x) 2-16°/(6x) 2-12°T, 1.597 m

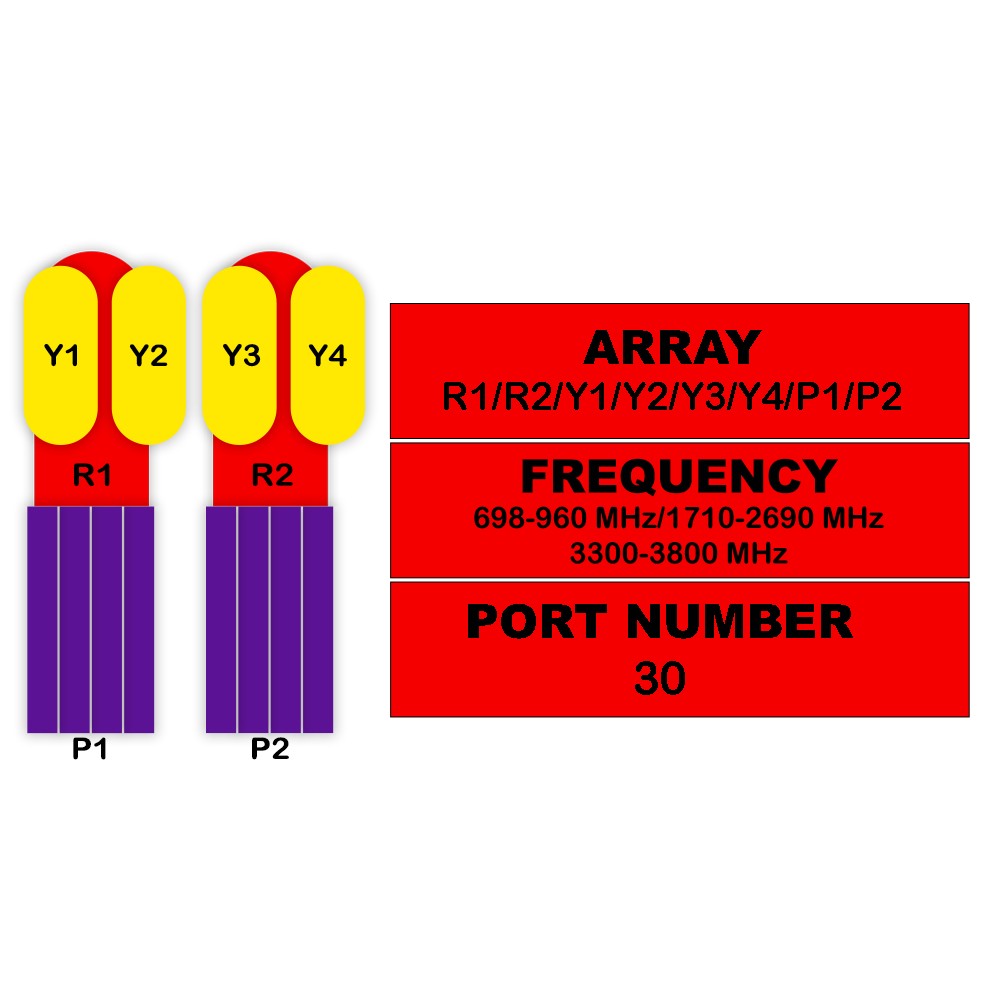

30-Port Antenna R1 R2 Y1 Y2 Y3 Y4 P1 P1
Frequency Range (MHz) 698-960 698-960 1710-2690 1710-2690 1710-2690 1710-2690 3300-3800 3300-3800
HBW 65° 65° 65° 65° 65° 65° 65° 65°
Gain 15 dBi 15 dBi 14.5 dBi 14.5 dBi 14.5 dBi 14.5 dBi 15 dBi 15 dBi
Tilt 2-16° 2-16° 2-12° 2-12° 2-12° 2-12° 2-12° 2-12°

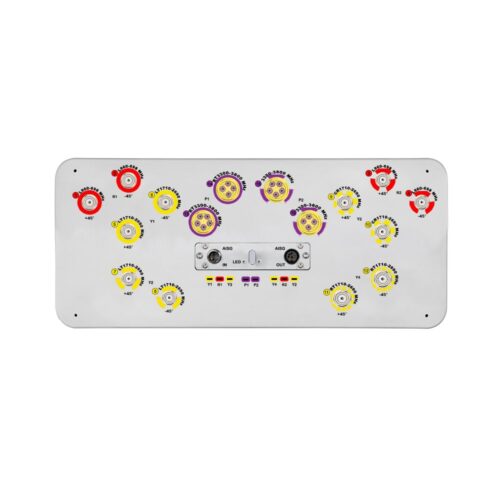

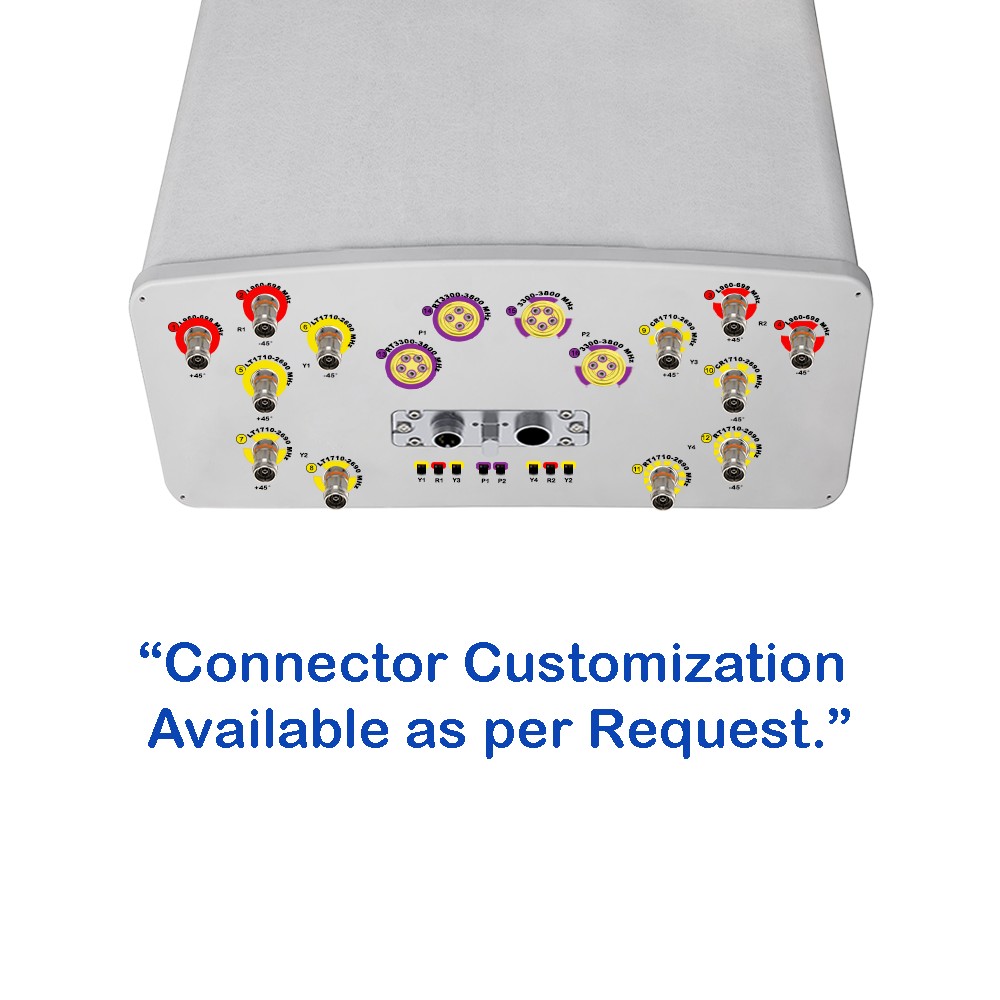

Connectors

(other connectors by request)

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (1x) MQ4

Male + (1x) MQ5 Male

 (1x) MQ4

Male + (1x) MQ5 Male
