Product code: MT-UHF-02-NF-1

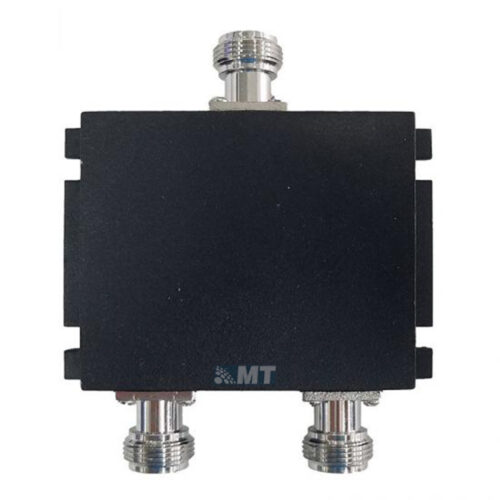

350-520MHz UHF 2Way Wilkinson Power Divider

Part No: MT-UHF-02-NF
Wide Frequency Band 350-520MHz
Low VSWR
Low Insertion Loss
Indoor Application
 Widely used for In-building Solutions and Emergency Communication System
WhatsApp Chat
Skype
Product Part Number
MT-UHF-02-NF-1
Electrical & Mechanical Specification
Mechanical Specifications
Model No.   MPD-UHF-02-NF          MPD-UHF-03-NF       MPD-UHF-04-NF
Freq(MHz)       350-520MHz 350-520MHz       350-520MHz
Output Port Number234
Insertion Loss(dB)3.55.56.5
Isolation(dB)20 min20 min20min
VSWR≤1.25≤1.25
Total Input Power(W)  50
Impedance50 ohm
ConnectorN-female
ColorBlack
Temp(deg)-30~+70
ApplicationIndoor
Weight(kg)0.250.30.35
