Product code: MT-DTA268

3600-3800MHz Cavity Band Pass Filter

  • P/N：MT-DTA268
  • Pass Band Frequency:3600-3800MHz
  • inhibition：≥50dB
  • Insertion loss：≤1.0dB
WhatsApp Chat
Skype
Product Part Number
MT-DTA268

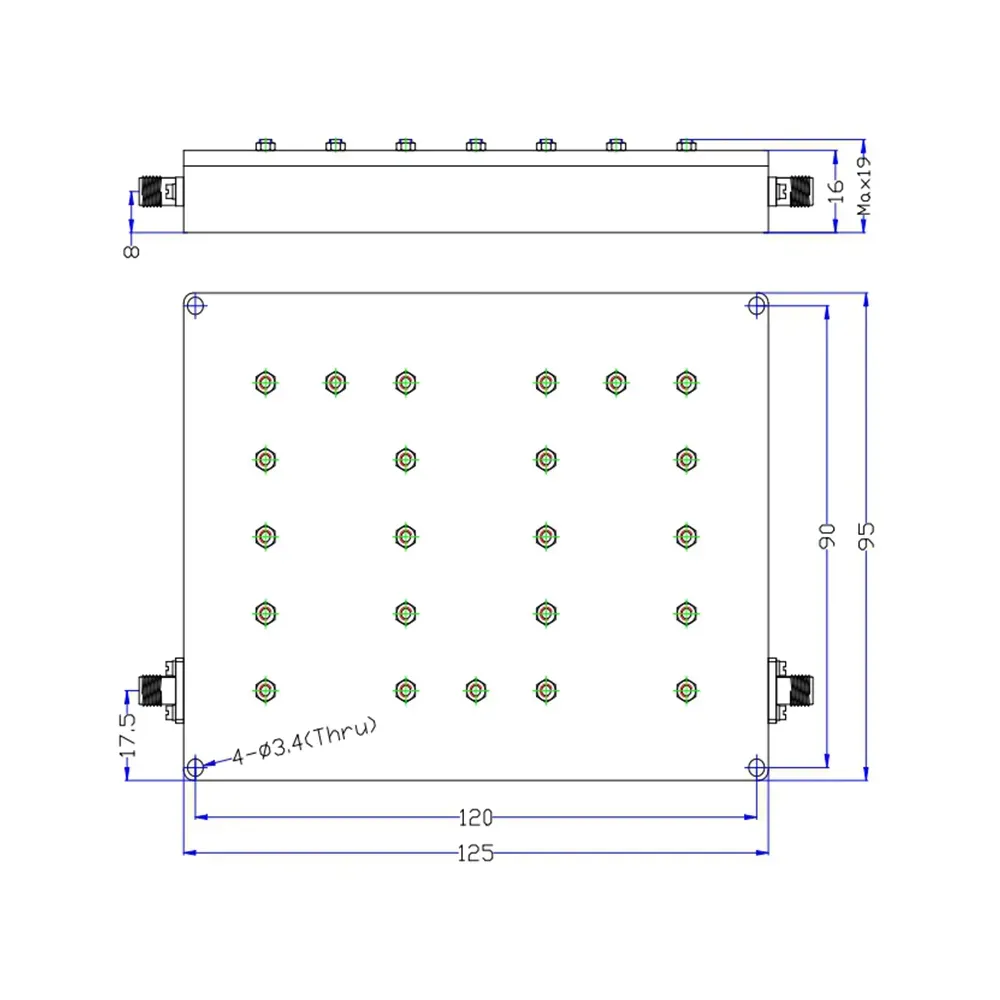

Electrical & Mechanical Specification
S/NParameters
1Center Frequency (F0)3700MHz
2Pass Band Frequency3600～3800MHz
3Pass Band Insertion Loss≤1.0dB
4Pass Band Ripple≤0.5dB
5Pass Band VSWR≤1.2:1
6Stop Band Attenuation≥50dB @ DC～3540MHz*≥50dB @ 3860～11000MHz
7Impedance50 ohms
8Power Handling≤10W
9ConnectorsSMA-Female
