Product code: MT-DTA198

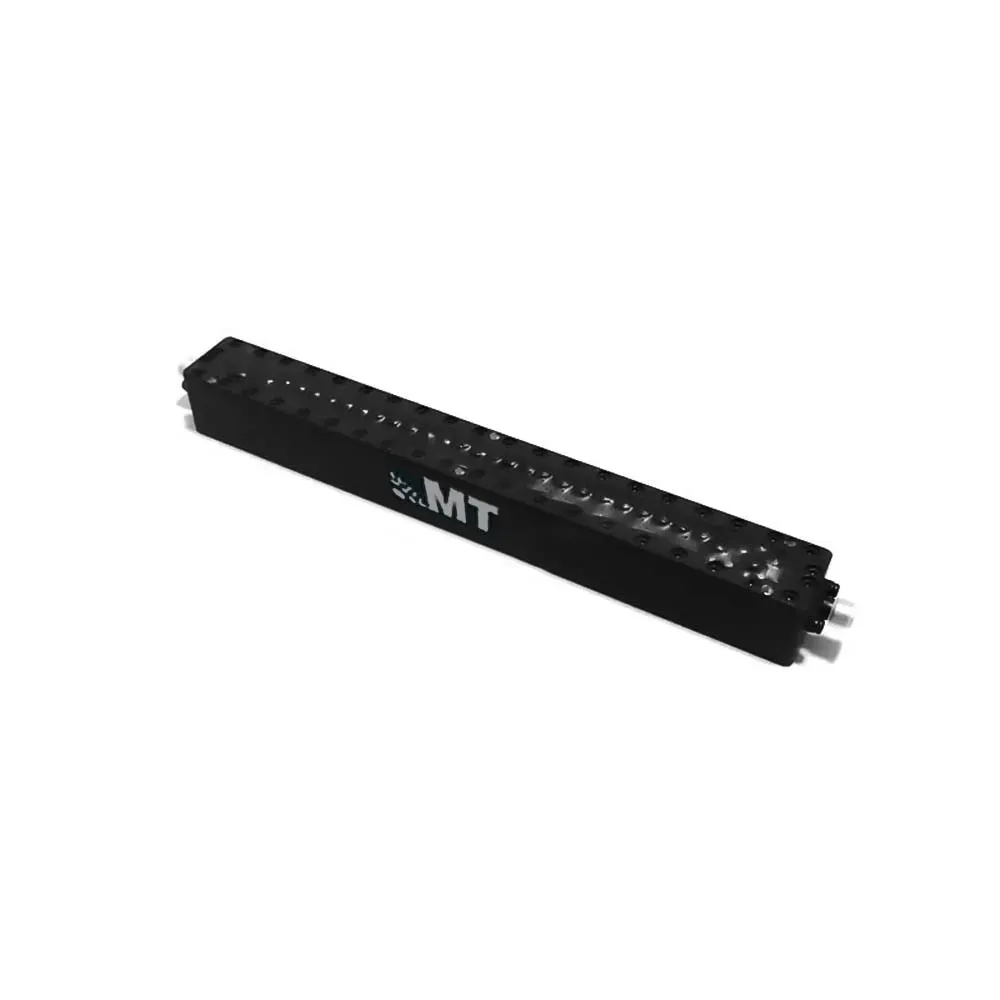

3700-4200MHz Cavity Band Pass Filter

  • P/N：MT-DTA198
  • Pass Band Frequency：3700-4200MHz
  • Stop Band Attenuation：≥40dB
  • Connectors：SMA-Female
WhatsApp Chat
Skype
Product Part Number
MT-DTA198

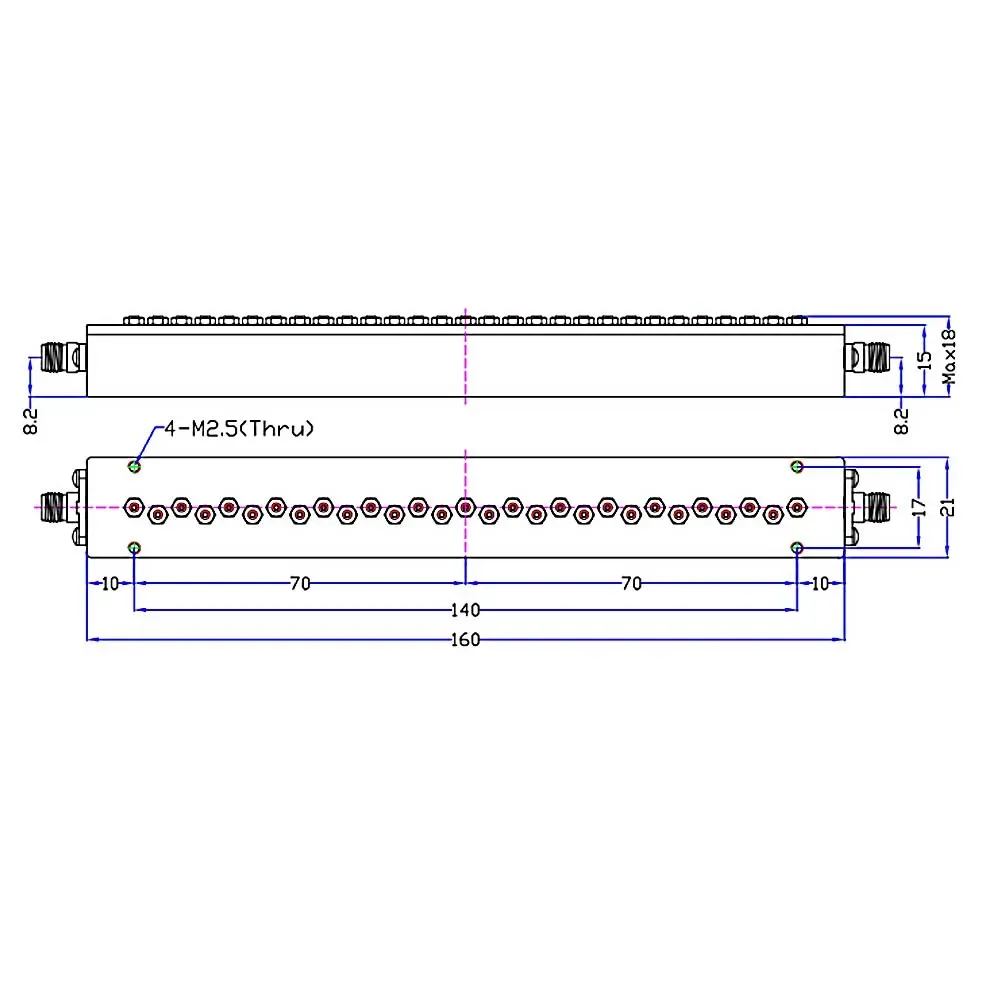

Electrical & Mechanical Specification
S/NParameters
1Center Frequency (F0)3950MHz
2Pass Band Frequency3700～4200MHz
3Insertion Loss at F0≤1.0dB @ 3950MHz
4Pass Band VSWR≤1.4:1
5Stop Band Rejection≥50dB @ 3500MHz  ≥65dB @ 4300MHz*≥40dB @ 3600MHz  ≥40dB @ 4300MHz
6Impedance50 ohms
7Power Handling≤5W
8ConnectorsSMA-Female
