Product code: MT-DTA08

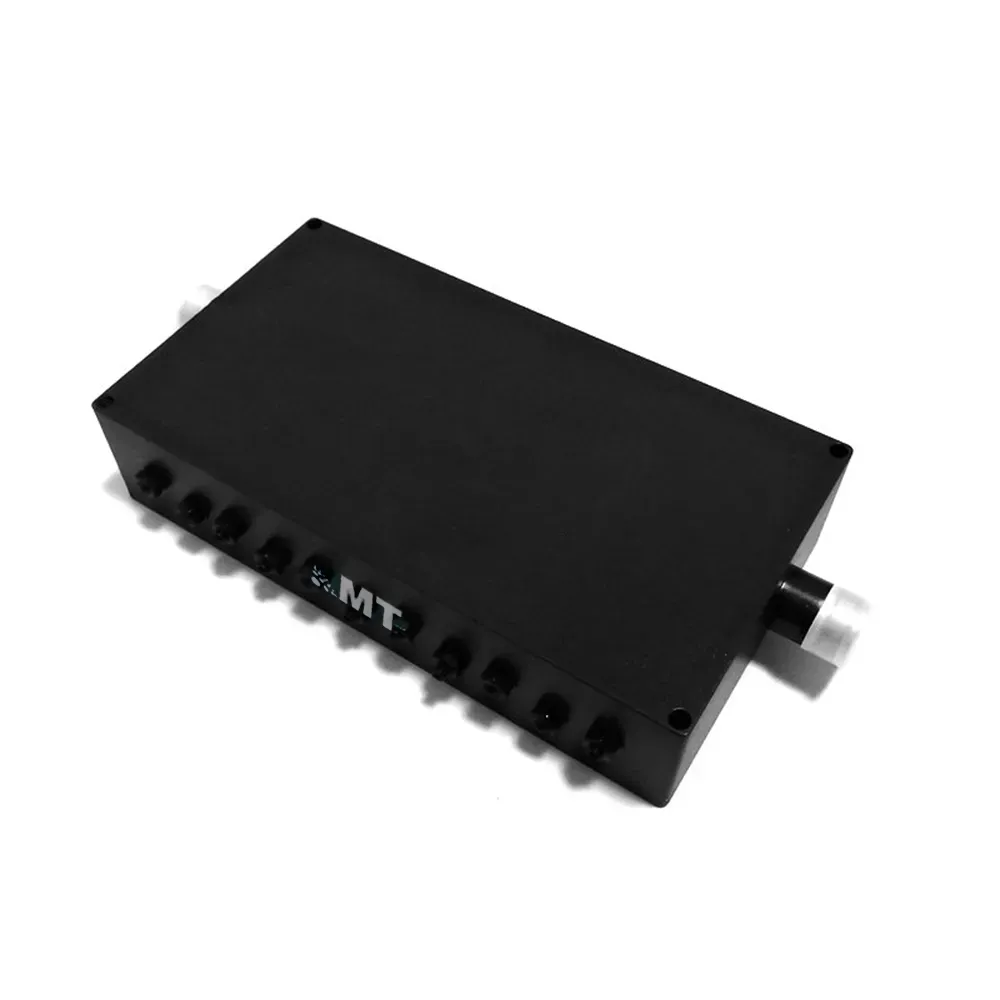

390～410MHz Cavity Band Pass Filter

  • P/N：MT-DTA08
  • Pass Band Frequency:390～410MHz
  • inhibition：≥40dB
  • Insertion loss：≤1.0dB
WhatsApp Chat
Skype
Product Part Number
MT-DTA08
Electrical & Mechanical Specification
SerialParameters
1Center Frequency (F0)400MHz
2Pass Band Frequency390～410MHz
3Pass Band Insertion Loss≤1.0dB
4Pass Band Ripple≤0.3dB
5Pass Band VSWR≤1.3:1
6Stop Band Rejection≥20dB @ Fc±15MHz (375MHz、425MHz) ≥40dB @ Fc±30MHz (DC～360MHz、440～800MHz)
7Impedance50 ohms
8Power Handling≤50W
9ConnectorsSMA-Female
10Surface FinishBlack Paint
11Net WeightTBD
12ConfigurationAs Below (Size Unit: mm)
