Product code: MT-DTA08N

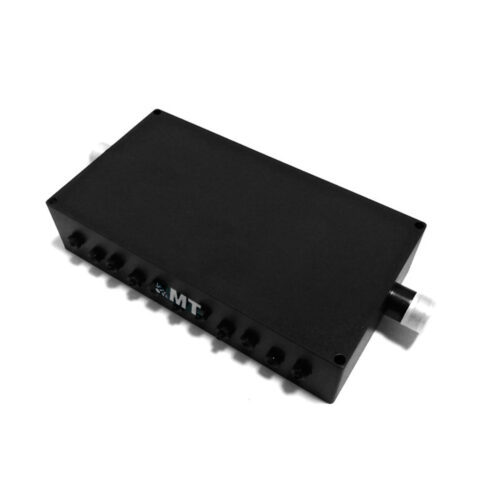

390-410MHz Cavity Band Pass Filter

  • P/N：MT-DTA08N
  • Pass Band Frequency：390-410MHz
  • Stop Band Attenuation：≥50dB
  • Connectors：N-Female
WhatsApp Chat
Skype
Product Part Number
MT-DTA08N

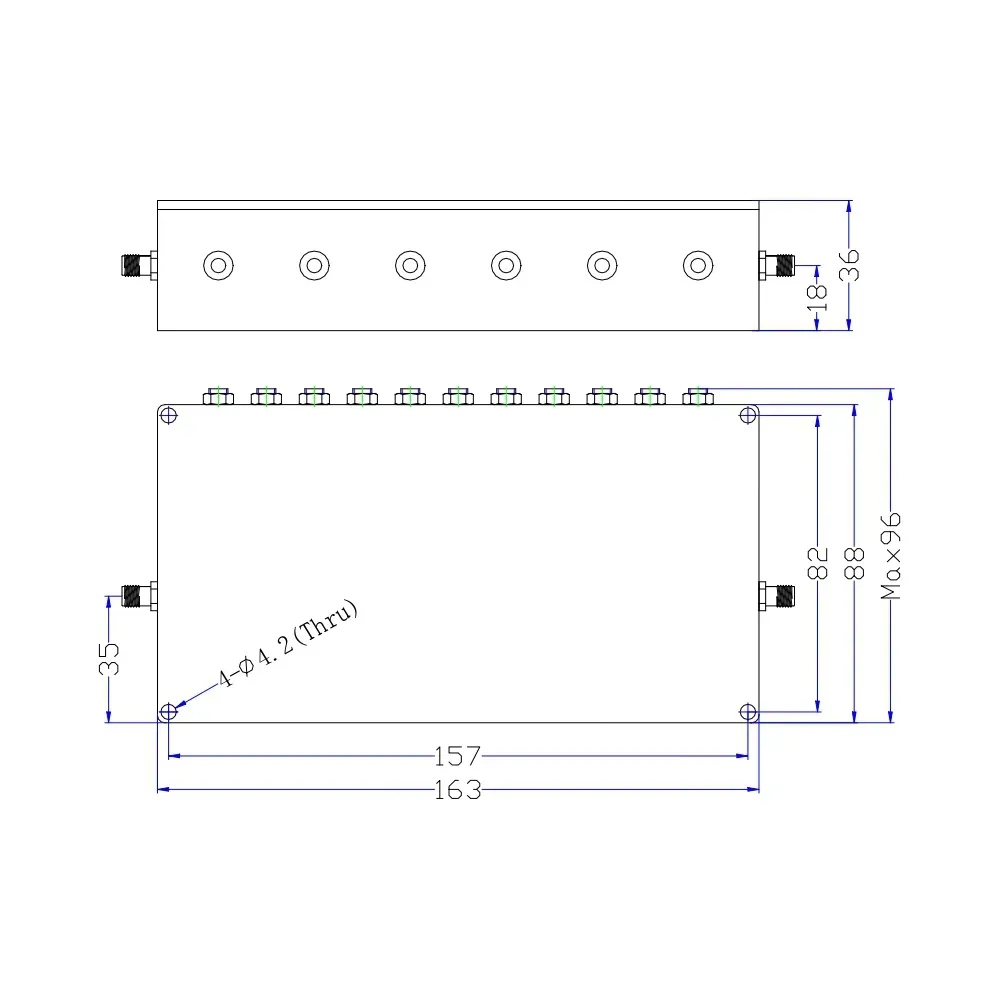

Electrical & Mechanical Specification
S/NParameters
1Center Frequency (F0)400MHz
2Pass Band Frequency390～410MHz
3Pass Band Insertion Loss≤1.0dB
4Pass Band Ripple≤0.3dB
5Pass Band VSWR≤1.3:1
6Stop Band Rejection≥20dB @ Fc±15MHz (375MHz、425MHz)*≥40dB @ Fc±30MHz*(DC～360MHz、440～800MHz)
7Impedance50 ohms
8Power Handling≤20W
