Product code: MT-445006-NF

4.4 to 5GHz 6dbi Omni Directional Outdoor Antenna

Product Overview
Part Number MT-445006-NF
Dimension 270x70x50mm
Weight 290g
Connector N-Female
Beam-width Horz.360 deg Vert.21 deg



WhatsApp Chat
Skype
Product Part Number
MT-445006-NF
Electrical & Mechanical Specification
Specification
Electrical
Frequency Range4400 to 5000MHz
V.S.W.R (MAX)1.5:1
Antenna TypeCollinear
RadiationOmni Directional
Gain(Avg)6 dBi
PolarizationVertical or Horizontal
Maximum Power100 Watts
Vertical Beam-width21 Deg
Horizontal Beam-width360 Deg
Impedance50 Ohm
Antenna DesignDipole Array
Internal MaterialCopper
ConnectorN-Female
Mechanical
Length (MAX)270 mm
Diameter (MAX)70 x 50mm
Antenna Weight (G.W)290 g
Accessories (G.W)70 g
ApplicationIndoor / Outdoor
Radome MaterialWhite Fiberglass

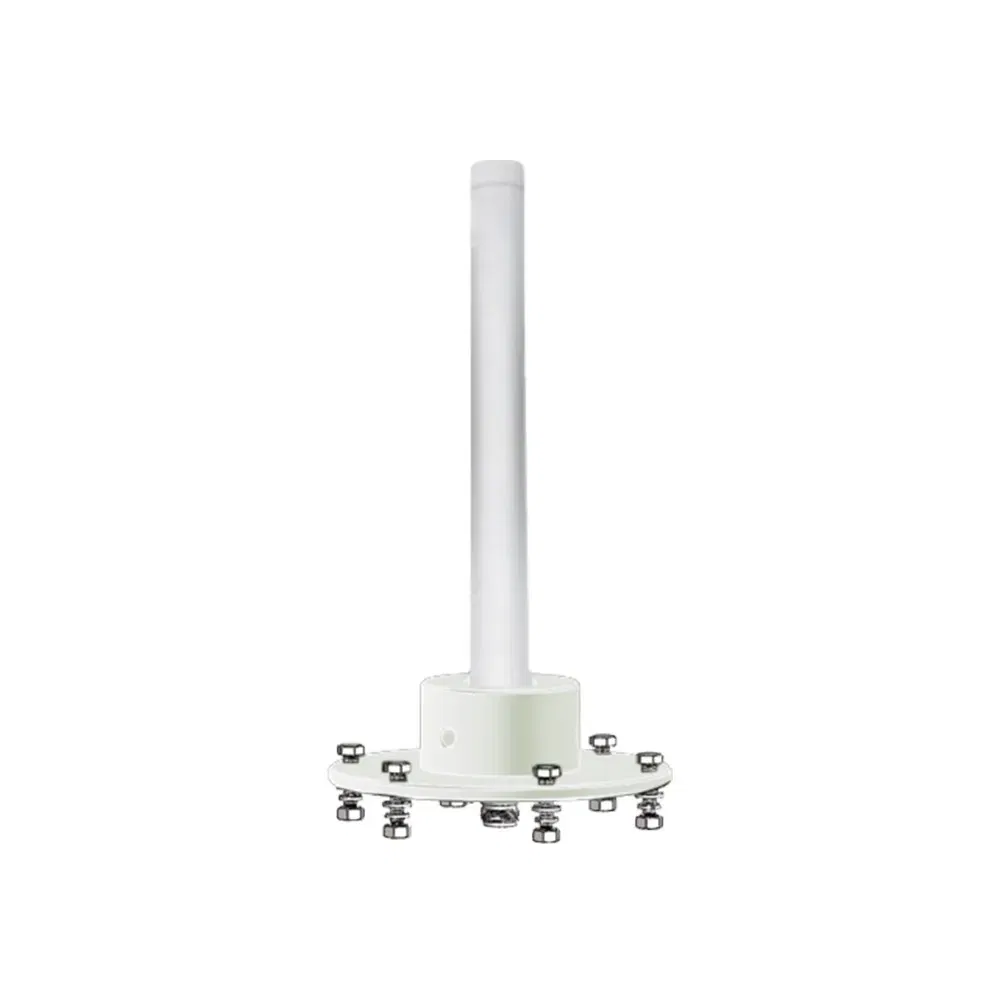

Mount StylePole Mount / Well Mount
Parts MaterialAluminum
MountingStainless Steel
Wind SurvivalGreater than 150MPH
Storage Temperature-40 to +80
Operating Temperature-40 to +60
Operating Humidity10%~90% non-condensing
Storage Humidity5%~90% non-condensing
Safety, Emission and otherRoHS, ISO
