Product code: MT-485512-NF

4.825GHz to 5.515GHz 12dbi Omni Directional Outdoor Antenna

Product Overview
Part Number MT-485512-NF
Dimension 610x70x50mm
Weight 540g
Connector N-Female
Beam-width Horz.360 deg Vert.8 deg



WhatsApp Chat
Skype
Product Part Number
MT-485512-NF
Electrical & Mechanical Specification
Specification
Electrical
Frequency Range4825 to 5515 MHz
V.S.W.R (MAX)1.5:1
Antenna TypeCollinear
RadiationOmni Directional
Gain12 dBi
PolarizationVertical or Horizontal
Maximum Power100 Watts
Vertical Beam-width9 Deg
Horizontal Beam-width360 Deg
Impedance50 Ohm
Antenna DesignDipole Array
Internal MaterialCopper
ConnectorN-Female

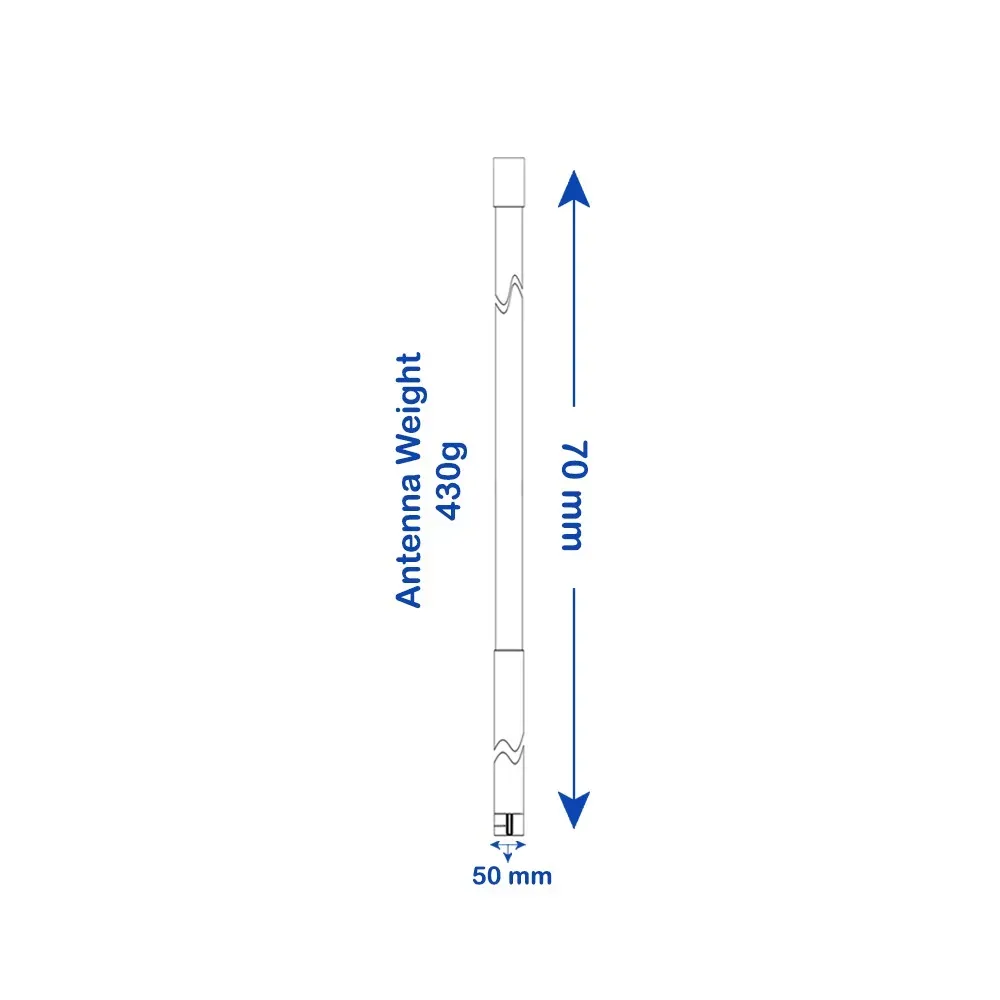

Mechanical
Length610 mm
Diameter70 x 50mm
Antenna Weight430 g
Accessories70 g
ApplicationIndoor / Outdoor
Radome MaterialWhite Fiberglass
Mount StylePole Mount / Well Mount
Parts MaterialAluminum
MountingStainless Steel
Wind SurvivalGreater than 150MPH
Storage Temperature-40 to +80
Operating Temperature-40 to +60
Operating Humidity10%~90% non-condensing
Storage Humidity5%~90% non-condensing
Safety, Emission and otherRoHS, CE, FCC, WEEE
