4-Port, Diplexed Panel Sector Antenna, 65° HBW, (2x) 698-960/ (2x) 1710-2690 MHz, 13/13/17/17 dBi, (2x)2-16°/(2x) 2-12°T, 1.297 m

Q: Other Inquiries

Please send purchase request at sales@mtsrl.in

Product code: 4P-698-2690F-17G-65H7V

4-Port, Diplexed Panel Sector Antenna, 65° HBW, (2x) 698-960/ (2x) 1710-2690 MHz, 13/13/17/17 dBi, (2x)2-16°/(2x) 2-12°T, 1.297 m

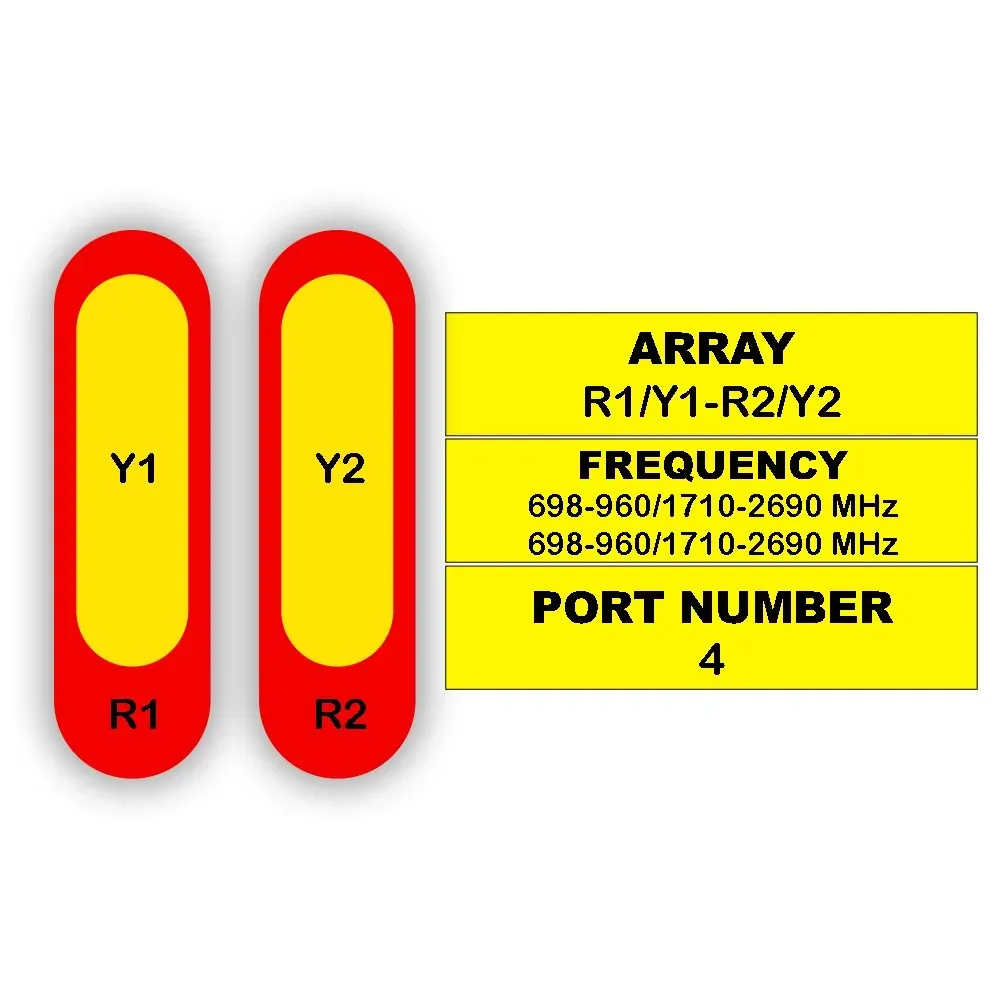

4-Port Antenna	R1	Y1	R2	Y2
Frequency Range	698-960 MHz	1710-2690 MHz	698-960 MHz	1710-2690 MHz
HBW	65°	65°	65°	65°
Gain	13 dBi	17 dBi	13 dBi	17 dBi
Tilt	2-16°	2-12°	2-16°	2-12°
Connectors (other connectors by request)	(2x) 4.3/10 Female		(2x) 4.3/10 Female

WhatsApp Chat

Skype

Product Part Number

4P-698-2690F-17G-65H7V

Electrical & Mechanical Specification

Electrical Specifications
			R1/R2			Y1/Y2
Frequency Range		MHz	698-960			1710-2690
Frequency Range		MHz	698-806	790-894	880-960	1710-1880	1850-1990	1920-2170	2300-2400	2490-2690
Polarization		—	±45°			±45°
Gain	at Mid Tilt	dBi	12.7	13	13.4	15.8	16.1	16.5	16.8	16.8
Gain	Over All Tilts	dBi	12.5 ± 0.6	12.8 ± 0.6	13.2 ± 0.6	15.6 ± 0.6	15.9 ± 0.5	16.3 ± 0.5	16.6 ± 0.5	16.6 ± 0.5
Horizontal Beamwidth		degree	64 ± 6.5	61 ± 6.5	57 ± 6.5	68 ± 6.5	66 ± 6.5	65 ± 6.5	61 ± 6.5	61 ± 8.0
Vertical Beamwidth		degree	16.7 ± 0.6	14.9 ± 0.6	14.2 ± 0.6	7.4 ± 0.6	6.9 ± 0.5	6.4 ± 0.5	5.9 ± 0.4	5.4 ± 0.6
Electrical Downtilt, Continuously Adjustable		degree	Feb-16			2-Dec
First Upper Side Lobe Suppression		dB	> 15	> 15	> 15	> 15	> 15	> 15	> 15	> 15
Front-To-Back Ratio, Co-Polar ±30°		dB	> 25	> 25	> 25	> 25	> 25	> 25	> 25	> 25
Cross Polar Discrimination at Boresight		dB	> 17	> 17	> 17	> 16	> 16	> 16	> 16	> 16
Isolation	Cross-Polar	dB	> 25			> 25
Isolation	Port-To-Port	dB	> 25 (R1/R2)			> 25 (Y1/Y2)
Impedance		Ohm	50			50
VSWR		—	< 1.5			< 1.5
Return Loss		dB	> 14			> 14
PIM3 (2×43 dBm Carrier)		dBc	< -150			< -150
Lightning Protection		—	DC Ground			DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature		Watts	200			150

Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range		10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power	Standby	< 2 W
Consumption	In Motion	< 10 W
Connectors		2 x 8 Pin Circle Connector
		Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
		Female Connector: 8 PINs; Male Connector: 4 PINs
Lightning Protection Rating		IEC 61000-4-5 Current Pulse Profile
Lightning Protection Rating		Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Safety Standard		Compliant to EN 60950/UL 60950/RoHS, CE

Mechanical Specifications

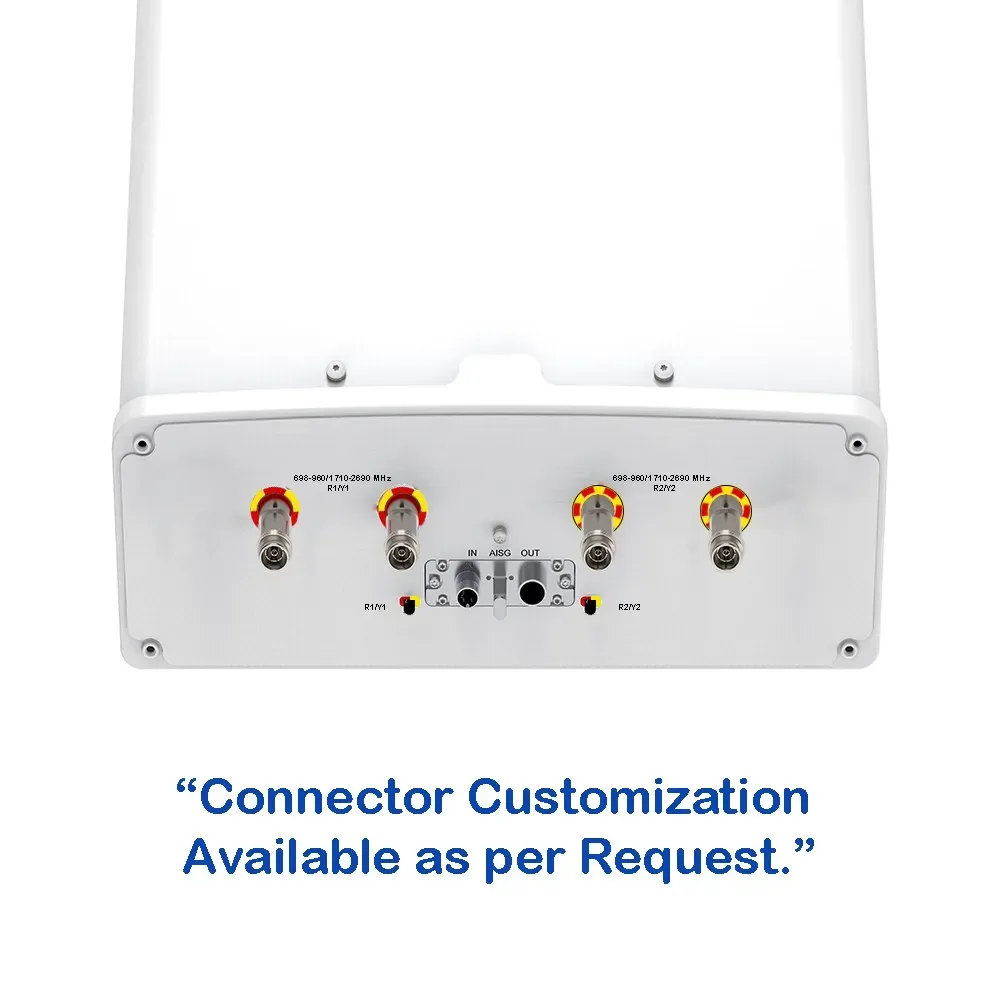

Connector Type		—	(4x) 4.3/10 Female
Connector Position		—	Bottom
Electrical Tilt Control		—	Integrated RET
Radome Material		—	Fiberglass

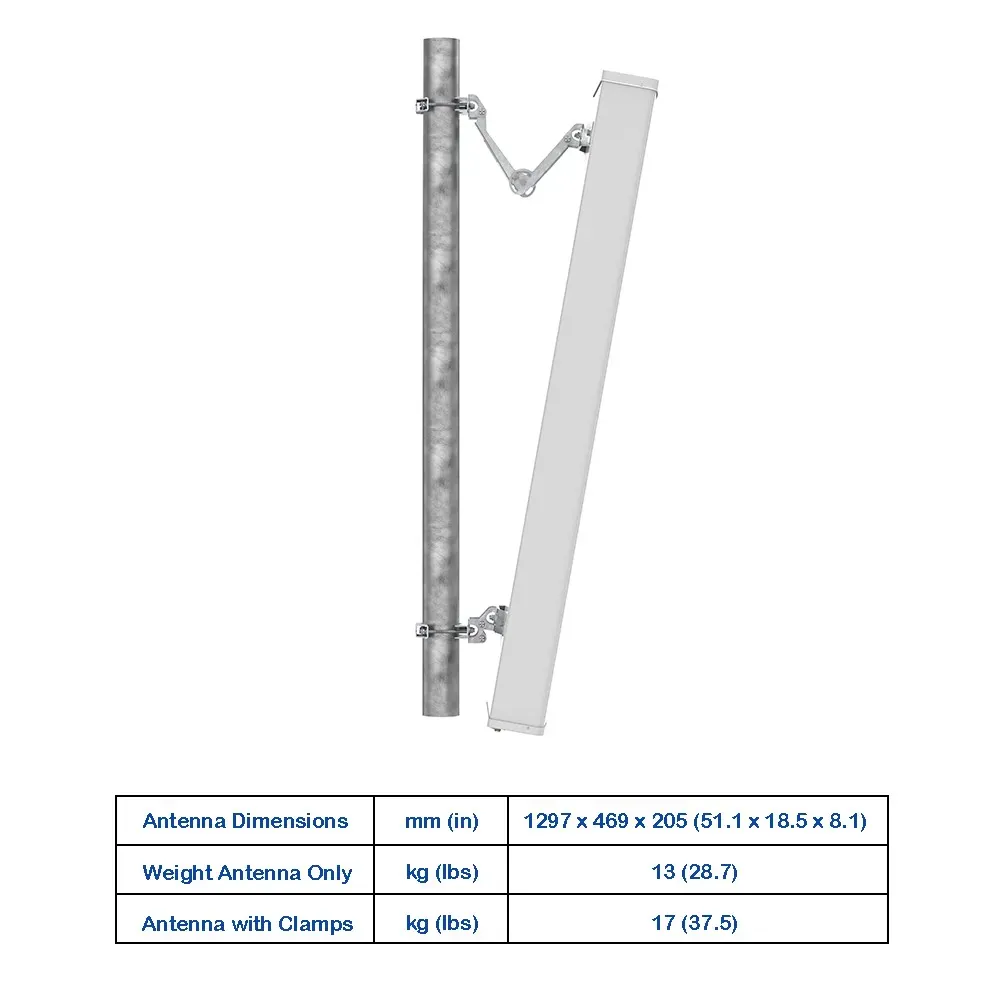

Antenna Dimensions (H x W x D)		mm (in)	1297 x 469 x 205 (51.1 x 18.5 x 8.1)
Antenna Weight	Antenna Only	kg (lbs)	13 (28.7)
Antenna Weight	with Clamps	kg (lbs)	17 (37.5)
Maximum Wind Speed		km/h (mph)	200 (124.3)
Wind Load	Frontal	N (lbf)	560 (125.9)
at 150 km/h	Rear	N (lbf)	630 (141.6)
	Lateral	N (lbf)	300 (67.4)
Operating Temperature		°C (°F)	-40 to +60 (-40 to +140)
