Product code: 4P-1710-2690F-19G-36H10V

4-Port, Panel Sector Antenna, 33° HBW, (2x) 1710-2690 MHz, 19/19 dBi, 2-12°T, 0.997 m

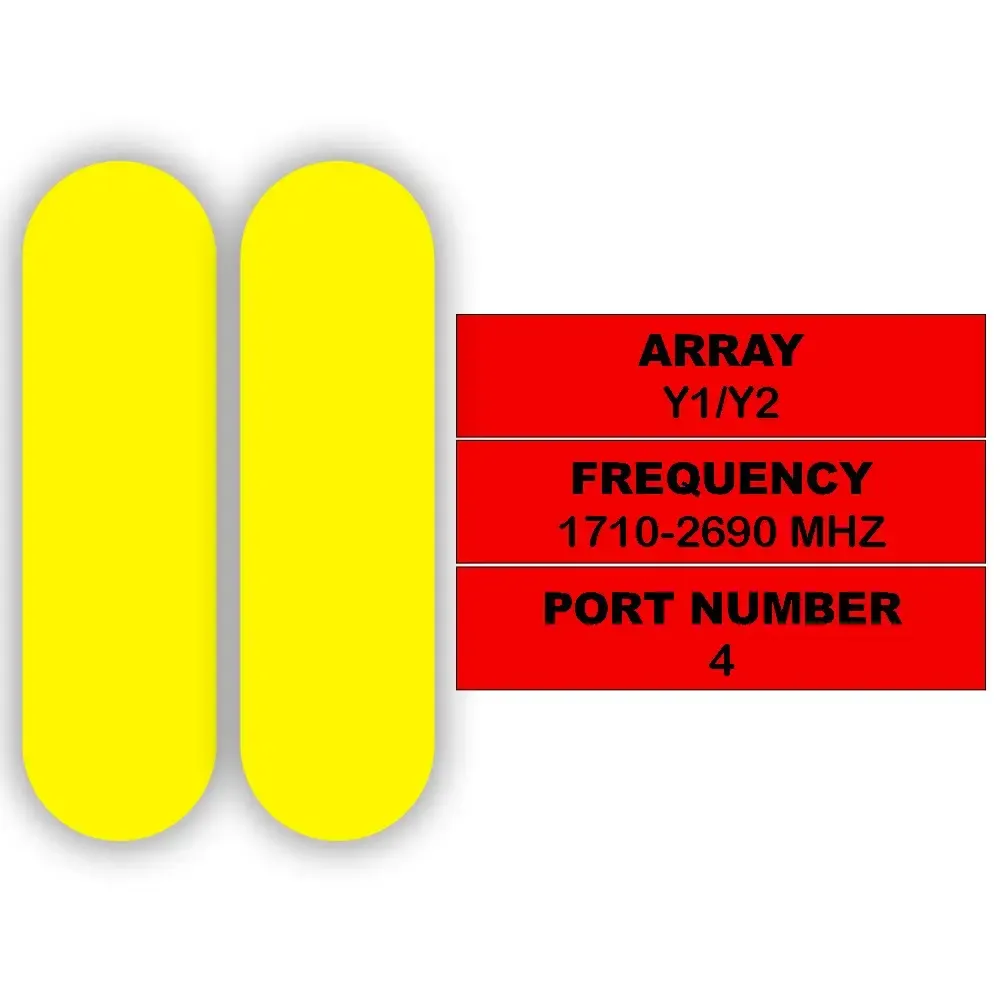

4-Port Antenna Y1 Y2
Frequency Range 1710-2690 MHz 1710-2690 MHz
HBW 30° 30°
Gain 19 dBi 19 dBi
Tilt 2-12° 2-12°
Connectors (other connectors by request) (2x) 4.3/10 Female (2x) 4.3/10 Female
WhatsApp Chat
Skype
Product Part Number
4P-1710-2690F-19G-36H10V
Electrical & Mechanical Specification
Electrical Specifications
Y1 / Y2
Frequency RangeMHz1710-2690
MHz1710-18801920-21702500-2690
Polarization—±45°
Gainat Mid TiltdBi18.118.619
Over All TiltsdBi18.0 ± 0.618.5 ± 0.618.9 ± 0.6
Horizontal Beamwidthdegree36 ± 332 ± 326 ± 3
Vertical Beamwidthdegree9.8 ± 1.08.5 ± 0.96.7 ± 0.7
Electrical Downtilt, Continuously Adjustabledegree2-Dec
First Upper Side Lobe SuppressiondB> 16> 16> 16
Front-To-Back Ratio Co-Pol, ±30°dB> 27> 27> 27
Cross Polar Discrimination at BoresightdB> 17> 17> 17
IsolationCross-PolardB> 25
Port-To-PortdB> 25
InterbanddB> 25
ImpedanceOhm50
VSWR—< 1.5
Return LossdB> 14
PIM3 (2×43 dBm Carrier)dBc< -150
Lightning Protection—DC Ground
Maximum Average Input Power per Port, at 50° C Ambient TemperatureWatts200
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware InterfacesRS485 and Power
Adjustment Time≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles> 20,000
Torque Maximum≥ 160 mN·m (@ 30RPM)
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs
Remote ControlCan manage from OMC, BTS/Node B
Daisy Chaining MethodReady for daisy-chaining
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
Housing Material / ColorAluminum / Grey
Operating Temperature-40° to +70° C (-40° to +158° F)
Storage Temperature-55° to +75° C (-67° to +167° F)
HumidityUp to 95%
IP RatingIP65
Weight≤ 500 g
Mechanical Specifications

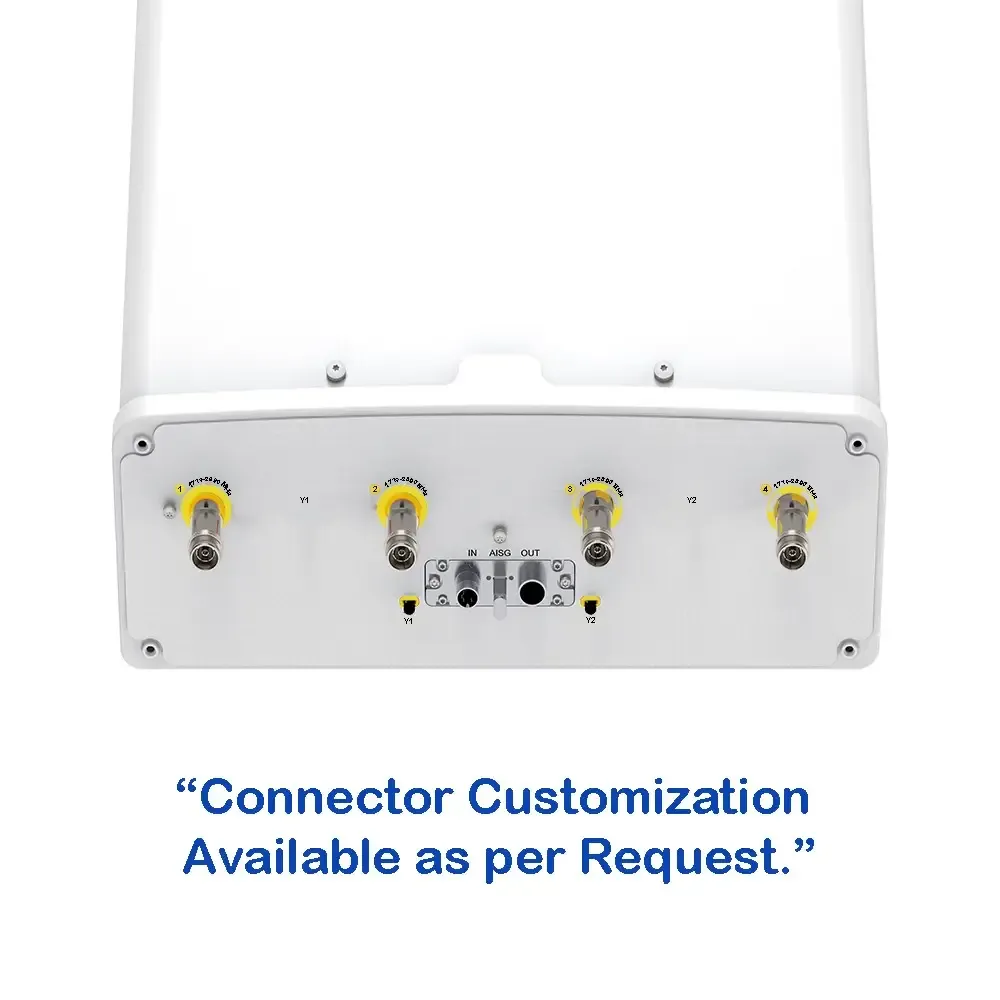

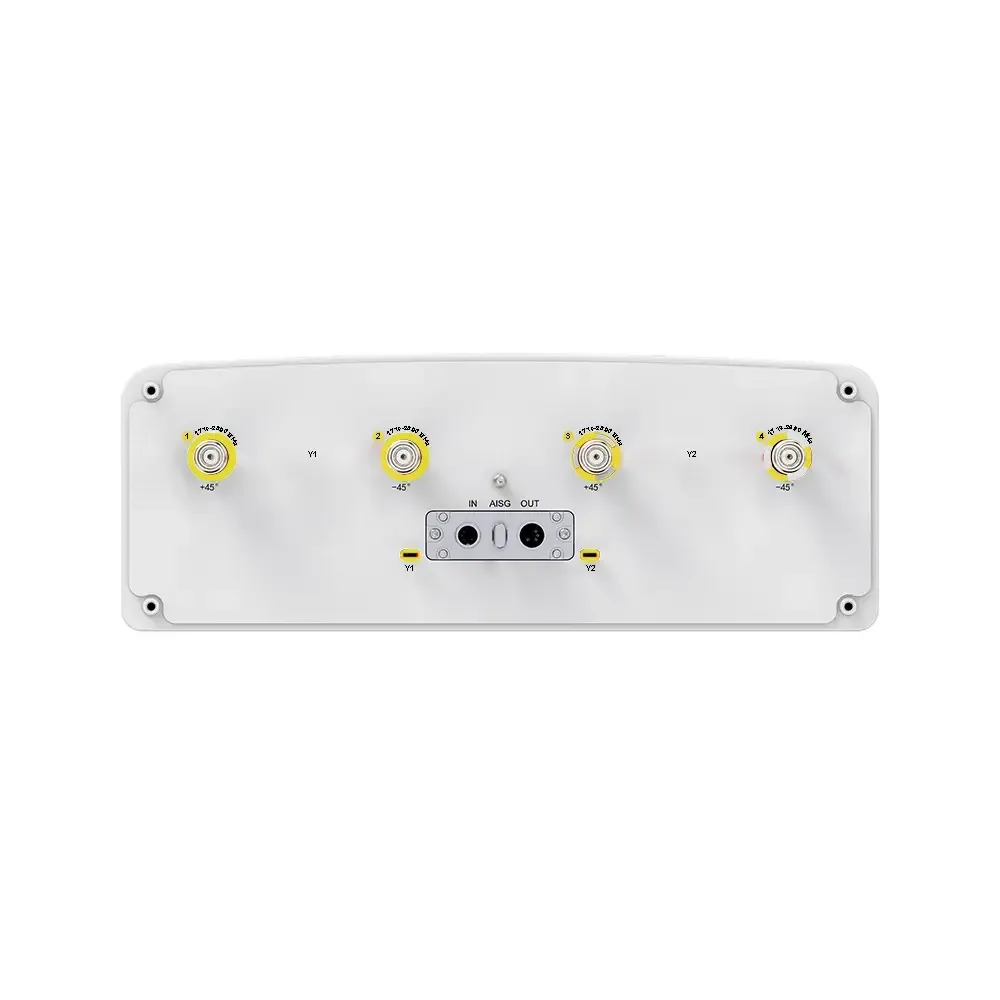

Connector Type—(4x) 4.3/10 Female
Connector Position—Bottom
Electrical Tilt Control—Integrated RET
Radome Material—Fiberglass

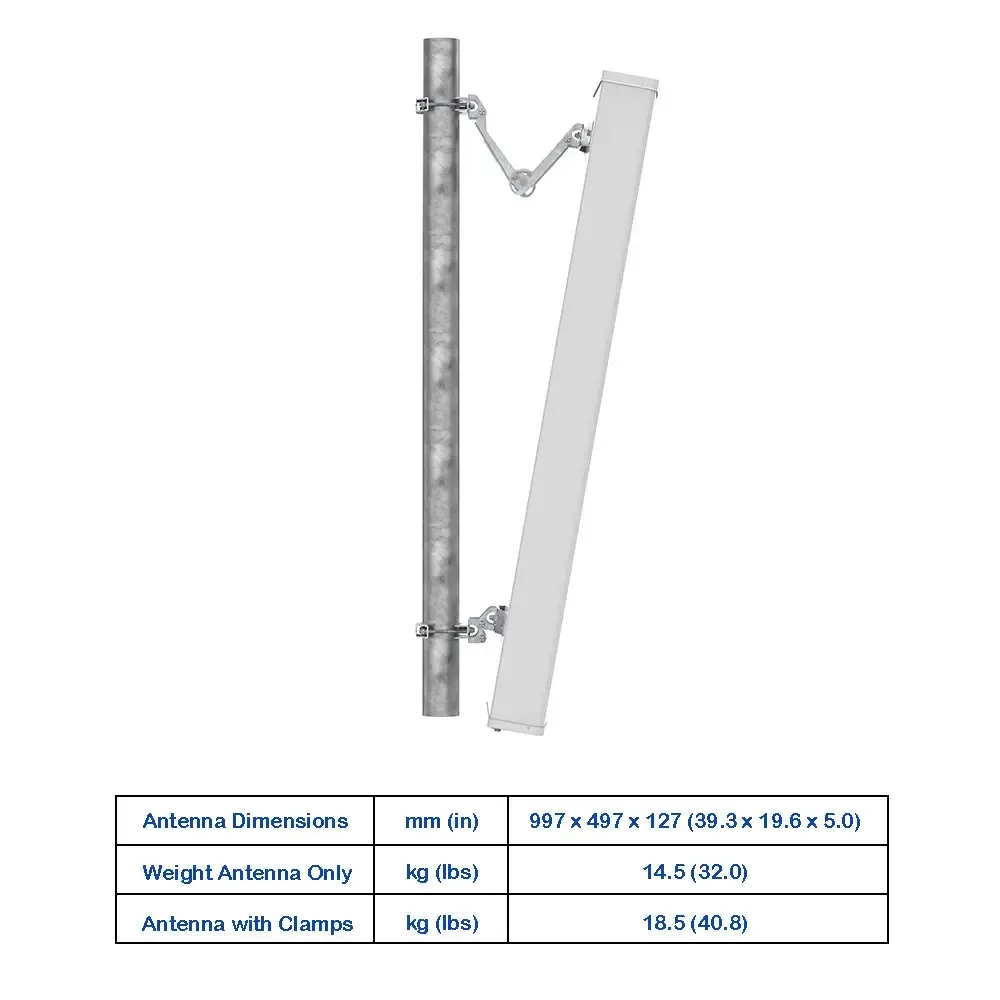

Antenna Dimensions (H x W x D)mm (in)997 x 497 x 127 (39.3 x 19.6 x 5.0)
Antenna WeightAntenna Onlykg (lbs)14.5 (32.0)
with Clampskg (lbs)18.5 (40.8)
Maximum Wind Speedkm/h (mph)200 (124.3)
Wind LoadFrontalN (lbf)460 (103.4)
at 150 km/hRearN (lbf)510 (114.7)
LateralN (lbf)145 (32.6)
Operating Temperature°C (°F)-40 to +60 (-40 to +140)
