Product code: 4P-698-960F-18G-35H14V

4-Port, Panel Sector Antenna, 35° HBW, 698-960/698-960 MHz, 18/18 dBi, 2-12°T, 1.590 m

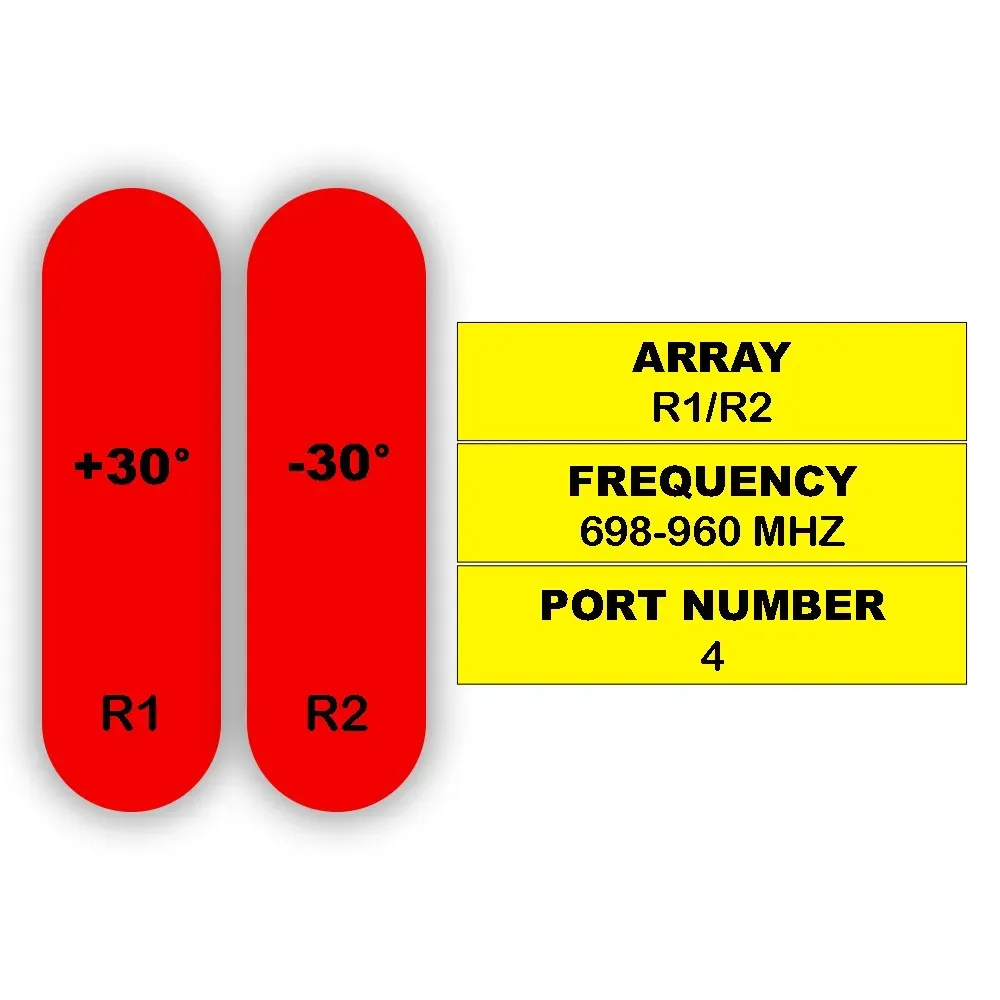

4-Port Antenna R1 R2
Frequency Range 698-960 MHz 698-960 MHz
HBW 35° 35°
Gain 18.0 dBi 18.0 dBi
Tilt 2-12° 2-12°
Connectors (other connectors by request) (2x) 4.3/10 Female (2x) 4.3/10 Female
WhatsApp Chat
Skype
Product Part Number
4P-698-960F-18G-35H14V
Electrical & Mechanical Specification
Electrical Specifications
R1 / R2
MHz698-960
Frequency RangeMHz698-806790-880880-960
Polarization—±45°
Mid TiltdBi16.817.718
GainOver All TiltsdBi15.9 ± 0.917.3 ± 0.617.4 ± 0.7
Horizontal Beamwidthdegree39 ± 2.535 ± 432 ± 2
Horizontal Beam PointingdegreeR1: +27; R2 -27R1: +24; R2 -24R1: +21; R2 -21
Vertical Beamwidthdegree16.5 ± 2.314.0 ± 1.412.5 ± 0.6
Electrical Downtilt, Continuously Adjustabledegree2-Dec
First Upper Side Lobe SuppressiondB> 15> 15> 15
Front-To-Back Ratio Co-Pol, ±30°dB> 21> 23> 25
Cross Polar Discrimination at BoresightdB> 15> 15> 15
PortsdB≥ 27
IsolationBeam-To-BeamdB≥ 15
ImpedanceOhm50
VSWR—< 1.5
PIM3 (2×43 dBm Carrier)dBc< -150
Lightning Protection—DC Ground
Peak Input PowerWatts350
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
Mechanical Specifications

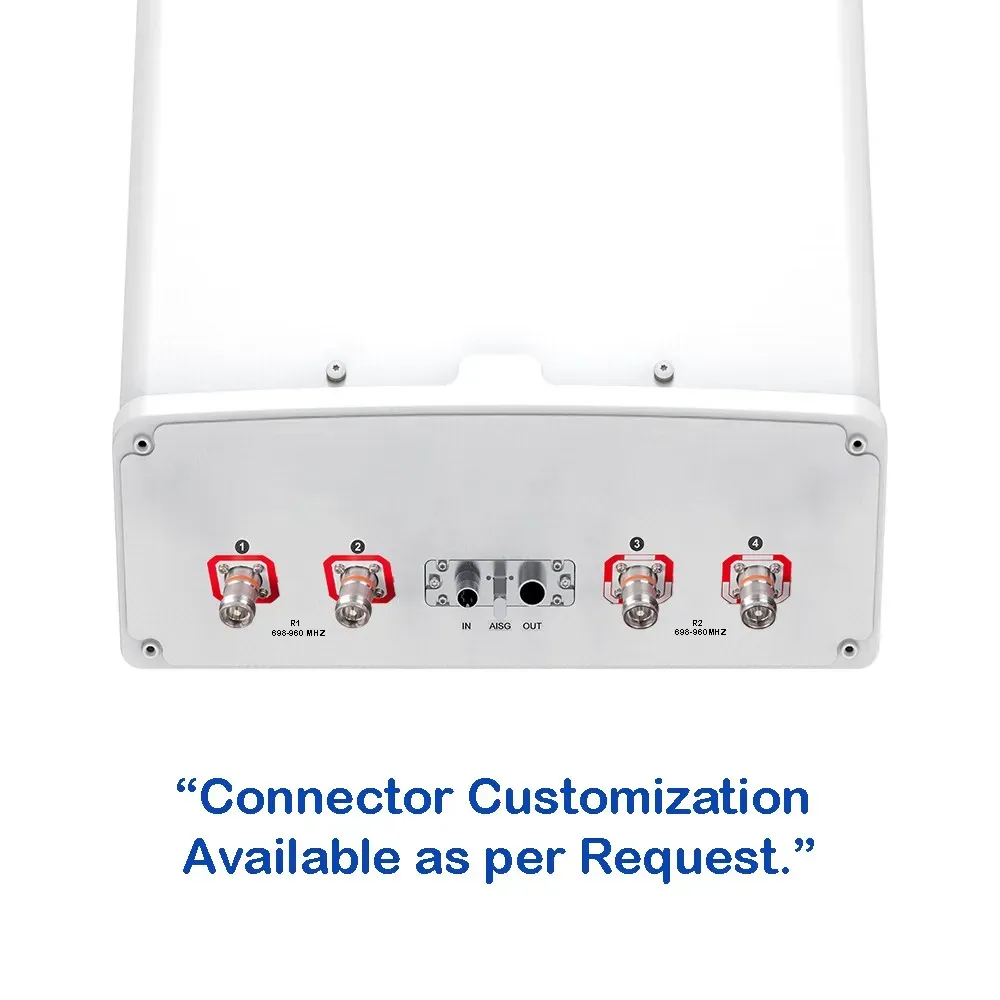

Connector Type—(4x) 4.3/10 Female
Connector Position—Bottom
Electrical Tilt Control—Integrated RET
Radome Material—Fiberglass

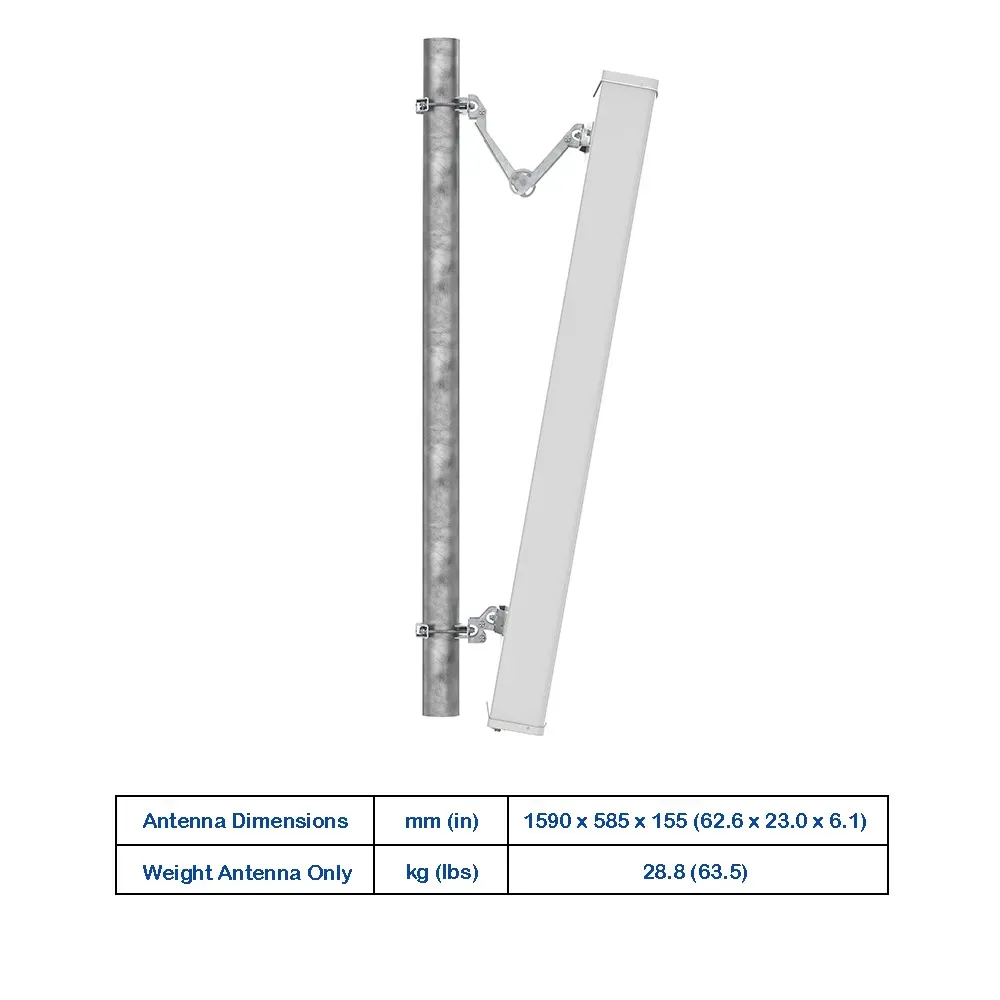

Antenna Dimensions (H x W x D)mm (in)1590 x 585 x 155 (62.6 x 23.0 x 6.1)
WeightAntenna Onlykg (lbs)28.8 (63.5)
Maximum Wind Speedkm/h (mph)200 (124.3)
Wind LoadFrontalN (lbf)1142 (256.7)
at 150 km/hRearN (lbf)1462 (328.7)
LateralN (lbf)260 (58.5)
Operating Temperature°C (°F)-40 to +60 (-40 to +140)
