Product code: 4P-698-960F-18G-69H12V

4-Port, Panel Sector Antenna, 35° HBW, 698-960/698-960 MHz, 19.1/19.1 dBi, 2-12°T, 2.070 m

4-Port Antenna R1 R2
Frequency Range 698-960 MHz 698-960 MHz
HBW 35° 35°
Gain 19.1 dBi 19.1 dBi
Tilt 2-12° 2-12°
Connectors (other connectors by request) (2x) 4.3/10 Female (2x) 4.3/10 Female
WhatsApp Chat
Skype
Product Part Number
4P-698-960F-18G-69H12V
Electrical & Mechanical Specification
Electrical Specifications
R1 / R2
MHz698-960
Frequency RangeMHz698-806790-880880-960
Polarization—±45°
Mid TiltdBi17.918.919.1
GainOver All TiltsdBi17.3 ± 0.618.6 ± 0.518.7 ± 0.4
Horizontal Beamwidthdegree69 ± 3.034.5 ± 3.532 ± 2.0

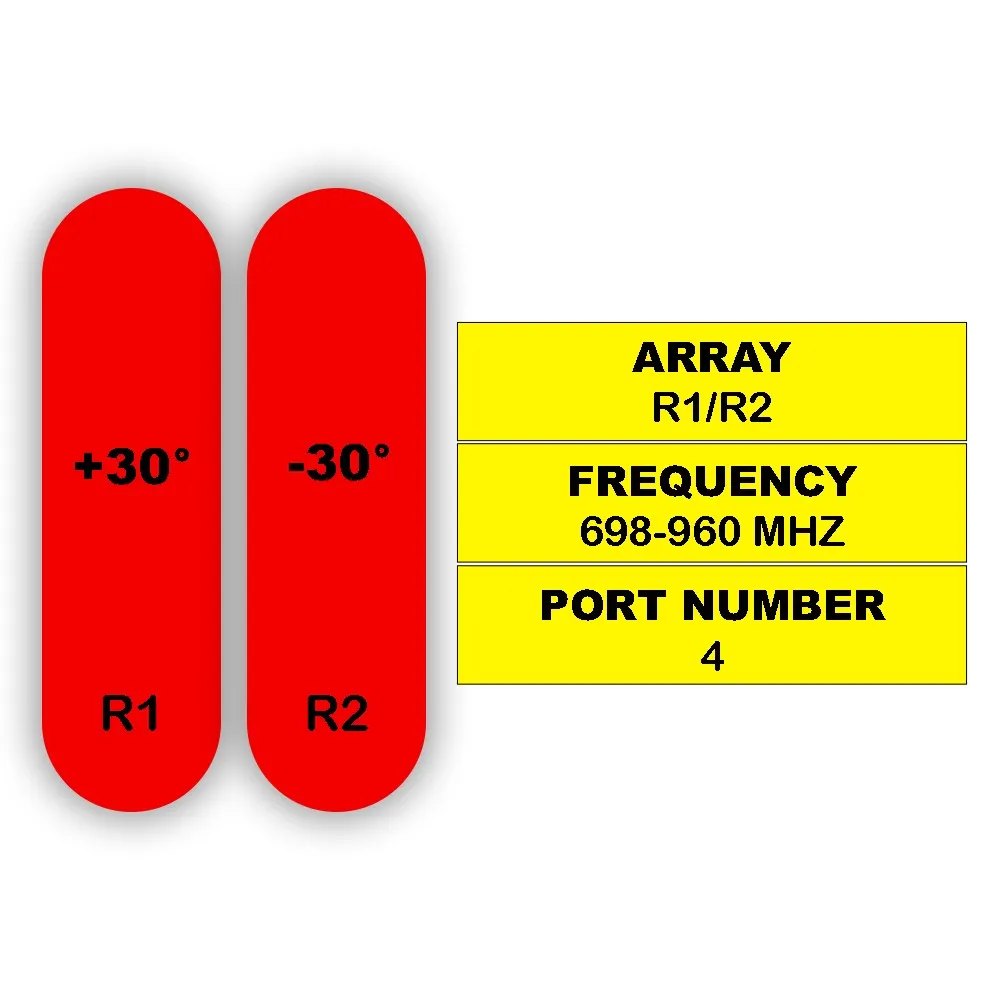

Horizontal Beam PointingdegreeR1: +28; R2 -28R1: +25; R2 -25R1: +22; R2 -22
Vertical Beamwidthdegree12.7 ± 1.010.7 ± 0.89.6 ± 0.6
Electrical Downtilt, Continuously Adjustabledegree2-Dec
First Upper Side Lobe SuppressiondB> 15> 15> 15
Front-To-Back Ratio Co-Pol, ±30°dB> 23> 25> 25
Cross Polar Discrimination at BoresightdB> 15> 15> 15
PortsdB≥ 27
IsolationBeam-To-BeamdB≥ 15
ImpedanceOhm50
VSWR—< 1.5
PIM3 (2×43 dBm Carrier)dBc< -150
Lightning Protection—DC Ground
Peak Input PowerWatts350
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
Mechanical Specifications

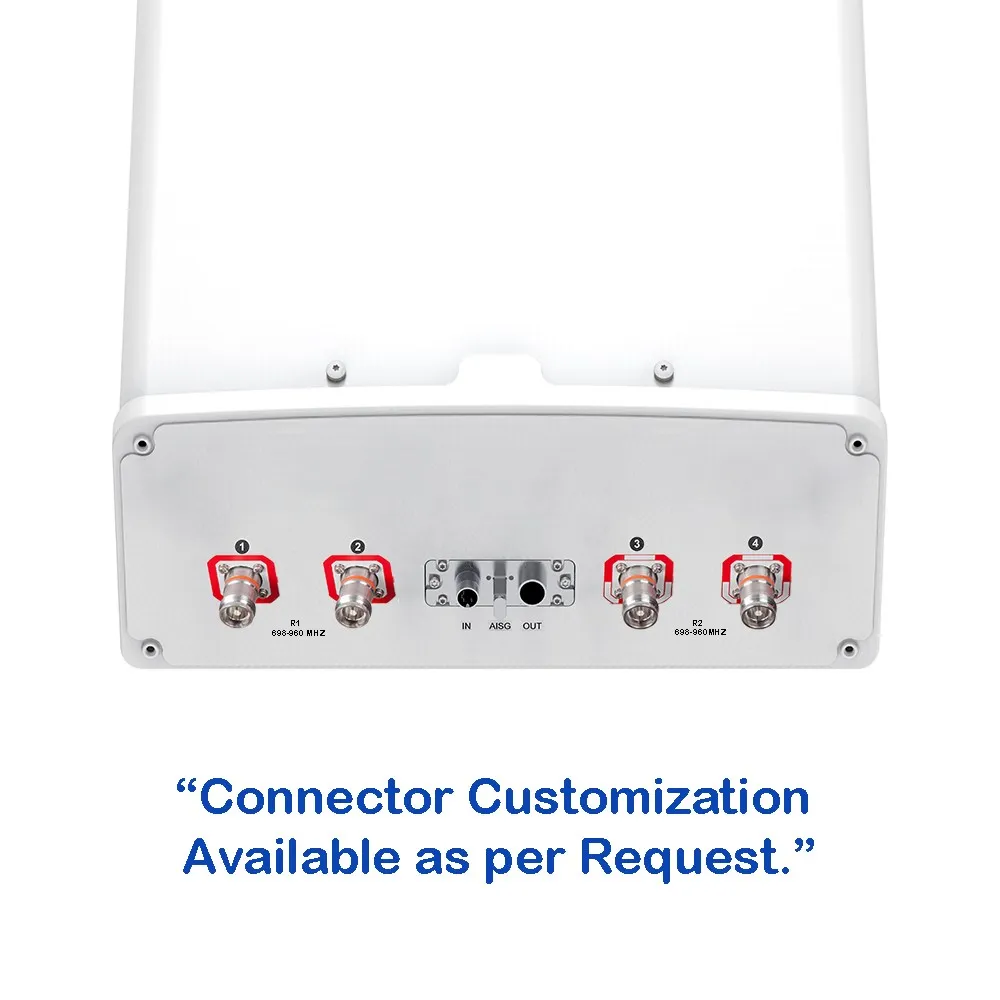

Connector Type—(4x) 4.3/10 Female
Connector Position—Bottom
Electrical Tilt Control—Integrated RET
Radome Material—Fiberglass

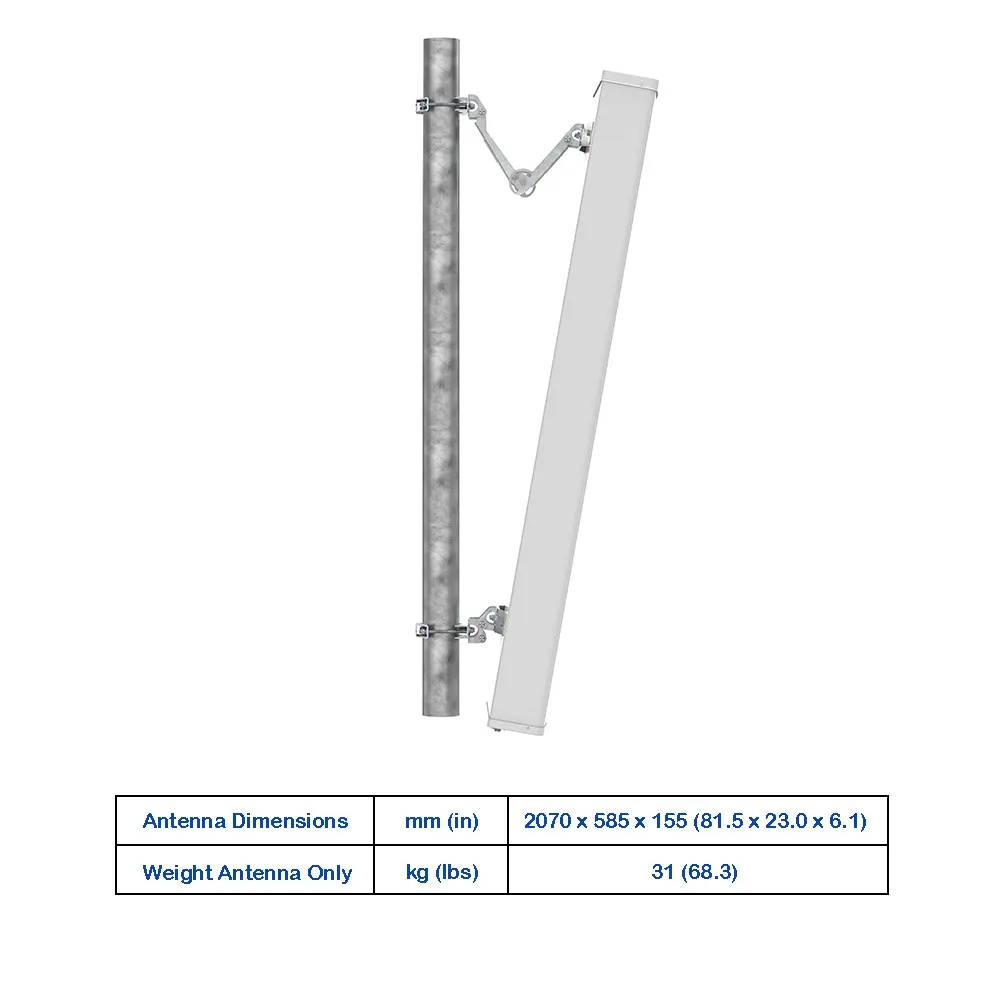

Antenna Dimensions (H x W x D)mm (in)2070 x 585 x 155 (81.5 x 23.0 x 6.1)
WeightAntenna Onlykg (lbs)31 (68.3)
Maximum Wind Speedkm/h (mph)200 (124.3)
Wind LoadFrontalN (lbf)1487 (334.3)
at 150 km/hRearN (lbf)1556 (349.8)
LateralN (lbf)338 (76.0)
Operating Temperature°C (°F)-40 to +60 (-40 to +140)
