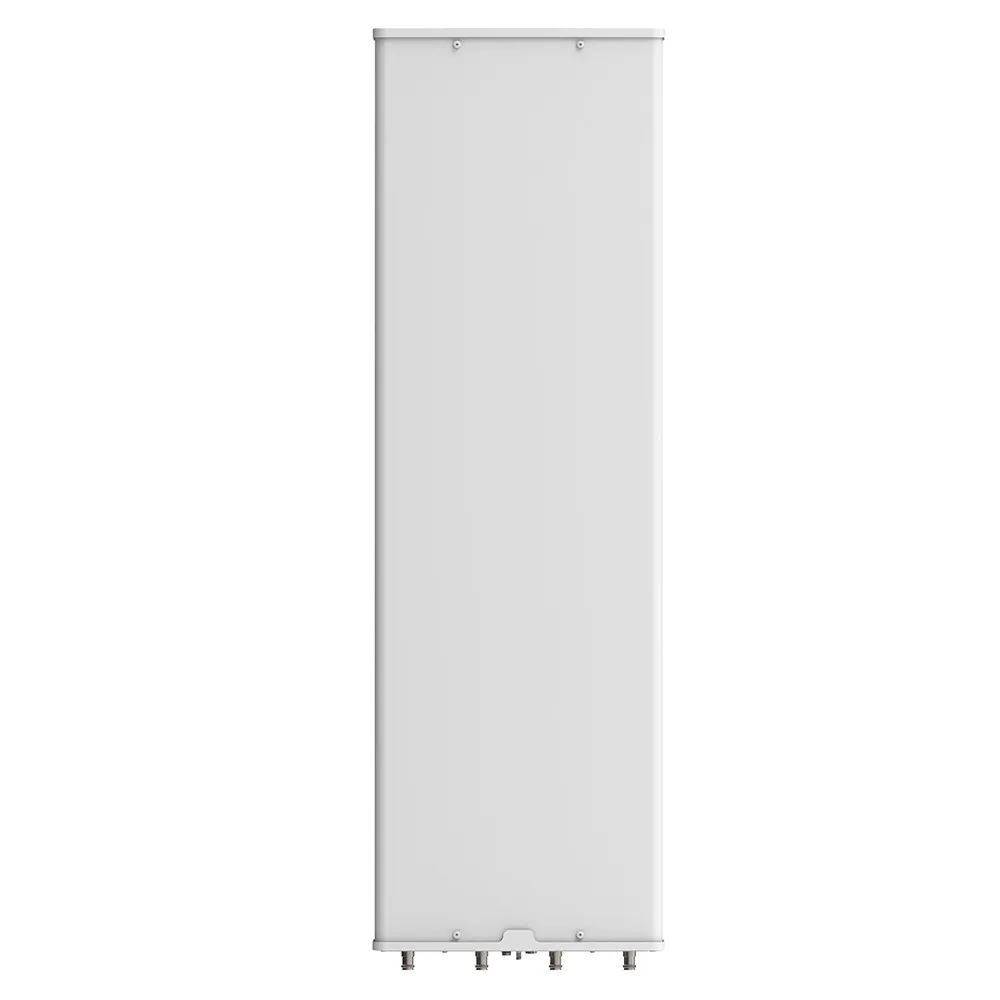

Product code: 4P-698-960F-19G-39H12V

4-Port, Panel Sector Antenna, 35° HBW, 698-960/698-960 MHz, 19/19 dBi, 2-12°T, 1.897 m

4-Port Antenna R1 R2
Frequency Range 698-960 MHz 698-960 MHz
HBW 35° 35°
Gain 19 dBi 19 dBi
Tilt 2-12° 2-12°
Connectors (other connectors by request) (2x) 4.3/10 Female (2x) 4.3/10 Female
WhatsApp Chat
Skype
Product Part Number
4P-698-960F-19G-39H12V
Electrical & Mechanical Specification
Electrical Specifications
R1 / R2
MHz698-960
Frequency RangeMHz698-806790-894880-960
Polarization—±45°
GaindBi17.918.418.8
Horizontal Beamwidthdegree39 ± 436 ± 432 ± 4

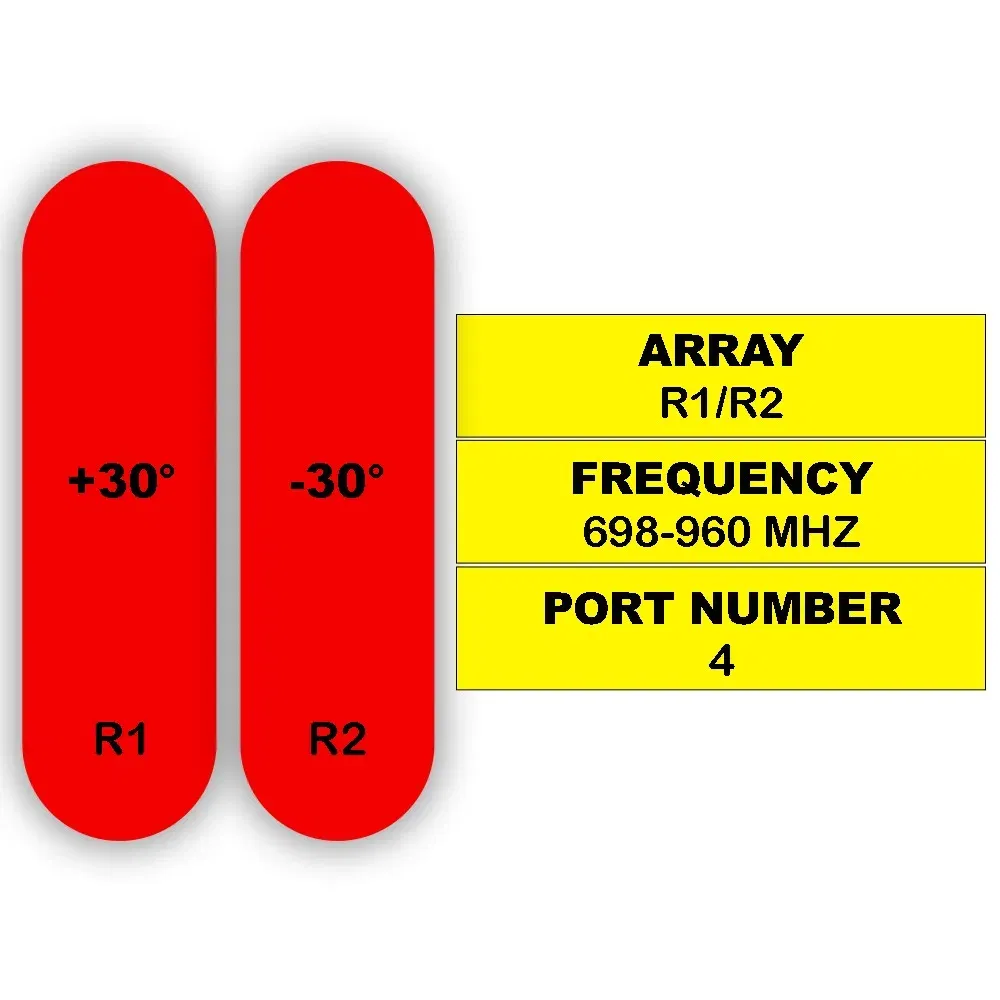

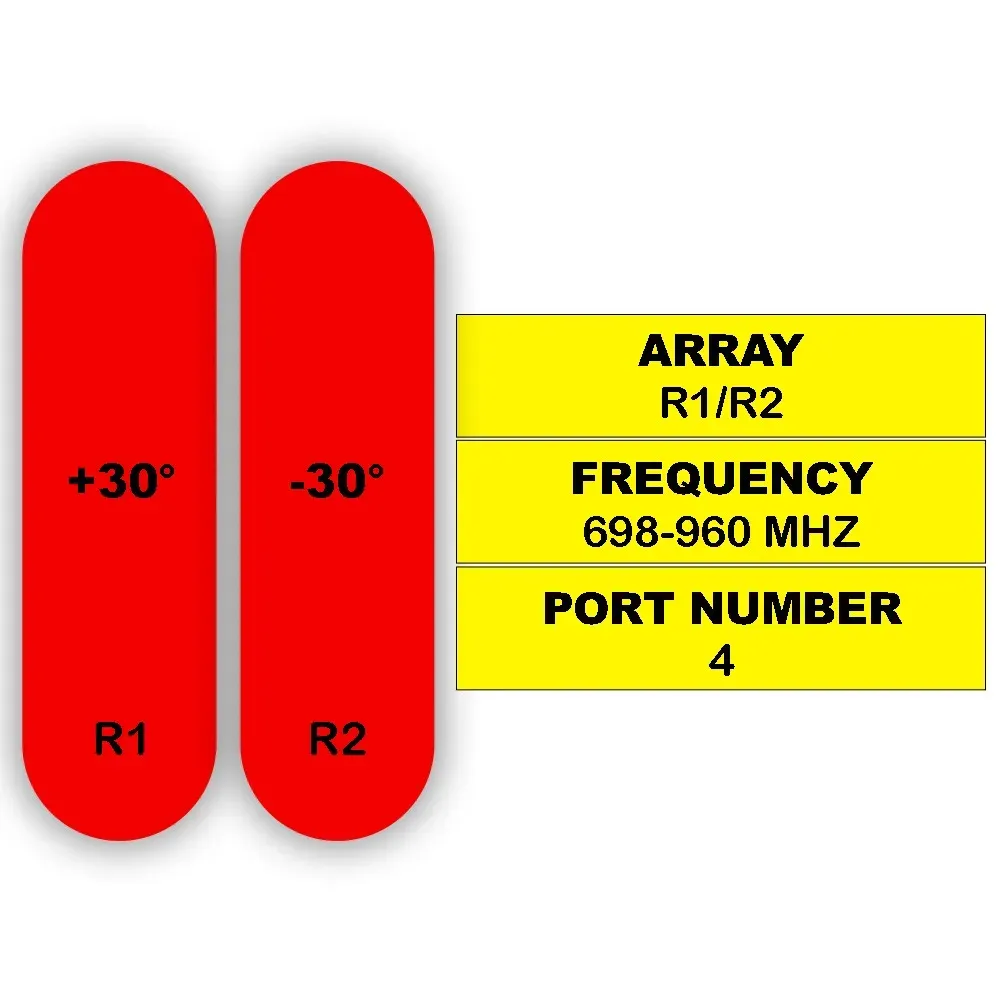

Horizontal Beam PointingdegreeR1: +30; R2 -30
Vertical Beamwidthdegree12.7 ± 1.511.5 ± 1.010.5 ± 1.0
Electrical Downtilt, Continuously Adjustabledegree2-Dec
First Upper Side Lobe SuppressiondB> 16> 16> 16
Front-To-Back Ratio Co-Pol, ±30°dB> 25> 25> 25
Cross Polar Discrimination at BoresightdB> 17> 17> 17
PortsdB≥ 25
Beam-To-BeamdB≥ 15
IsolationInterbanddB≥ 25
ImpedanceOhm50
VSWR—< 1.5
Return LossdB> 14
PIM3 (2×43 dBm Carrier)dBc< -150
Lightning Protection—DC Ground
Peak Input PowerWatts250
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware InterfacesRS485 and Power
Adjustment Time≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles> 20,000
Torque Maximum≥ 160 mN·m (@ 30RPM)
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Remote ControlCan manage from OMC, BTS/Node B
Daisy Chaining MethodReady for daisy-chaining
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
Housing Material / ColorAluminum / Grey
Operating Temperature-40° to +70° C (-40° to +158° F)
Storage Temperature-55° to +75° C (-67° to +167° F)
HumidityUp to 95%
IP RatingIP65
Weight≤ 500 g
Mechanical Specifications

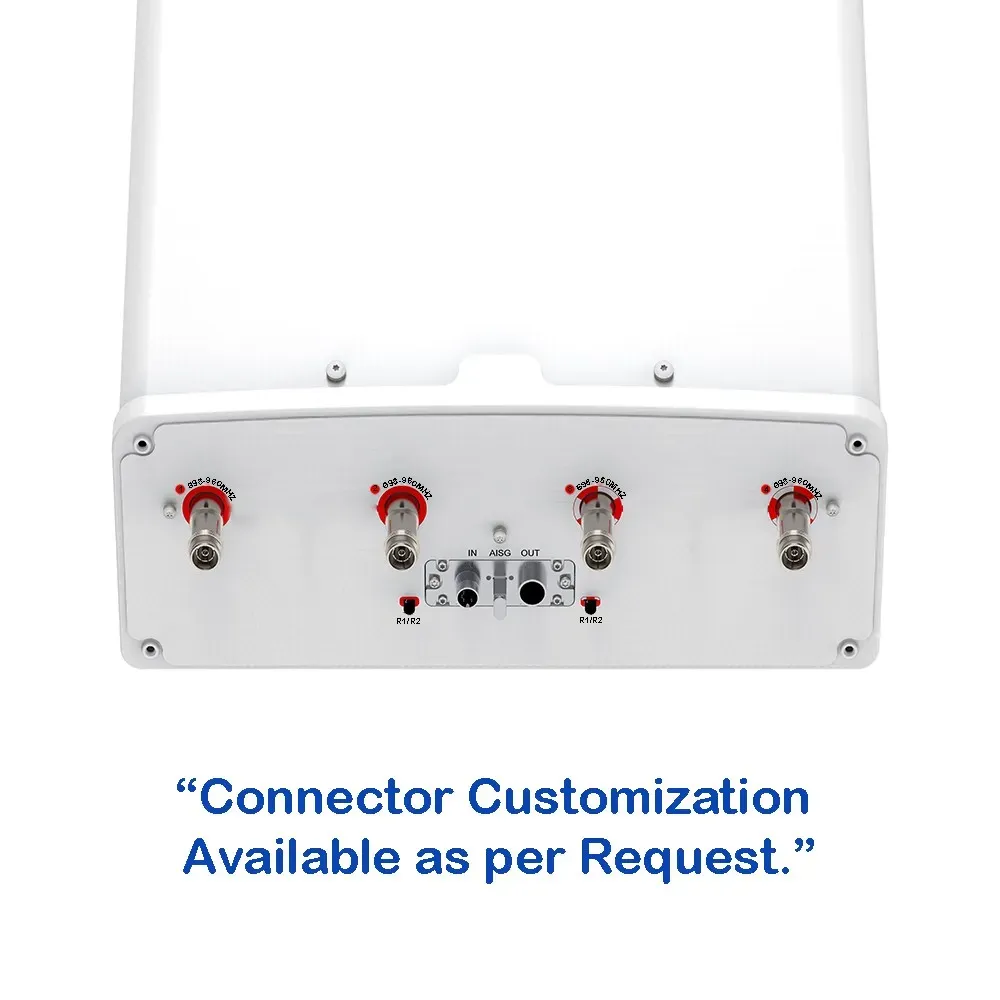

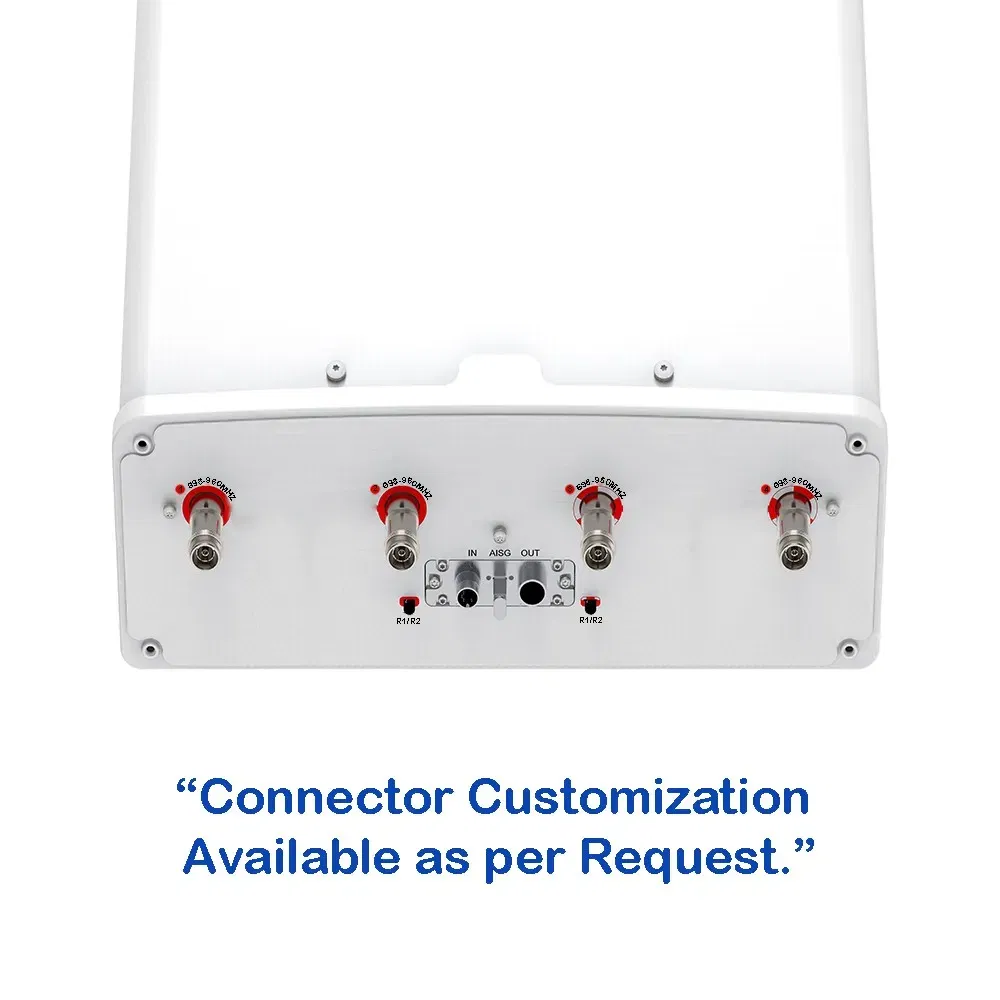

Connector Type—(4x) 4.3/10 Female

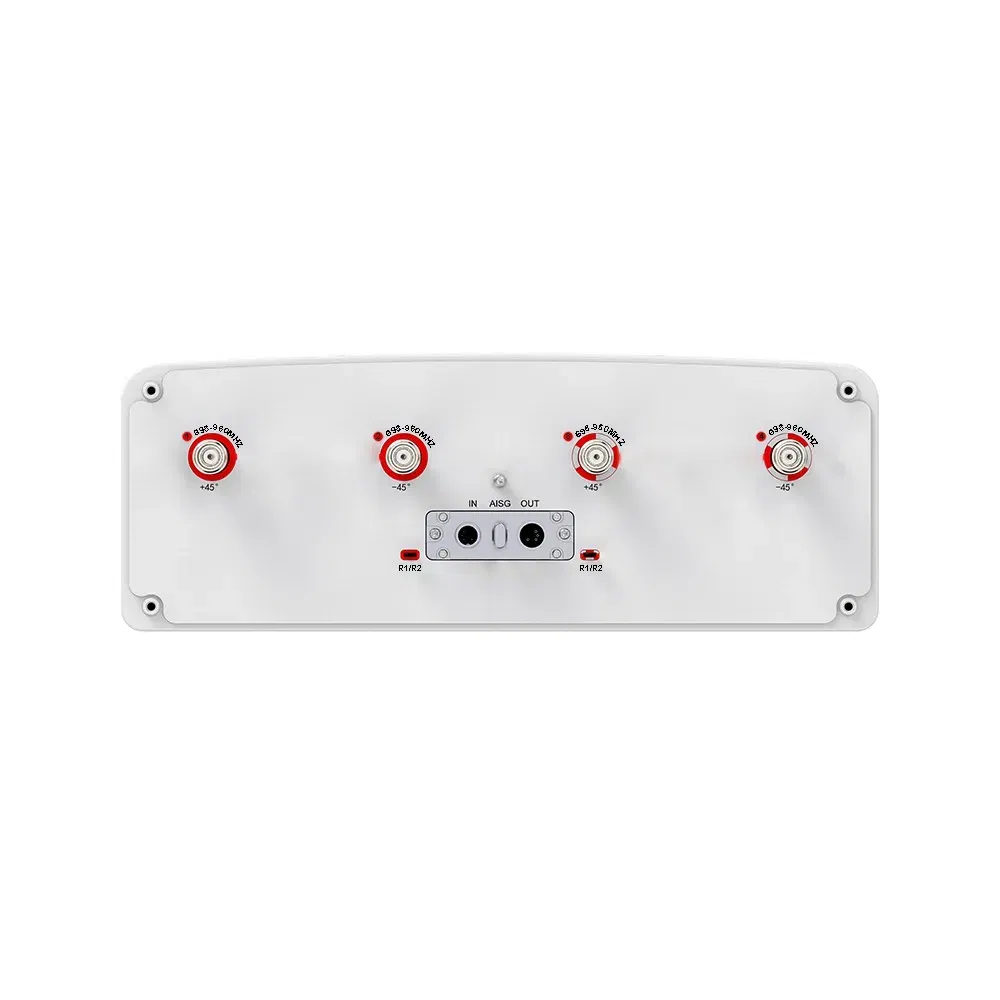

Connector Position—Bottom
Electrical Tilt Control—Integrated RET
Radome Material—Fiberglass

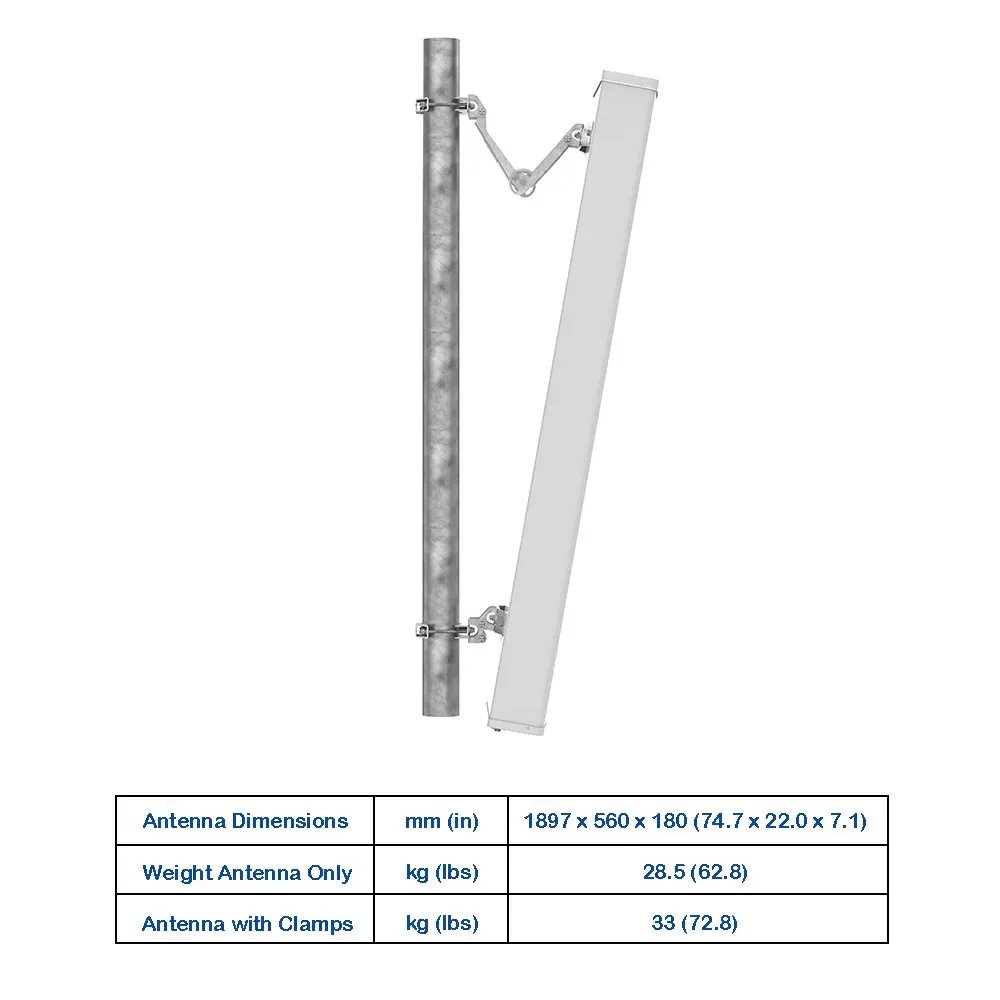

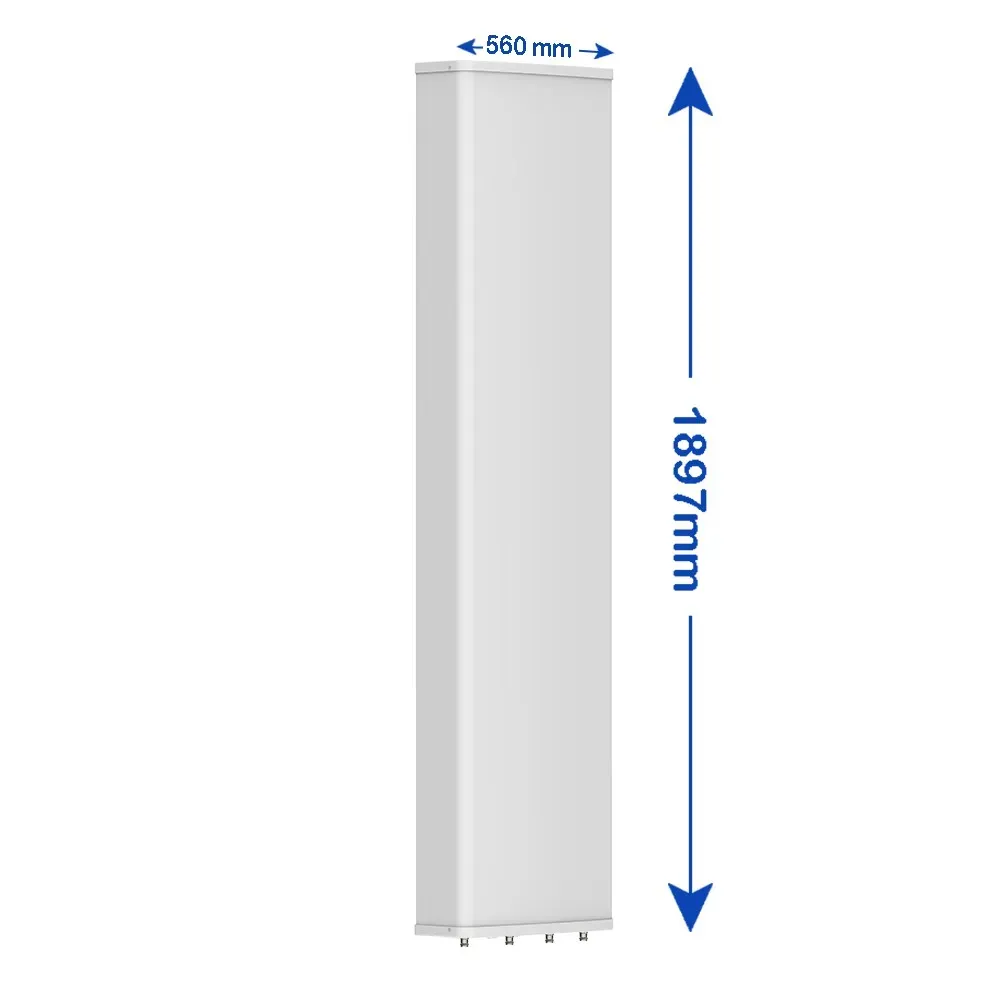

Antenna Dimensions (H x W x D)mm (in)1897 x 560 x 180 (74.7 x 22.0 x 7.1)
Antenna WeightAntenna Onlykg (lbs)28.5 (62.8)
with Clampskg (lbs)33 (72.8)
Maximum Wind Speedkm/h (mph)200 (124.3)
Wind LoadFrontalN (lbf)980 (220.3)
at 150 km/hRearN (lbf)1095 (246.2)
LateralN (lbf)390 (87.7)
Operating Temperature°C (°F)-40 to +60 (-40 to +140)
