4-Port, Panel Sector Antenna, 35° HBW, 698-960/698-960 MHz, 20/20 dBi, 2-12°T, 2.497 m

Q: Other Inquiries

Please send purchase request at sales@mtsrl.in

Product code: 4P-698-960F-20G-39H9V

4-Port, Panel Sector Antenna, 35° HBW, 698-960/698-960 MHz, 20/20 dBi, 2-12°T, 2.497 m

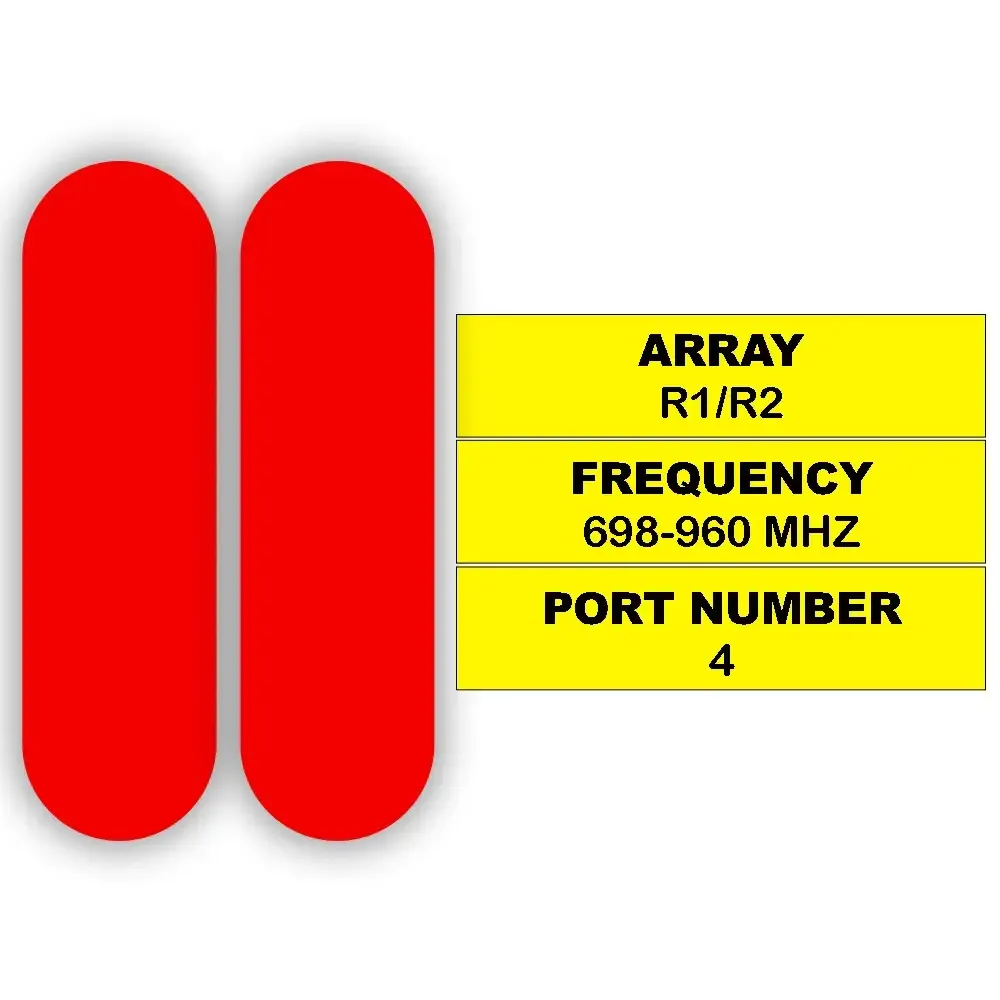

4-Port Antenna	R1	R2
Frequency Range	698-960 MHz	698-960 MHz
HBW	35°	35°
Gain	20 dBi	20 dBi
Tilt	2-12°	2-12°
Connectors (other connectors by request)	(2x) 4.3/10 Female	(2x) 4.3/10 Female

WhatsApp Chat

Skype

Product Part Number

4P-698-960F-20G-39H9V

Electrical & Mechanical Specification

Electrical Specifications
			R1 / R2
Frequency Range		MHz	698-960
Frequency Range		MHz	698-806	790-894	880-960
Polarization		—	±45°
Gain	at Mid Tilt	dBi	19	19.5	20.5
Gain	Over All Tilts	dBi	18.5 ± 0.6	19.0 ± 0.6	19.9 ± 0.6
Horizontal Beamwidth		degree	39 ± 3	37 ± 3	33 ± 3
Vertical Beamwidth		degree	8.8 ± 0.9	7.6 ± 0.8	7.1 ± 0.7
Electrical Downtilt, Continuously Adjustable		degree	2-Dec
First Upper Side Lobe Suppression		dB	> 15	> 15	> 15
Front-To-Back Ratio ±30°		dB	> 25	> 25	> 25
Cross Polar Discrimination at Peak		dB	> 15	> 15	> 15
Isolation	Intraband	dB	≥ 25
Isolation	Interband	dB	≥ 25
Impedance		Ohm	50
VSWR		—	< 1.5
PIM3 (2×43 dBm Carrier)		dBc	< -150
Lightning Protection		—	DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature		Watts	250

Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range		10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power	Standby	< 2 W
Consumption	In Motion	< 10 W
Connectors		2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female
		Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
		Female Connector: 8 PINs; Male Connector: 4 PINs
Lightning Protection Rating		IEC 61000-4-5 Current Pulse Profile
Lightning Protection Rating		Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions
Safety Standard		Compliant to EN 60950/UL 60950/RoHS, CE

Mechanical Specifications

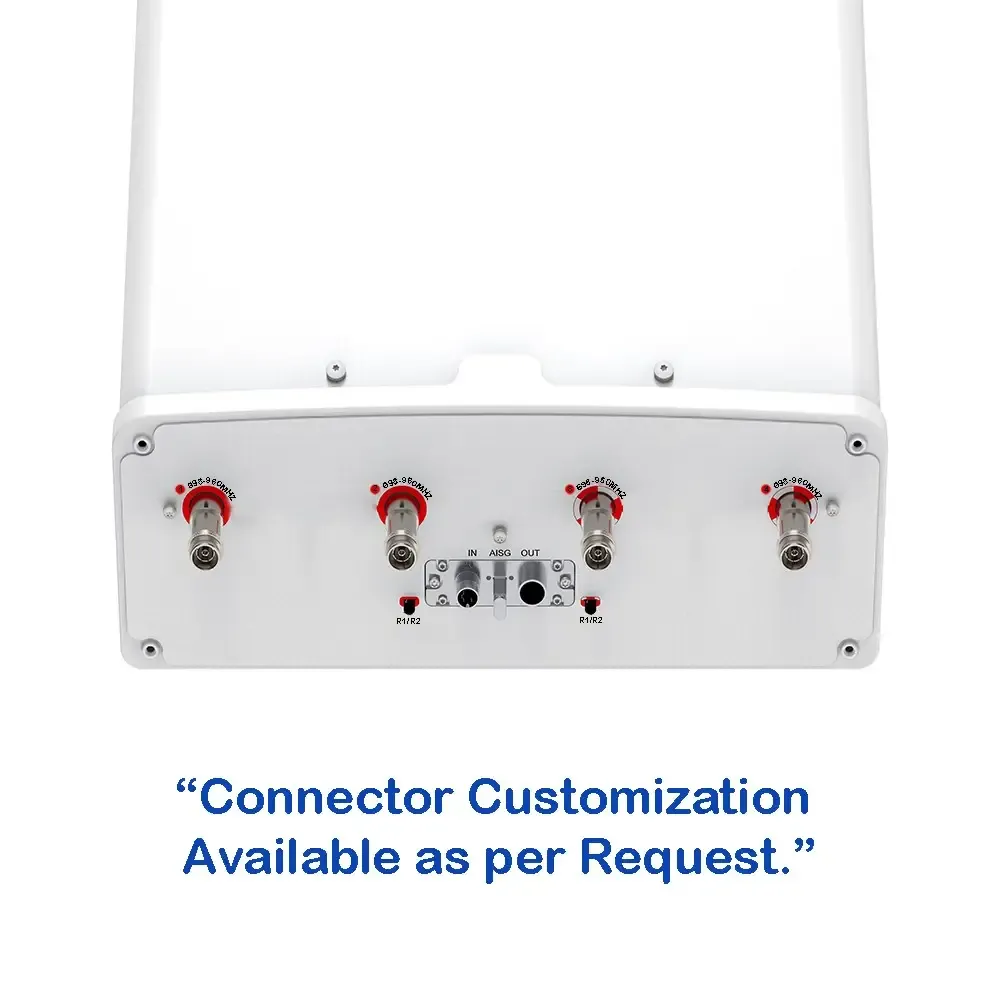

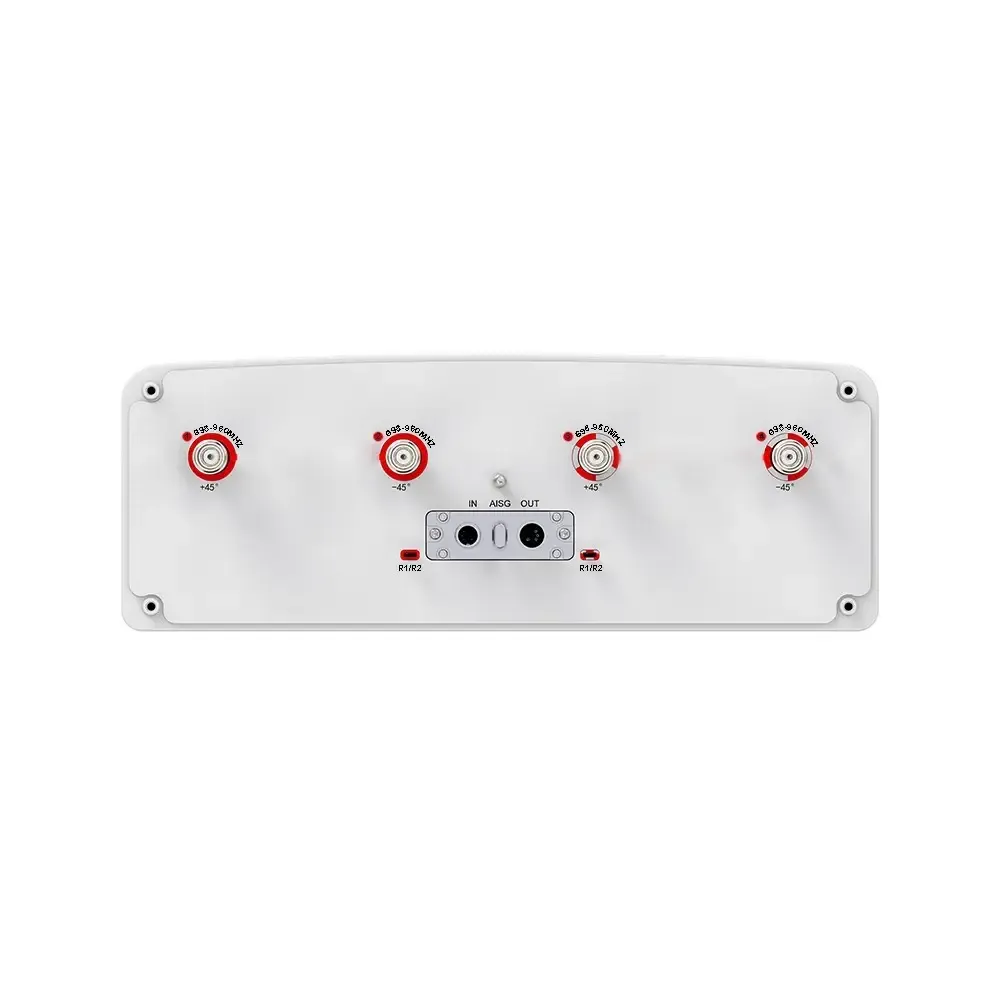

Connector Type		—	(4x) 4.3/10 Female
Connector Position		—	Bottom
Electrical Tilt Control		—	Integrated RET
Radome Material		—	Fiberglass

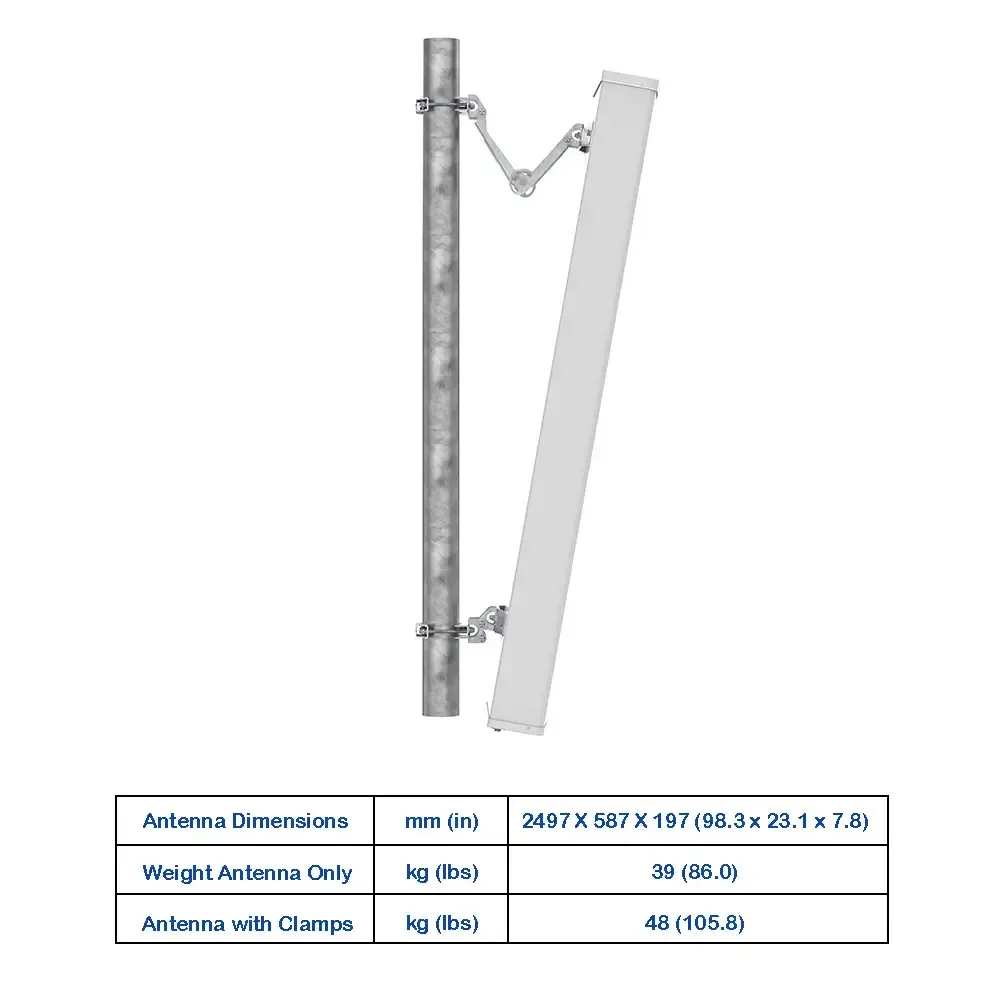

Antenna Dimensions (H x W x D)		mm (in)	2497 X 587 X 197 (98.3 x 23.1 x 7.8)
Antenna Weight	Antenna Only	kg (lbs)	39 (86.0)
Antenna Weight	with Clamps	kg (lbs)	48 (105.8)
Maximum Wind Speed		km/h (mph)	200 (124.3)
Wind Load	Frontal	N (lbf)	1350 (303.5)
at 150 km/h	Rear	N (lbf)	1510 (339.5)
	Lateral	N (lbf)	560 (125.9)
Operating Temperature		°C (°F)	-40 to +60 (-40 to +140)
