Product code: 4P-698-960F-20G-35H8V

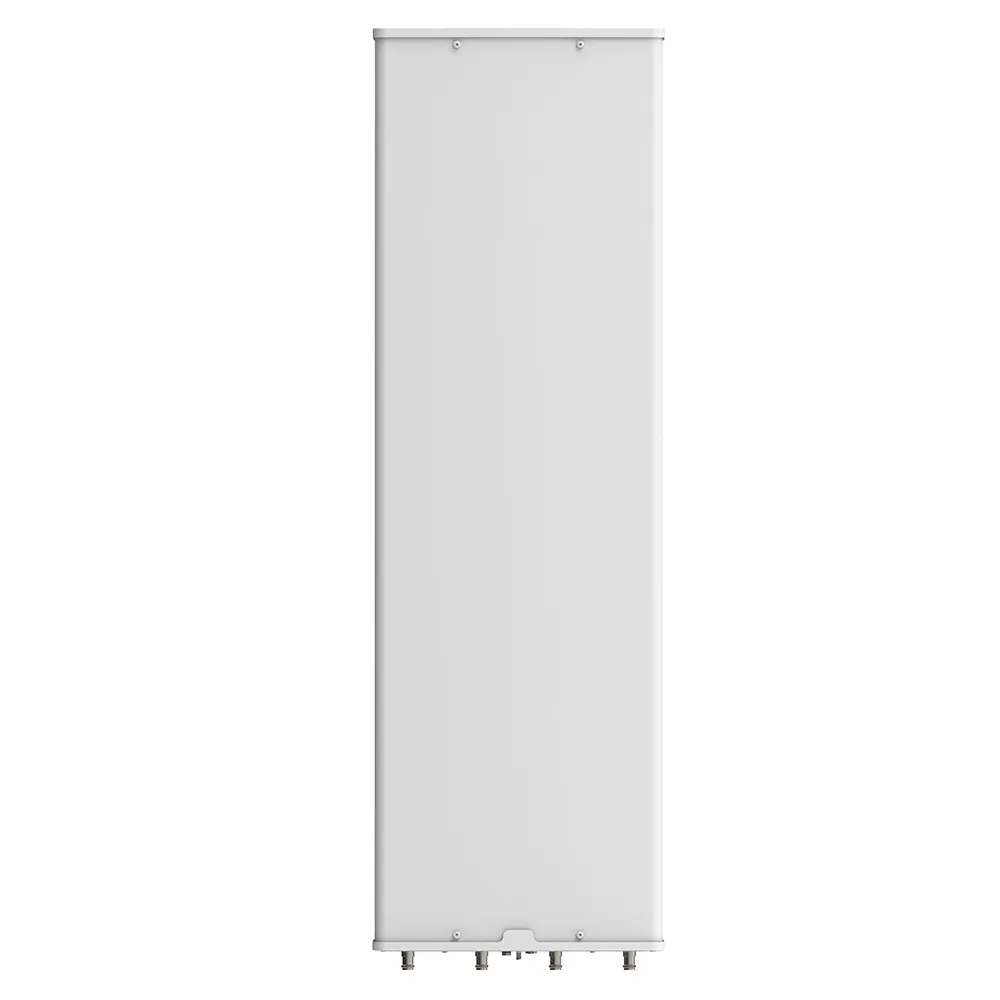

4-Port, Panel Sector Antenna, 35° HBW, 698-960/698-960 MHz, 20.4/20.4 dBi, 2-12°T, 2.690 m

4-Port Antenna R1 R2
Frequency Range 698-960 MHz 698-960 MHz
HBW 35° 35°
Gain 20.4 dBi 20.4 dBi
Tilt 2-12° 2-12°

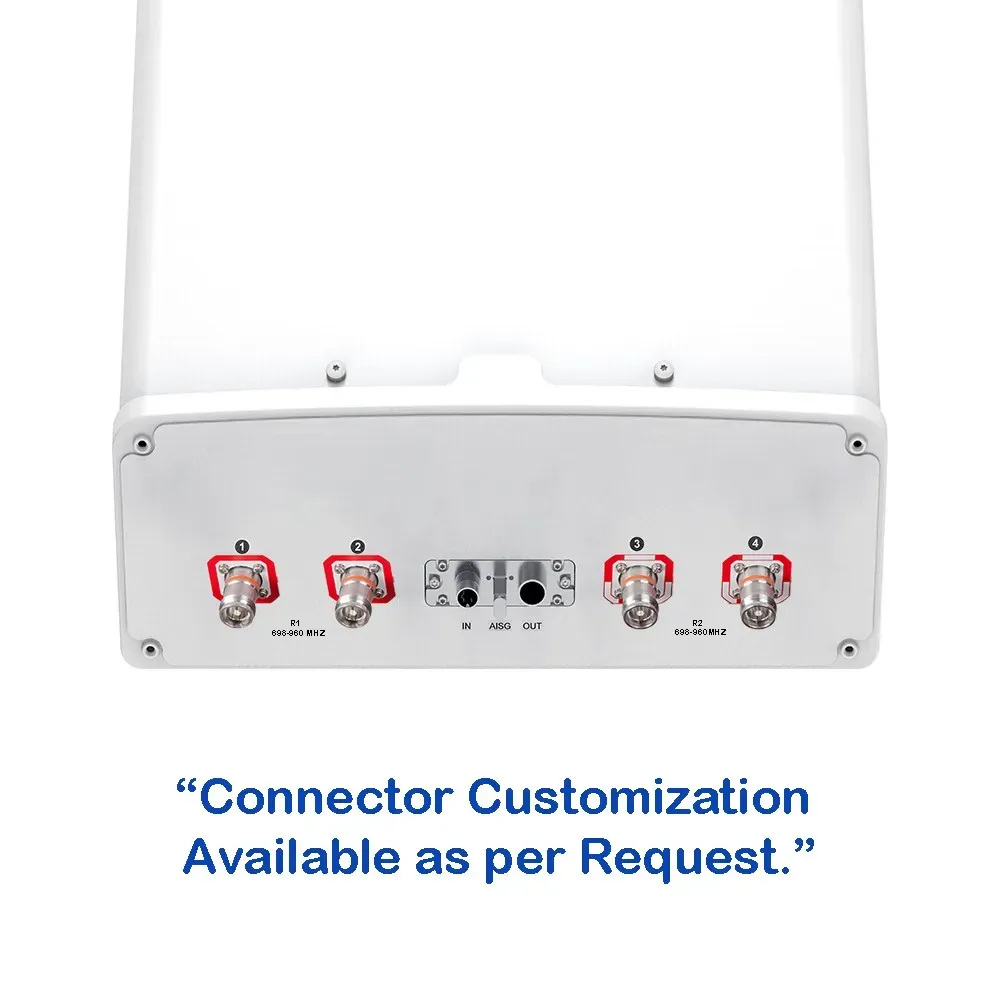

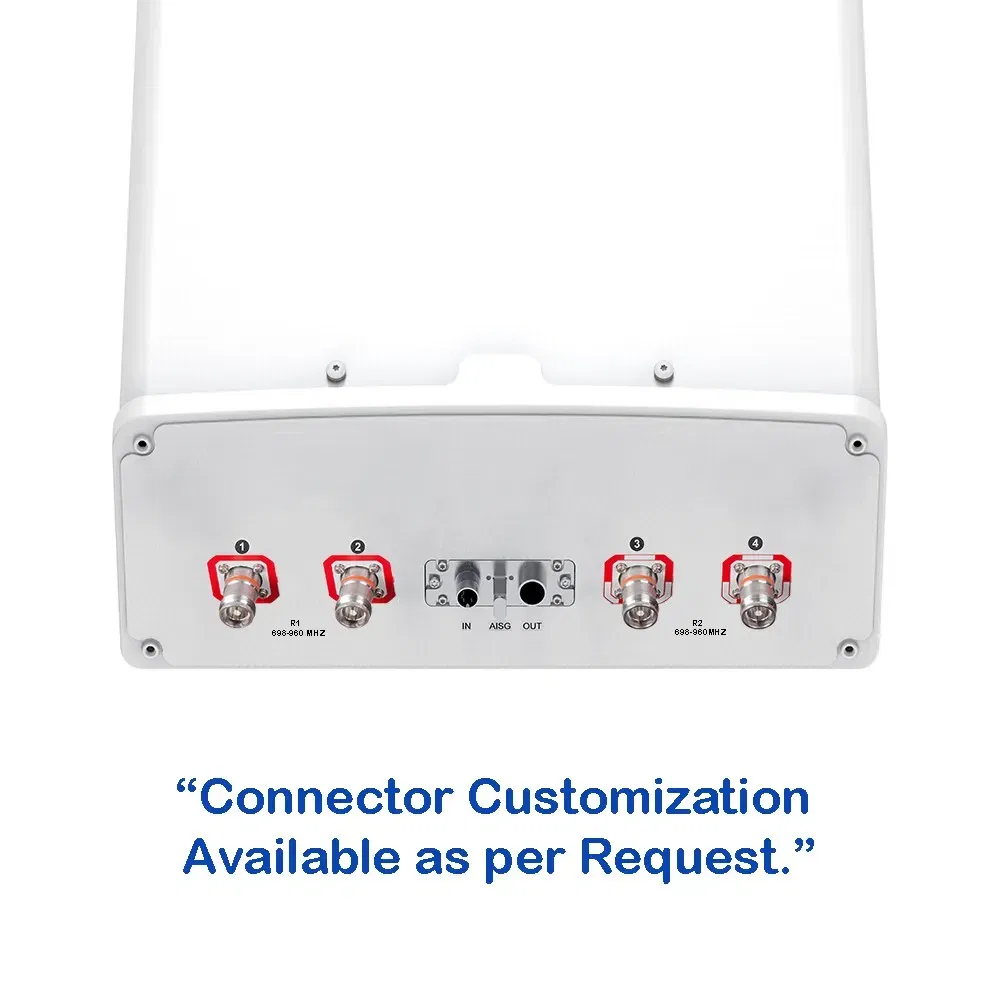

Connectors (other connectors by request) (2x) 4.3/10 Female (2x) 4.3/10 Female
WhatsApp Chat
Skype
Product Part Number
4P-698-960F-20G-35H8V
Electrical & Mechanical Specification
Electrical Specifications
R1 / R2
MHz698-960
Frequency RangeMHz698-790790-880880-960
Polarization—±45°
Mid TiltdBi18.819.920.4
GainOver All TiltsdBi18.3 ± 0.519.6 ± 0.519.8 ± 0.5
Horizontal Beamwidthdegree40 ± 3.536 ± 3.032 ± 3.0

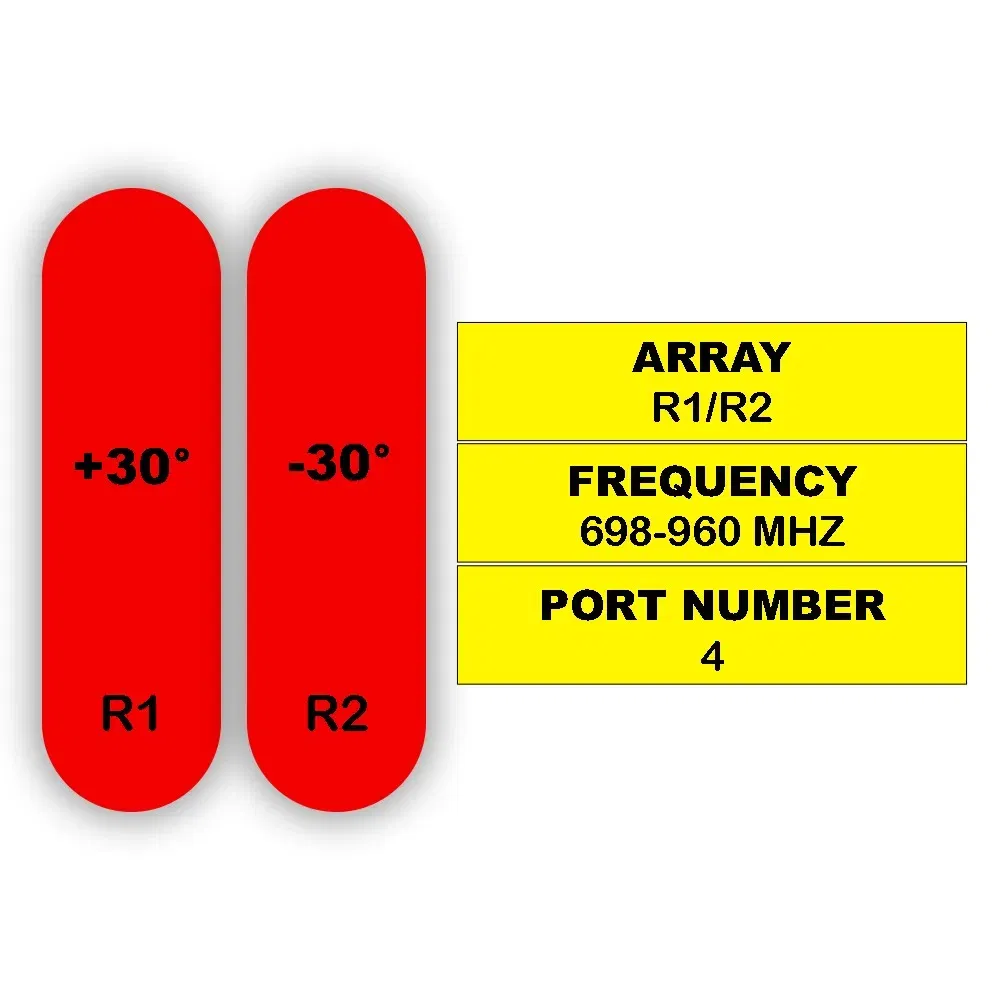

Horizontal Beam PointingdegreeR1: +30; R2 -30R1: +27; R2 -27R1: +25; R2 -25
Vertical Beamwidthdegree8.5 ± 0.77.6 ± 0.66.8 ± 0.6
Electrical Downtilt, Continuously Adjustabledegree2-Dec
First Upper Side Lobe SuppressiondB> 16> 16> 16
Front-To-Back Ratio Co-Pol, ±30°dB> 25> 25> 25
Cross Polar Discrimination at BoresightdB> 15> 15> 15
PortsdB≥ 27
IsolationBeam-To-BeamdB≥ 15
ImpedanceOhm50
VSWR—< 1.5
PIM3 (2×43 dBm Carrier)dBc< -150
Lightning Protection—DC Ground
Peak Input PowerWatts350
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
Mechanical Specifications

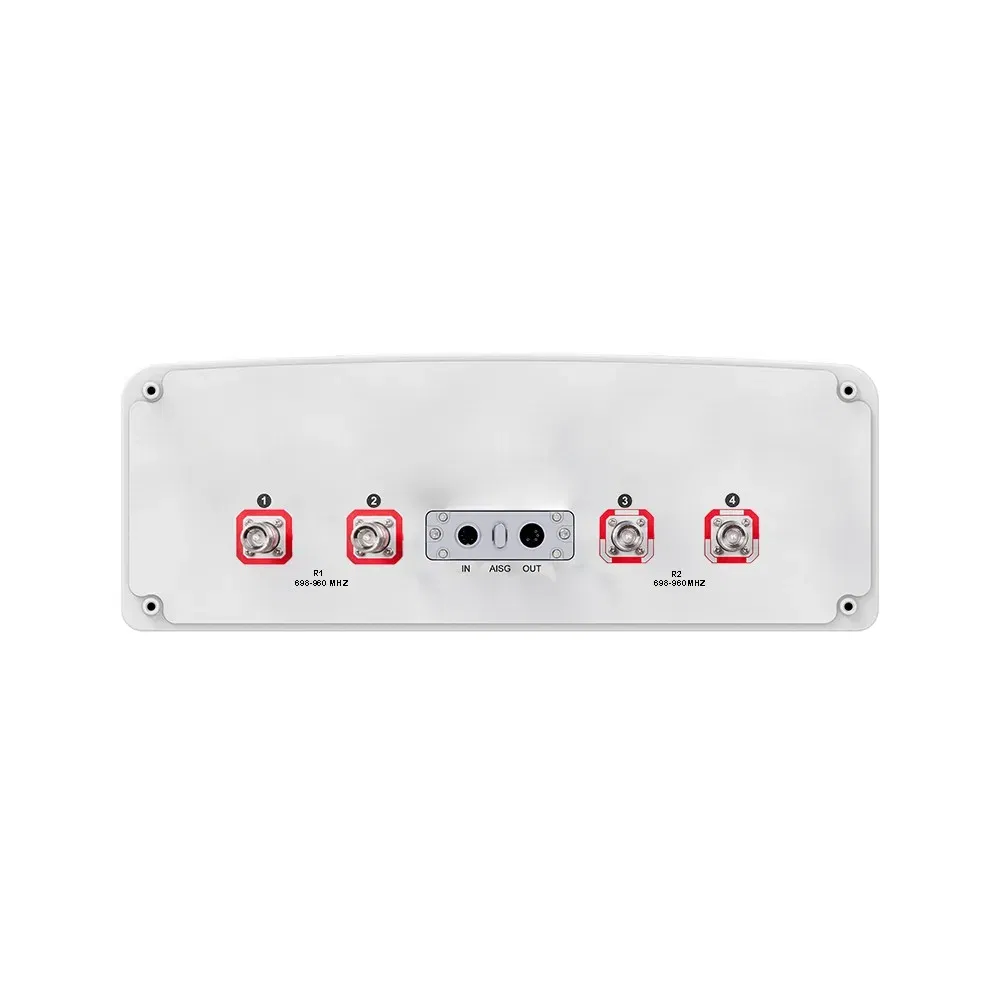

Connector Type—(4x) 4.3/10 Female
Connector Position—Bottom
Electrical Tilt Control—Integrated RET
Radome Material—Fiberglass

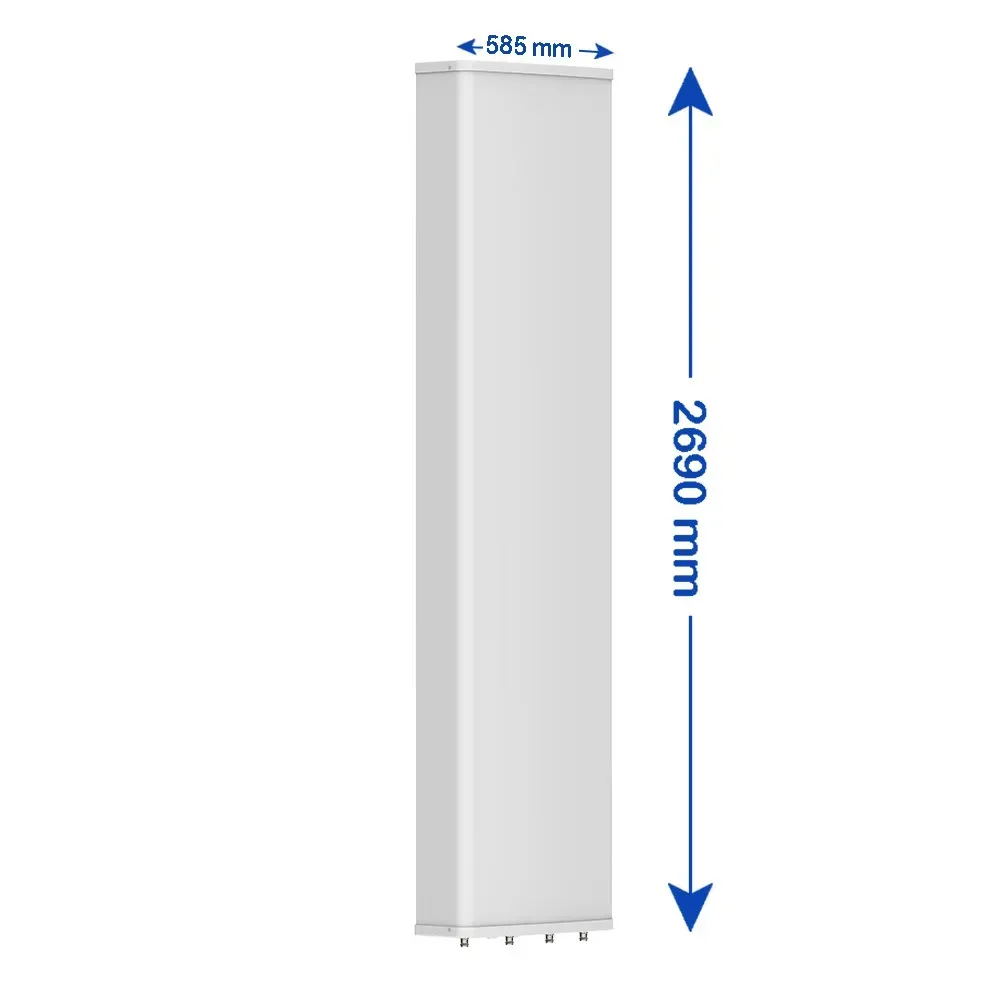

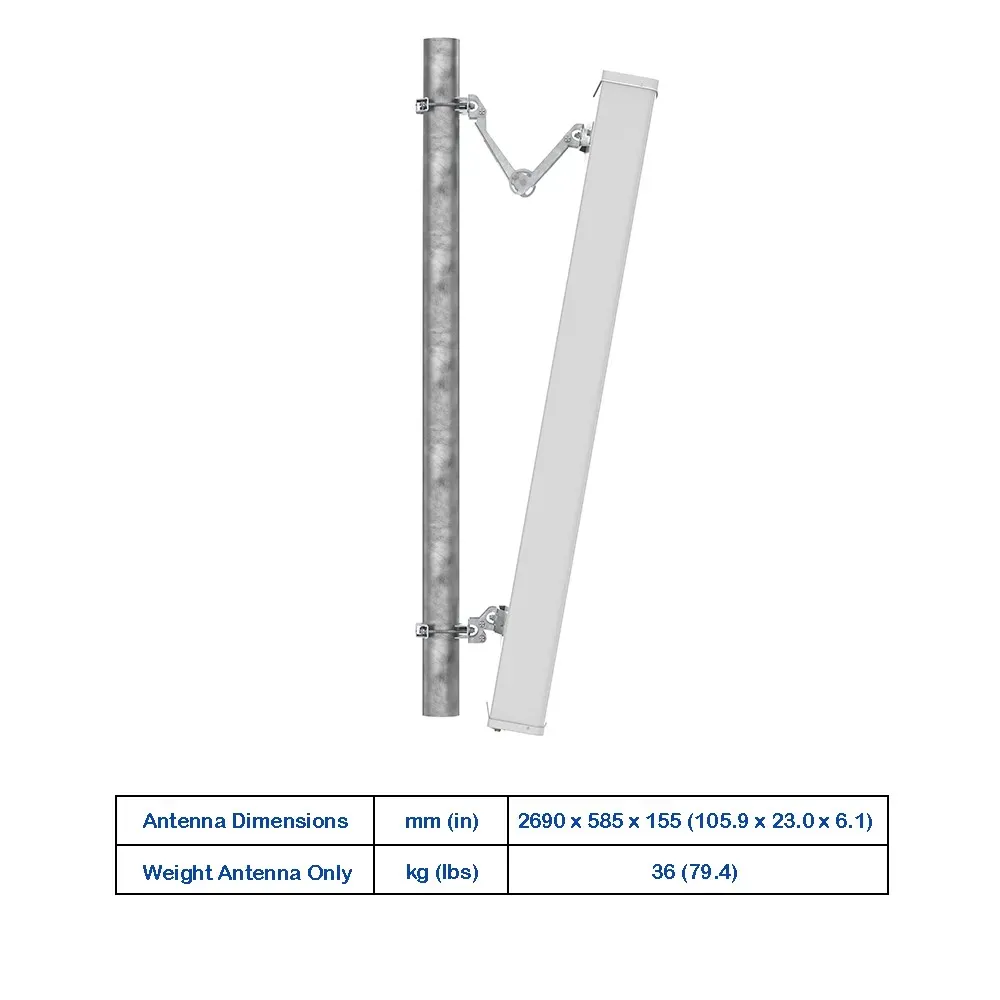

Antenna Dimensions (H x W x D)mm (in)2690 x 585 x 155 (105.9 x 23.0 x 6.1)
WeightAntenna Onlykg (lbs)36 (79.4)
Maximum Wind Speedkm/h (mph)200 (124.3)
Wind LoadFrontalN (lbf)1978 (444.7)
at 150 km/hRearN (lbf)2243 (504.2)
LateralN (lbf)635 (142.8)
Operating Temperature°C (°F)-40 to +60 (-40 to +140)
