Product code: 4P-806-960F-19G-36H8V

4-Port, Panel Sector Antenna, 35° HBW, 806-960/806-960 MHz, 19/19 dBi, 2-12°T, 2.690 m

4-Port Antenna R1 R2
Frequency Range 806-960 MHz 806-960 MHz
HBW 35° 35°
Gain 19 dBi 19 dBi
Tilt 2-12° 2-12°
Connectors (other connectors by request) (2x) 4.3/10 Female (2x) 4.3/10 Female
WhatsApp Chat
Skype
Product Part Number
4P-806-960F-19G-36H8V
Electrical & Mechanical Specification
Electrical Specifications
R1 / R2
Frequency RangeMHz806-960
Polarization—±45°
GaindBi18.75 ± 0.5
Horizontal Beamwidthdegree36 ± 2.5

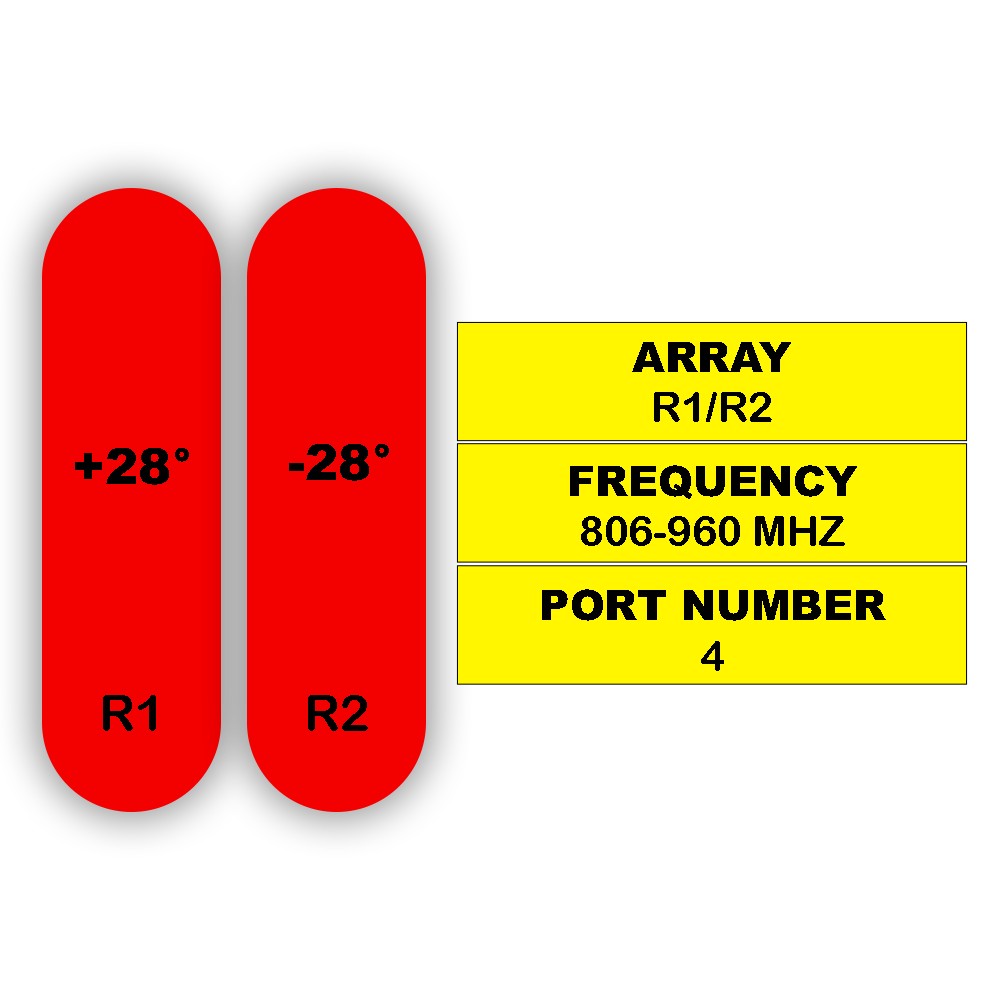

Horizontal Beam Pointingdegree28 (±3.0)
Vertical Beamwidthdegree7.7 ± 0.5
Electrical Downtilt, Continuously Adjustabledegree2-Dec
First Upper SideFirst VerticaldB≥ 18
Lobe SuppressionFirst HorizontaldB≥ 15
Front-To-Back Ratio Co-Pol, at 180° ±30°dB≥ 28
Cross Polar Discrimination at BoresightdB≥ 18
IsolationdB≥ 25
Beam IsolationdB≥ 18
ImpedanceOhm50
VSWR—≤ 1.5
Return LossdB> 14
PIM3 (2×43 dBm Carrier)dBc< -150
Lightning Protection—DC Ground
Peak Input PowerWatts300
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware InterfacesRS485 and Power
Adjustment Time≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles> 20,000
Torque Maximum≥ 160 mN·m (@ 30RPM)
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Remote ControlCan manage from OMC, BTS/Node B
Daisy Chaining MethodReady for daisy-chaining
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
Housing Material / ColorAluminum / Grey
Operating Temperature-40° to +70° C (-40° to +158° F)
Storage Temperature-55° to +75° C (-67° to +167° F)
HumidityUp to 95%
IP RatingIP65
Weight≤ 500 g
Mechanical Specifications

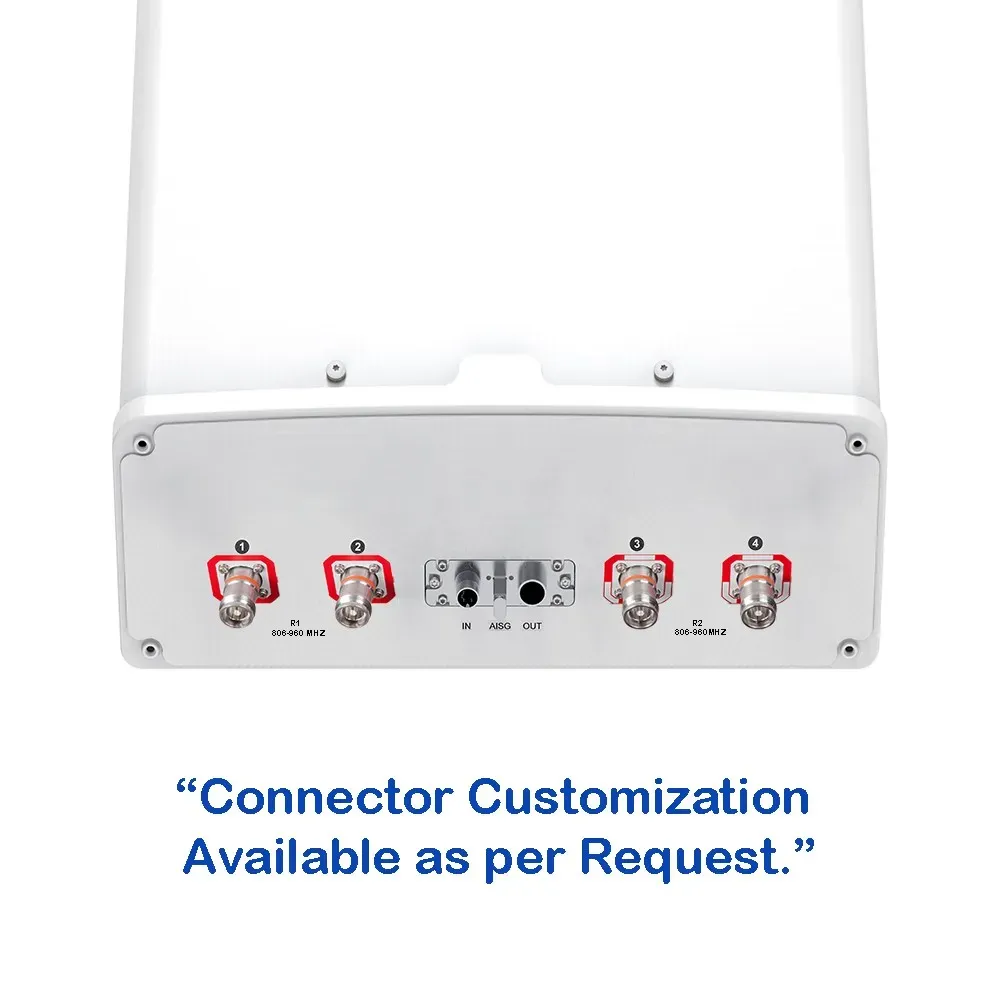

Connector Type—(4x) 4.3/10 Female
Connector Position—Bottom
Electrical Tilt Control—Integrated RET
Radome Material—FRP, UV Resistant

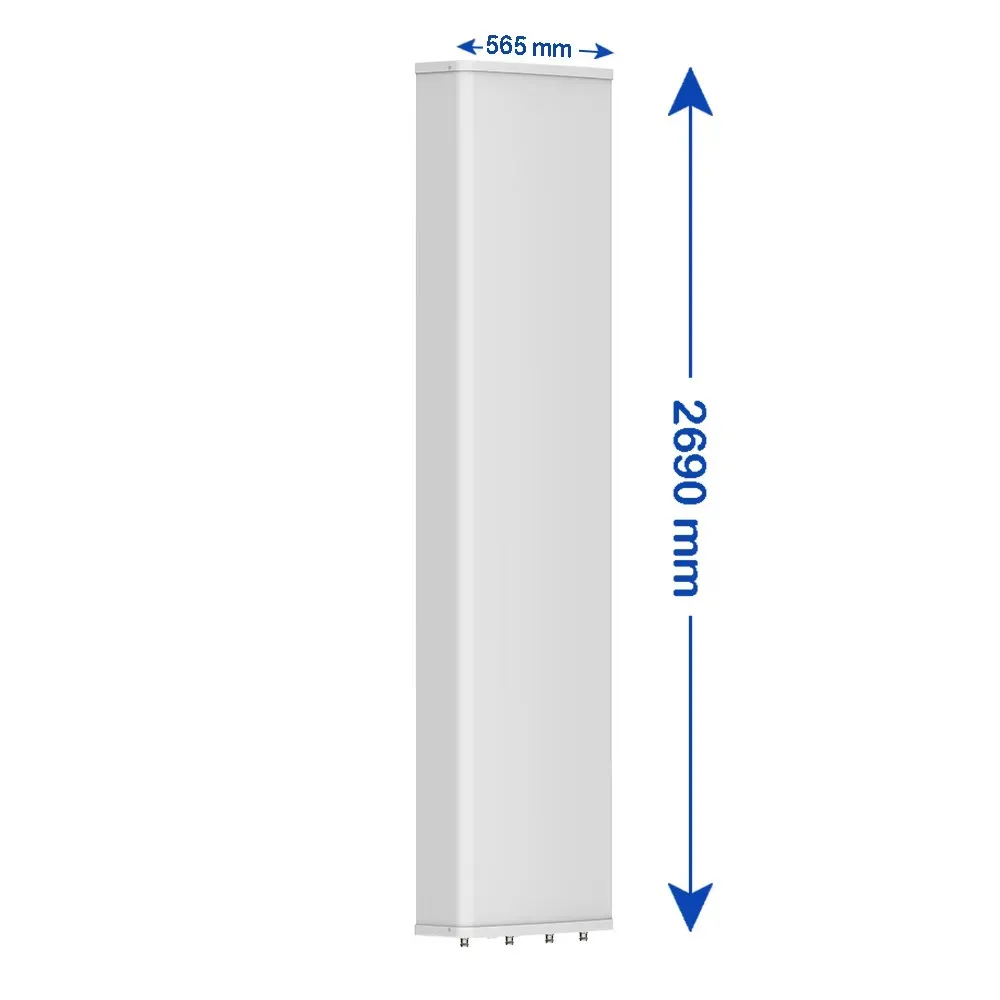

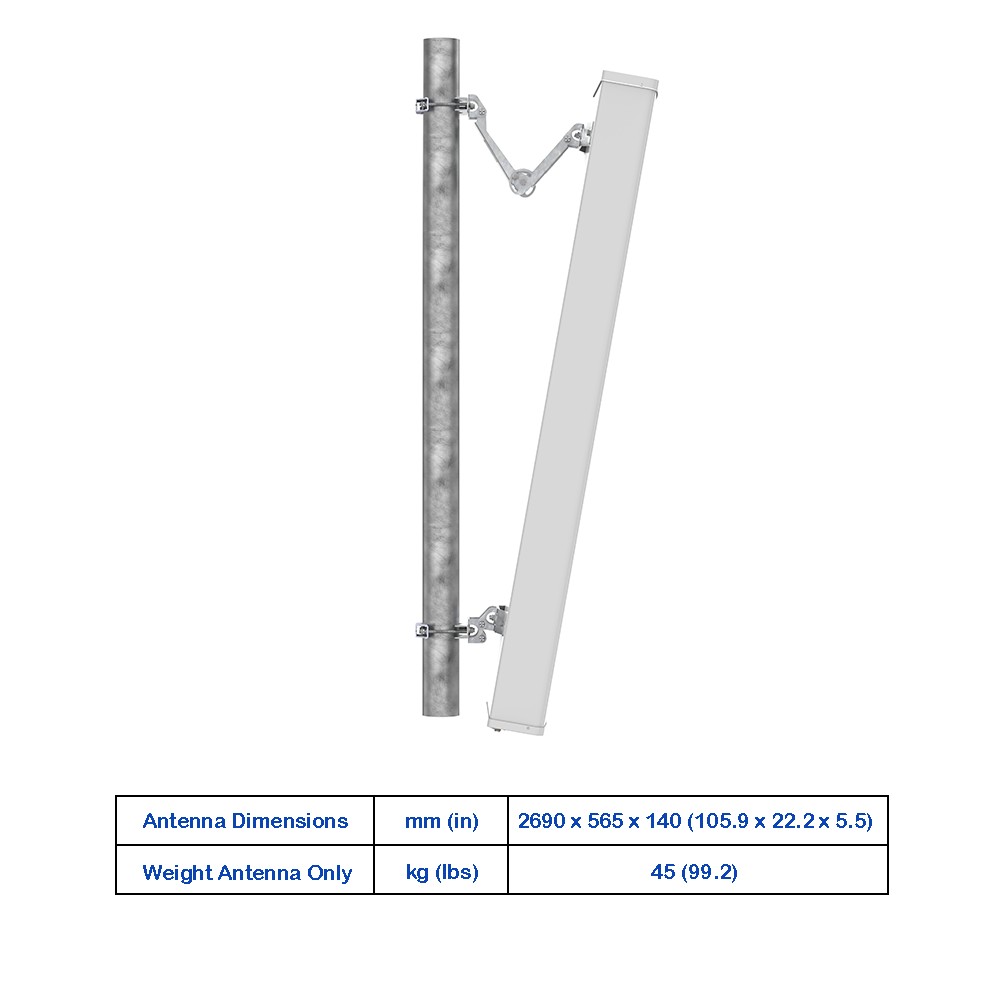

Antenna Dimensions (H x W x D)mm (in)2690 x 565 x 140 (105.9 x 22.2 x 5.5)
Antenna WeightAntennakg (lbs)45 (99.2)
Only
Maximum Wind Speedkm/h (mph)200 (124.3)
