Product code: 4P-1710-2690F-16G-65H11V

4-Port, Panel Sector Antenna, 65° HBW, (2x) 1710-2690 MHz, 16/16 dBi, 2-12°T, 0.997 m

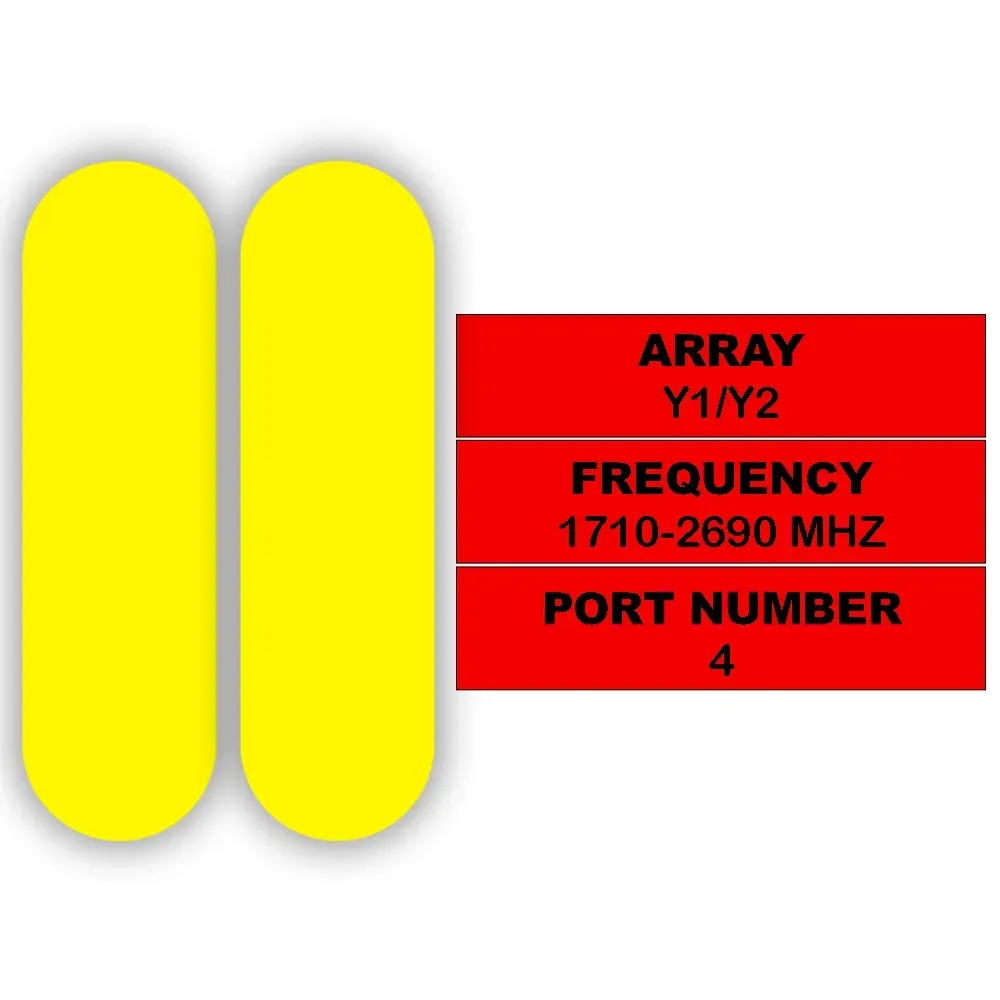

4-Port Antenna Y1 Y2
Frequency Range 1710-2690 MHz 1710-2690 MHz
HBW 65° 65°
Gain 16 dBi 16 dBi
Tilt 2-12° 2-12°
Connectors (other connectors by request) (2x) 4.3/10 Female (2x) 4.3/10 Female
WhatsApp Chat
Skype
Product Part Number
4P-1710-2690F-16G-65H11V
Electrical & Mechanical Specification
Electrical Specifications
Y1 / Y2
Frequency RangeMHz1710-2690
MHz1710-18801850-19901920-21702300-24002490-2690
Polarization—±45°
Gainat Mid TiltdBi15.115.315.616.116
Over All TiltsdBi15.0 ± 0.615.2 ± 0.615.5 ± 0.616.0 ± 0.615.9 ± 0.6
Horizontal Beamwidthdegree67 ± 4.965 ± 4.563 ± 4.861 ± 4.758 ± 5.2
Vertical Beamwidthdegree11 ± 1.110.5 ± 1.19.8 ± 1.08.5 ± 0.97.8 ± 0.8
Electrical Downtilt, Continuously Adjustabledegree2-Dec
First Upper Side Lobe SuppressiondB> 15> 15> 15> 15> 15
Front-To-Back Ratio Co-Pol, ±30°dB> 25> 25> 25> 25> 25
Cross Polarat BoresightdB> 20> 20> 20> 20> 20
DiscriminationOver SectordB> 10> 10> 10> 9> 8
IsolationCross-PolardB> 25
Port-To-PortdB> 25
InterbanddB> 25
ImpedanceOhm50
VSWR—< 1.5
Return LossdB> 14
PIM3 (2×43 dBm Carrier)dBc< -150
Lightning Protection—DC Ground
Maximum Average Input Power per Port, at 50° C Ambient TemperatureWatts200
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware InterfacesRS485 and Power
Adjustment Time≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles> 20,000
Torque Maximum≥ 160 mN·m (@ 30RPM)
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Remote ControlCan manage from OMC, BTS/Node B
Daisy Chaining MethodReady for daisy-chaining
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
Housing Material / ColorAluminum / Grey
Operating Temperature-40° to +70° C (-40° to +158° F)
Storage Temperature-55° to +75° C (-67° to +167° F)
HumidityUp to 95%
IP RatingIP65
Weight≤ 500 g
Mechanical Specifications

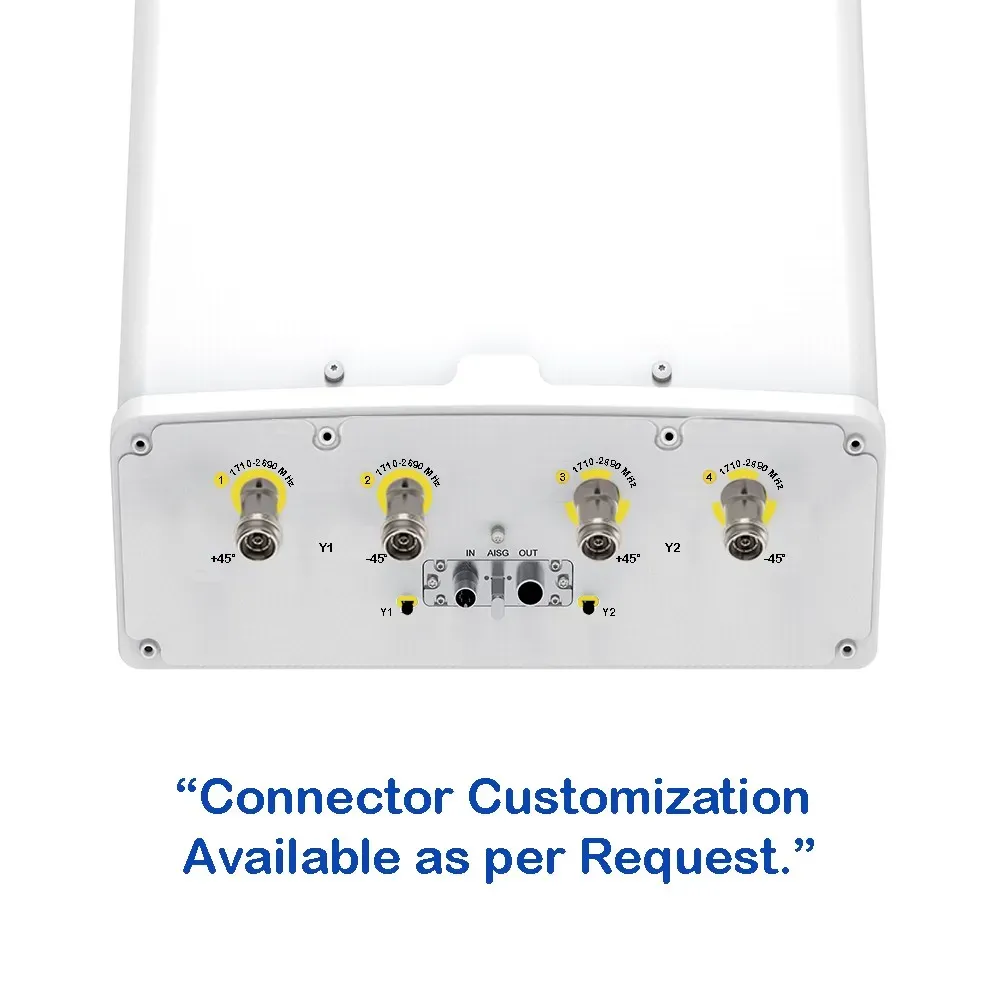

Connector Type—(4x) 4.3/10 Female
Connector Position—Bottom
Electrical Tilt Control—Integrated RET
Radome Material—UPVC

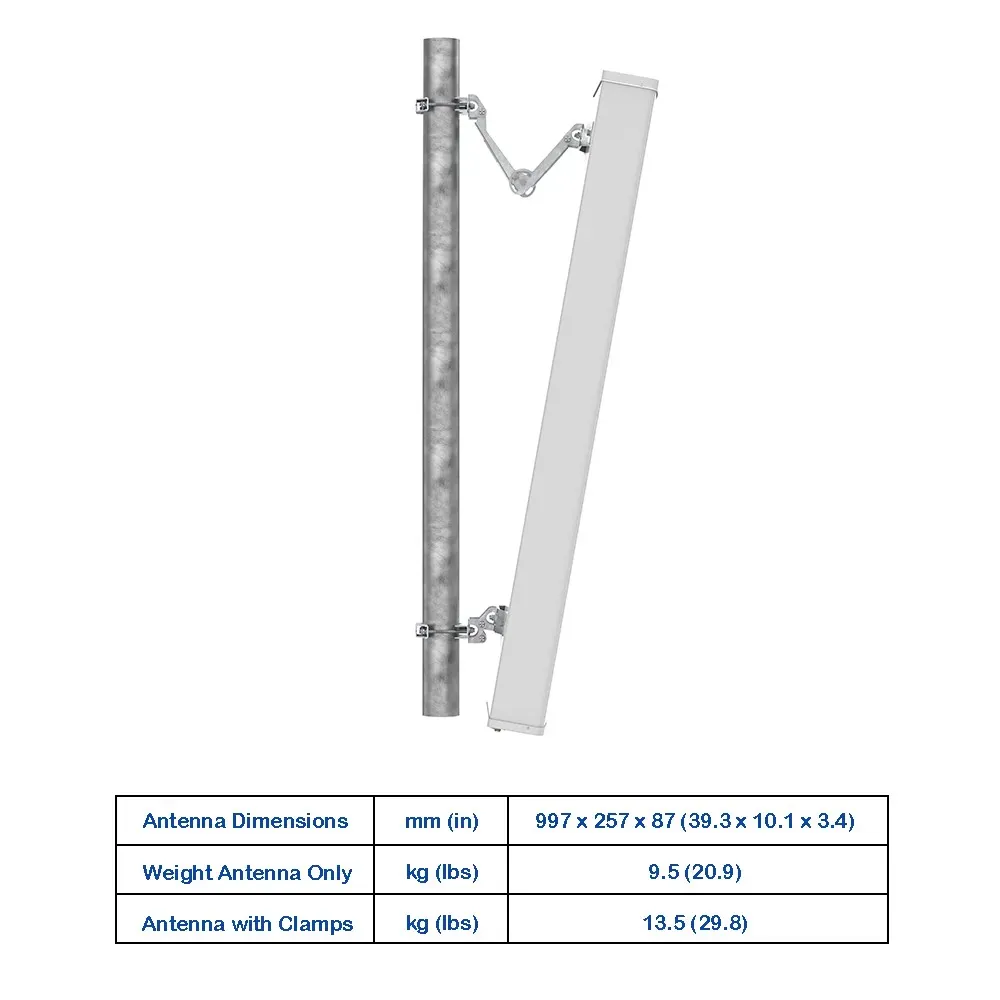

Antenna Dimensions (H x W x D)mm (in)997 x 257 x 87 (39.3 x 10.1 x 3.4)
Antenna WeightAntenna Onlykg (lbs)9.5 (20.9)
with Clampskg (lbs)13.5 (29.8)
Maximum Wind Speedkm/h (mph)200 (124.3)
Wind LoadFrontalN (lbf)235 (52.8)
at 150 km/hRearN (lbf)265 (59.6)
LateralN (lbf)100 (22.5)
Operating Temperature°C (°F)-40 to +60 (-40 to +140)
