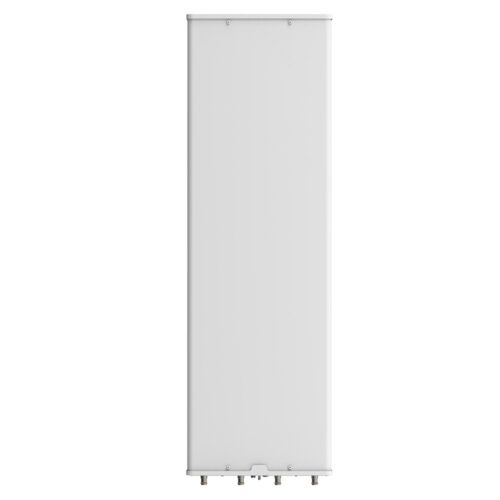

4-Port, Panel Sector Antenna, 65° HBW, (2x) 3300-3800 MHz, 18/18 dBi, 2-12°T, 0.997 m

Q: Other Inquiries

Please send purchase request at sales@mtsrl.in

Product code: 4P-3300-3800F-18G-65H5V

4-Port, Panel Sector Antenna, 65° HBW, (2x) 3300-3800 MHz, 18/18 dBi, 2-12°T, 0.997 m

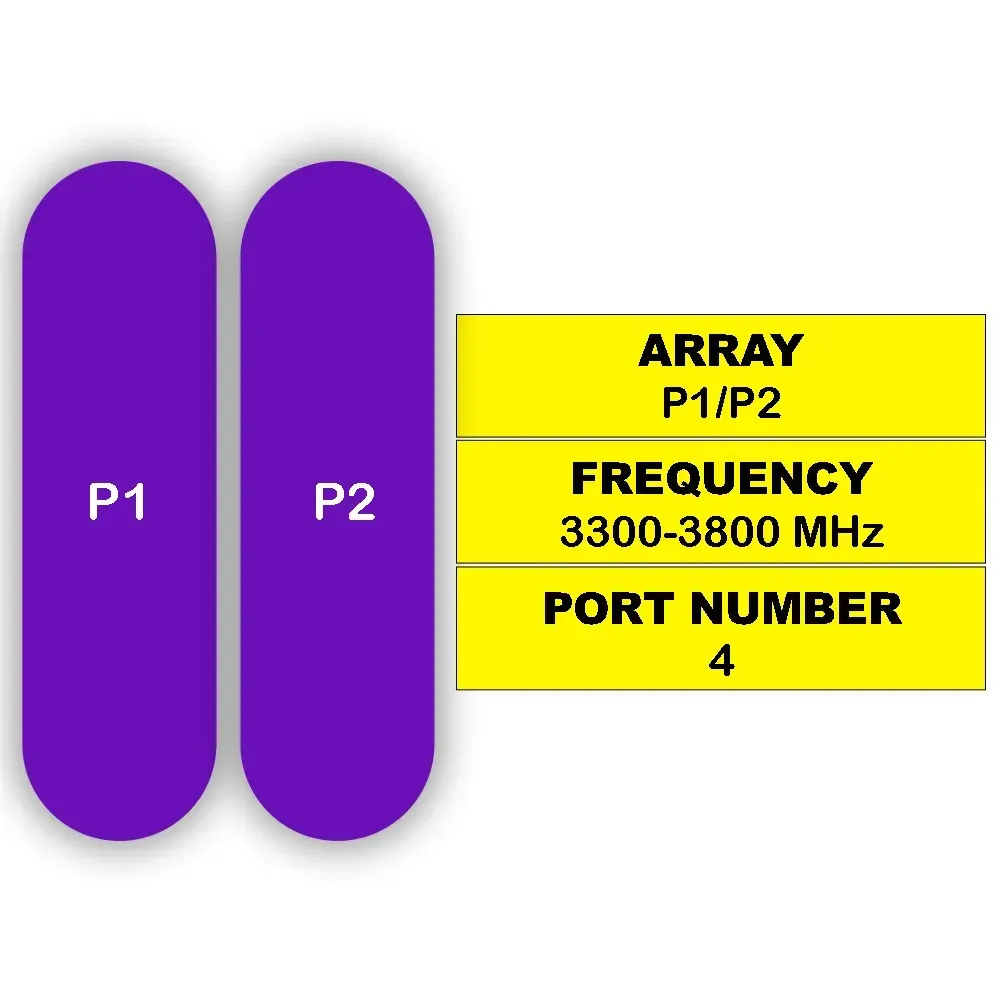

4-Port Antenna	P1	P2
Frequency Range	3300-3800 MHz	3300-3800 MHz
HBW	65°	65°
Gain	18 dBi	18 dBi
Tilt	2-12°	2-12°
Connectors (other connectors by request)	(2x) 4.3/10 Female	(2x) 4.3/10 Female

WhatsApp Chat

Skype

Product Part Number

4P-3300-3800F-18G-65H5V

Electrical & Mechanical Specification

Electrical Specifications
			P1 / P2
Frequency Range		MHz	3300-3800
Frequency Range		MHz	3300-3600	3600-3800
Polarization		—	±45°
Gain	at Mid Tilt	dBi	17.5	17.7
Gain	Over All Tilts	dBi	17.4 ± 0.6	17.6 ± 0.6
Horizontal Beamwidth		degree	64 ± 5	60 ± 5
Vertical Beamwidth		degree	5.5 ± 0.6	5.0 ± 0.6
Electrical Downtilt, Continuously Adjustable		degree	2-Dec
First Upper Side Lobe Suppression		dB	> 16	> 16
Front-To-Back Ratio Co-Pol, ±30°		dB	> 25	> 25
Cross Polar	at Boresight	dB	> 15	> 15
Discrimination	Over Sector	dB	> 7	> 7
Isolation	Cross-Polar	dB	> 25
Isolation	Port-To-Port	dB	> 25
Impedance		Ohm	50
VSWR		—	< 1.5
Return Loss		dB	> 14
Lightning Protection		—	DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature		Watts	50

Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range		10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power	Standby	< 2 W
Consumption	In Motion	< 10 W
Connectors		2 x 8 Pin Circle Connector
		Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: GND
		Female Connector: 8 PINs; Male Connector: 4 PINs
Lightning Protection Rating		IEC 61000-4-5 Current Pulse Profile
Lightning Protection Rating		Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Safety Standard		Compliant to EN 60950/UL 60950/RoHS, CE

Mechanical Specifications

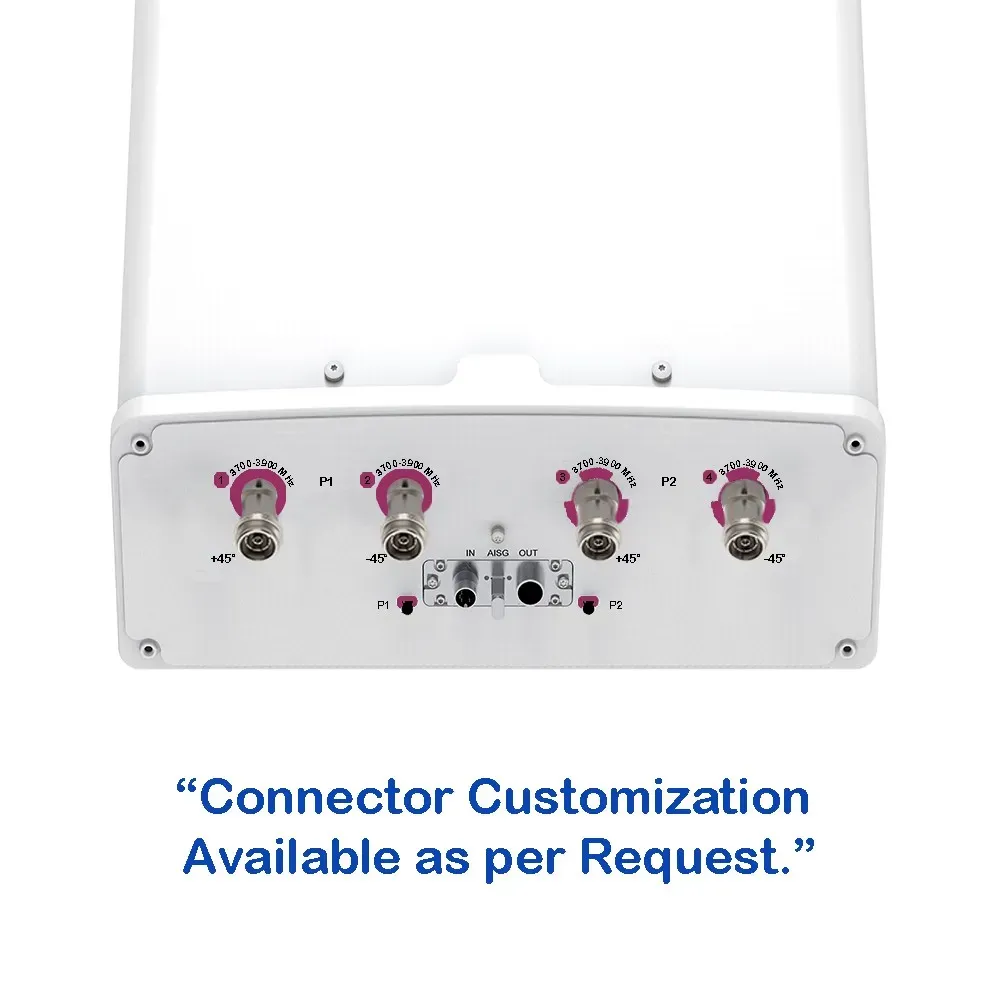

Connector Type		—	(4x) 4.3/10 Female
Connector Position		—	Bottom
Electrical Tilt Control		—	Integrated RET
Radome Material		—	UPVC

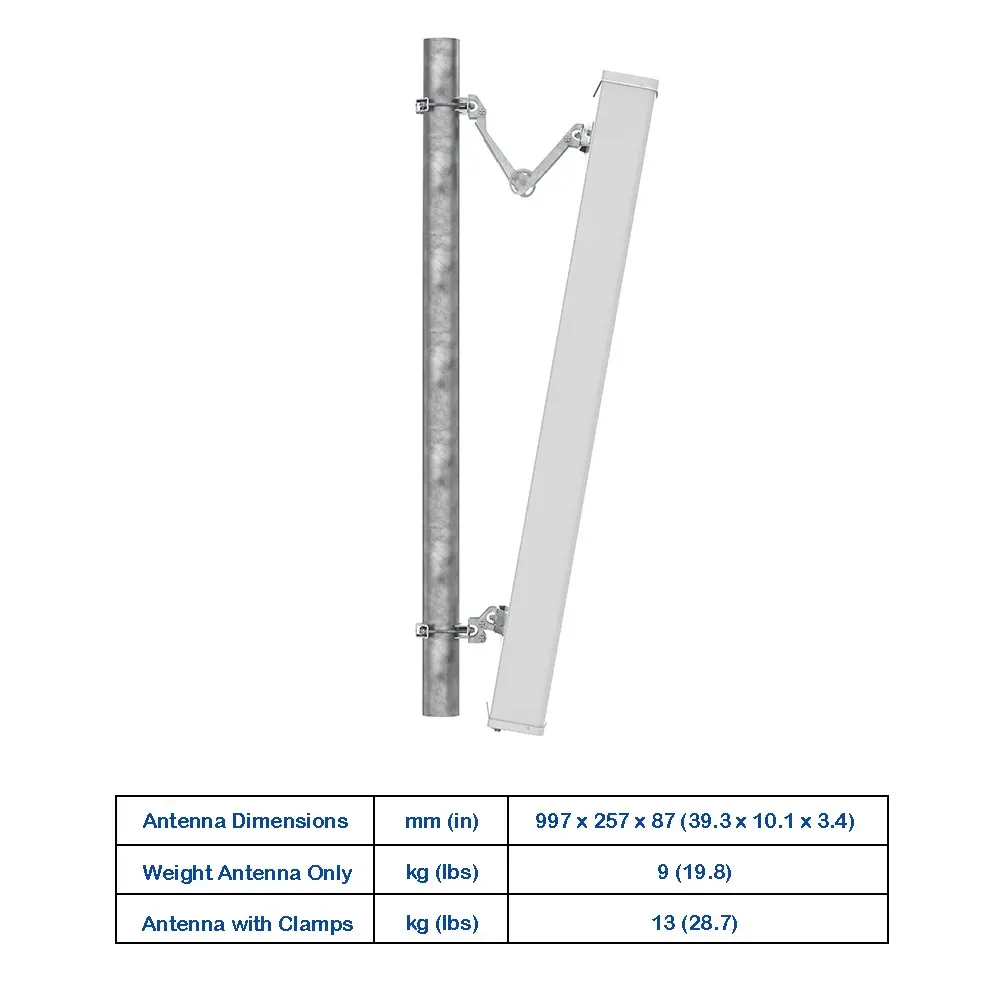

Antenna Dimensions (H x W x D)		mm (in)	997 x 257 x 87 (39.3 x 10.1 x 3.4)
Antenna Weight	Antenna Only	kg (lbs)	9 (19.8)
Antenna Weight	with Clamps	kg (lbs)	13 (28.7)
Maximum Wind Speed		km/h (mph)	200 (124.3)
Wind Load	Frontal	N (lbf)	235 (52.8)
at 150 km/h	Rear	N (lbf)	265 (59.6)
	Lateral	N (lbf)	100 (22.5)
Operating Temperature		°C (°F)	-40 to +60 (-40 to +140)
