Product code: 4P-3300-4200F-18G-65H5V

4-Port, Panel Sector Antenna, 65° HBW, (2x) 3300-4200 MHz, 18.5/18.5 dBi, 2-12°T, 1.000 m

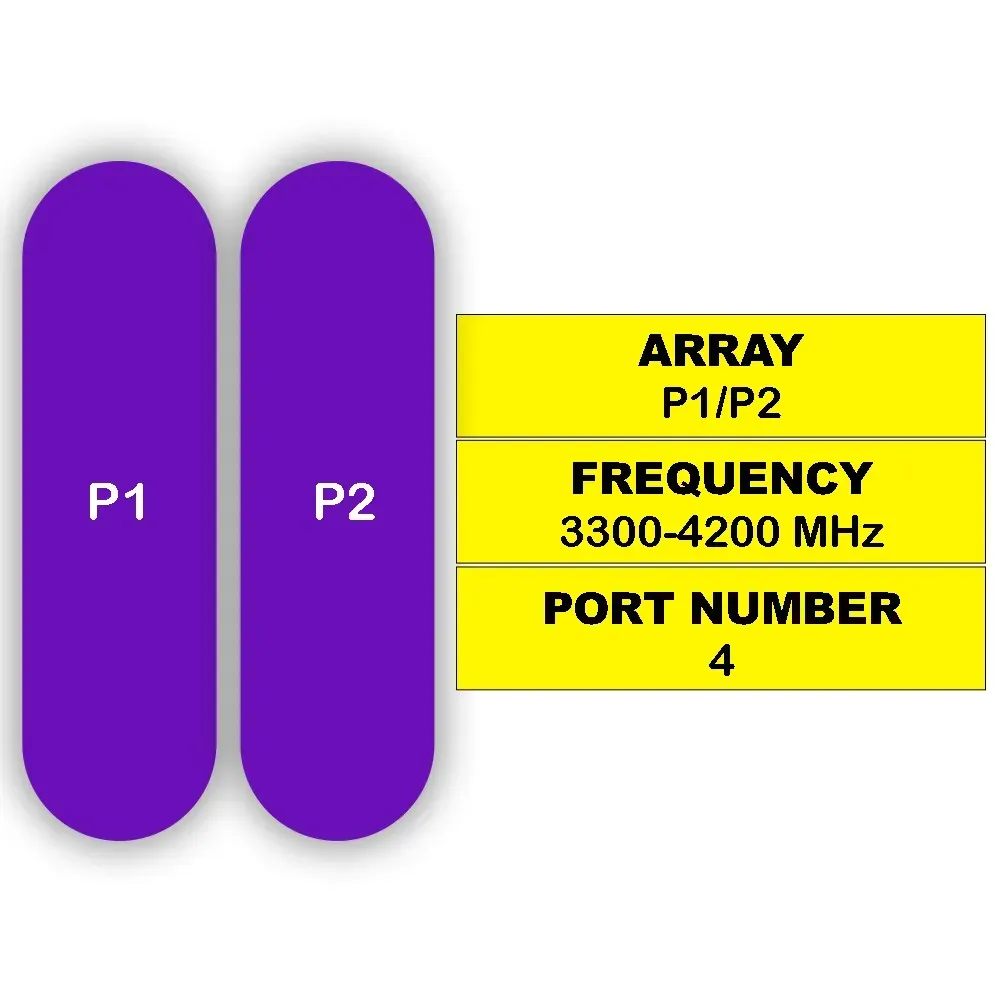

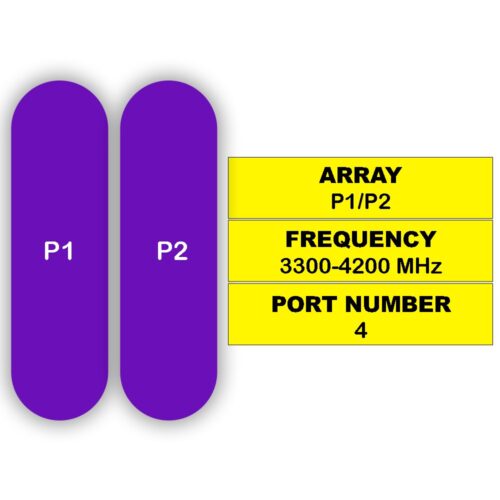

4-Port Antenna	P1	P2
Frequency Range	3300-4200 MHz	3300-4200 MHz
HBW	65°	65°
Gain	18.5 dBi	18.5 dBi
Tilt	2-12°	2-12°
Connectors (other connectors by request)	(2x) 4.3/10 Female	(2x) 4.3/10 Female

WhatsApp Chat

Skype

Product Part Number

4P-3300-4200F-18G-65H5V

Electrical & Mechanical Specification

Electrical Specifications
			P1 / P2
Frequency Range		MHz	3300-4200
Frequency Range		MHz	3300-3600	3600-3800	3800-4200
Polarization		—	±45°
Gain	at Mid Tilt	dBi	17.6	18	18.5
Gain	Over All Tilts	dBi	16.9 ± 0.5	17.2 ± 0.5	17.7 ± 0.5
Horizontal Beamwidth		degree	65 ± 3.8	64 ± 4.6	62 ± 5
Vertical Beamwidth		degree	6.1 ± 0.4	6.0 ± 0.2	5.5 ± 0.2
Electrical Downtilt, Continuously Adjustable		degree	2-Dec
First Upper Side Lobe Suppression		dB	> 15	> 15	> 15
Front-To-Back Ratio Co-Pol, ±30°		dB	> 25	> 25	> 25
Cross Polar	at Boresight	dB	> 15	> 15	> 15
Discrimination	Over Sector	dB	> 10	> 10	> 10
Isolation Between Ports		dB	> 28
Impedance		Ohm	50
VSWR		—	≤ 1.5
Lightning Protection		—	DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature		Watts	200

Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range		10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power	Standby	< 2 W
Consumption	In Motion	< 10 W
Connectors		2 x 8 Pin Circle Connector
		Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: GND
		Female Connector: 8 PINs; Male Connector: 4 PINs
Lightning Protection Rating		IEC 61000-4-5 Current Pulse Profile
Lightning Protection Rating		Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Safety Standard		Compliant to EN 60950/UL 60950/RoHS, CE

Mechanical Specifications

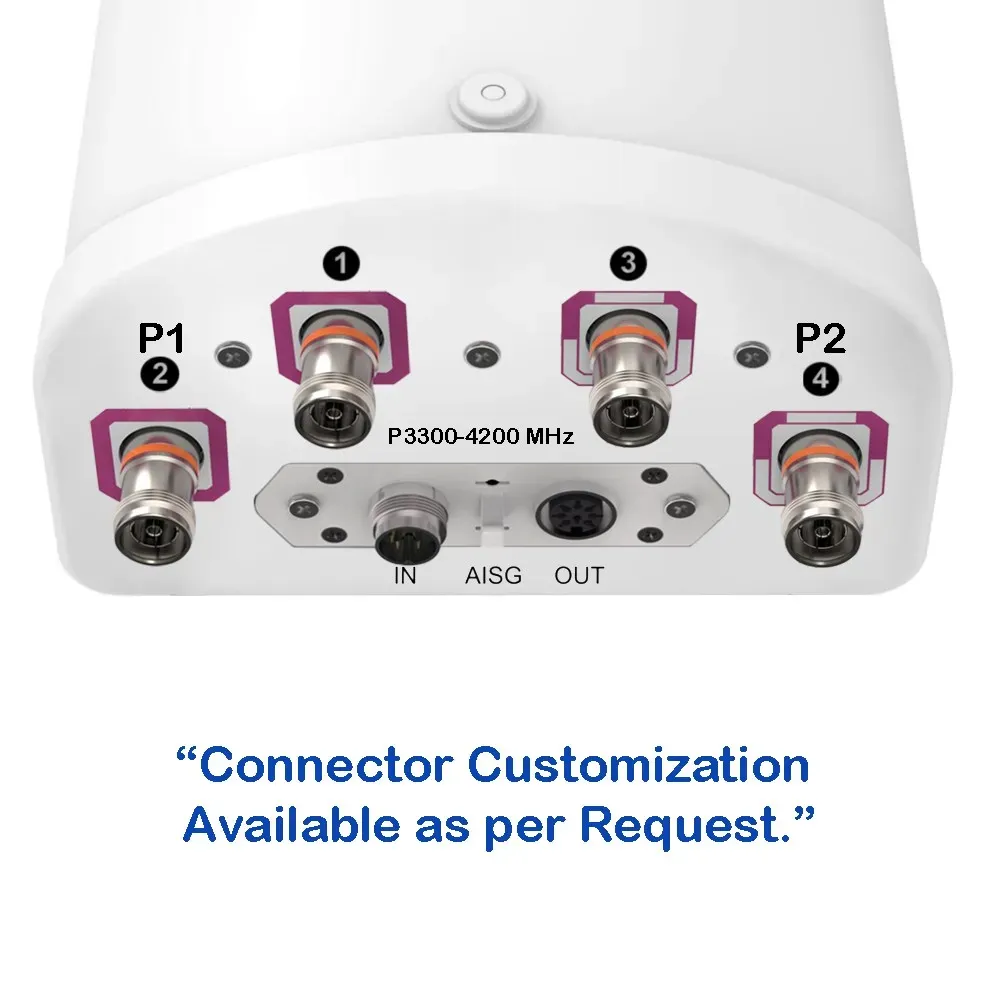

Connector Type		—	(4x) 4.3/10 Female
Connector Position		—	Bottom
Electrical Tilt Control		—	Integrated RET
Radome Material		—	UPVC

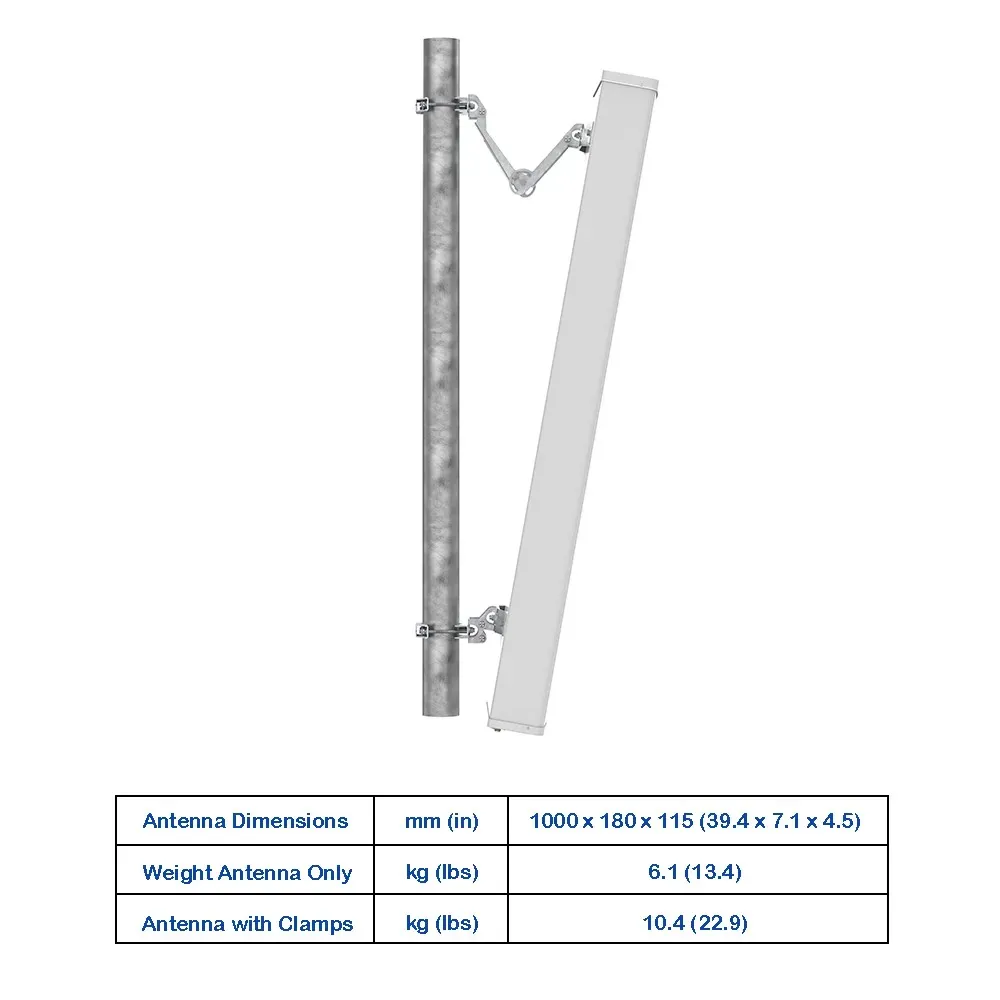

Antenna Dimensions (H x W x D)		mm (in)	1000 x 180 x 115 (39.4 x 7.1 x 4.5)
Antenna Weight	Antenna Only	kg (lbs)	6.1 (13.4)
Antenna Weight	with Clamps	kg (lbs)	10.4 (22.9)
Maximum Wind Speed		km/h (mph)	200 (124.3)
Wind Load	Frontal	N (lbf)	217 (48.8)
at 150 km/h	Rear	N (lbf)	321 (72.2)
	Lateral	N (lbf)	119 (26.8)
Operating Temperature		°C (°F)	-40 to +60 (-40 to +140)
