Product code: 4P-3700-3900F-18G-65H5V

4-Port, Panel Sector Antenna, 65° HBW, (2x) 3700-3900 MHz, 18/18 dBi, 2-12°T, 0.910 m

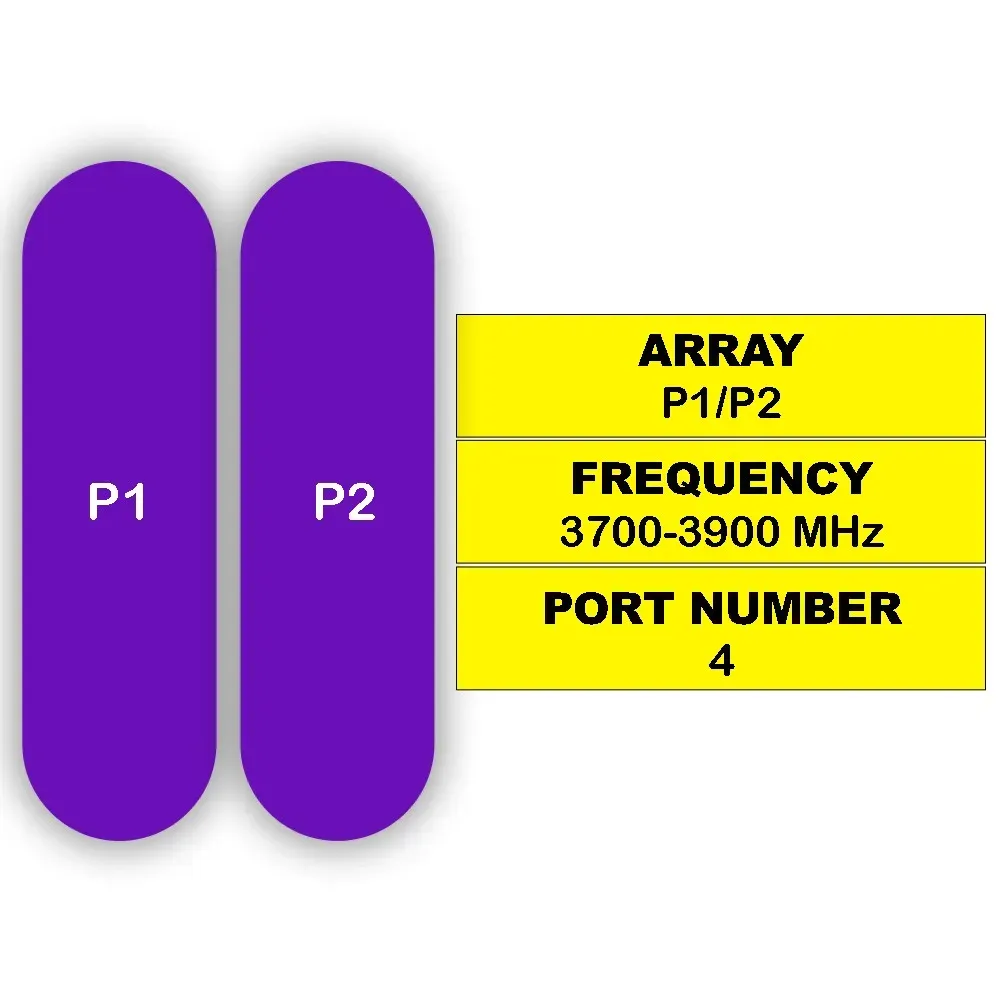

4-Port Antenna P1 P2
Frequency Range 3700-3900 MHz 3700-3900 MHz
HBW 65° 65°
Gain 18 dBi 18 dBi
Tilt 2-12° 2-12°
Connectors (other connectors by request) (2x) 4.3/10 Female (2x) 4.3/10 Female
WhatsApp Chat
Skype
Product Part Number
4P-3700-3900F-18G-65H5V
Electrical & Mechanical Specification
Electrical Specifications
Y1 / Y2
Frequency RangeMHz2300-2400
Polarization—±45°
Gainat Mid TiltdBi17.1
Over All TiltsdBi17.0 ± 0.5
Horizontal Beamwidthdegree64 ± 4
Vertical Beamwidthdegree7.0 ± 0.5
Electrical Downtilt, Continuously Adjustabledegree0-10
First Upper Side Lobe SuppressiondB> 15
Front-To-Back Ratio Co-Pol, ±30°dB> 30
Cross Polarat BoresightdB> 20
DiscriminationOver SectordB> 10
IsolationCross-PolardB> 25
Port-To-PortdB> 25
InterbanddB> 28
ImpedanceOhm50
VSWR—< 1.5
Return LossdB> 14
PIM3 (2×43 dBm Carrier)dBc< -150
Lightning Protection—DC Ground
Maximum Average Input Power per Port, at 50° C Ambient TemperatureWatts200
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware InterfacesRS485 and Power
Adjustment Time≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles> 20,000
Torque Maximum≥ 160 mN·m (@ 30RPM)
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Remote ControlCan manage from OMC, BTS/Node B
Daisy Chaining MethodReady for daisy-chaining
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
Housing Material / ColorAluminum / Grey
Operating Temperature-40° to +70° C (-40° to +158° F)
Storage Temperature-55° to +75° C (-67° to +167° F)
HumidityUp to 95%
IP RatingIP65
Weight≤ 500 g
Mechanical Specifications

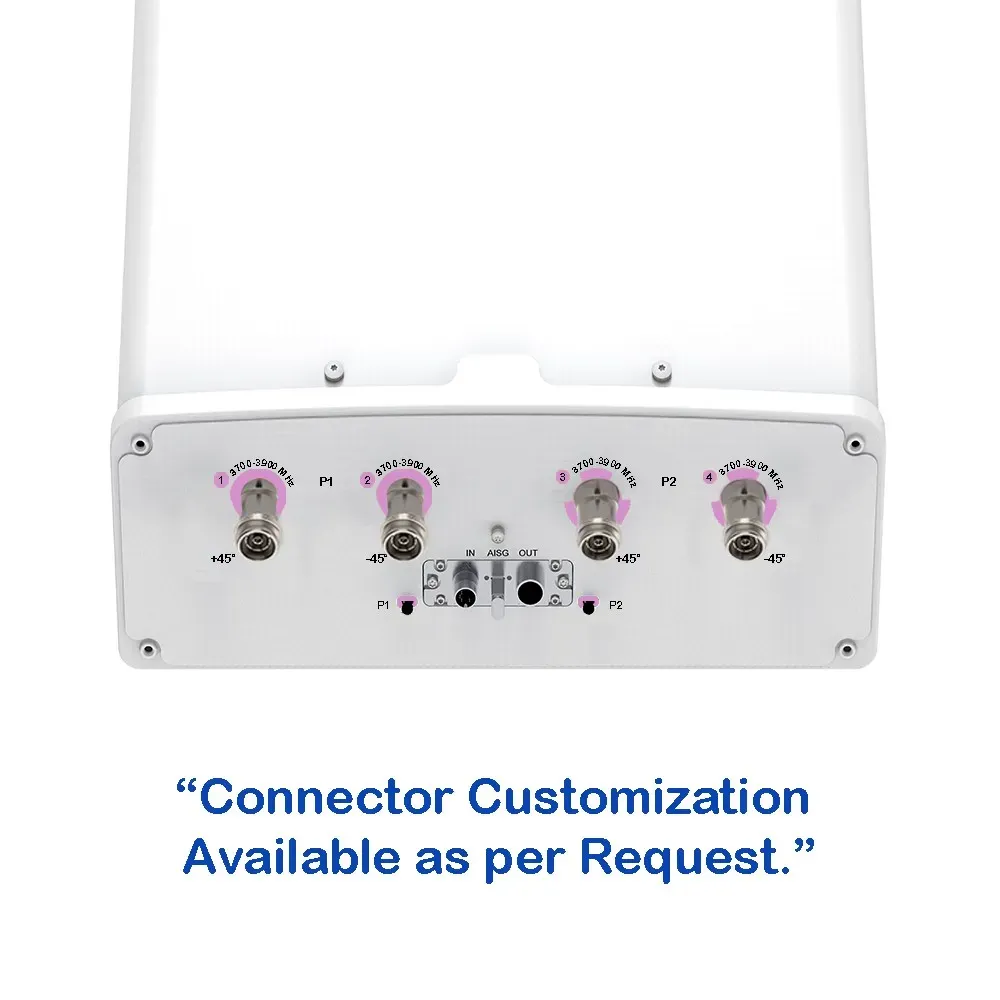

Connector Type—(4x) 4.3/10 Female
Connector Position—Bottom
Electrical Tilt Control—Integrated RET
Radome Material—UPVC
Antenna Dimensions (H x W x D)mm (in)1097 x 257 x 87 (43.2 x 10.1 x 3.4)
Antenna WeightAntenna Onlykg (lbs)8 (17.6)
with Clampskg (lbs)12 (26.5)
Maximum Wind Speedkm/h (mph)200 (124.3)
Wind LoadFrontalN (lbf)260 (58.5)
at 150 km/hRearN (lbf)290 (65.2)
LateralN (lbf)110 (24.7)
Operating Temperature°C (°F)-40 to +60 (-40 to +140)
