Product code: 4P-617-2180F-17G-72H10V

4-Port, Panel Sector Antenna, 65° HBW, 617-894 / 1710-2180 MHz, 16/17 dBi, 2-12°T, 2.437 m

4-Port Antenna R1 B1
Frequency Range 617-894 MHz 1710-2180 MHz
HBW 65° 65°
Gain 16 dBi 17 dBi
Tilt 2-12° 2-12°

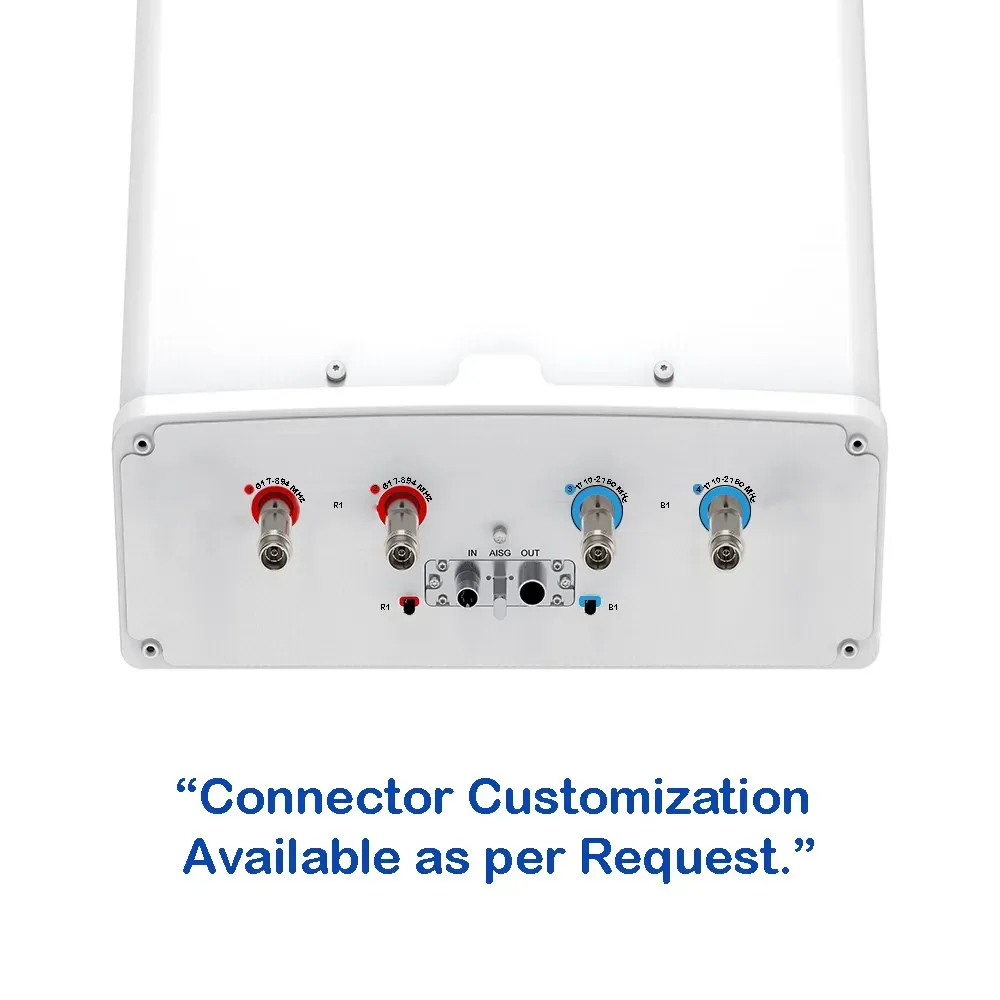

Connectors (other connectors by request) (2x) 4.3/10 Female (2x) 4.3/10 Female
WhatsApp Chat
Skype
Product Part Number
4P-617-2180F-17G-72H10V
Electrical & Mechanical Specification
Electrical Specifications
R1B1
Frequency RangeMHz617-8941710-2180
MHz617-698690-806790-8941710-18801850-19901920-2180
Polarization—±45°±45°
Gainat Mid TiltdBi15.215.61616.61717.4
Over All TiltsdBi15.0 ± 0.515.4 ± 0.515.8 ± 0.516.4 ± 0.616.8 ± 0.517.2 ± 0.5
Horizontal Beamwidthdegree72 ± 4.468 ± 4.466 ± 3.666 ± 6.565 ± 6.163 ± 6.1
Vertical Beamwidthdegree10.8 ± 1.19.7 ± 0.98.4 ± 0.86.2 ± 0.65.8 ± 0.65.4 ± 0.6
Electrical Downtilt, Continuously Adjustabledegree2-Dec2-Dec
Tilt Accuracydegree< 1< 1< 1< 1< 1< 1
Upper Side LobeFirst Upper LobedB> 15> 16> 16> 16> 16> 16
SuppressionPeak to 20°dB> 14> 15> 15> 14> 14> 14
Front-To-Back Ratio ±30°dB> 21> 22> 23> 23> 23> 24
Cross Polarat BoresightdB> 16> 18> 18> 16> 16> 16
DiscriminationOver SectordB> 8.0> 8.0> 7.5> 7> 8> 8
IsolationCross-PolardB> 26> 26
Port-To-PortdB> 28> 28
ImpedanceOhm5050
VSWR—< 1.5< 1.5
Return LossdB> 14> 14
PIM3 (2×43 dBm Carrier)dBc< -150< -150
Lightning Protection—DC GroundDC Ground
Maximum Average Input Power per Port, at 50° C Ambient TemperatureWatts250200
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware InterfacesRS485 and Power
Adjustment Time≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles> 20,000
Torque Maximum≥ 160 mN·m (@ 30RPM)
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Remote ControlCan manage from OMC, BTS/Node B
Daisy Chaining MethodReady for daisy-chaining
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
Housing Material / ColorAluminum / Grey
Operating Temperature-40° to +70° C (-40° to +158° F)
Storage Temperature-55° to +75° C (-67° to +167° F)
HumidityUp to 95%
IP RatingIP65
Weight≤ 500 g
Mechanical Specifications
Connector Type—(4x) 4.3/10 Female
Connector Position—Bottom
Electrical Tilt Control—Integrated RET
Radome Material—Fiberglass

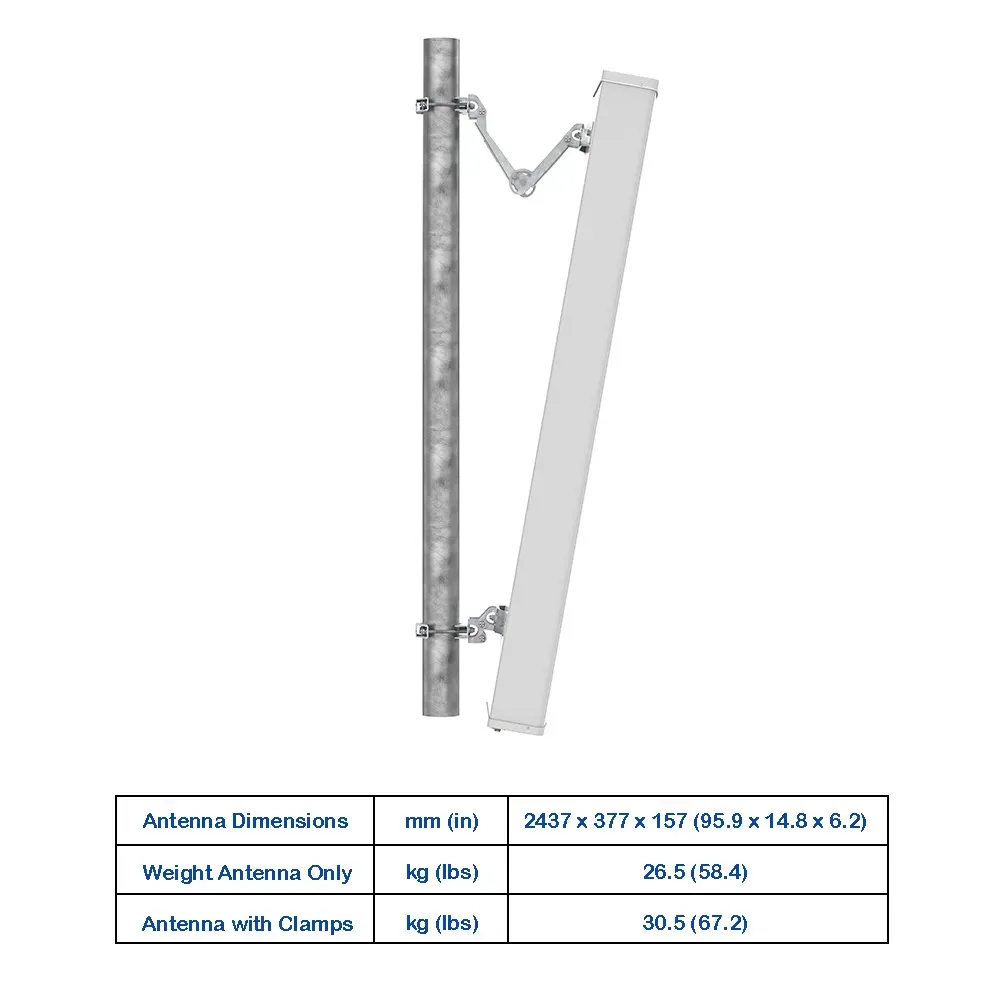

Antenna Dimensions (H x W x D)mm (in)2437 x 377 x 157 (95.9 x 14.8 x 6.2)
Antenna WeightAntenna Onlykg (lbs)26.5 (58.4)
with Clampskg (lbs)30.5 (67.2)
Maximum Wind Speedkm/h (mph)200 (124.3)
Wind LoadFrontalN (lbf)850 (191.1)
at 150 km/hRearN (lbf)950 (213.6)
LateralN (lbf)435 (97.8)
