Product code: 4P-617-960F-16G-65H9V

4-Port, Panel Sector Antenna, 65° HBW, 617-960/617-960 MHz, 16.5/16.5 dBi, 2-12°T, 2.497 m

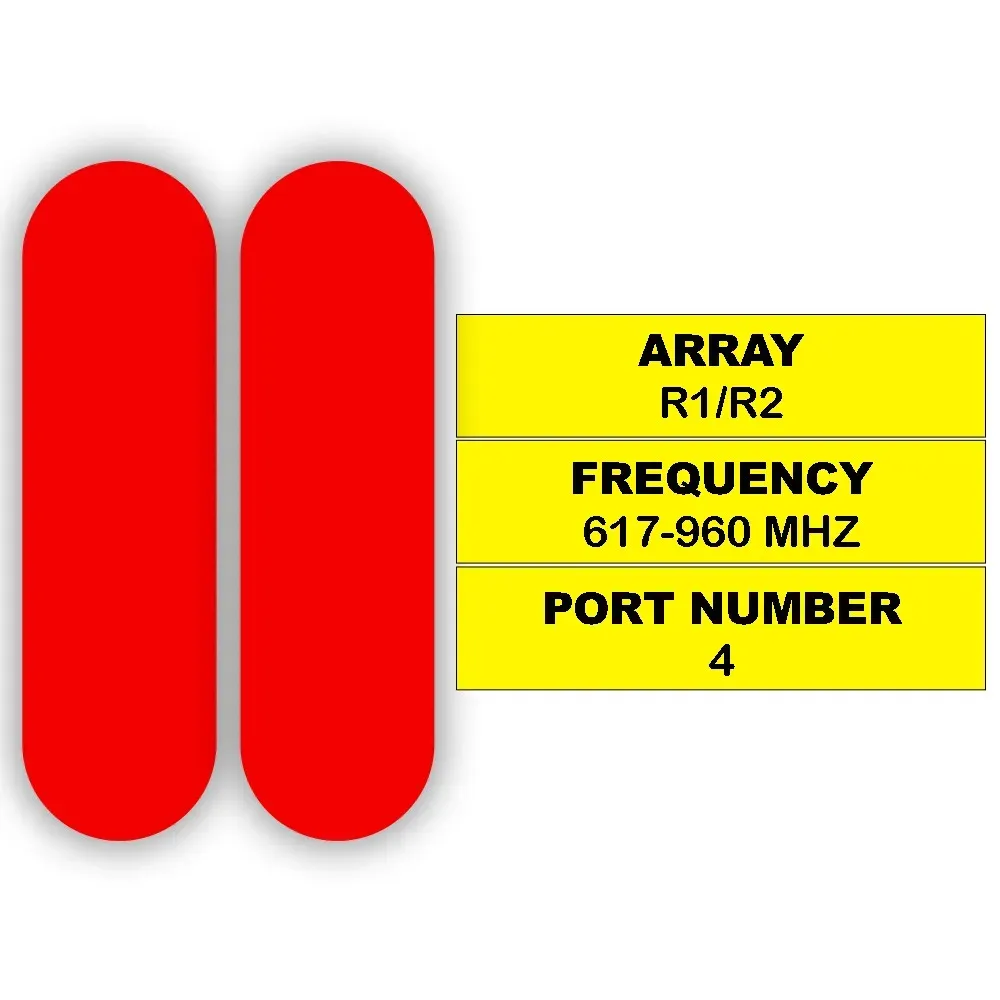

4-Port Antenna	R1	R2
Frequency Range	617-960 MHz	617-960 MHz
HBW	65°	65°
Gain	16.5 dBi	16.5 dBi
Tilt	2-12°	2-12°
Connectors (other connectors by request)	(2x) 4.3/10 Female	(2x) 4.3/10 Female

WhatsApp Chat

Skype

Product Part Number

4P-617-960F-16G-65H9V

Electrical & Mechanical Specification

Electrical Specifications
			R1 / R2
Frequency Range		MHz	617-960
Frequency Range		MHz	617-698	690-806	790-894	880-960
Polarization		—	±45°
Gain	at Mid Tilt	dBi	15.2	15.8	16.1	16.4
Gain	Over All Tilts	dBi	15.0 ± 0.5	15.6 ± 0.5	15.9 ± 0.5	16.2 ± 0.5
Horizontal Beamwidth		degree	73 ± 6.5	65 ± 6.5	59 ± 4.5	55 ± 6.5
Vertical Beamwidth		degree	10.5 ± 1.1	8.6 ± 0.9	7.8 ± 0.8	7.2 ± 0.8
Electrical Downtilt, Continuously Adjustable		degree	2-Dec
First Upper Side Lobe Suppression		dB	> 15	> 15	> 15	> 15
Front-To-Back Ratio ±30°		dB	> 23	> 25	> 25	> 25
Cross Polar Discrimination at Boresight		dB	> 16	> 18	> 18	> 18
Isolation	Cross-Polar	dB	> 25
Isolation	Port-To-Port	dB	> 25
Impedance		Ohm	50
VSWR		—	< 1.5
Return Loss		dB	> 14
PIM3 (2×43 dBm Carrier)		dBc	< -153
Lightning Protection		—	DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature		Watts	250

Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range		10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power	Standby	< 2 W
Consumption	In Motion	< 10 W
Connectors		2 x 8 Pin Circle Connector
Connectors		Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: GND
Lightning Protection Rating		IEC 61000-4-5 Current Pulse Profile
Lightning Protection Rating		Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Safety Standard		Compliant to EN 60950/UL 60950/RoHS, CE

Mechanical Specifications

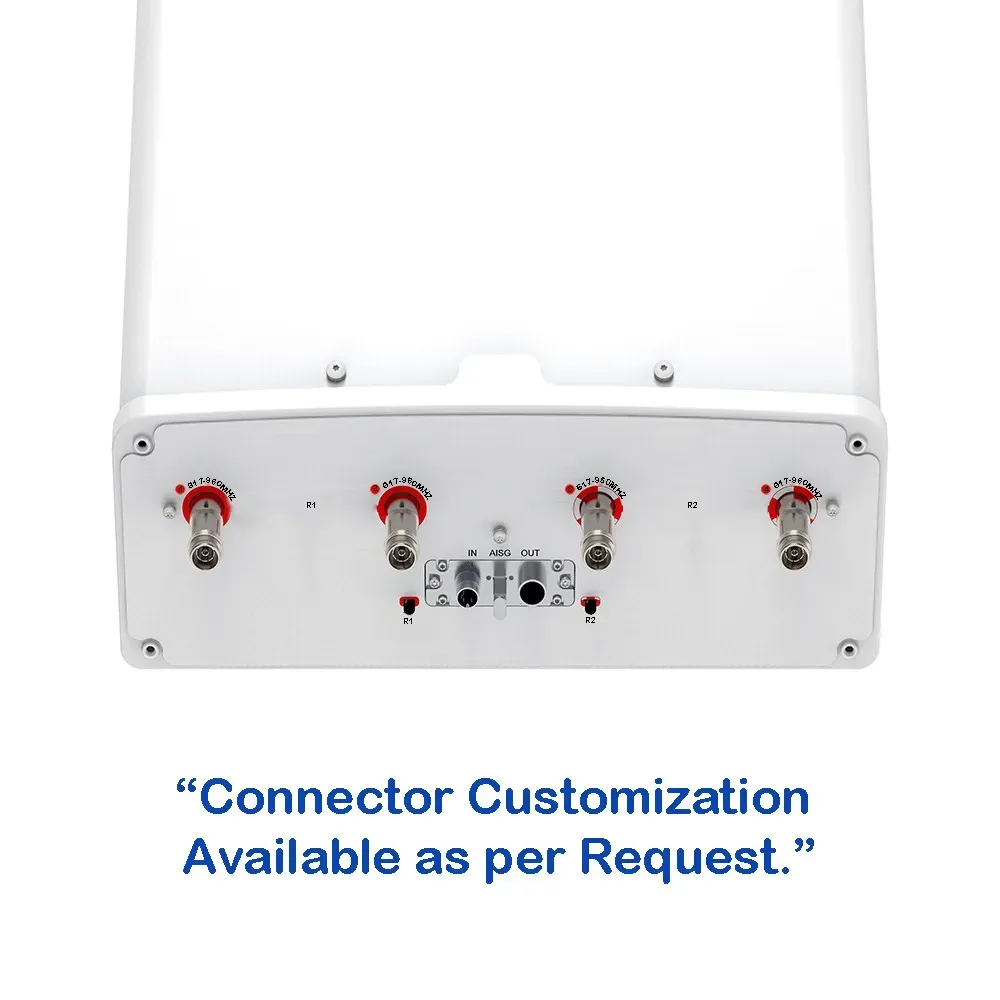

Connector Type		—	(4x) 4.3/10 Female
Connector Position		—	Bottom
Electrical Tilt Control		—	Integrated RET
Radome Material		—	Fiberglass

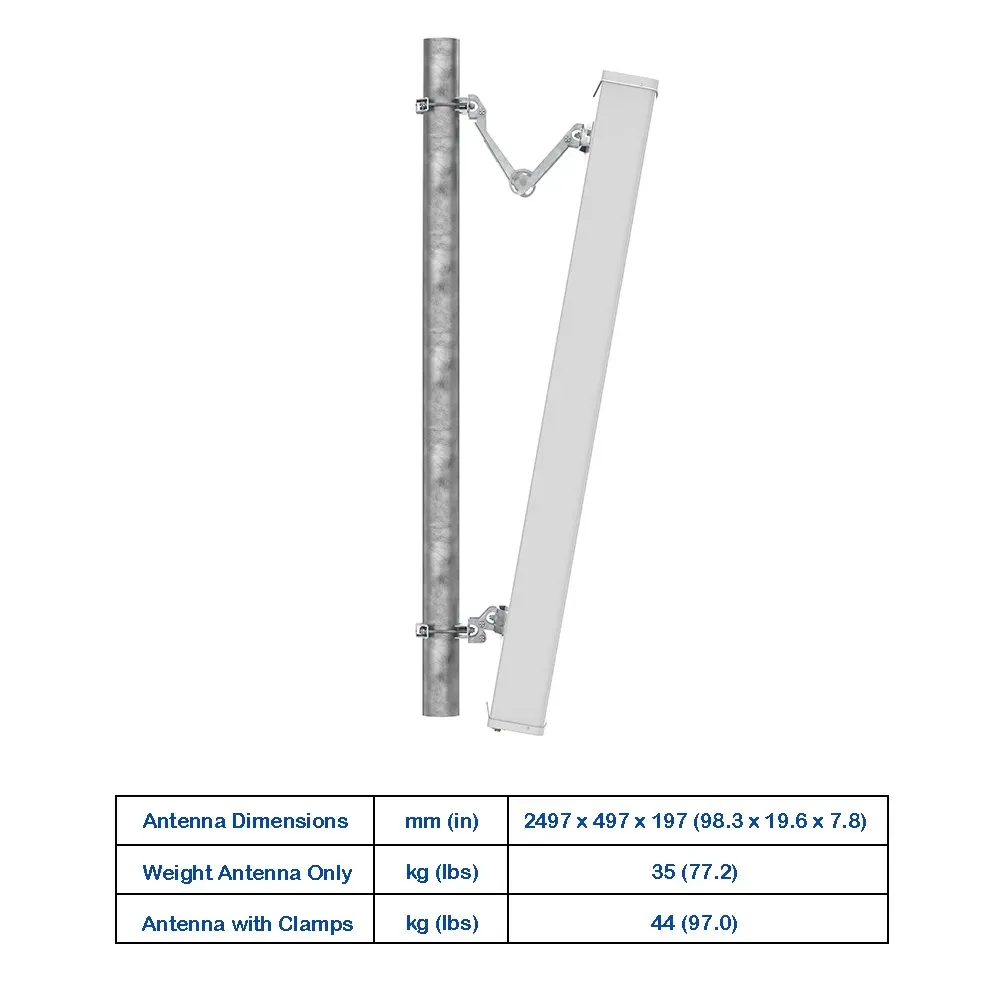

Antenna Dimensions (H x W x D)		mm (in)	2497 x 497 x 197 (98.3 x 19.6 x 7.8)
Antenna Weight	Antenna Only	kg (lbs)	35 (77.2)
Antenna Weight	with Clamps	kg (lbs)	44 (97.0)
Maximum Wind Speed		km/h (mph)	200 (124.3)
Wind Load	Frontal	N (lbf)	1145 (257.4)
at 150 km/h	Rear	N (lbf)	1280 (287.8)
	Lateral	N (lbf)	560 (125.9)
Operating Temperature		°C (°F)	-40 to +60 (-40 to +140)
