Product code: 4P-690-2690F-15G-70H15V

4-Port, Panel Sector Antenna, 65° HBW, 690-960/ 1695-2690 MHz, 15/18 dBi, 2-14°/2-12°T, 1.497 m

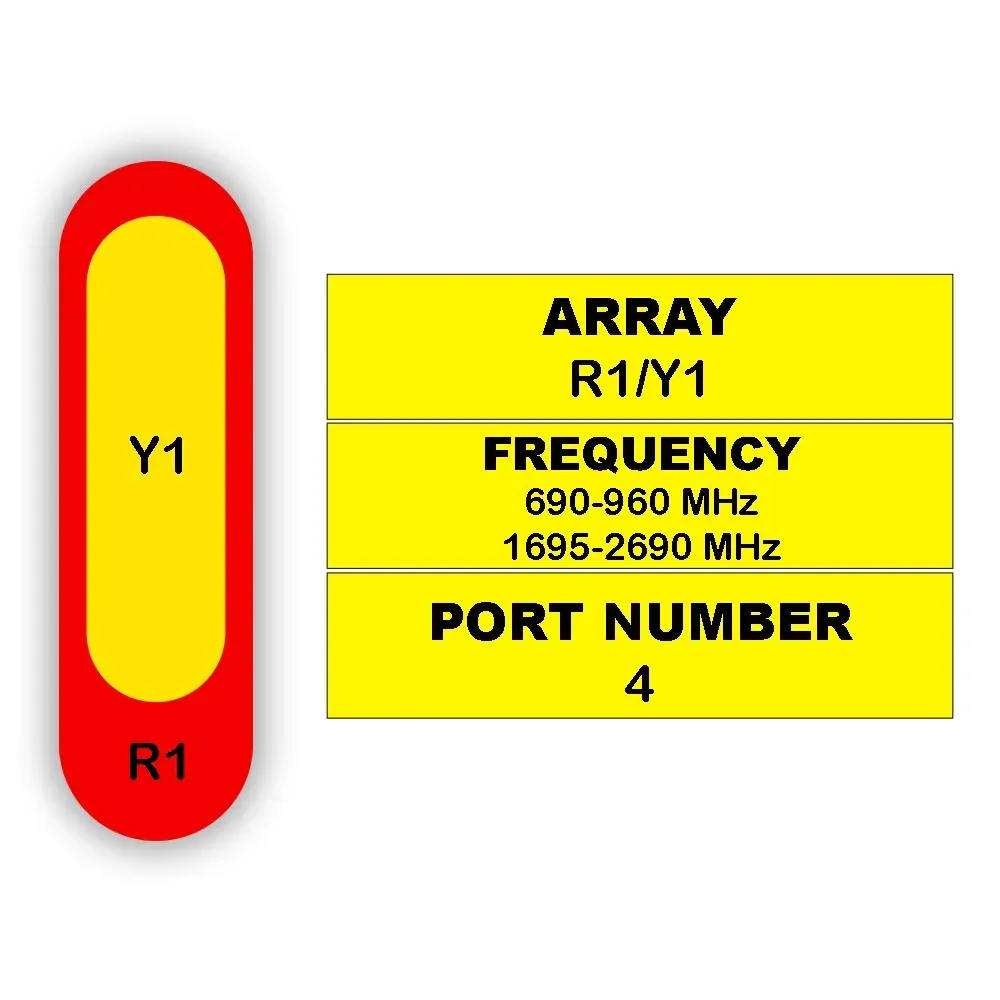

4-Port Antenna R1 Y1
Frequency Range 690-960 MHz 1695-2690 MHz
HBW 65° 65°
Gain 15 dBi 18 dBi
Tilt 2-14° 2-12°
Connectors (other connectors by request) (2x) 4.3/10 Female (2x) 4.3/10 Female
WhatsApp Chat
Skype
Product Part Number
4P-690-2690F-15G-70H15V
Electrical & Mechanical Specification
Electrical Specifications
R1Y1
Frequency RangeMHz690-9601695-2690
MHz690-806790-894880-9601695-18801850-19901920-21702300-24002490-2690
Polarization—±45°±45°
Gainat Mid TiltdBi14.114.414.816.616.917.217.417.3
Over All TiltsdBi13.9 ± 0.614.2 ± 0.614.6 ± 0.616.4 ± 0.616.7 ± 0.617.0 ± 0.617.2 ± 0.517.1 ± 0.6
Horizontal Beamwidthdegree70 ± 4.569 ± 4.568 ± 4.568 ± 6.564 ± 6.562 ± 6.558 ± 6.060 ± 6.5
Vertical Beamwidthdegree14.9 ± 1.213.6 ± 1.112.4 ± 1.17.0 ± 0.76.6 ± 0.66.2 ± 0.65.4 ± 0.54.8 ± 0.6
Electrical Downtilt, Continuously AdjustabledegreeFeb-142-Dec
Tilt Accuracydegree< 1< 1< 1< 1< 1< 1< 1< 1
Upper Side LobeFirst Upper LobedB> 15> 15> 15> 16> 16> 16> 16> 16
SuppressionPeak to 20°dB> 15> 15> 15> 15> 15> 15> 15> 15
Front-To-Back Ratio ±30°dB> 22> 23> 24> 24> 24> 25> 26> 26
Cross Polarat BoresightdB> 17> 17> 17> 15> 16> 16> 18> 18
DiscriminationOver SectordB> 8.0> 8.0> 8.0> 6> 7> 6> 5> 3
IsolationCross-PolardB> 26> 26
Port-To-PortdB> 28> 28
ImpedanceOhm5050
VSWR—< 1.5< 1.5
Return LossdB> 14> 14
PIM3 (2×43 dBm Carrier)dBc< -153< -153
Lightning Protection—DC GroundDC Ground
Maximum Average Input Power per Port, at 50° C Ambient TemperatureWatts250200
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware InterfacesRS485 and Power
Adjustment Time≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles> 20,000
Torque Maximum≥ 160 mN·m (@ 30RPM)
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Remote ControlCan manage from OMC, BTS/Node B
Daisy Chaining MethodReady for daisy-chaining
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
Housing Material / ColorAluminum / Grey
Operating Temperature-40° to +70° C (-40° to +158° F)
Storage Temperature-55° to +75° C (-67° to +167° F)
HumidityUp to 95%
IP RatingIP65
Weight≤ 500 g
Mechanical Specifications

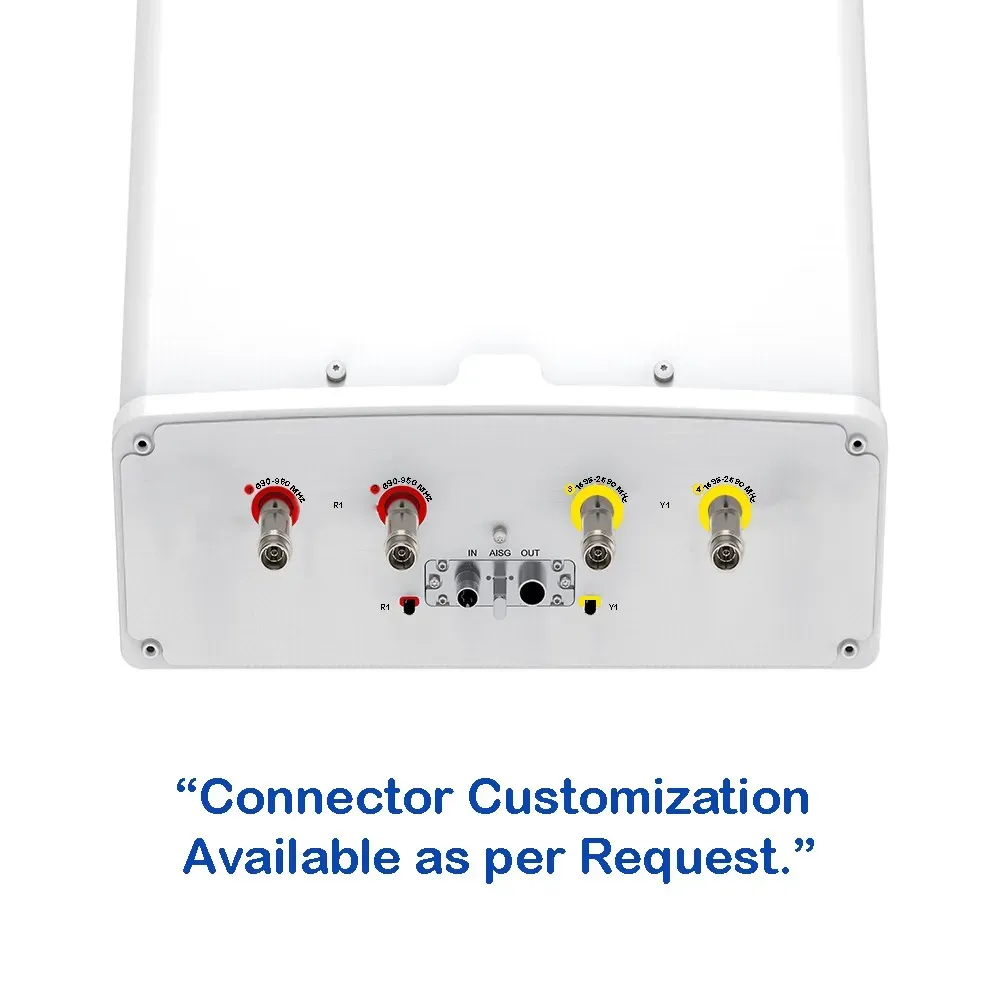

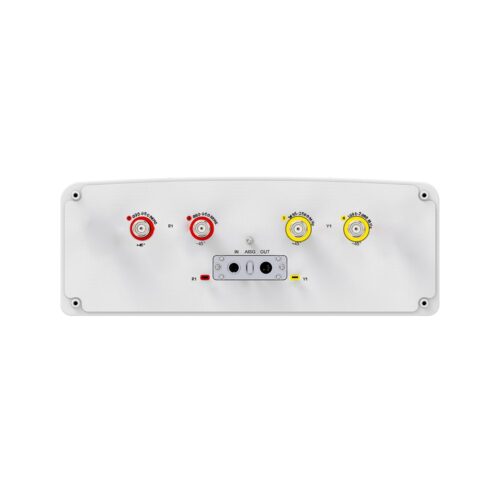

Connector Type—(4x) 4.3/10 Female
Connector Position—Bottom
Electrical Tilt Control—Integrated RET
Radome Material—Fiberglass
Antenna Dimensions (H x W x D)mm (in)1497 x 277 x 167 (58.9 x 10.9 x 6.6)
Antenna WeightAntenna Onlykg (lbs)15 (33.1)
with Clampskg (lbs)19 (41.9)
Maximum Wind Speedkm/h (mph)200 (124.3)
Wind LoadFrontalN (lbf)385 (86.6)
at 150 km/hRearN (lbf)430 (96.7)
LateralN (lbf)300 (67.4)
Operating Temperature°C (°F)-40 to +60 (-40 to +140)
