Product code: 4P-690-2690F-16G-70H11V

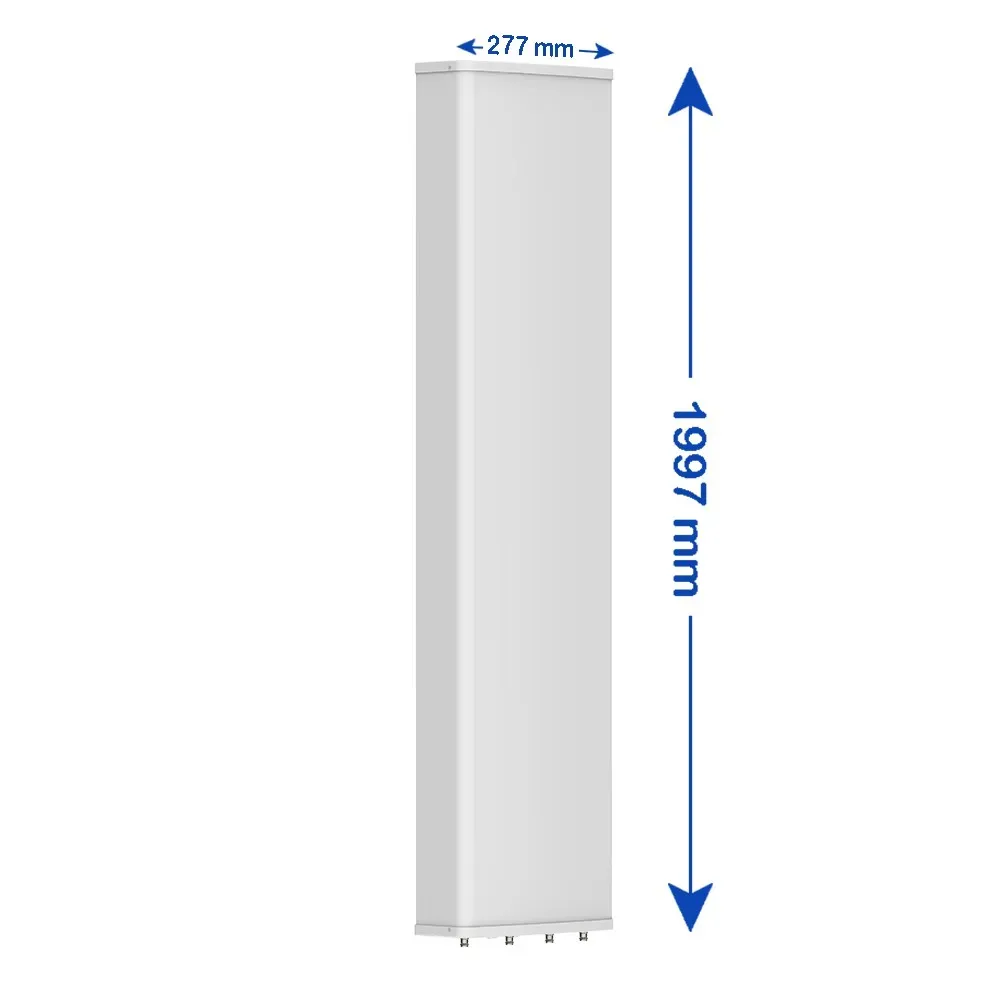

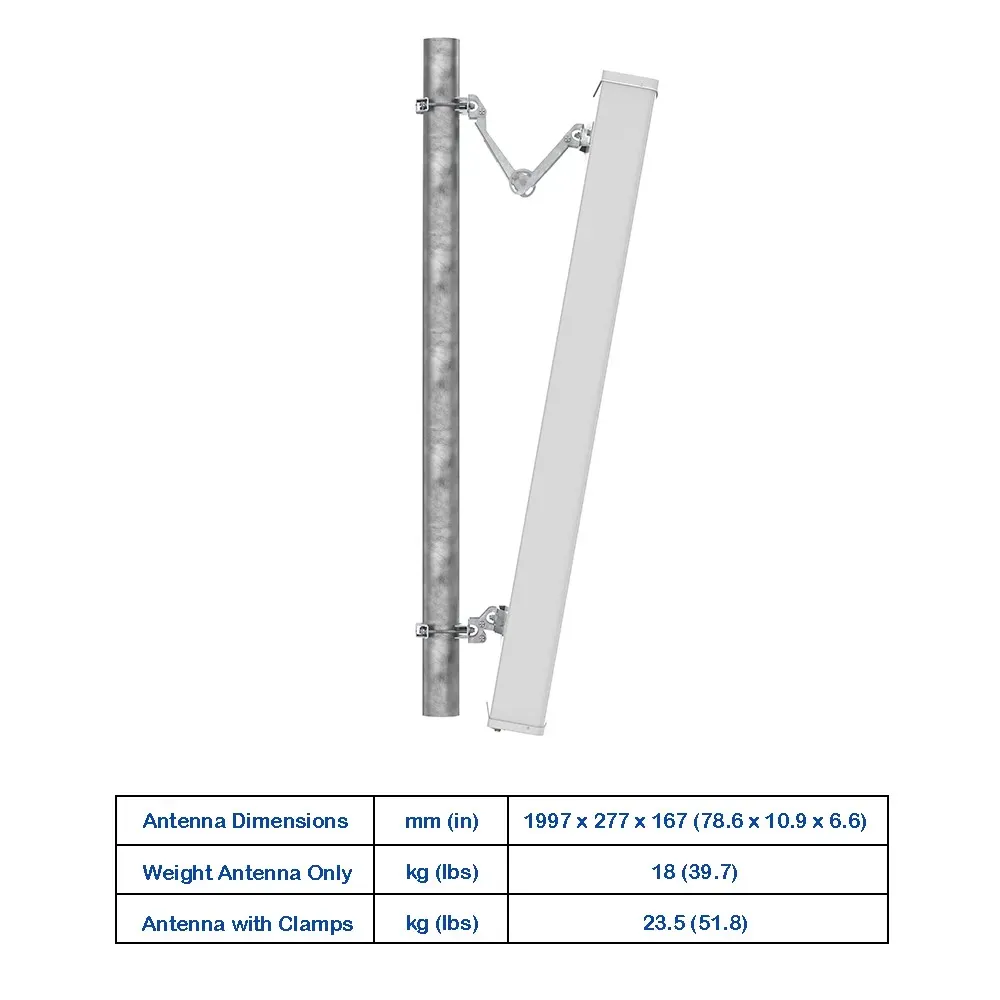

4-Port, Panel Sector Antenna, 65° HBW, 690-960/ 1695-2690 MHz, 16/18 dBi, 2-12°T, 1.997 m

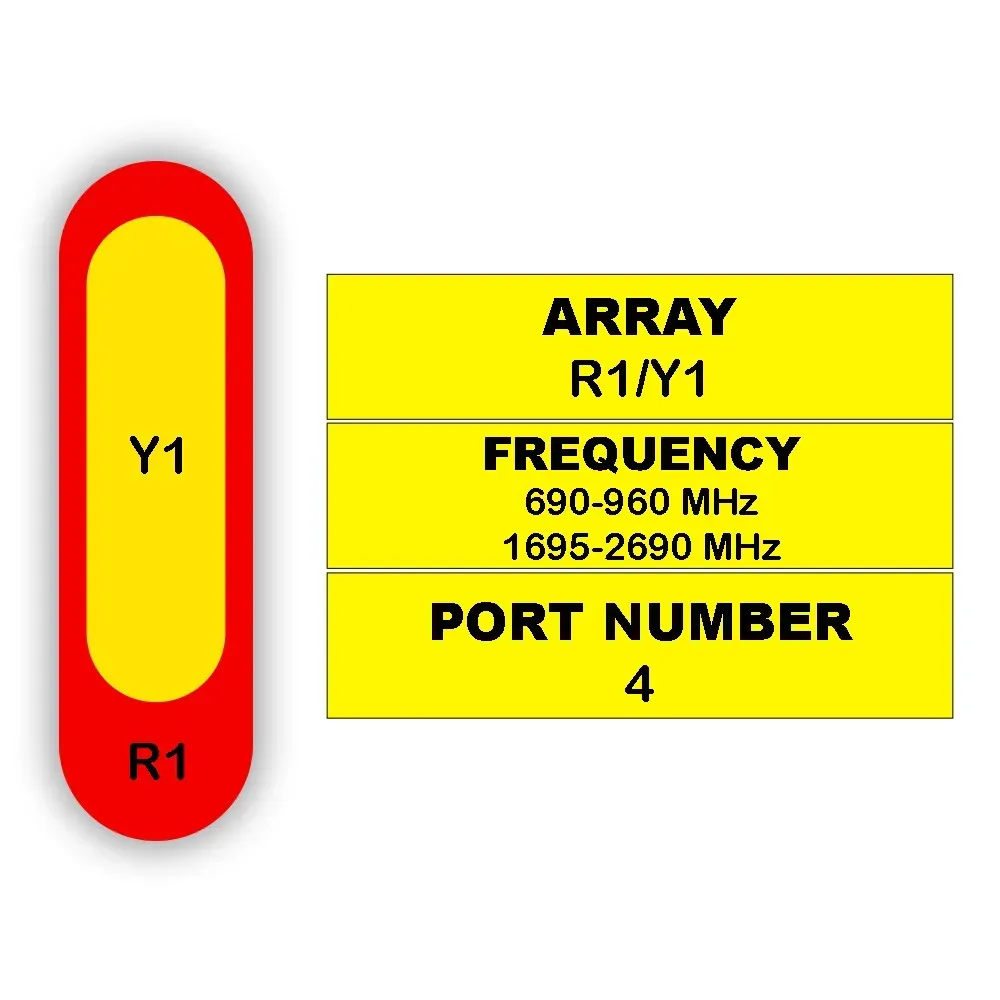

| 4-Port Antenna | R1 | Y1 |
| Frequency Range | 690-960 MHz | 1695-2690 MHz |
| HBW | 65° | 65° |
| Gain | 16 dBi | 18 dBi |
| Tilt | 2-12° | 2-12° |

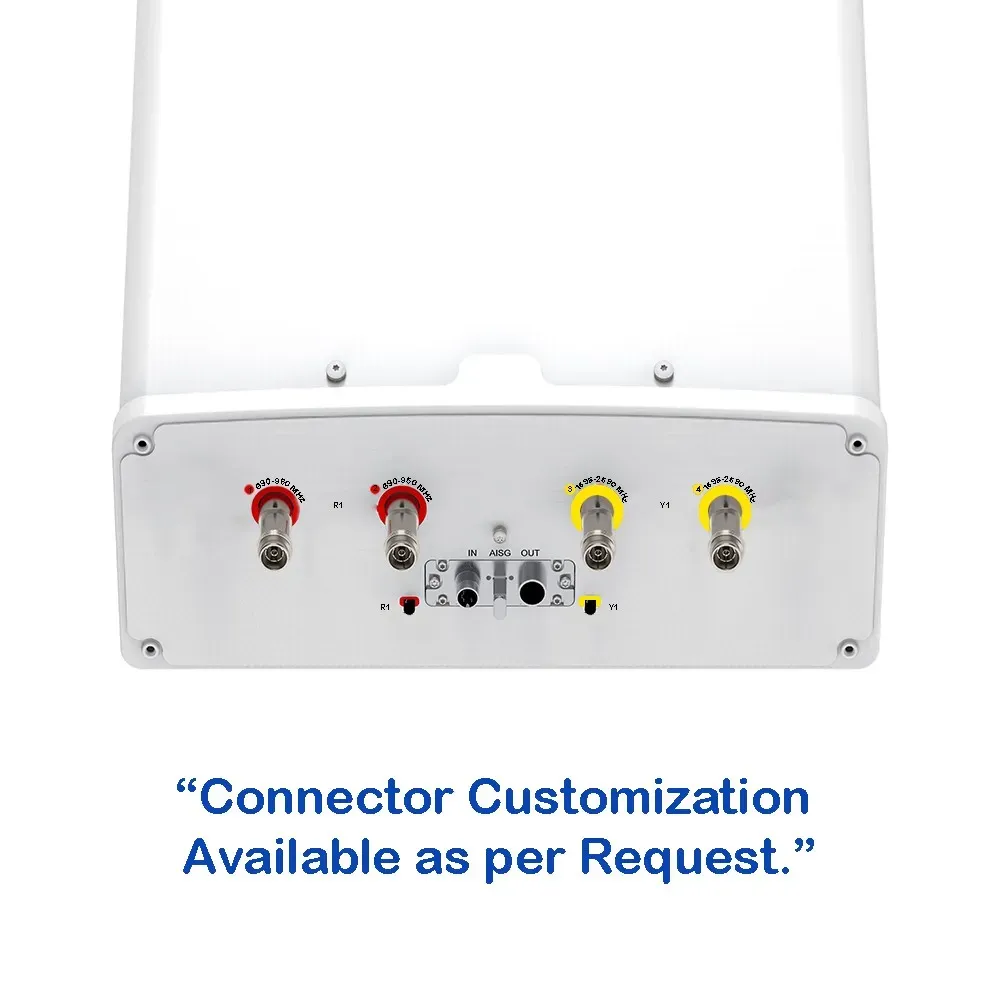

| Connectors (other connectors by request) | (2x) 4.3/10 Female | (2x) 4.3/10 Female |
4-Port, Panel Sector Antenna, 35° HBW, 698-960/698-960 MHz, 18/18 dBi, 2-12°T, 1.590 m
4-Port, Panel Sector Antenna, 35° HBW, 806-960/806-960 MHz, 16/16 dBi, 2-12°T, 1.515 m
4-Port, Panel Sector Antenna, 35° HBW, 698-960/698-960 MHz, 16/16 dBi, 2-15°T, 1.070 m
4-Port, Panel Sector Antenna, 33° HBW, 1710-2690/1710-2690 MHz, 22/22 dBi, 2-8°T, 1.997 m
4-Port, Panel Sector Antenna, 33° HBW, (2x) 1710-2690 MHz, 19/19 dBi, 2-12°T, 0.997 m
2-Port, Panel Sector Antenna, 65° HBW, 790-960/ 1710-2180 MHz, 15/17 dBi,
2-Port, Panel Sector Antenna, 65° HBW, 698-960 MHz, 14 dBi,
2-Port, Panel Sector Antenna, 45° HBW, 1710-2690 MHz, 19 dBi,
2-Port, Panel Sector Antenna, 45° HBW, 698-960 MHz, 17.5 dBi
2-Port, Panel Sector Antenna, 33° HBW, 698-960 MHz, 19 dBi Gain
