Product code: 4P-690-2690F-17G-70H8V
4-Port, Panel Sector Antenna, 65° HBW, 690-960/ 1695-2690 MHz, 17/18 dBi, 2-12°T, 2.497 m

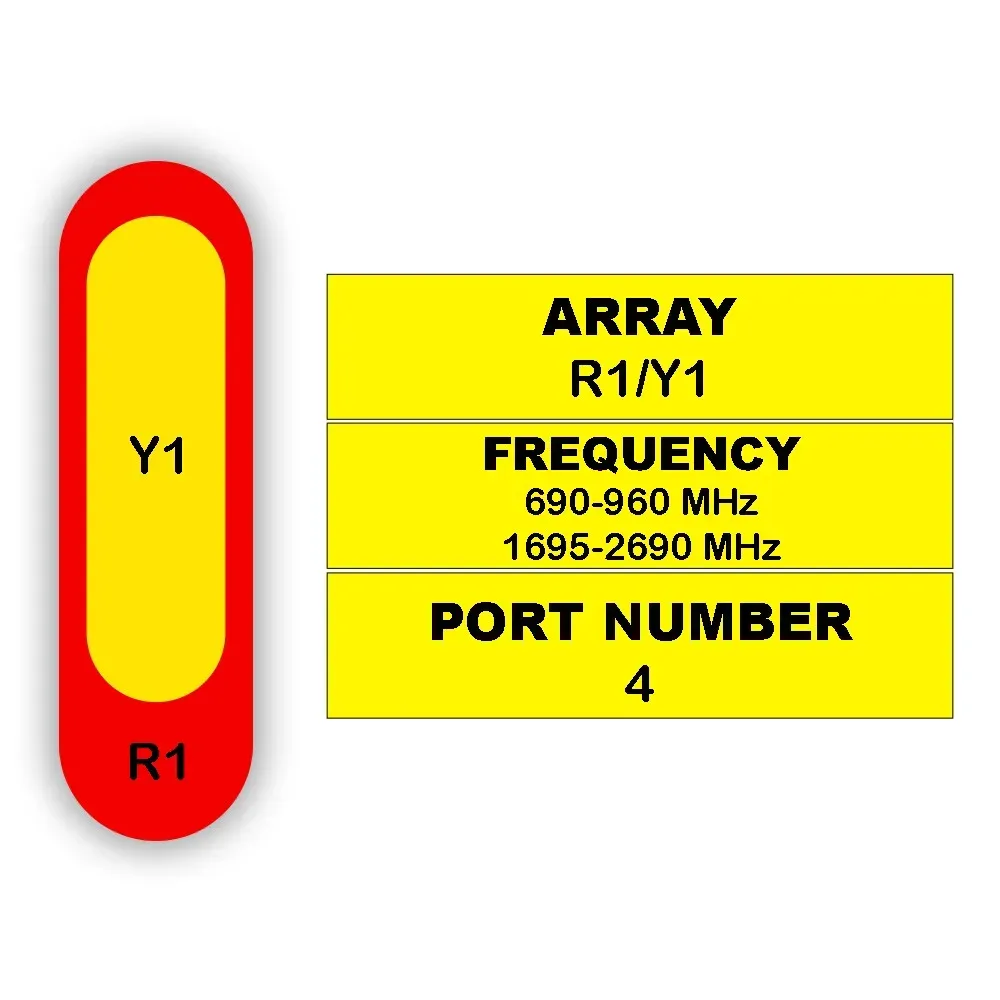

| 4-Port Antenna | R1 | Y1 |
| Frequency Range | 690-960 MHz | 1695-2690 MHz |
| HBW | 65° | 65° |
| Gain | 17 dBi | 18 dBi |
| Tilt | 2-12° | 2-12° |
| Connectors (other connectors by request) | (2x) 4.3/10 Female | (2x) 4.3/10 Female |
Product Part Number
4P-690-2690F-17G-70H8V
Electrical & Mechanical Specification
| Electrical Specifications | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| R1 | Y1 | |||||||||
| Frequency Range | MHz | 690-960 | 1695-2690 | |||||||
| MHz | 690-806 | 790-894 | 880-960 | 1695-1880 | 1850-1990 | 1920-2170 | 2300-2400 | 2490-2690 | ||
| Polarization | — | ±45° | ±45° | |||||||
| Gain | at Mid Tilt | dBi | 16 | 16.5 | 16.8 | 17 | 17.5 | 17.7 | 17.8 | 18 |
| Over All Tilts | dBi | 15.8 ± 0.6 | 16.3 ± 0.6 | 16.6 ± 0.6 | 16.8 ± 0.6 | 17.3 ± 0.6 | 17.5 ± 0.6 | 17.6 ± 0.5 | 17.8 ± 0.5 | |
| Horizontal Beamwidth | degree | 69 ± 4.2 | 67 ± 4.2 | 65 ± 4.7 | 67 ± 6.5 | 66 ± 6.5 | 62 ± 6.5 | 63 ± 6.0 | 63 ± 6.5 | |
| Vertical Beamwidth | degree | 8.8 ± 0.9 | 7.7 ± 0.6 | 7.2 ± 0.6 | 7.4 ± 0.7 | 6.8 ± 0.6 | 6.2 ± 0.6 | 5.4 ± 0.5 | 4.8 ± 0.6 | |
| Electrical Downtilt, Continuously Adjustable | degree | 2-Dec | 2-Dec | |||||||
| Tilt Accuracy | degree | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | |
| Upper Side Lobe | First Upper Lobe | dB | > 18 | > 18 | > 18 | > 18 | > 18 | > 18 | > 18 | > 18 |
| Suppression | Peak to 20° | dB | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 |
| Front-To-Back Ratio ±30° | dB | > 23 | > 24 | > 25 | > 25 | > 25 | > 25 | > 26 | > 26 | |
| Cross Polar | at Boresight | dB | > 17 | > 17 | > 17 | > 15 | > 16 | > 16 | > 18 | > 18 |
| Discrimination | Over Sector | dB | > 7.0 | > 8.0 | > 7.0 | > 6 | > 7 | > 6 | > 5 | > 3 |
| Isolation | Cross-Polar | dB | > 28 | > 28 | ||||||
| Port-To-Port | dB | > 28 | > 28 | |||||||
| Impedance | Ohm | 50 | 50 | |||||||
| VSWR | — | < 1.5 | < 1.5 | |||||||
| Return Loss | dB | > 14 | > 14 | |||||||
| PIM3 (2×43 dBm Carrier) | dBc | < -153 | < -153 | |||||||
| Lightning Protection | — | DC Ground | DC Ground | |||||||
| Maximum Average Input Power per Port, at 50° C Ambient Temperature | Watts | 250 | 200 | |||||||
| Integrated RET Specifications | ||||||||||
| Protocols | Compliant to AISG v2.0 and 3GPP | |||||||||
| Supply Voltage Range | 10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0 | |||||||||
| Power | Standby | < 2 W | ||||||||
| Consumption | In Motion | < 10 W | ||||||||
| Connectors | 2 x 8 Pin Circle Connector | |||||||||
| Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return | ||||||||||
| Female Connector: 8 PINs; Male Connector: 5 PINs | ||||||||||
| Lightning Protection Rating | IEC 61000-4-5 Current Pulse Profile | |||||||||
| Line to Ground: 8/20 µs @ 8 kA ≥ ±5 | ||||||||||
| Safety Standard | Compliant to EN 60950/UL 60950/RoHS, CE | |||||||||
| Mechanical Specifications | ||||||||||

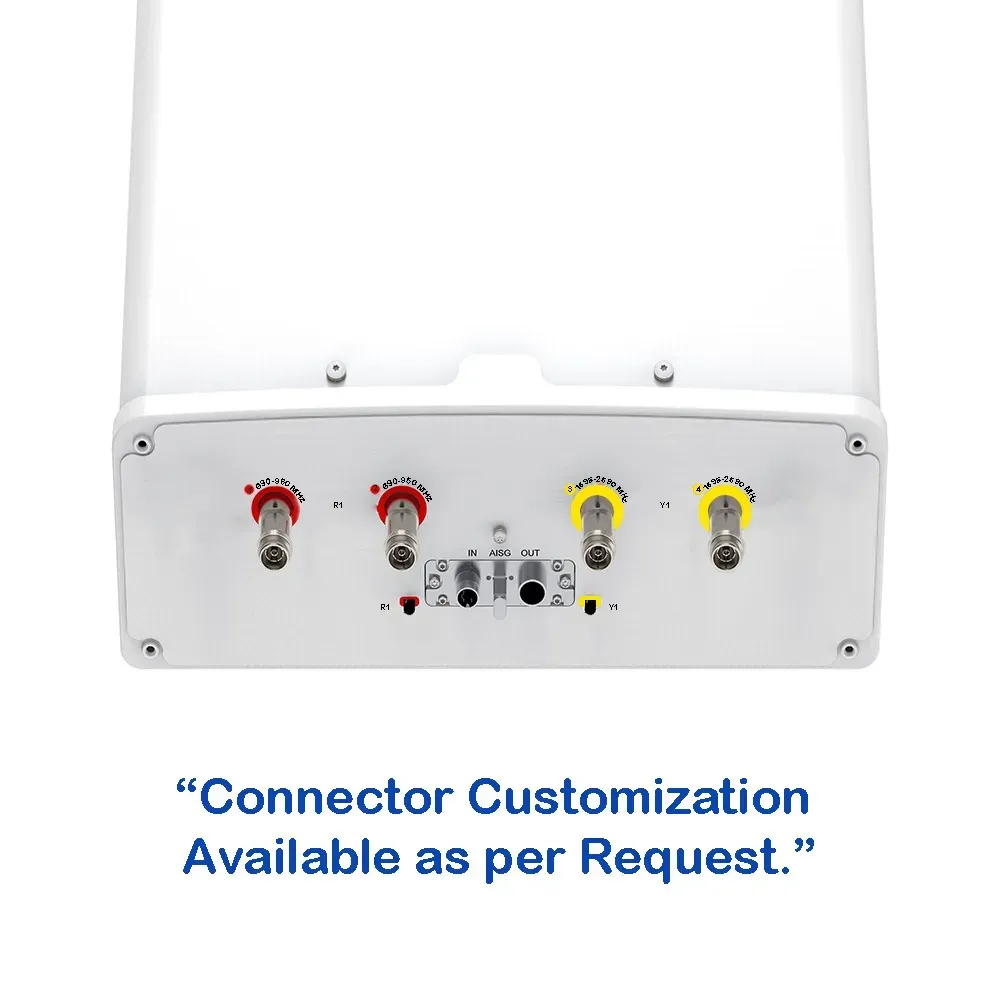

| Connector Type | — | (4x) 4.3/10 Female | ||||||||
| Connector Position | — | Bottom | ||||||||
| Electrical Tilt Control | — | Integrated RET | ||||||||
| Radome Material | — | UPVC | ||||||||
| Antenna Dimensions (H x W x D) | mm (in) | 2497 x 277 x 167 (98.3 x 10.9 x 6.6) | ||||||||
| Antenna Weight | Antenna Only | kg (lbs) | 21.5 (47.4) | |||||||
| with Clamps | kg (lbs) | 25.5 (56.2) | ||||||||
| Maximum Wind Speed | km/h (mph) | 200 (124.3) | ||||||||
| Wind Load | Frontal | N (lbf) | 640 (143.9) | |||||||
| at 150 km/h | Rear | N (lbf) | 715 (160.7) | |||||||
| Lateral | N (lbf) | 505 (113.5) | ||||||||
| Operating Temperature | °C (°F) | -40 to +60 (-40 to +140) | ||||||||
